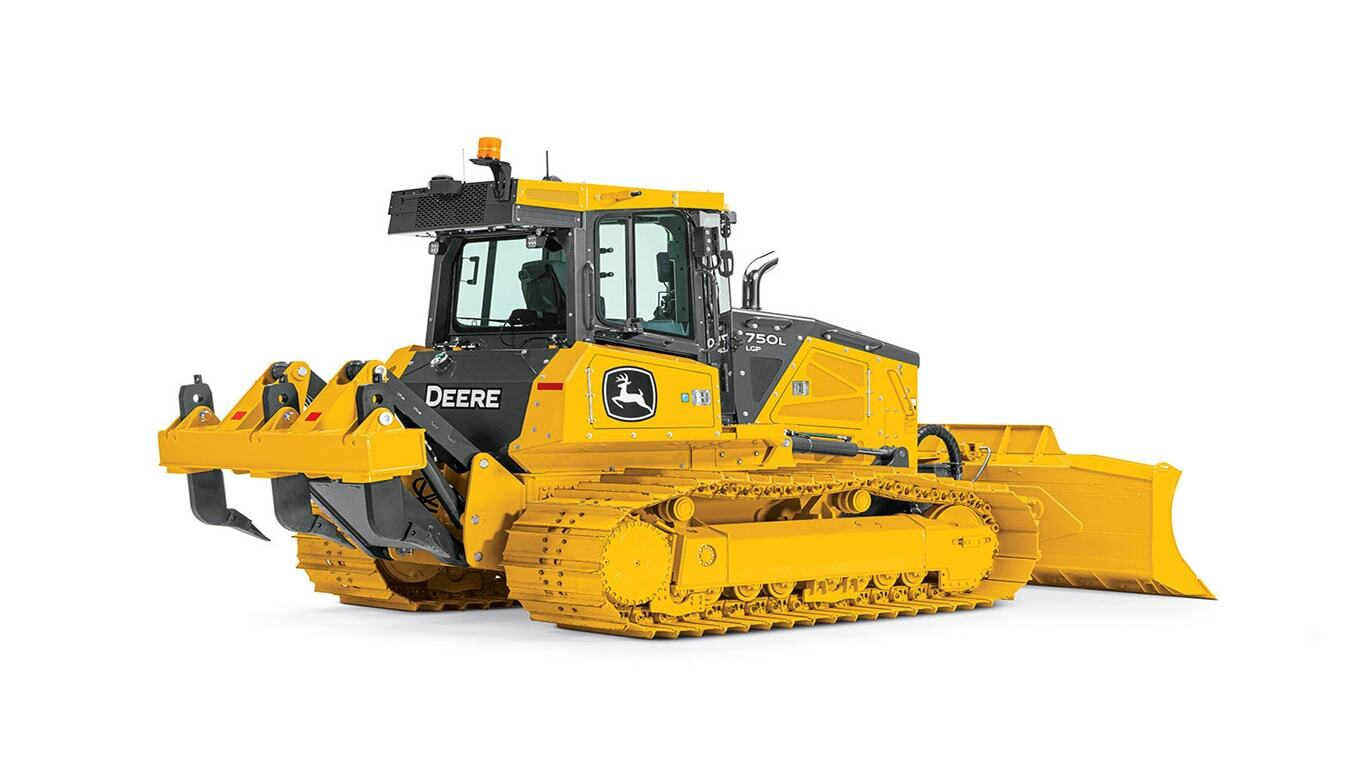

John Deere 750L

750L Crawler Dozer

  • John Deere
  • Crawler Dozers

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Net Power: 131 kW (175 hp) at 1,700 rpm
  • Operating Weight: 17 041-18 162 kg (37,569-40,040 lb.)
  • Track on Ground: 2604-3093 mm (103 in. -122 in.)
  • Engine Net Power 131 kW (175 hp) at 1,700 rpm
  • Track on Ground 2604-3093 mm (103 in. -122 in.)
  • Operating Weight 17 041-18 162 kg (37,569-40,040 lb.)
  • Blade Width Range -
  • + Expand All
  • - Close All
  • Engine
    • 6 Cylinder, John Deere PowerTechTM PVS 6068 6.8L engine
    • EPA Final Tier 4/EU Stage V
    • Delivers highest horsepower in its size class
  • Grade Control Ready

    SmartGrade ™ and SmartGrade-ready including Slope Control options help operators achieve finish grades with less effort and fewer corrections

    • Optional SmartGrade-ready including Slope Control provides simple-to-use grade control that allows operators to set and hold a grade or slope through terrain changes
    • Optional SmartGrade 3D grade control combines powerful mastless technology with our track load-sensing system
  • Productivity
    • New 161-inch blade option allows you to cover larger jobsites in fewer passes
    • Twelve-percent more productive in backfilling applications than its closest competitor
    • Optional LED lighting package for when you need to work before or after daylight
  • Cabs & Controls
    • Standard EH controls make it easy to add the grade-control system of your choice
    • Larger, quieter cab than its predecessor with a 50% reduction in noise
    • Wide expanse of glass, low streamlined hood and larger doors provide better visibility to the blade
    • Optional premium leather-accented heated/ventilated seat feature pan tilt, pan extend, lumber adjustment, and air suspension with full damping capability
    • Optional automatic temperature control (ATC) system
    • Optional rearview camera
  • Maintenance
    • Enlarged service doors provide quick access to conveniently located checkpoints and filters
    • Routing of the electrical and hydraulic systems is simplified to nearly eliminate wear points
    • Extended hydraulic and hydrostatic oil-change intervals from 2,000 to 4,000 hours help further minimize maintenance and expense

CAPACITIES

Blade - Capacity, m³ (yd³) 4.3 (5.6)
Hydraulic Tank, ltr (gallons (US)) 98 (25.9)
Fuel Tank, ltr (gallons (US)) 370 (97.7)
