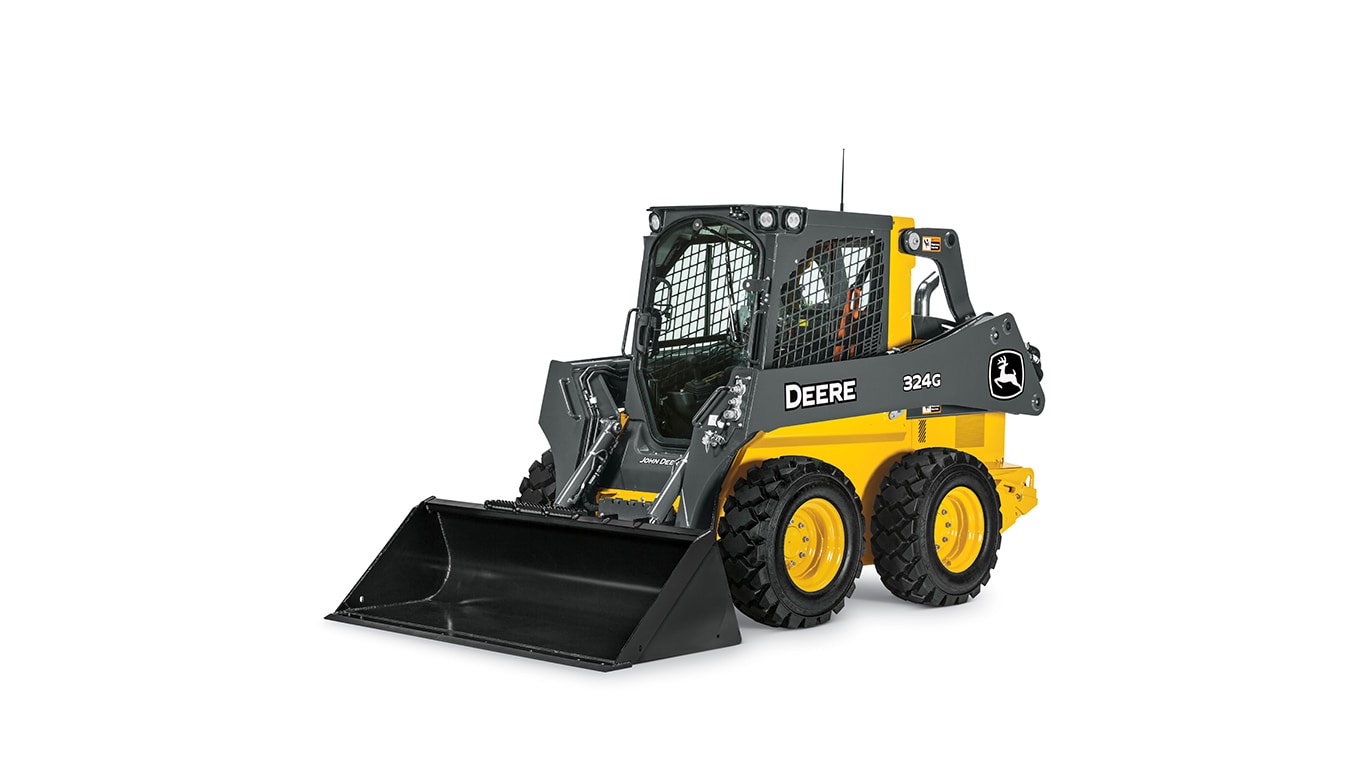

John Deere 324G

324G Skid Steer

John Deere
Skid Steers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Request Quote Apply For Financing

Key Features & Specs

Rated Operating Capacity: 1221 kg (2,690 lb.)
Gross Horsepower: 55.0 kW (74 hp)
Net Horsepower: 52.5 kW (70 net hp)
Operating Weight: 3496 kg (7,700 lb.)

BUCKET BREAKOUT FORCE 2724 kg (6,000 lb.)
RATED OPERATING CAPACITY 1221 kg (2,690 lb.)
LIFT HEIGHT 3.20 m (126.0 in.) (10 ft. 6 in.)
OPERATING WEIGHT 3496 kg (7,700 lb.)
NET HORSEPOWER 52.5 kW (70 hp)
GROSS HORSEPOWER 55.0 kW (74 hp)

Features
Specifications

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))

79 (21)

DESCRIPTION

Proximity Guidance	No
Lift Geometry	Vertical
Fleet Management	Yes
Precision Guidance	No

DIMENSIONS

Width - No Bucket, mm (inches)	1700 (67)
Rear Departure Angle, Degrees	28
Ground Clearance, mm (inches)	240 (9.3)
Wheelbase, mm (inches)	1120 (44.2)
Height to Hinge Pin, mm (inches)	3200 (126)
Overall Height, mm (inches)	2060 (81.1)
Length - No Bucket, mm (inches)	2850 (112.3)
Reach - Max Dump Height Foundry, mm (inches)	760 (29.9)
Dump Height - Maximum Foundry, mm (inches)	2590 (102.1)
Rollback - Ground Level, Degrees	34
Length - With Bucket Foundry, mm (inches)	3460 (136.3)
Dump Angle, Degrees	41

DRIVELINE

SAE Net Power, kW (hp)	52.5 (70)
Max. Gross Torque, Nm (lbf / ft)	280 (207)
Drive Chain Rating [ANSI]	80 - HD
Engine Manufacturer	Yanmar
Aspiration	Turbo
SAE Gross Power, kW (hp)	55 (74)
Engine Model	4TNV98CT
Emission Rating	Tier 4
Tire size - Standard	12 - 16.5 - 12 PR SKS
Displacement, ltr (Inches³)	3.3 (203)
Rated Speed, rpm	2500

PERFORMANCE

Speed - Maximum Option, kph (mph)	17.9 (11.1)
System Pressure, bar (PSI)	237.87 (3450)
Axle Torque - Maximum, Nm (lbf / ft)	6771 (4994)
Rated Operating Capacity - Foundry, kg (lbs)	1221 (2690)
Tipping Load - Foundry, kg (lbs)	2443 (5380)
Hydraulic Power - Option, kW (hp)	47.103 (63.1)
Breakout - Bucket Foundry, kN (lbf)	38.9 (8750)
Breakout - Lift Foundry, kN (lbf)	23.3 (5250)
Hydraulic Power, kW (hp)	31.009 (41.5)
Pump Output, lt/min (gallons (US) / min)	78 (21)
Pump Flow - Option, lt/min (gallons (US) / min)	120 (32)
Speed - Maximum, kph (mph)	11.1 (6.9)

WEIGHTS

Operating Weight - Foundry, kg (lbs)

3496 (7700)
