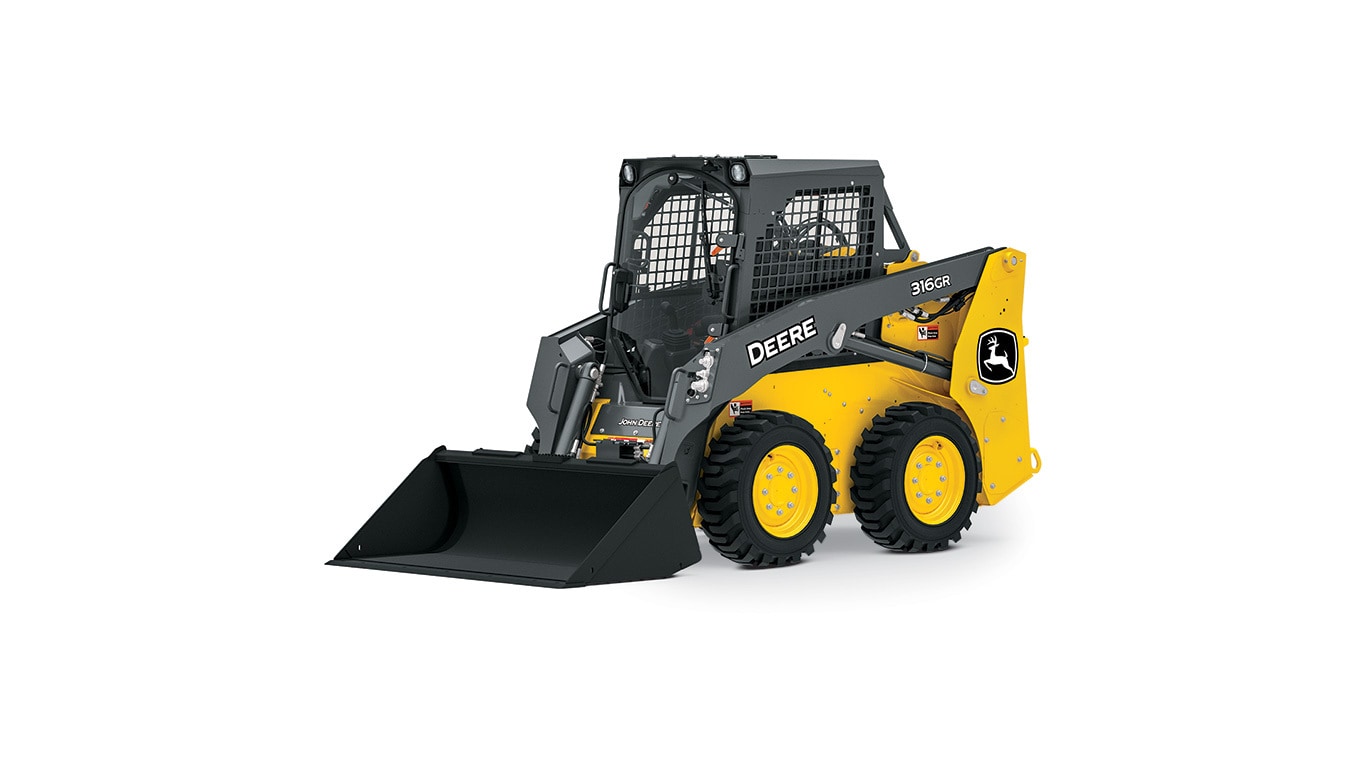

John Deere 316GR

316GR Skid Steer

John Deere
Skid Steers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Request Quote Apply For Financing

Key Features & Specs

Rated Operating Capacity: 795 kg (1,750 lb.)
Gross Horsepower: 48.5 kW (65 hp)
Net Horsepower: 45.6 kW (61 hp)
Operating Weight: 2806 kg (6,180 lb.)

RATED OPERATING CAPACITY 795 kg (1,750 lb.)
GROSS HORSEPOWER 48.5 kW (65 hp)
NET HORSEPOWER 45.6 kW (61 hp)
LIFT HEIGHT 2.92 m (115.1 in.)(9 ft. 7 in.)
BUCKET BREAKOUT FORCE 1816 kg (4,000 lb.)
OPERATING WEIGHT 2806 kg (6,180 lb.)

Features
Specifications

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Fuel Tank, ltr (gallons (US))

71 (19)

DESCRIPTION

Lift Geometry

Radial

DIMENSIONS

Length - No Bucket, mm (inches)	2630 (103)
Width - No Bucket, mm (inches)	1600 (62.9)
Overall Height, mm (inches)	1960 (77.2)
Ground Clearance, mm (inches)	180 (7)
Wheelbase, mm (inches)	1050 (41.5)
Height to Hinge Pin, mm (inches)	2920 (115.1)
Dump Angle, Degrees	45
Reach - Max Dump Height Foundry, mm (inches)	400 (15.8)
Rear Departure Angle, Degrees	22.3
Length - With Bucket Foundry, mm (inches)	3240 (127.6)
Rollback - Ground Level, Degrees	30
Dump Height - Maximum Foundry, mm (inches)	2250 (88.6)

DRIVELINE

Engine Manufacturer	Yanmar
Engine Model	4TNV86CHT
SAE Net Power, kW (hp)	45.6 (61)
SAE Gross Power, kW (hp)	48.5 (65)
Max. Gross Torque, Nm (lbf / ft)	207 (153)
Aspiration	Turbocharger
Displacement, ltr (Inches³)	2.1 (128)
Tire size - Standard	10 - 16.5
Rated Speed, rpm	2600

PERFORMANCE

System Pressure, bar (PSI)	237.87 (3450)
Hydraulic Power, kW (hp)	24.729 (33.1)
Breakout - Bucket Foundry, kN (lbf)	23.3 (5250)
Speed - Maximum, kph (mph)	11.1 (6.9)
Breakout - Lift Foundry, kN (lbf)	21.1 (4750)
Pump Output, lt/min (gallons (US) / min)	63 (17)
Rated Operating Capacity - Foundry, kg (lbs)	795 (1750)
Tipping Load - Foundry, kg (lbs)	1589 (3500)

WEIGHTS

Operating Weight - Foundry, kg (lbs)

2806 (6180)
