Key Features & Specs

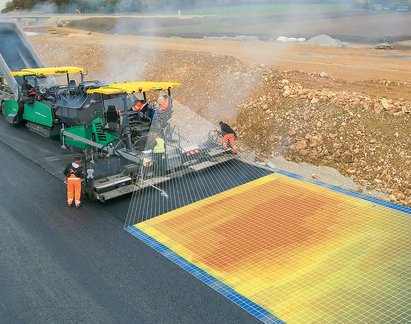

Keeping an eye on quality with VÖGELE RoadScan

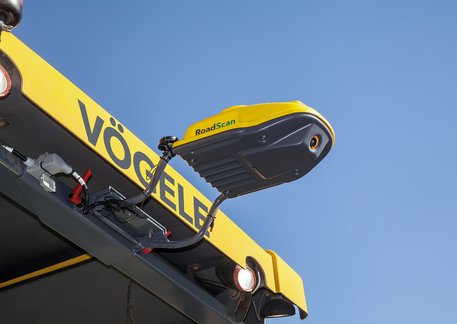

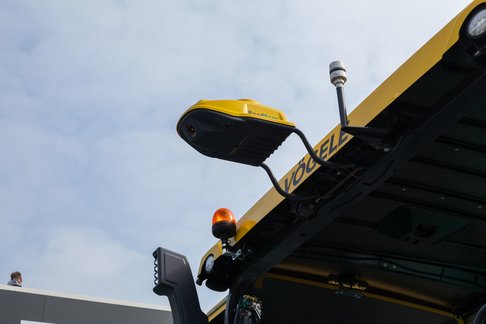

VÖGELE’s RoadScan non-contacting temperature measurement system is an innovative and economic solution for the road construction industry. Making quality measurable is one of the big challenges facing contractors and clients worldwide. In road construction, it is particularly important to verify that a constant paving temperature has been maintained, as this is a key criteria for ensuring the quality and durability of roads. As a result, the significance of temperature monitoring across the entire pavement is currently on the rise in an increasing number of markets.

Specifications
Documents

Select a category to view specifications (or view all).

GENERAL

Size of grid square	25 cm x 25 cm
Product category	Hardware: temperature measurement system / Software: RoadScan Analysis (web application)
Individual measuring points (up to)	16
Measuring area	40 grid squares
Transmission	USB
Measuring points per measuring line (up to)	640
GPS receiver	integrated (EGNOS standard, RTK optional)
Measuring width	up to 32 ft 10 in
Positioning	GPS
Control	Paver operator‘s ErgoPlus 3 console
Measurement tolerance	± 4 K
Measuring range	32°F - 482°F
