Key Features & Specs

The most powerful screed in the VÖGELE product range

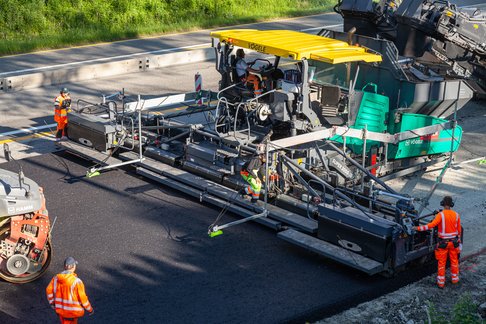

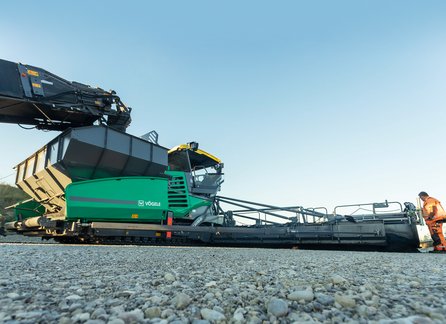

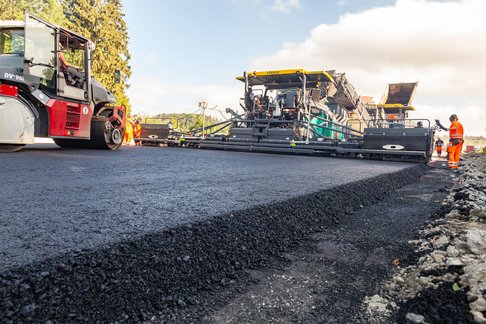

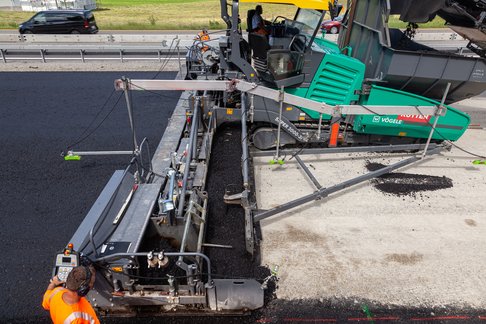

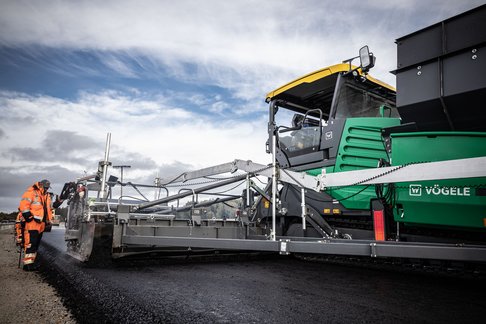

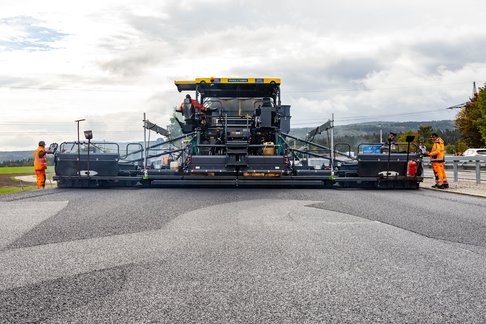

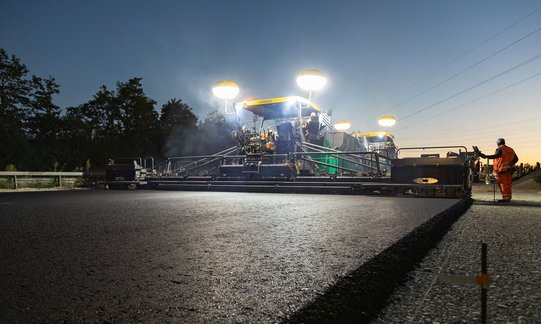

Fixed-width screeds from VÖGELE deliver absolutely high-quality, perfectly even results. Their strengths come to the fore when laying down asphalt across pave large widths and thick base courses. The SB 350 Fixed-Width Screed was specially designed for the SUPER 3000-3(i). They offer a wide range of applications, covering pave widths of 3.5m to 18m and layer thicknesses of up to 50cm.

  • + Expand All
  • - Close All
  • Manufacturing Technology

    VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.

  • Compaction technology

    VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.

  • Heating System

    VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.

  • High-compaction technology

    The pressure bars driven by pulsed-flow hydraulics are the core of VÖGELE high-compaction technology. By combining screed versions TP1, TP2 and TP2 Plus with this unique technology, our pavers achieve maximum compaction values. Compaction performances of over 98% can be achieved with VÖGELE’s unique high-compaction technology – without rolling.

COMPACTING SYSTEMS

Vibrators (V) eccentric vibrators
Stroke, optional hydraulic (TV, TP1, TP2) 0.16 in, 0.31 in
Compacting systems TV, TP1, TP2
Frequency (max.) 50 Hz
Pressure bar pulse frequency (P) (max.) 68 Hz
Stroke, standard (TV, TP1, TP2) 0.08 in, 0.16 in, 0.28 in
Hydraulic oil pressure (max.) 1,740 psi
Pressure bar drive (P) pulsed hydraulic
Speed (max.) 1,800 rpm
