Key Features & Specs

The specialist in jointless paving

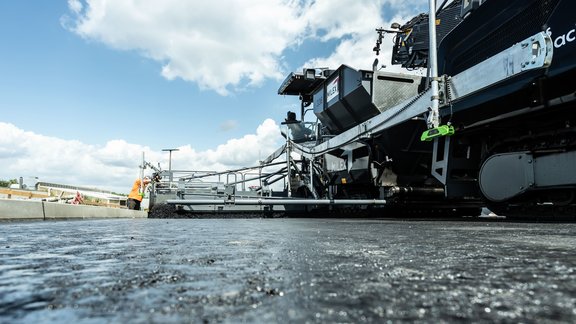

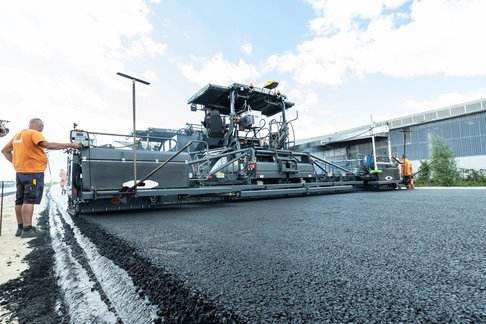

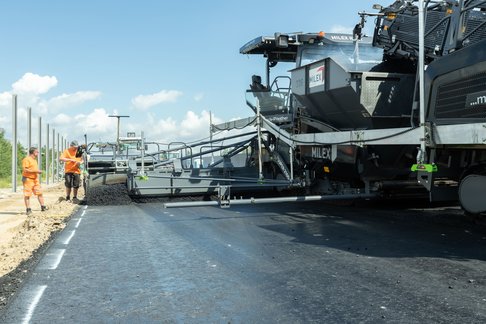

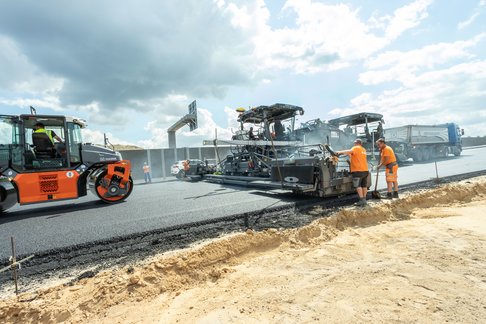

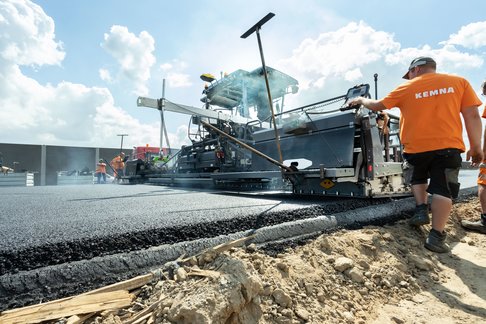

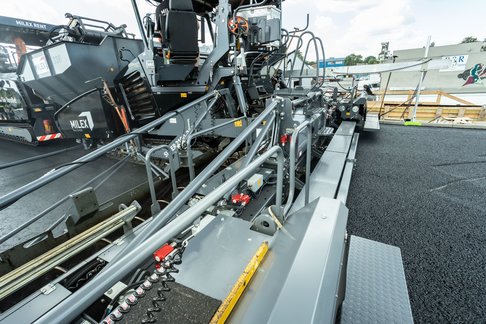

Fixed-width screeds from VÖGELE deliver absolutely high-quality, perfectly even results. Their strengths come to the fore when laying down asphalt across pave large widths and thick base courses. The SB 300 Fixed-Width Screed offers a wide range of applications, covering pave widths of 3m to 16m and layer thicknesses of up to 50cm, depending on the tractor unit.

  • + Expand All
  • - Close All
  • Manufacturing Technology

    VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.

  • High-compaction technology

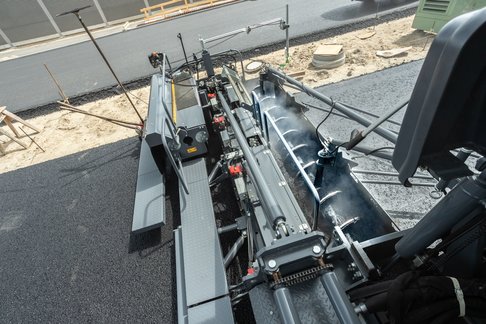

    The pressure bars driven by pulsed-flow hydraulics are the core of VÖGELE high-compaction technology. By combining screed versions TP1, TP2 and TP2 Plus with this unique technology, our pavers achieve maximum compaction values. Compaction performances of over 98% can be achieved with VÖGELE’s unique high-compaction technology – without rolling.

  • Compaction technology

    VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.

  • Heating System

    VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.

COMPACTING SYSTEMS

Vibrators (V) eccentric vibrators
Stroke, optional hydraulic (TV, TP1, TP2) 0.16 in, 0.31 in
Pressure bar drive (P) pulsed hydraulic
Stroke, standard (TV, TP1, TP2) 0.08 in, 0.16 in, 0.28 in
Pressure bar pulse frequency (P) (max.) 68 Hz
Frequency (max.) 50 Hz
Hydraulic oil pressure (max.) 1,740 psi
Speed (max.) 1,800 rpm
Compacting systems TV, TP1, TP2
