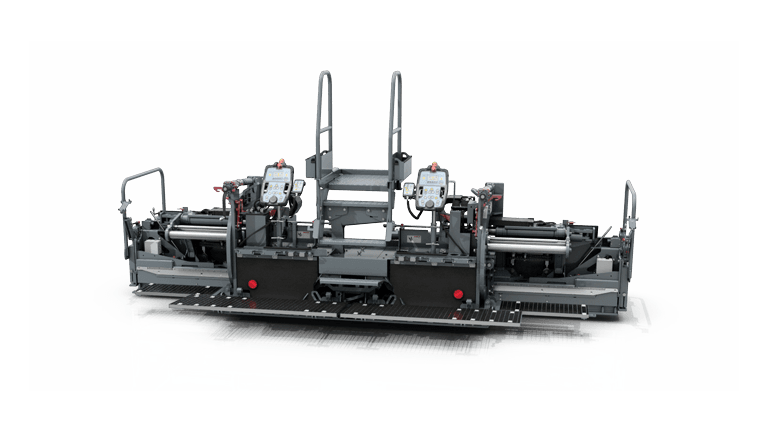

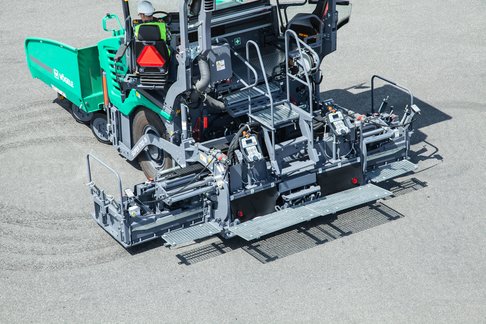

VÖGELE extending screed with front-mounted extensions

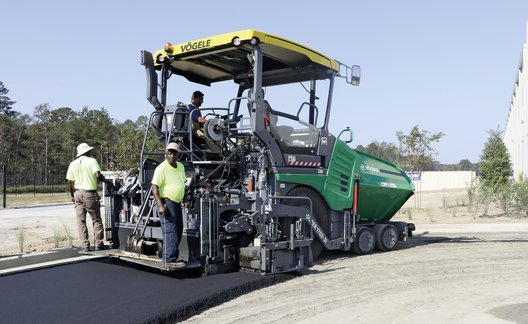

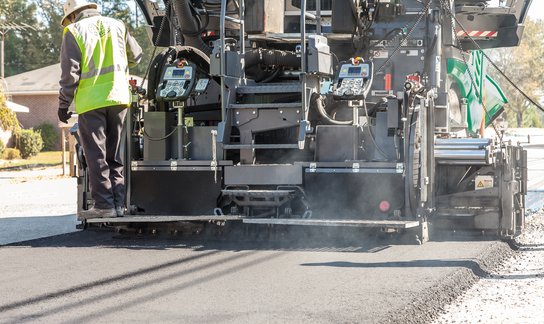

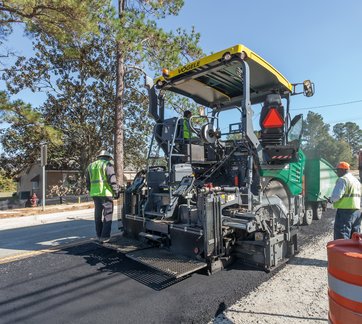

The VF 500 Extending Screed has been specially developed for the SUPER 1700-3i and SUPER 1703-3i pavers of the Universal Class. The VF 500 is ideal for applications which require a variable paving width, such as parking lots with islands and light masts, roads for residents only, urban roads with manhole covers, gas or water connections, junctions on highways or work on country roads, i.e. jobs which involve paving around obstacles.

  • + Expand All
  • - Close All
  • Heating System

    VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.

  • Manufacturing Technology

    VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.

COMPACTING SYSTEMS

Frequency (max.) 50 Hz
Vibrators (V) eccentric vibrators
Compacting systems V
