Key Features & Specs

The perfect Compact Class screed

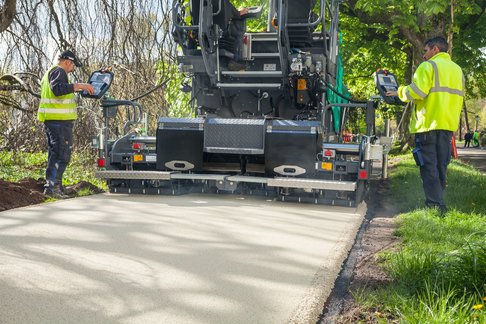

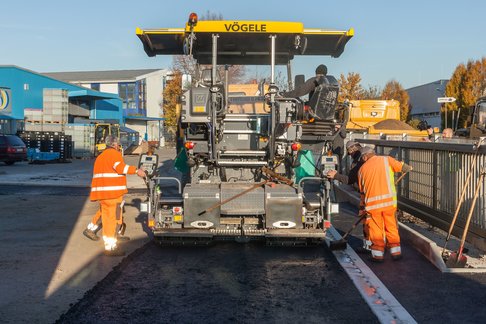

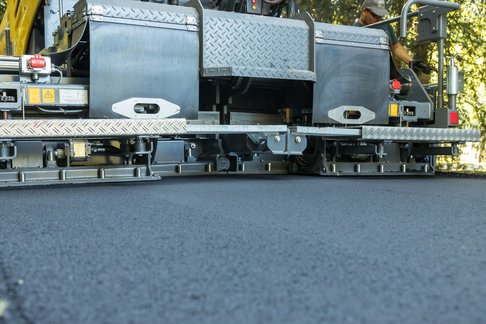

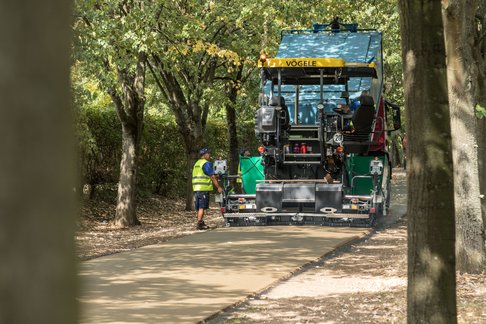

The AB 340 Extending Screed is the ideal screed for compact pavers of the 1000 and 1300 class. With a basic width of 5 ft 11 in and a maximum paving width of 16 ft 5 in, the screed is ideal for building combined foot and cycle paths, minor rural roads and narrow roads or squares.

  • + Expand All
  • - Close All
  • Manufacturing Technology

    VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.

  • Telescoping system

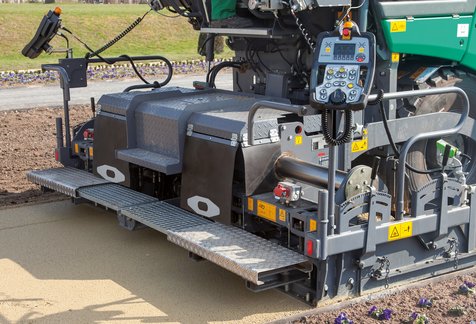

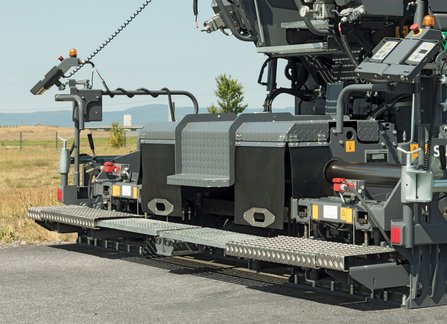

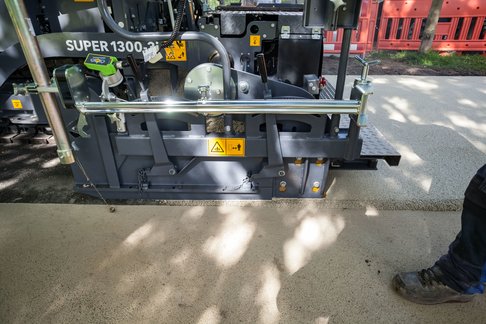

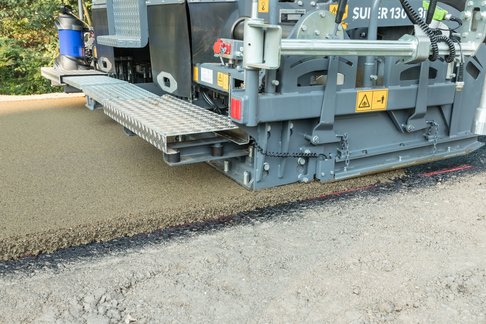

    The operating principle of all VÖGELE extending screeds is the single-tube telescoping system. Even at maximum extension, half of the three-part, generously-sized telescoping tube is clamped, ensuring optimum stabilization. As the telescoping system is arranged at a high level, this prevents any contact with paving mix.

  • Compaction technology

    VÖGELE sets the benchmark with products that deliver a phenomenal degree of precompaction in the paving process. Cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high-compaction system with tamper and pressure bars.

  • Heating System

    VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.

COMPACTING SYSTEMS

Compacting systems V, TV
Stroke (TV) 0.16 in
Frequency (max.) 50 Hz
Speed (max.) 1,700 rpm
Vibrators (V) eccentric vibrators
