TKU Utility

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

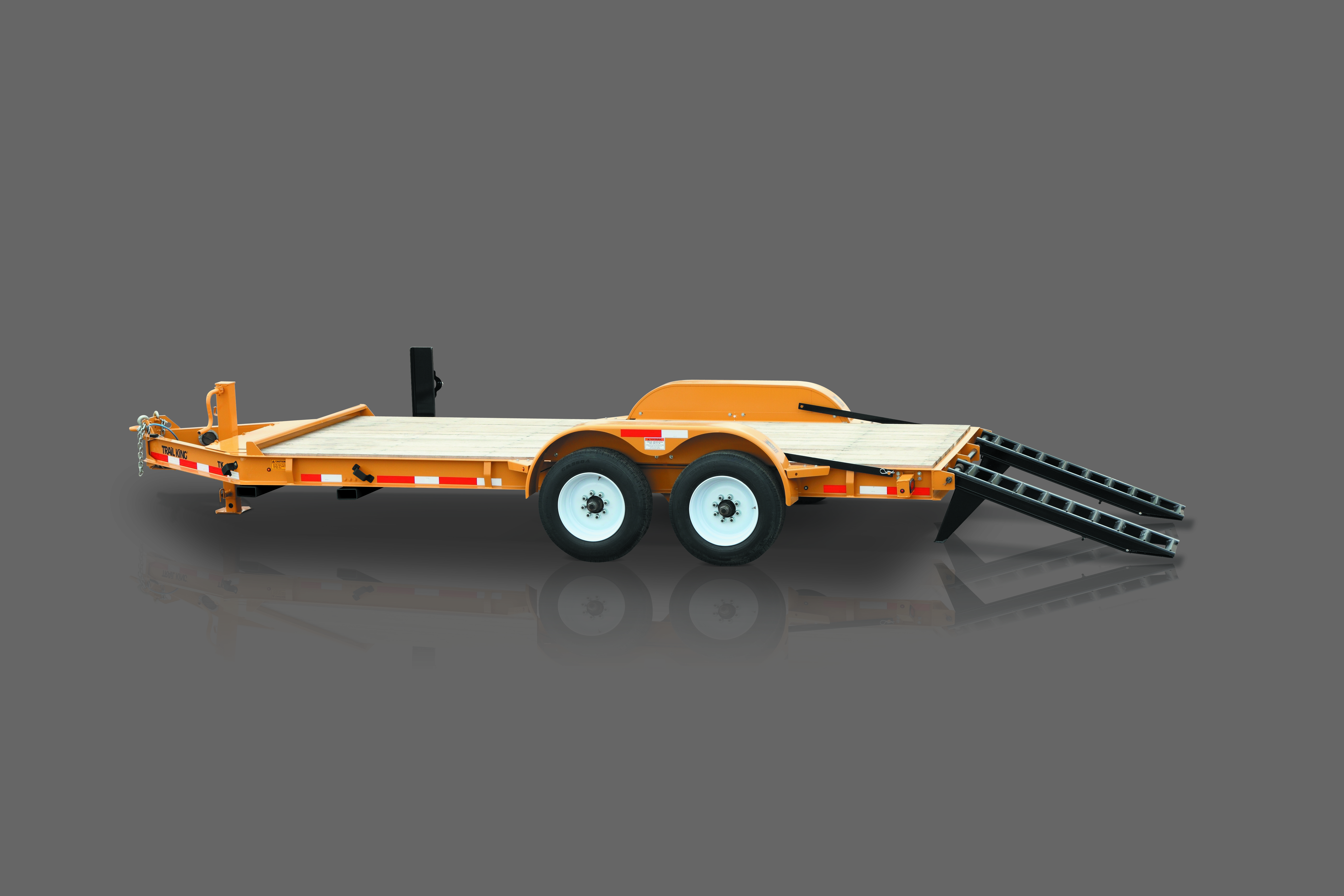

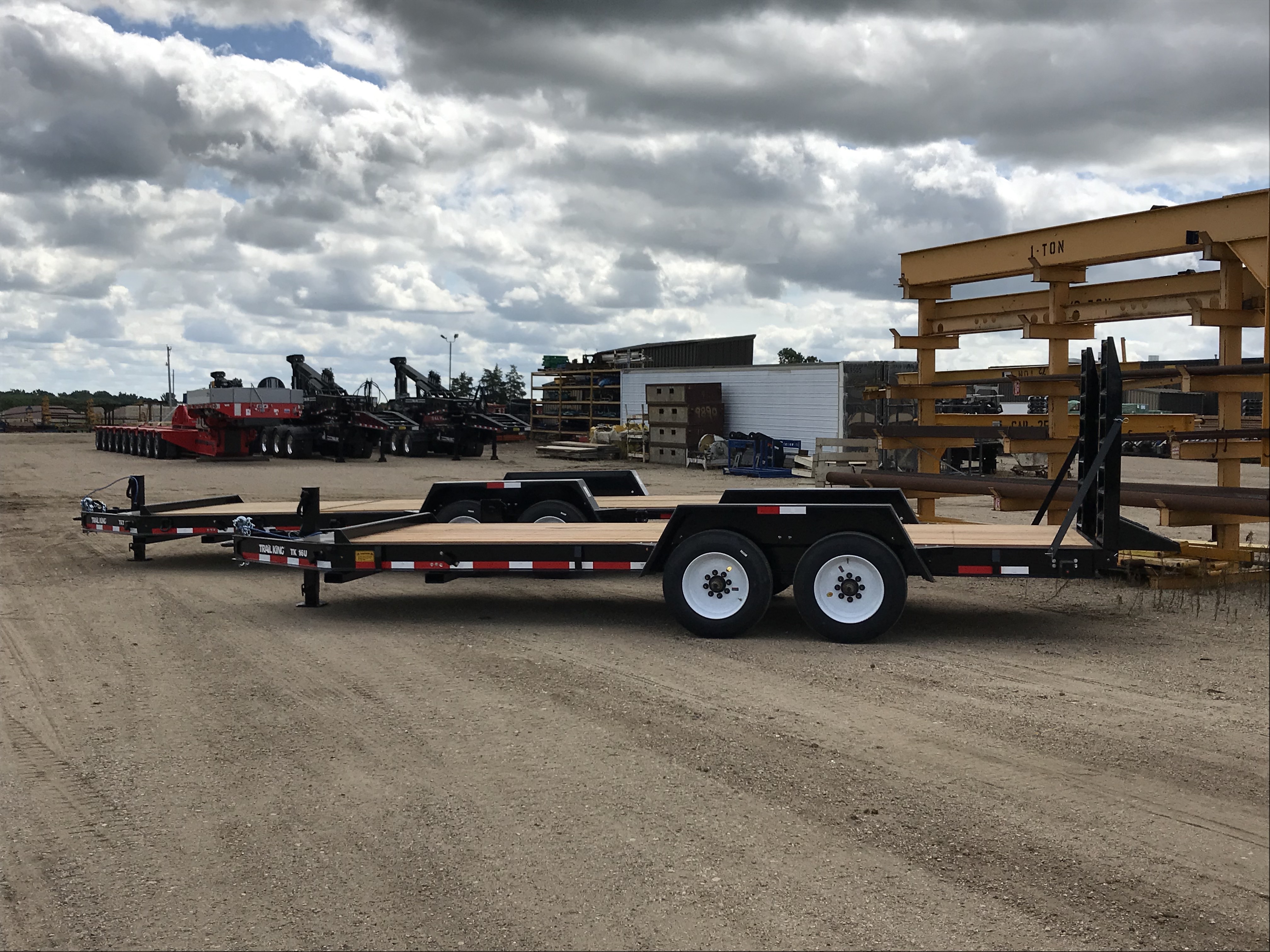

Our Utility trailer is manufactured to be small, strong, and stable. These models have a 12,000-lb to 16,000-lb capacity, including self-supporting, lightweight ramps that create secure loading for versatility and maximum payload.

Features
Documents

+ Expand All
- Close All

Specifications

TKU Standard Equipment	TK12U	TK14U	TK16U
Payload Capacity	12,000 lb.	14,000 lb.	16,000 lb.

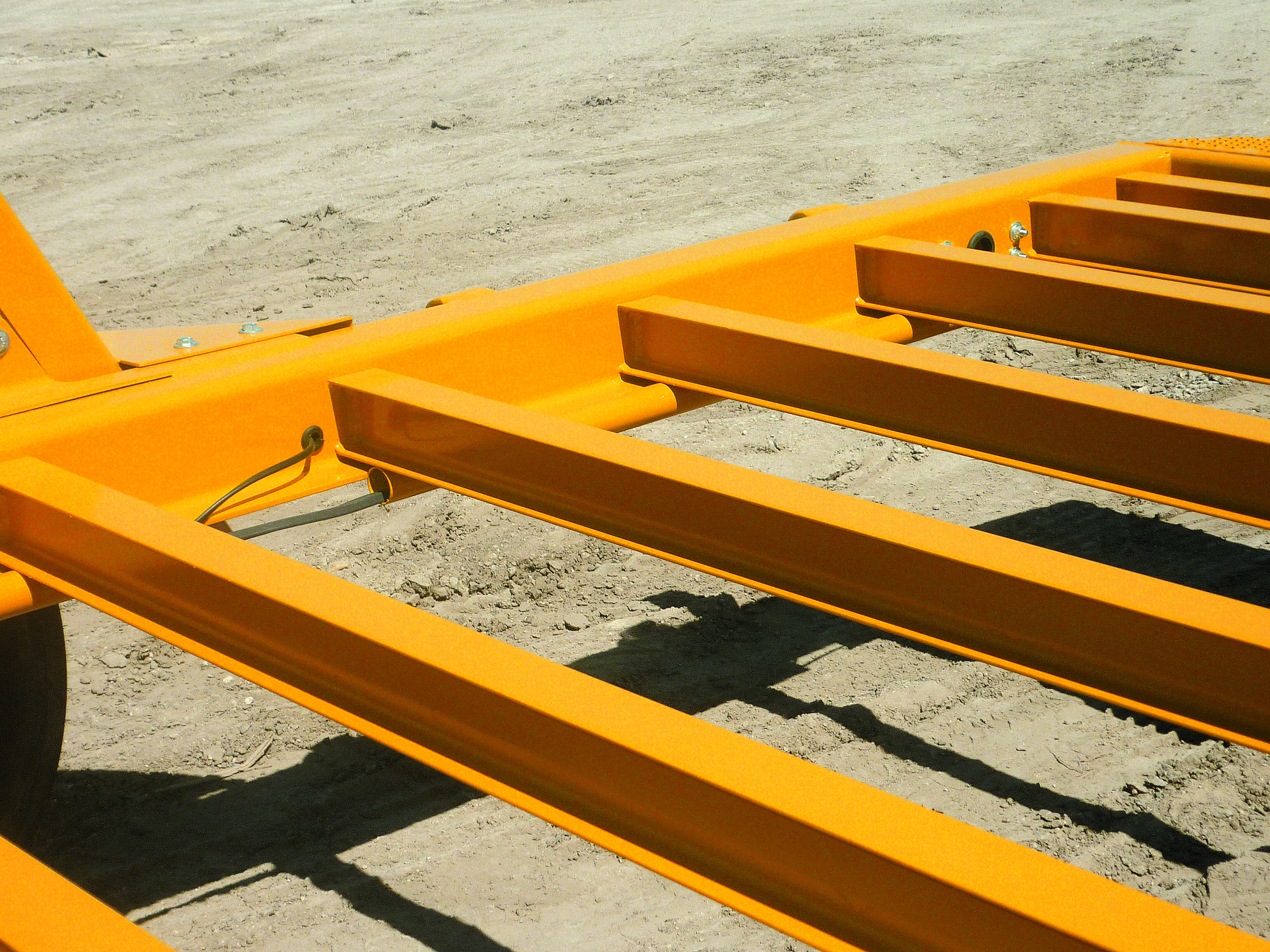

Structural Steel Main Frame	X	X	X
Overall Width	102”	102”	102”
Deck Width between Fenders	82”	82”	82”
Overall Deck Length	16’	16’	16’
Loaded Deck Height	23”	23”	23”
1.5" Oak (Raised) Decking	X	X	X
Torflex Axles	(2) 7,000 lb.	(2) 7,000 lb.	(2) 8,000 lb.

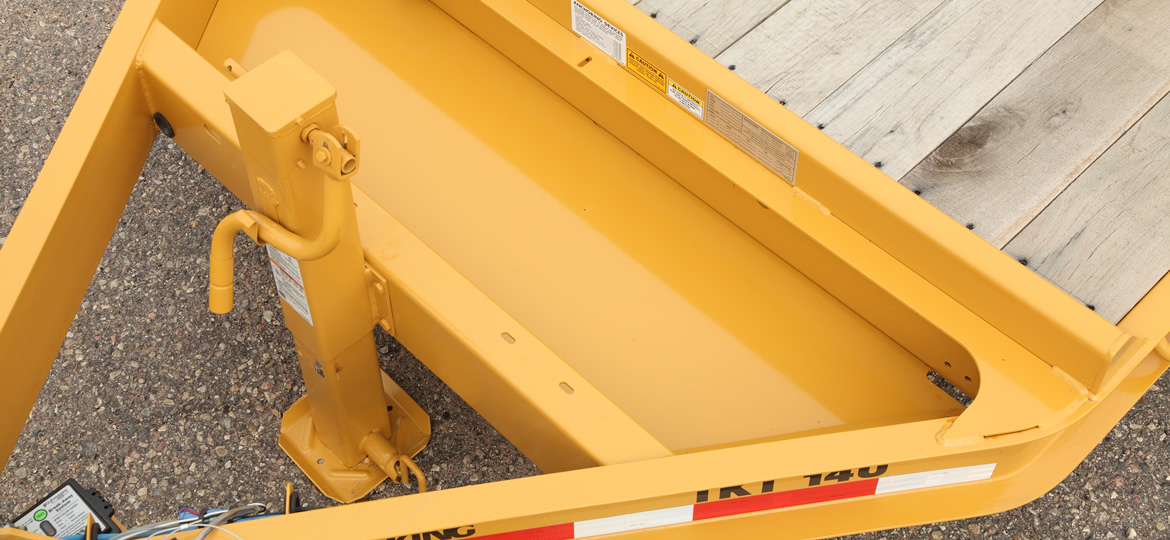

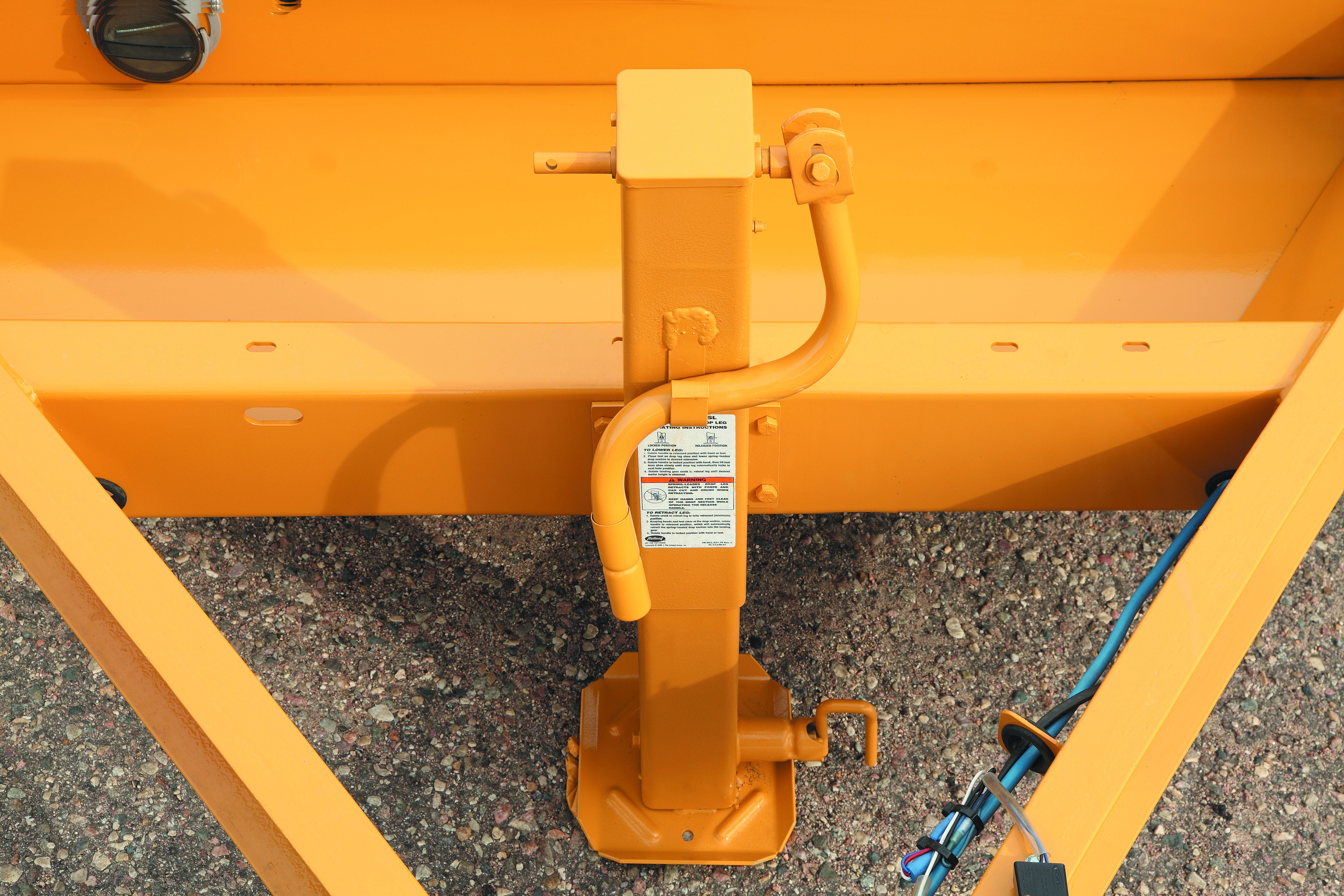

12,000 HD Jack with Spring Foot	X	X	X
4-Bolt Pintle Eye Hitch, adjustable range	19” – 23.5”	19” – 23.5”	19” – 23.5”
(6) Tie-Down Brackets	X	X	X

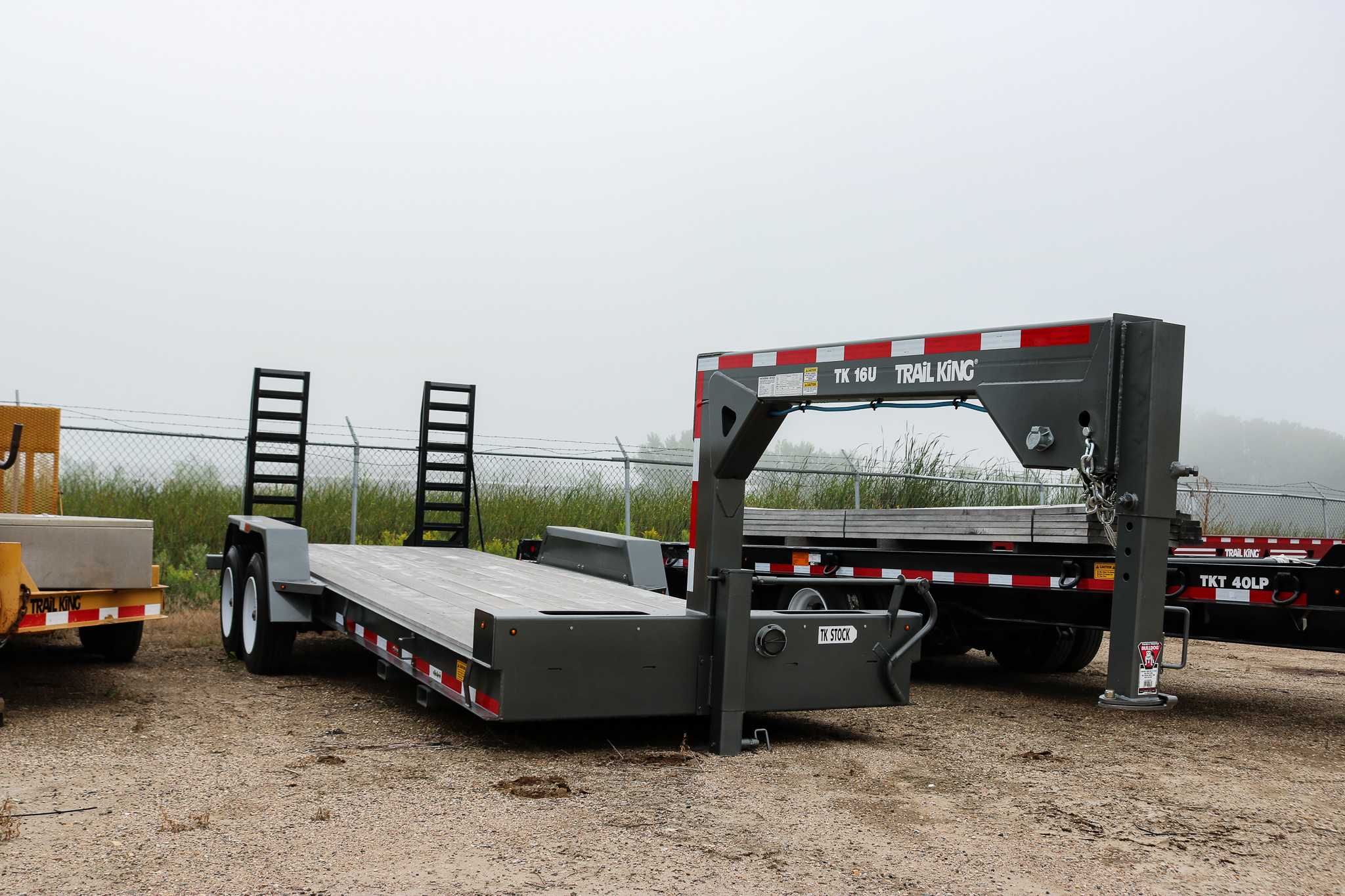

5’ Self-Supporting Loading Ramps	X	X	X
Electrical System per DOT Regulations	X	X	X

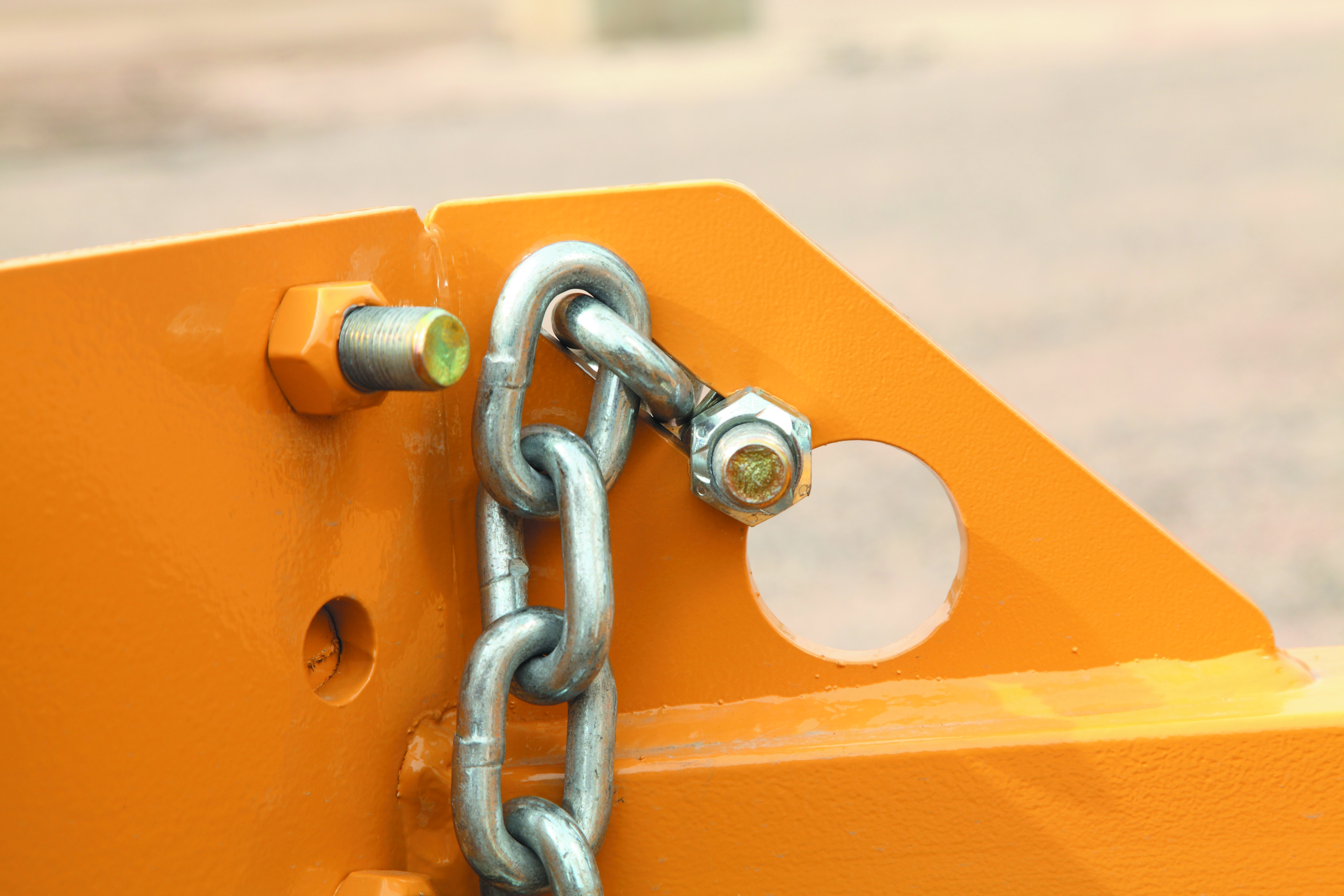

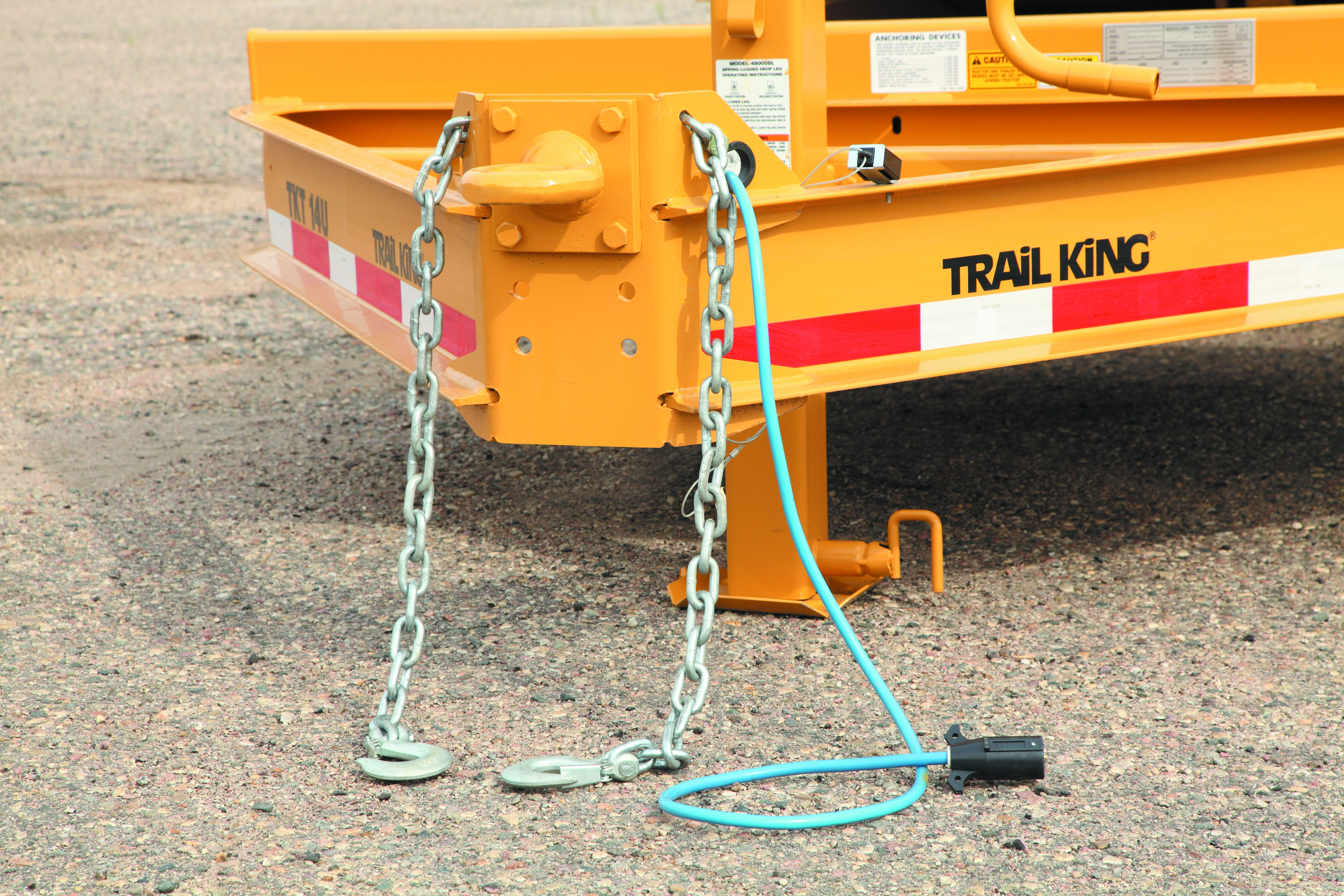

Safety Chains with Grab Hooks	X	X	X
14 Gauge Fenders	X	X	X

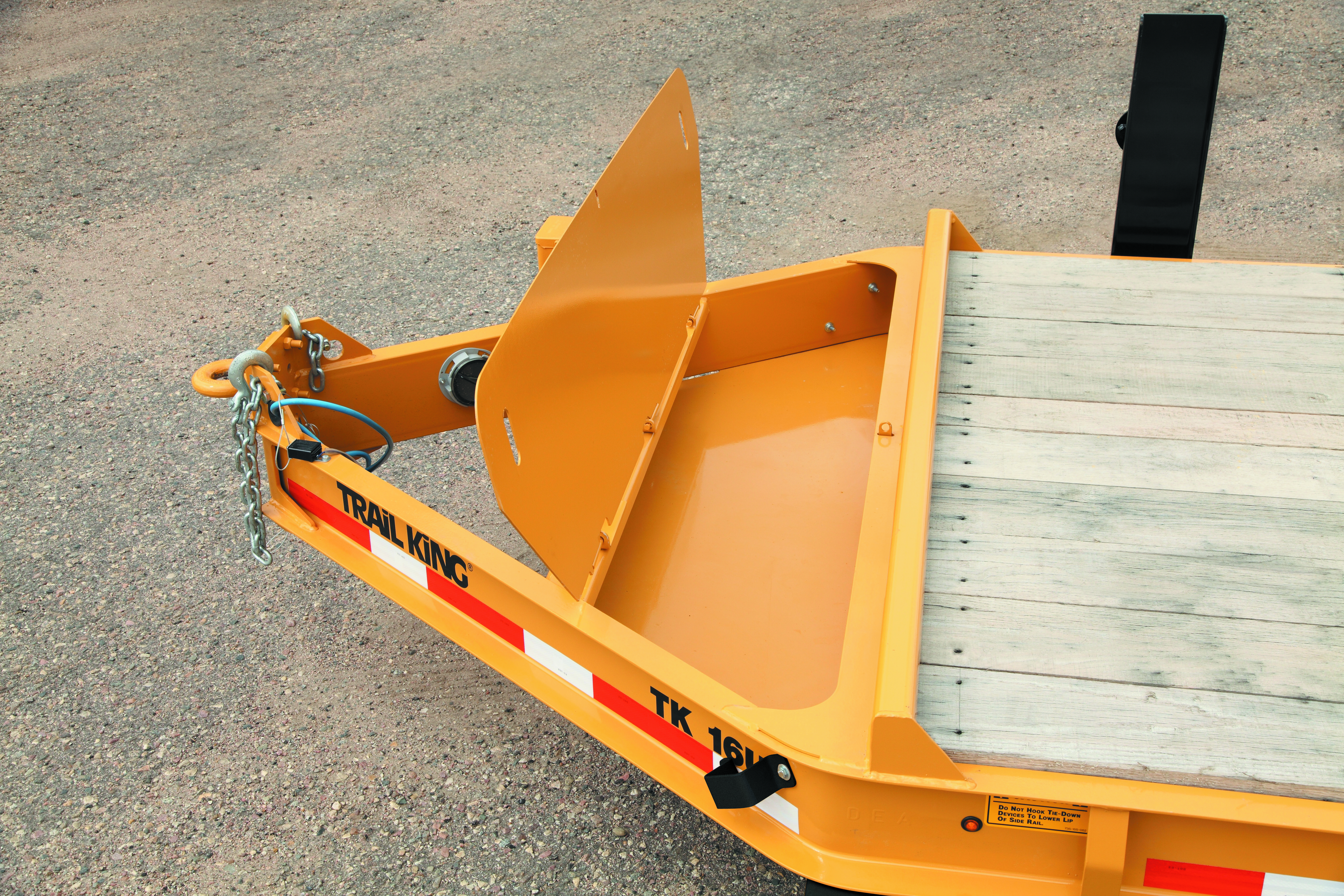

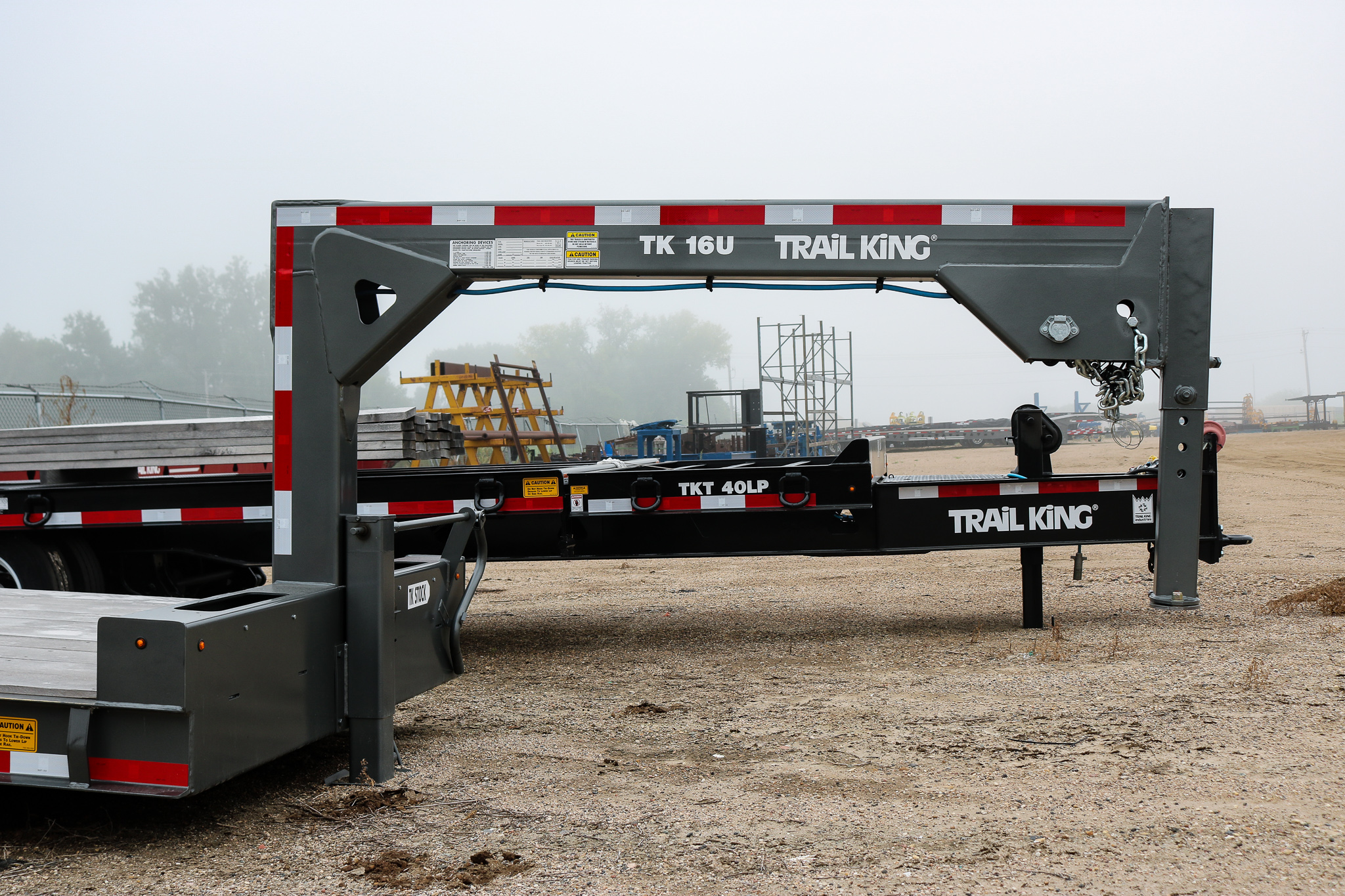

Headboard	X	X	X

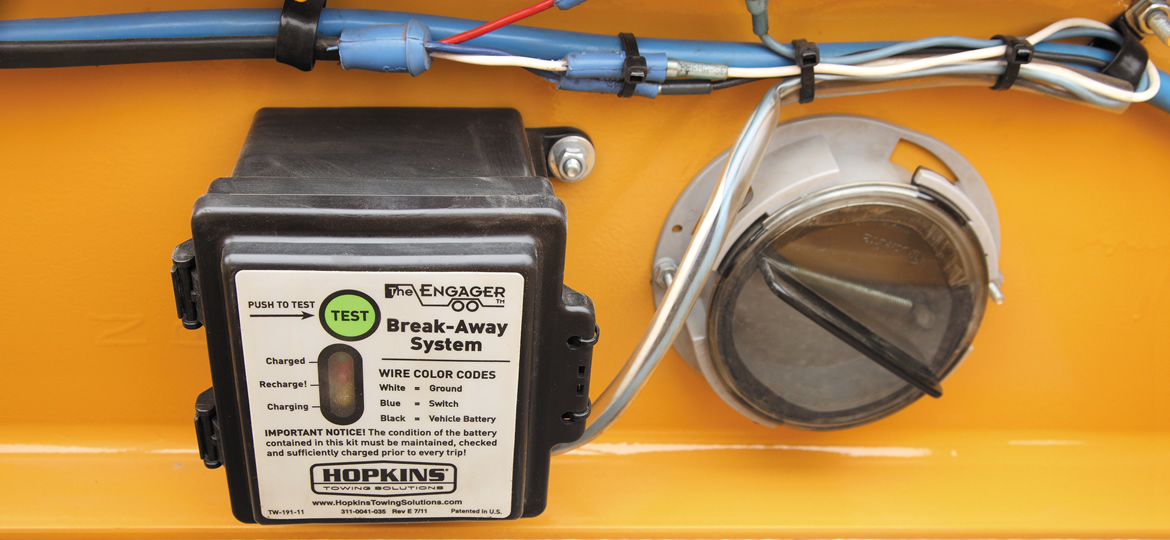

Breakaway Switch	X	X	X
Single Disc Wheels (8 Hole)	X	X	X
Tires	235/80R x 16	215/75R x 17.5	215/75R x 17.5
Red and White Conspicuity Markings	X	X	X
