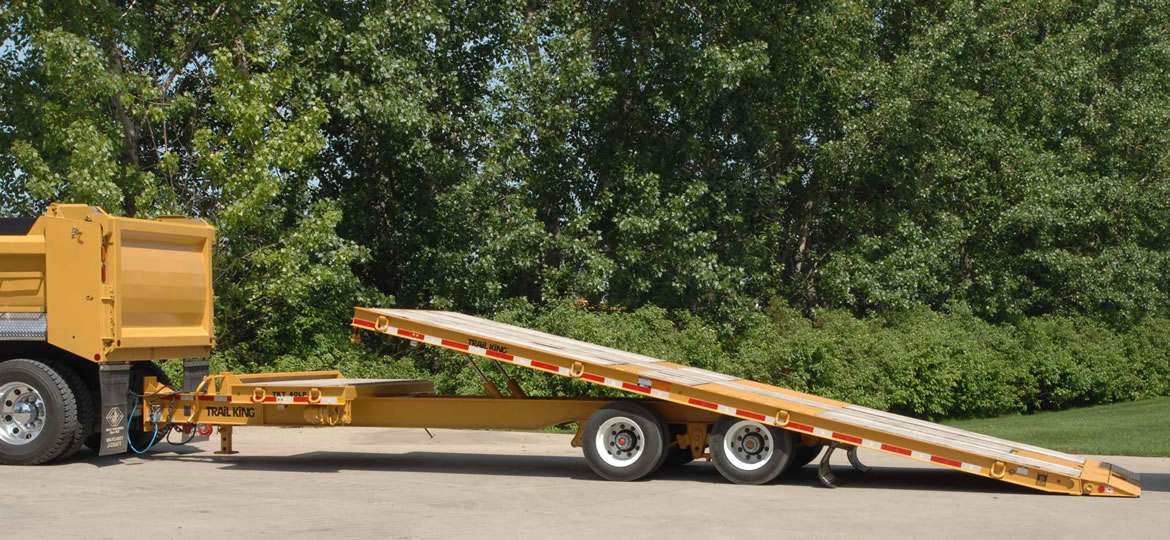

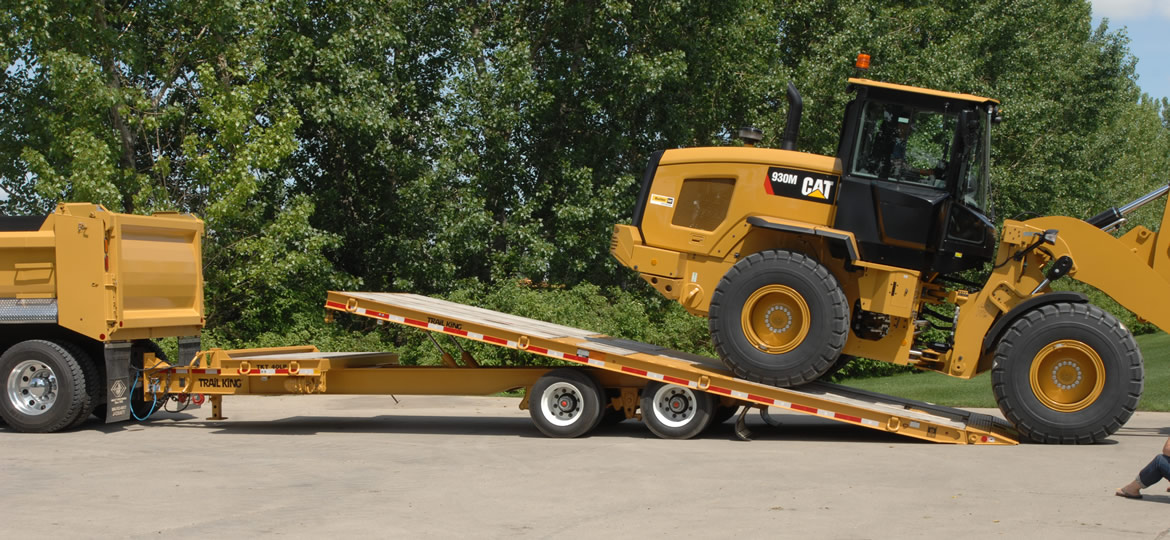

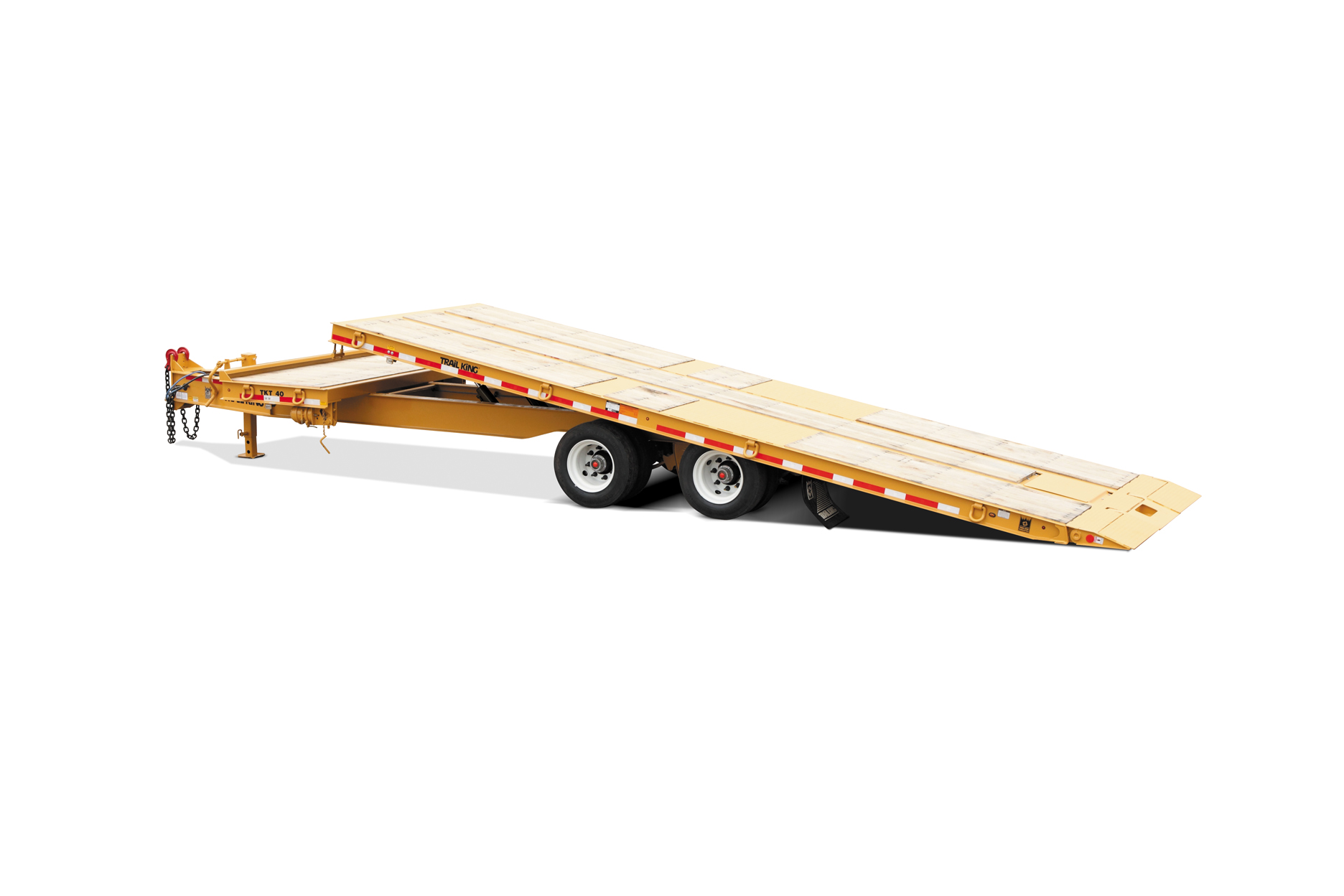

Trail King's Tilt trailer is equipped to haul medium-sized to heavy-duty equipment with easy loading and unloading. Our tilt trailers have powerful suspension systems, strong steel main frames, and platform-cushioning cylinders that make hauling long-distance or over rough terrain smoother and more secure.

  • + Expand All
  • - Close All
  • Specifications
    TKLP Standard Equipment TKT24LP TKT40LP TKT50LP TKT60LP
    Payload Capacity 24,000 lb. 40,000 lb. 50,000 lb. 60,000 lb.
    5' Tongue Length X X X  X
    Pintle Eye Hitch (Adjustable Height) 19.5" to 30.5" 18.5" to 30" 18.5" to 30" 18.5" to 30"
    12,000 lb. HD Jack with Spring foot X
    25,000 lb. Single two-speed langing gear   x x x
    Deck Length (Stationary / Tilt) 4' Stat/ 24' Tilt 4' Stat/ 24' Tilt 6' Stat/ 24' Tilt 6' Stat/ 24' Tilt
    Deck Width 102" 102" 102" 102"
    Loaded Deck Height 34" 33" 33" 33"
    Structural Steel Main Frame X X X X
    1.5" Oak (Raised) Decking X X X X
    (12) D-Rings: (4) on Stationary Deck - (8) on Tilt Deck X X X X
    12 Degree Tilted Deck Slope X X X X
    Hydraulic Cushioning Cylinder 2 2 2 2
    Manual Deck Lock X X X X
    Fold-Down Approach & Under Ride Protection X X X X
    Floor Plate on the Approach & Fold-Down .25” .25” .25” .25”
    Axles 2) 12,000 lb.  (2) 22,500 lb.  (3) 22,500 lb.  (3) 22,500 lb.
    Suspension Hutch 9700 Hutch 9700 Hutch 9700 Hutch 9700
    Brakes Electric 12.25" X 7.5" 12.25" X 7.5" 12.25" X 7.5"
    ABS N/A 4S2M 4S2M 4S2M
    Dual Steel Disc Wheels (8 Hole) 6" X 16" 6.75" X 17.5" 6.75" X 17.5" 6.75" X 17.5"
    Tires 235/80R x 16 215/75R x 17.5 215/75R x 17.5 235/75R x 17.5
    Safety Chains with Grab Hooks X X X X
    Lockable Toolbox X X X X
    Headboard X X X X
    Registration Holder X X X X
    LED Lights X X X X
    Rubber Mounted Sealed Lights w/ Sealed Harness System X X X X
    Electrical System per DOT Regulations X X X X
    Mud Flaps X X X X
    Red and White Conspicuity Markings X X X X
