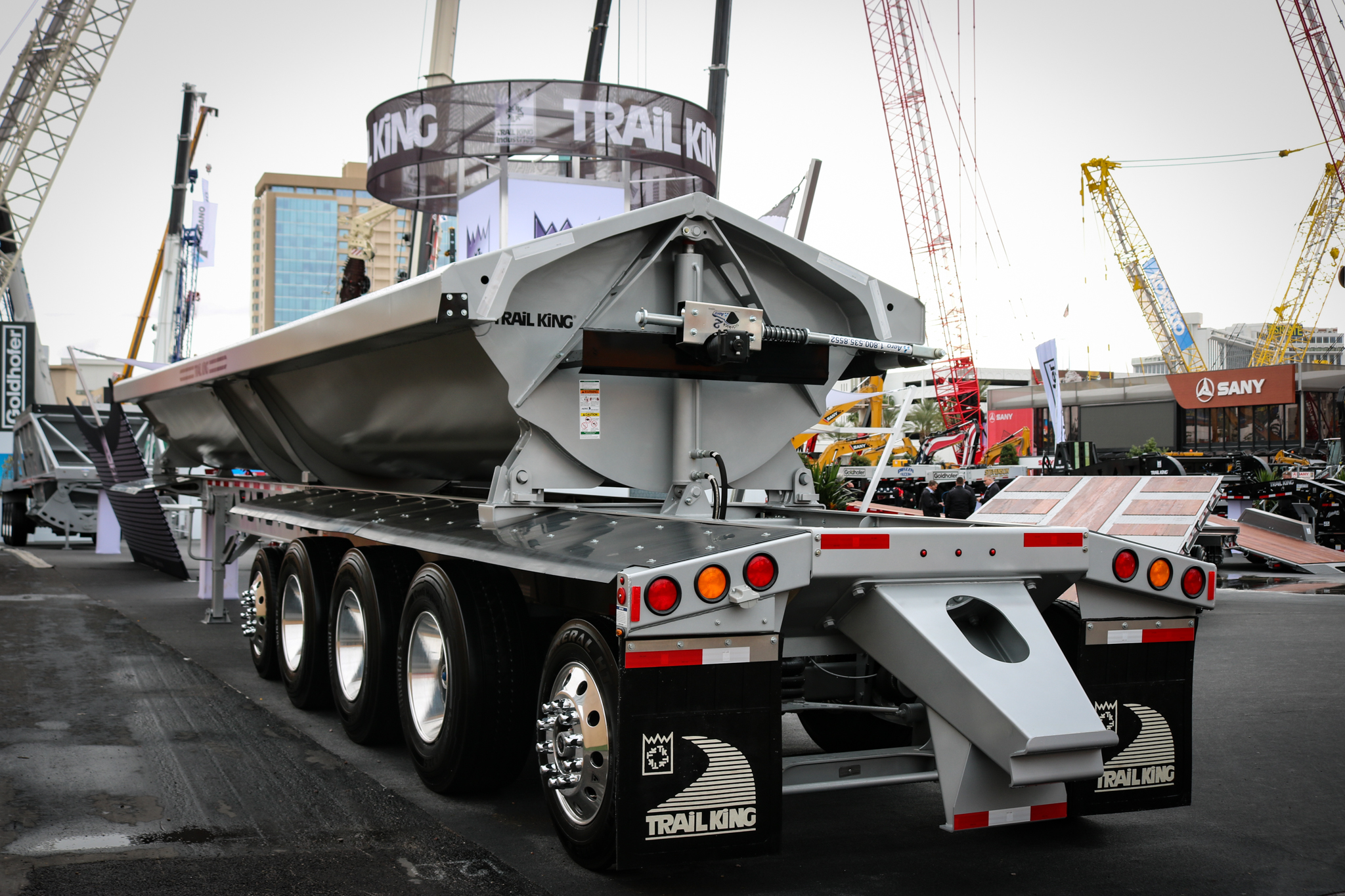

TKSSD Steel Side Dump

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

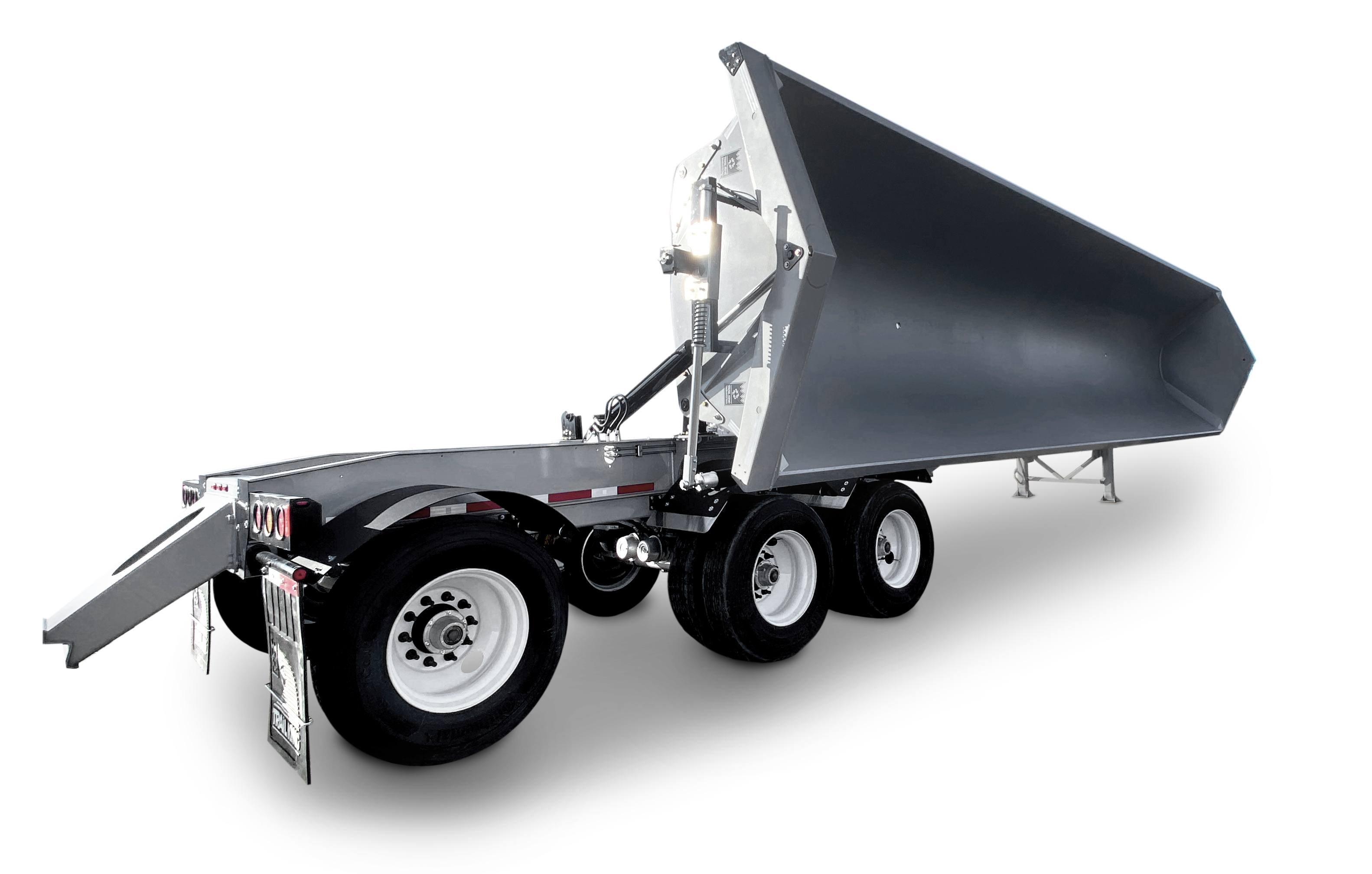

The two-piece rolled design of the tub delivers a fast, stable unloading process ensuring materials are dumped further away and eliminating carry back. Main frame I-beams constructed of one-piece web and flange material, result in a trailer with the rugged strength and durability to stand up to your toughest loads. There is no limit to what this trailer can haul.

Features
Documents

+ Expand All
- Close All

Specifications

STANDARD EQUIPMENT	SSD-202	SSD-302	SSD-362, 402	SSD-413,433,473	SSD-484	SSD-495
Design Payload	30,000 lbs.	40,000 lbs.	60,000 lbs.	60,000 lbs.	60,000 lbs.	70,000 lbs.
Axles	2	2	2	3	4	5
Overall Length	20'2”	29'11”	35'11”-39'8"	40'8"-46'8"	47'8"	49'
Tub Length	18'	28'	34'	36'	36'	39'
Overall Height	9' 10”	9' 10"	9' 10”	9' 10”	9' 11”	9' 11"
Capacity (Water Level)	11 cu. yds.	17 cu. yds.	21 cu. yds.	22 cu. yds.	22 cu. yds.	24 cu. yds.
Capacity (Full)	15 cu. yds.	243cu. yds.	28 cu. yds.	30 cu. yds.	30 cu. yds.	32 cu. yds.
KP to Center of Last Axle	15'11”	26'2”	32'2"-35'11”	36'11”-42'11"	43'11"	45'3”
Empty Weight +/- 3%	11,460 lbs.	12,745 lbs.	14,010-14,310 lbs.	16,465-17,000 lbs.	19,226 lbs.	22,060 lbs.
