TKRB Rollback

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

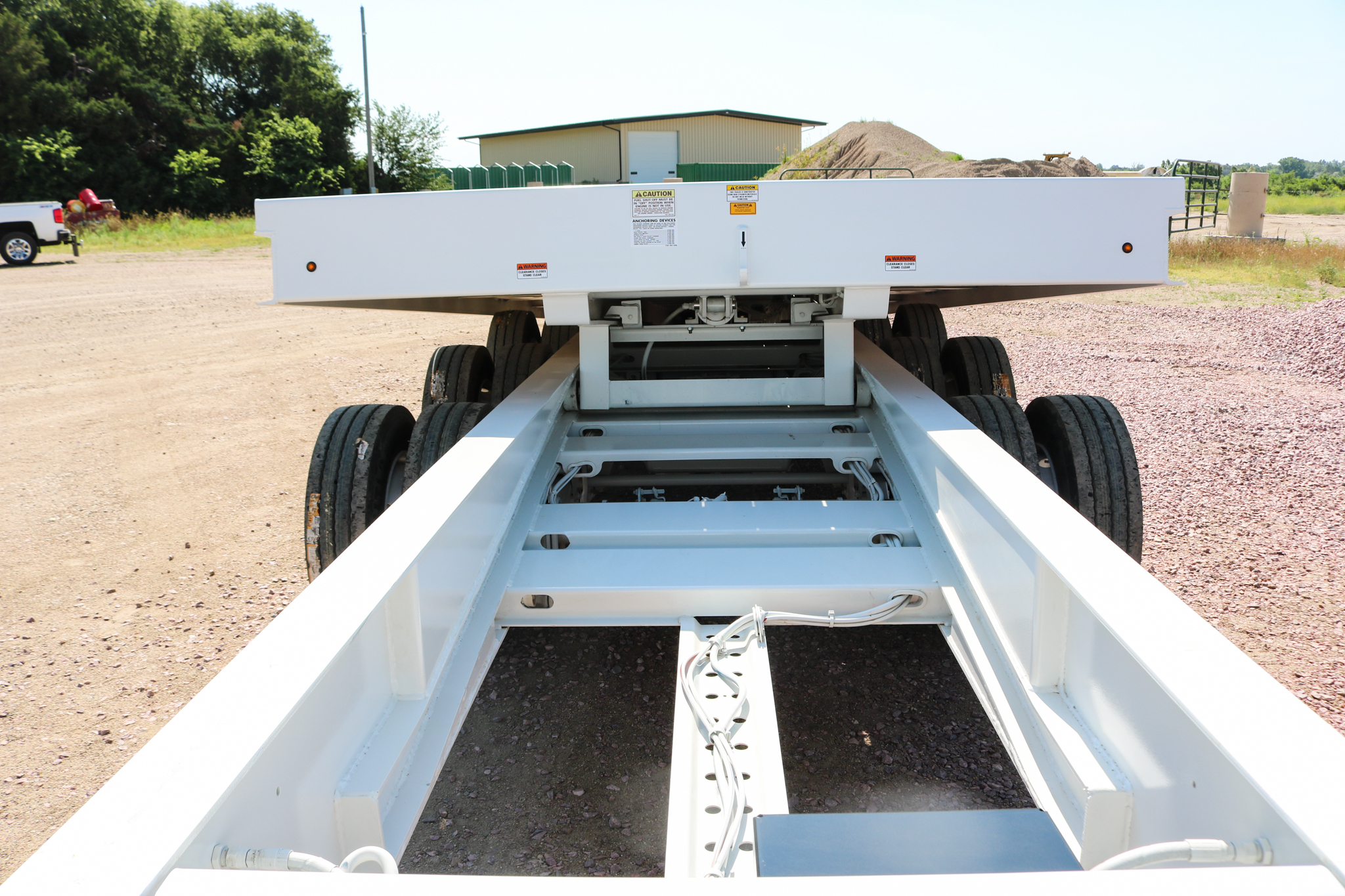

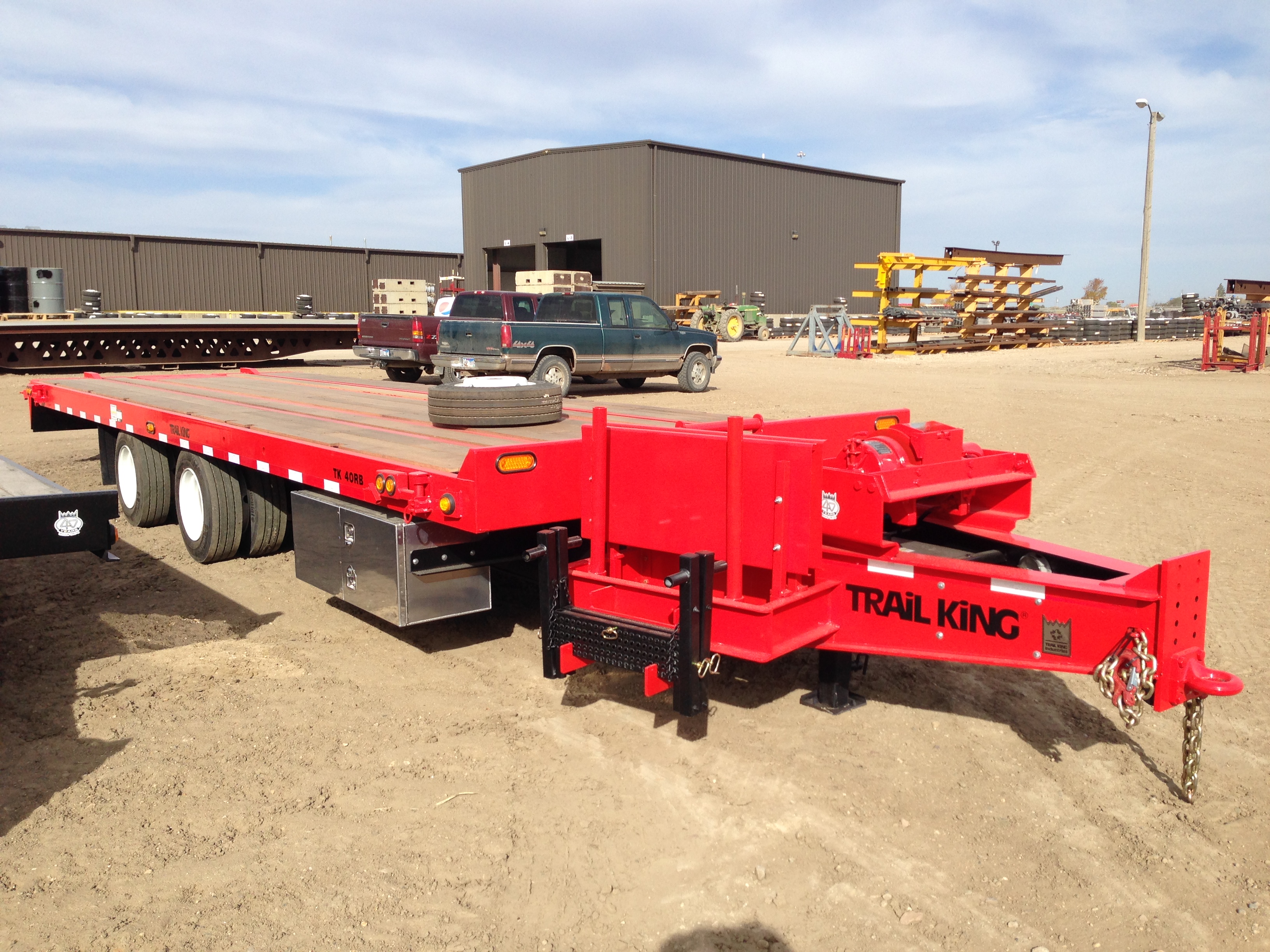

Trail King Rollback trailers are outfitted with the highest quality materials for increased durability and capacity. The continuous I-beam mainframe and I-beam cross members provide load hauling strength. With a constant 7 degree load angle for the entire length of the trailer bed, the TKRB provides a stress-free, safe and convenient operation for loading equipment.

Features
Documents

+ Expand All
- Close All

Specifications

TKRB Standard Equipment	TK40RB	TK50RB
Capacity	40,000 lb.	50,000 lb
Tongue Length	7'	7’
Deck Width	102”	102”
Deck Length	28’	30’

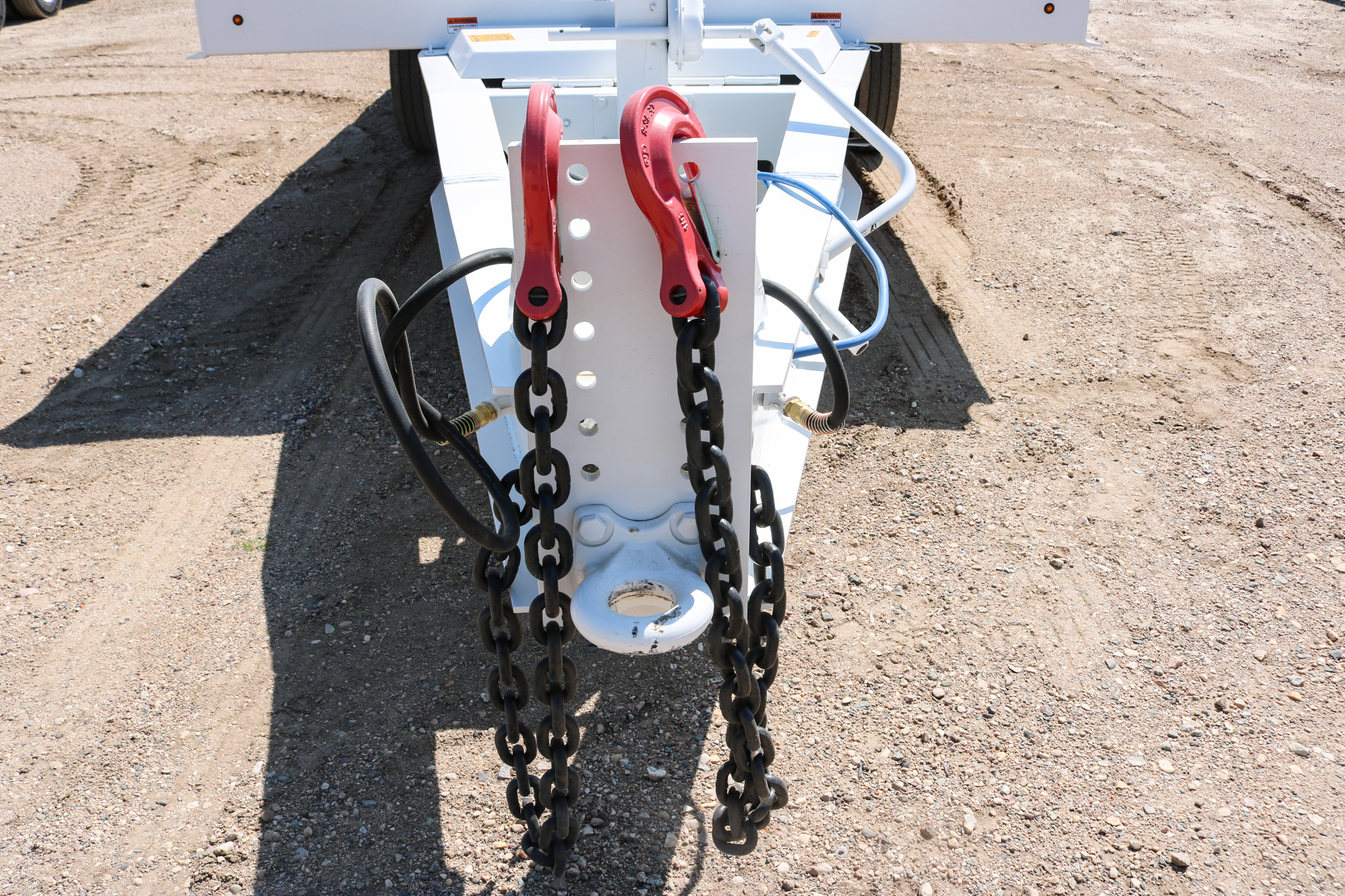

Pintle Eye Hitch (Adjustable Height)	16.5” - 32"	16.5” - 32"
Loaded Deck Height	35.5”	35.5”
Floor plate on approach plate and fold under	X	X

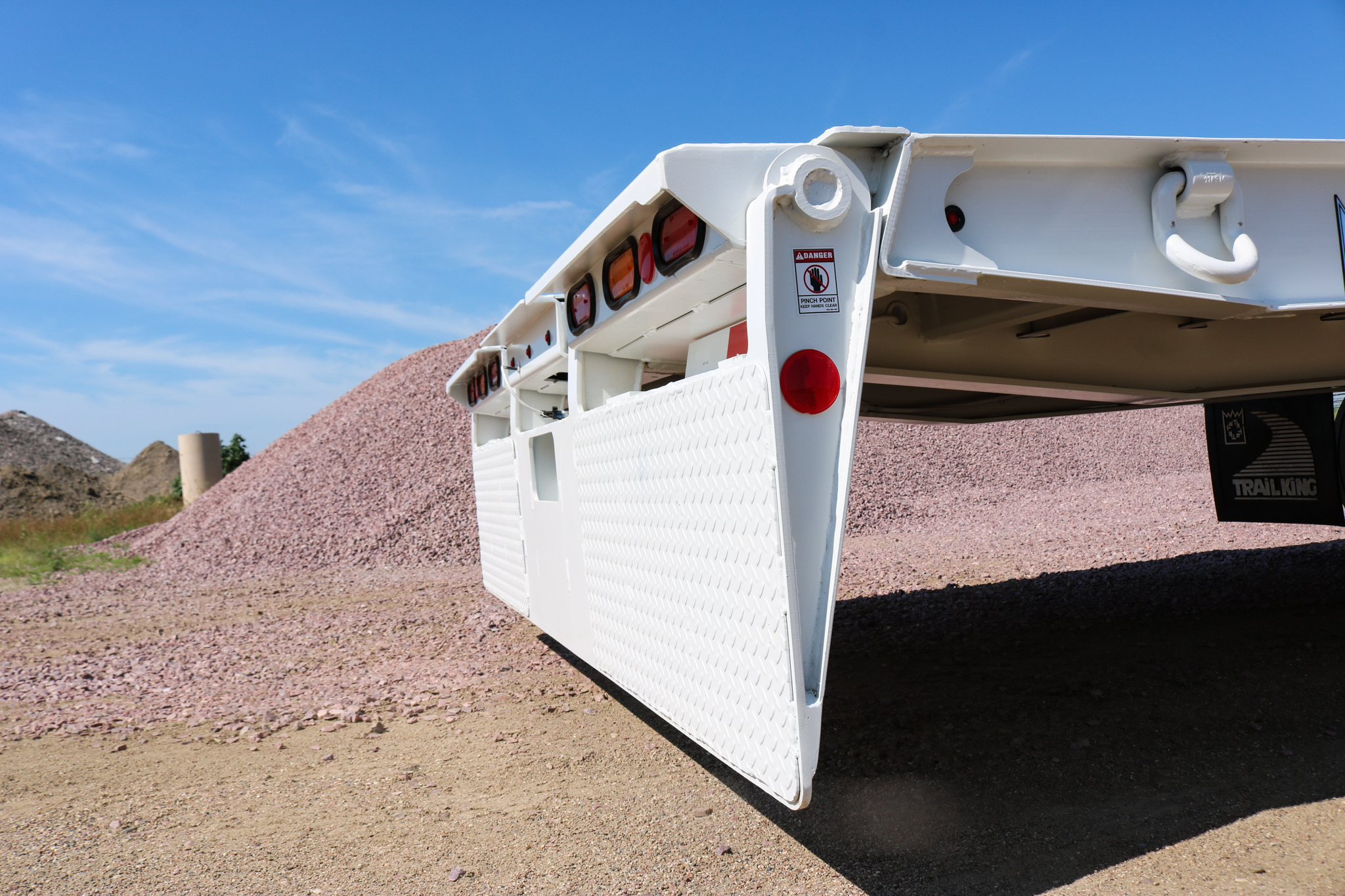

17” hydraulic fold-down approach plate and under-ride protection	X	X
Air Brakes	12.25” x 7.5” 4S2M ABS	12.25” x 7.5” 4S2M ABS
Dual Steer Disc Wheels	6.75” x 17.5” dual steel 8-stud hub-piloted	6.75” x 17.5” dual steel 8-stud hub-piloted
Tires	215/75R x 17.5	215/75R x 17.5
Axles	(2) 20,000 lb. / 49” spacing	(3) 20,000 lb. / 51.5” spacing
Spring Suspension	X	X
Safety chains with grab hooks	X	X
Covered Lockable Toolbox	X	X

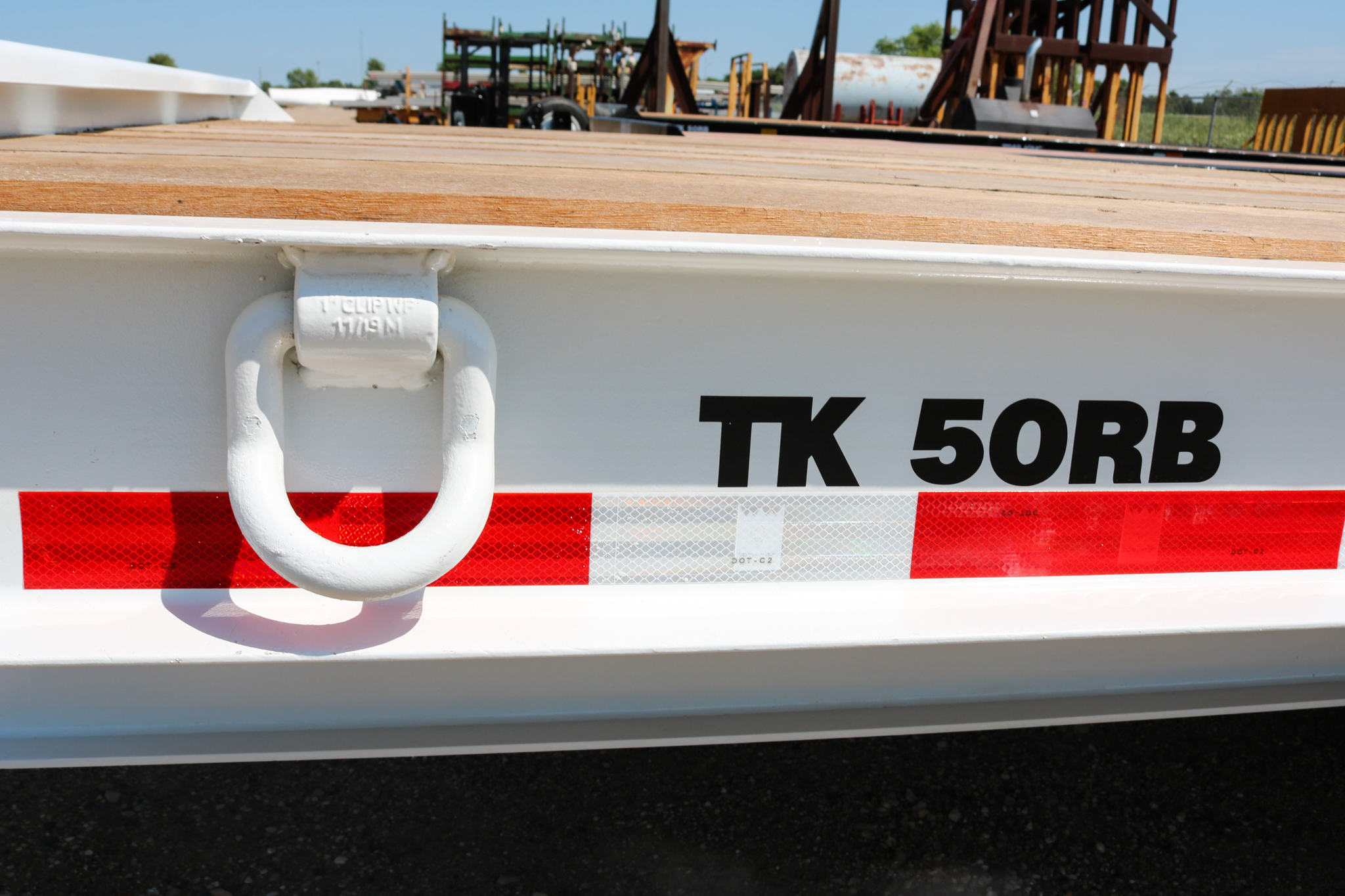

(10) D-Rings	X	X
Headboard	X	X
