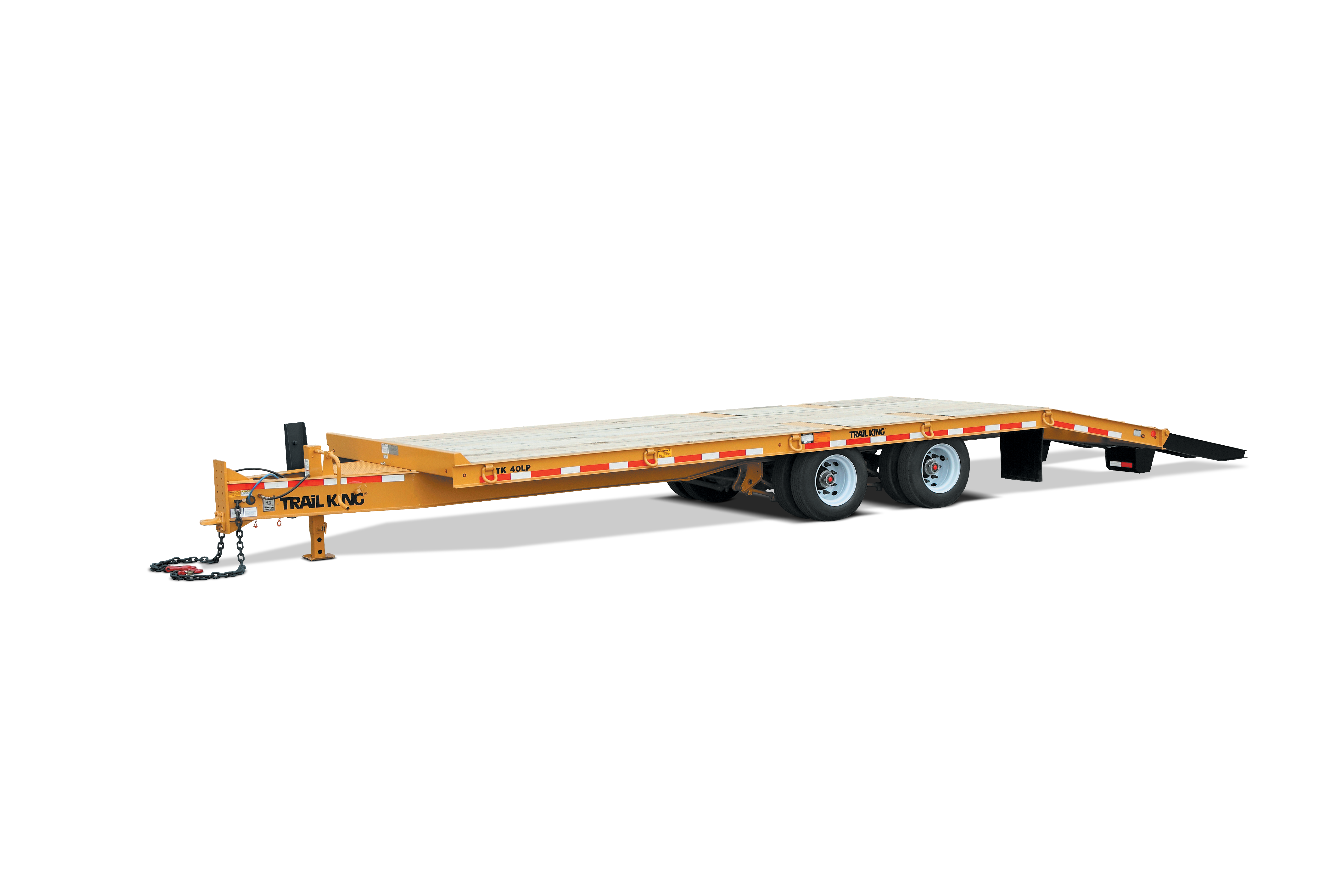

TKLP Tag

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Our Tag trailer is outfitted with the highest quality materials we could find to increase its durability and capacity. All tag models feature standard equipment that creates a stress-free, safe, and efficient operation for peace of mind when you're on the go.

Features
Documents

+ Expand All
- Close All

Specifications

STANDARD EQUIPMENT	TK20LP	TK24LP	TK40LP	TK50LP	TK60LP
Payload Capacity	20,000 lb.	24,000 lb.	40,000 lb.	50,000 lb.	60,000 lb.
5’ Tongue Length	x	x	x	x	x
Pintle Eye Hitch (Adjustable Height)	18¾" - 30"	18¾" - 30"	16½" - 32"	16½" - 32"	16½" - 32"
12,000 lb. hydraulic jack with spring foot	x	x
25,000 lb. two speed single leg jack			x	x	x
Loaded Deck Height	33"	34"	33"	33"	33.5"
Deck Width	102”	102”	102”	102”	102”
Deck Length (Flat + Beavertail)	24' (19' + 5')	24' (19' + 5')	26' (21' + 5')	30' (25' + 5')	30' (25' + 5')
Structural Steel main Frame	x	x	x	x	x
1½" Oak Decking (Raised)	x	x	x	x	x
Self-Cleaning Beavertail (includes mud flaps)	x	x	x	x	x
5' Ladder Style Ramps with Spring Assist	x	x	x	x	x
Maximum Adjustable Ramps	x	x	x	x	x
Suspension	Hutch 9700	Hutch 9700	Hutch 9700	Hutch 9700	Hutch 9700
Axles	(2) 10,000 lb.	(2) 12,000 lb.	(2) 22,500 lb.	(3) 22,500 lb.	(3) 22,500 lb.
Brakes	Electric	Electric	12.25" x 7.5"	12.25" x 7.5"	12.25" x 7.5"
ABS	n/a	n/a	4S2M	4S2M	4S2M
Dual Steel Disc Wheels (8 Hole)	6" x 16"	6" x 16"	6.75" x 17.5"	6.75" x 17.5"	6.75" x 17.5"
Tires	235/80R x 16	235/80R x 16	215/75R x 17.5	215/75R x 17.5	235/75R x 17.5

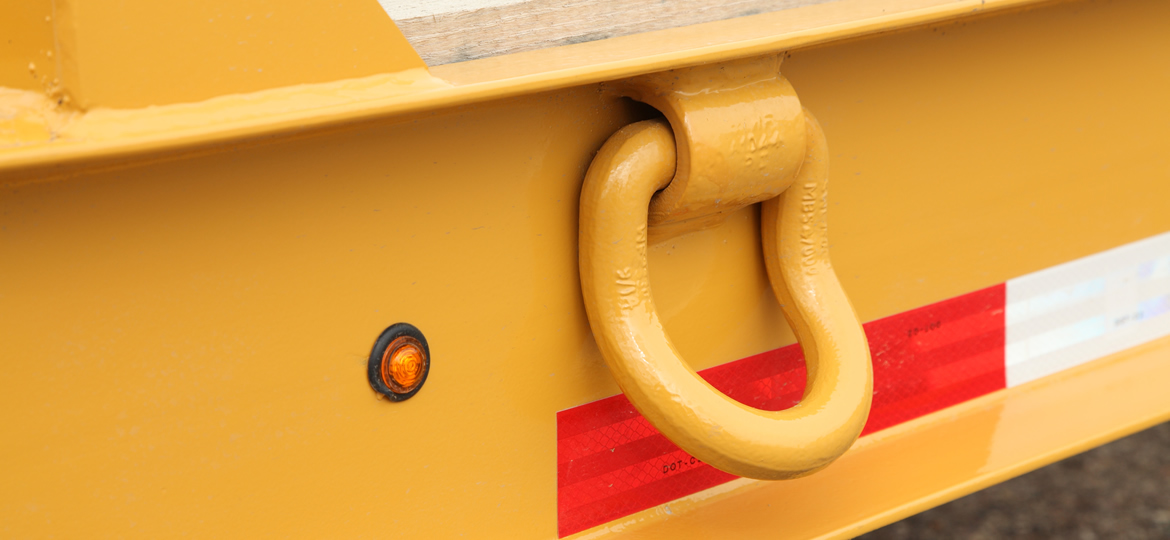

(10) D-Rings	x	x	x	x	x

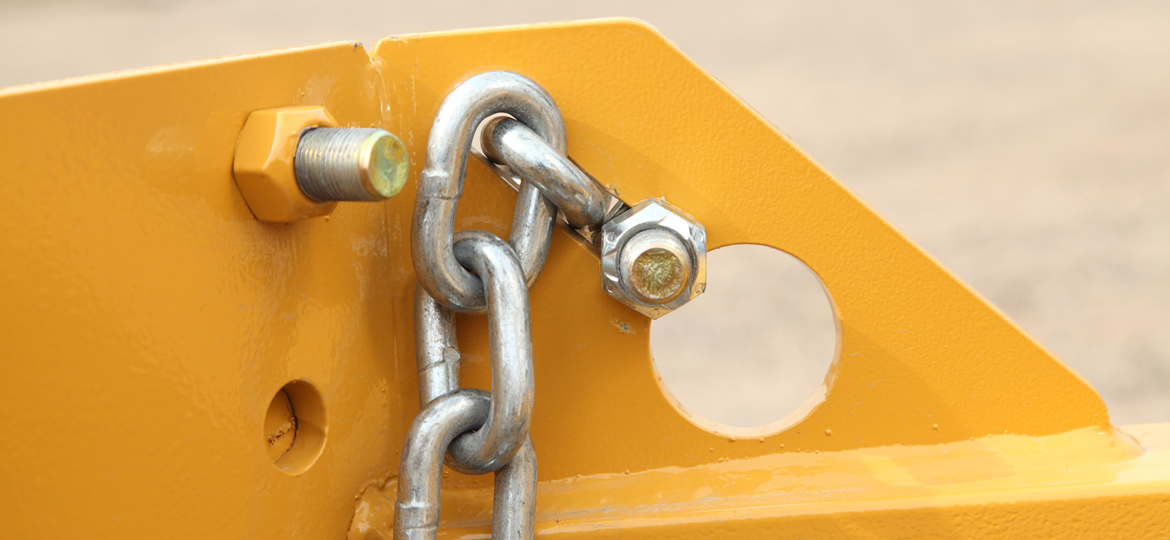

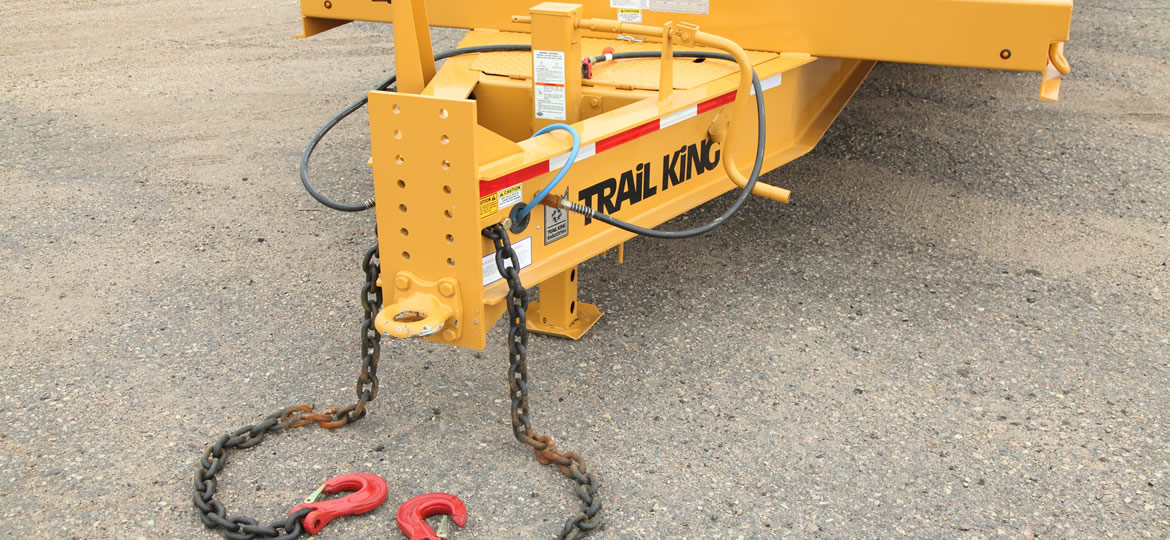

Safety Chains with Grab Hooks	x	x	x	x	x
Lockable Toolbox	x	x	x	x	x
Headboard	x	x	x	x	x
Registration Holder)	x	x	x	x	x
LED Lights	x	x	x	x	x
Electrical System per DOT Regulations	x	x	x	x	x
Red and White Conspicuity Markings	x	x	x	x	x
