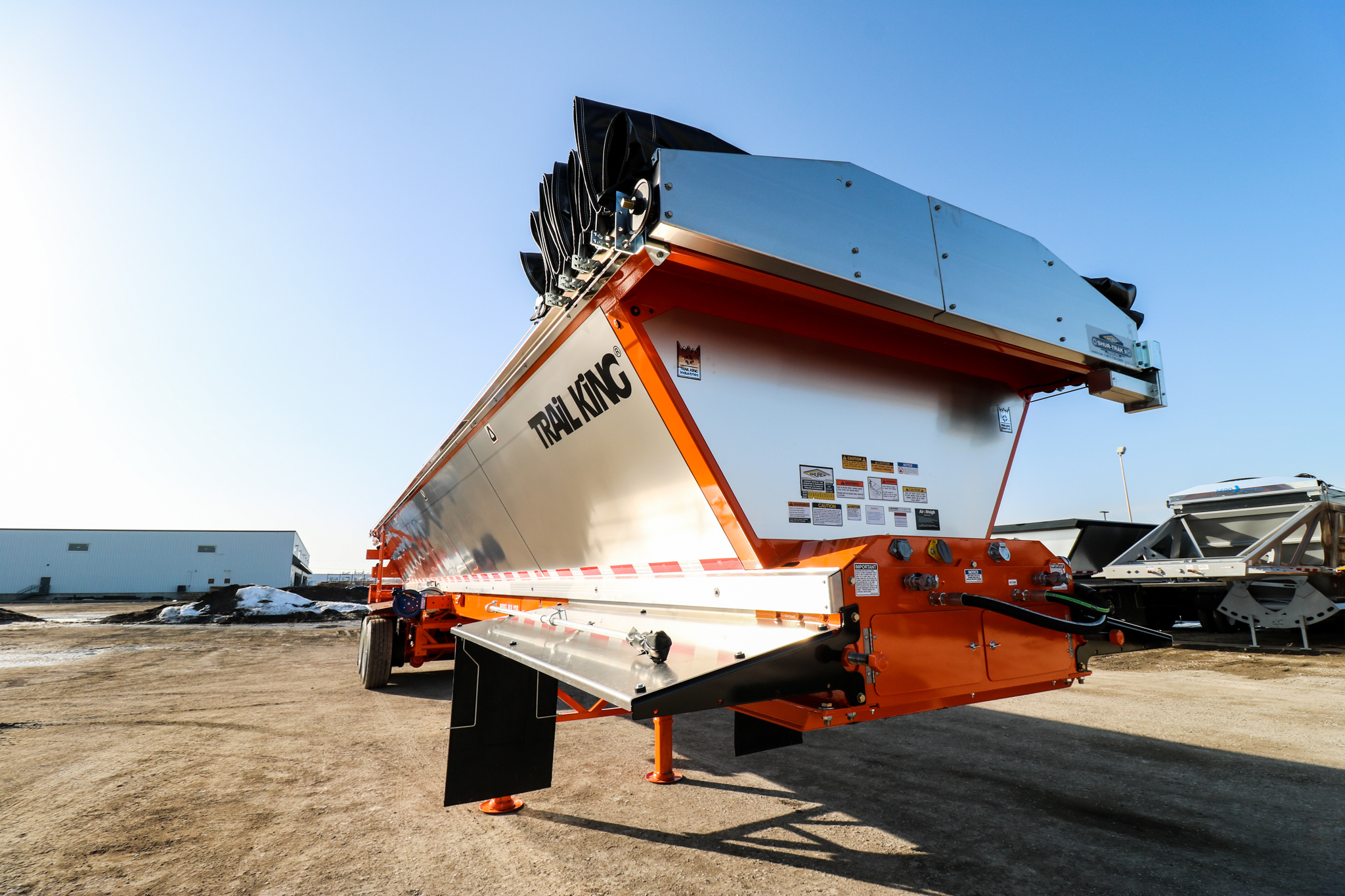

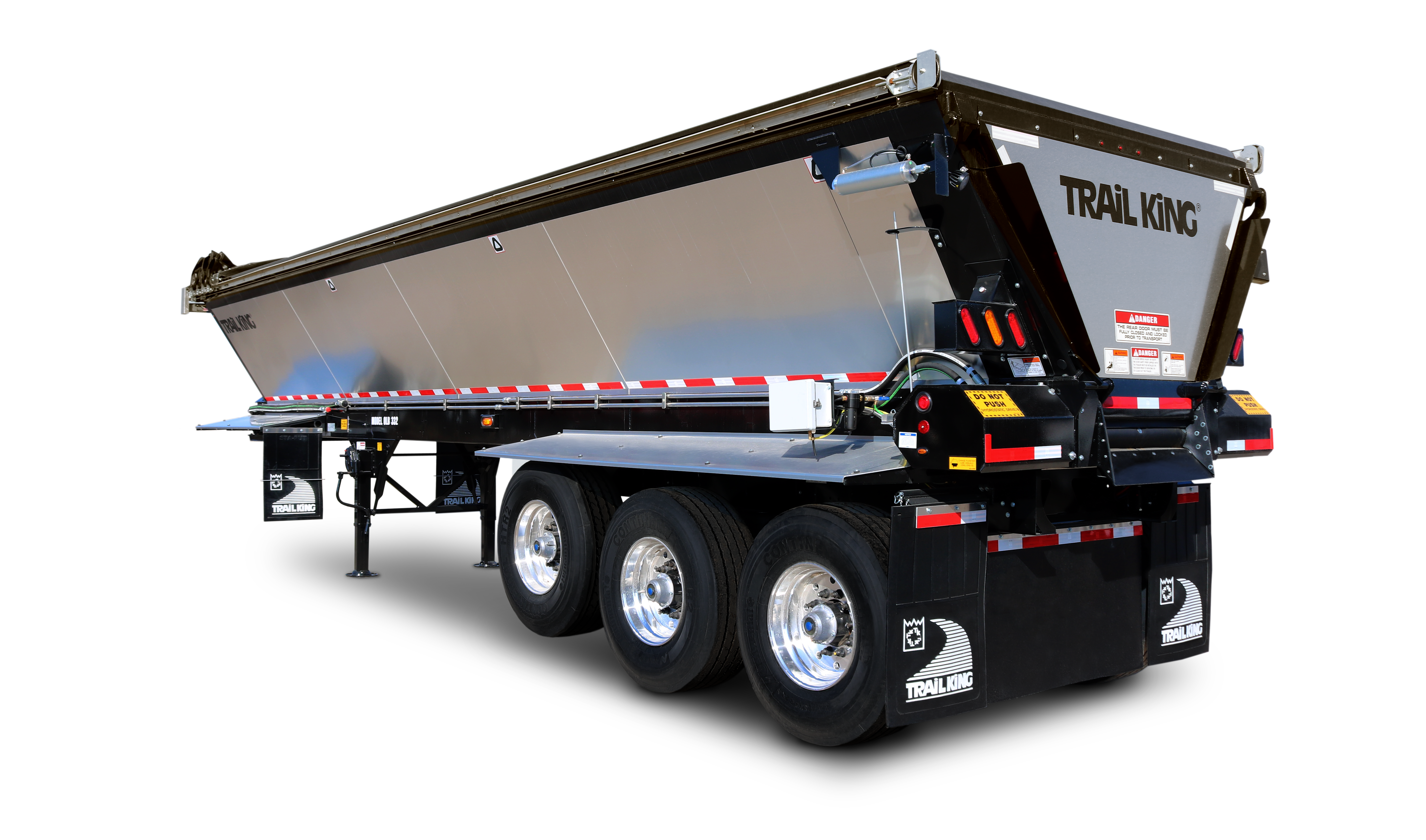

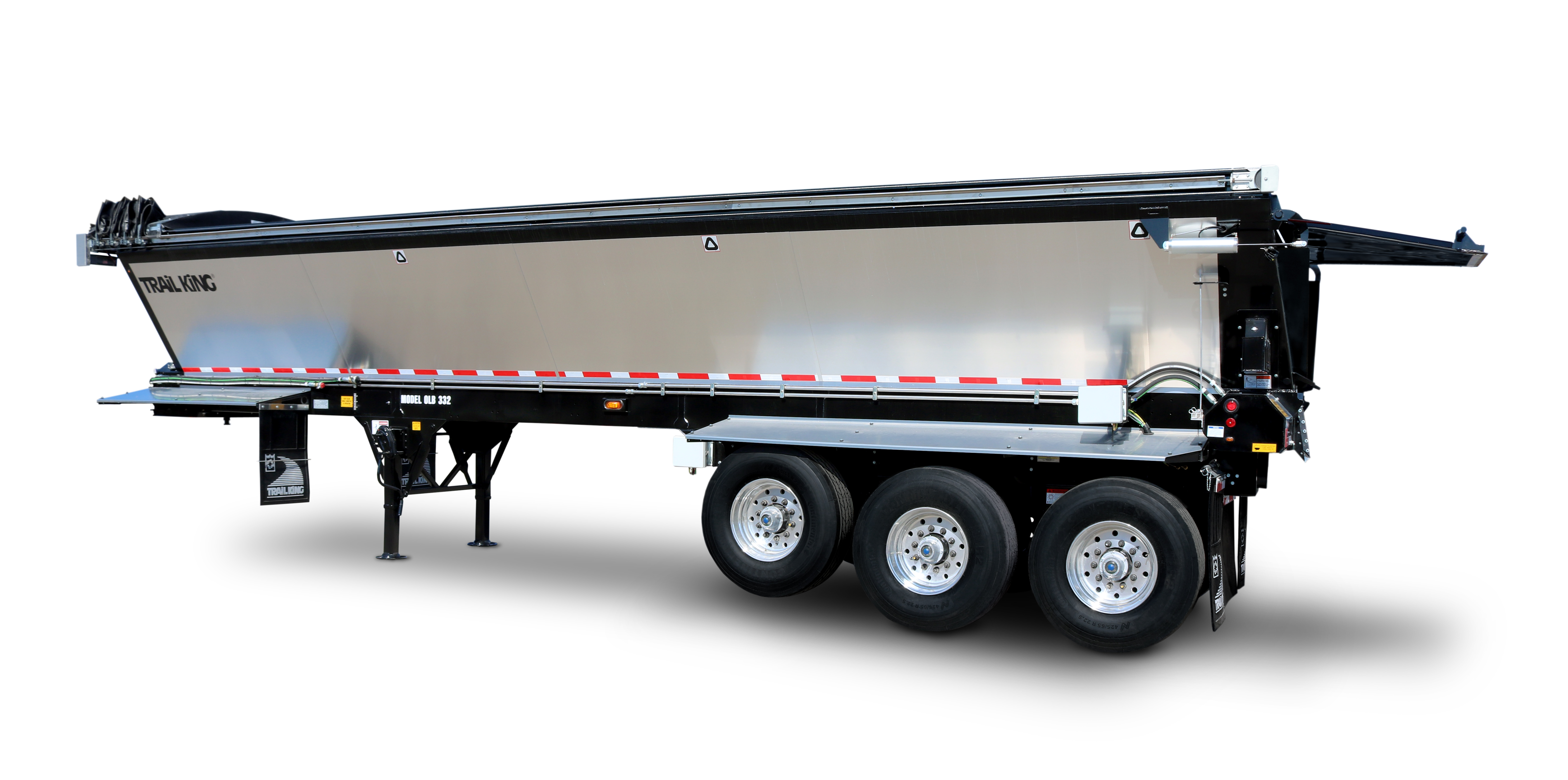

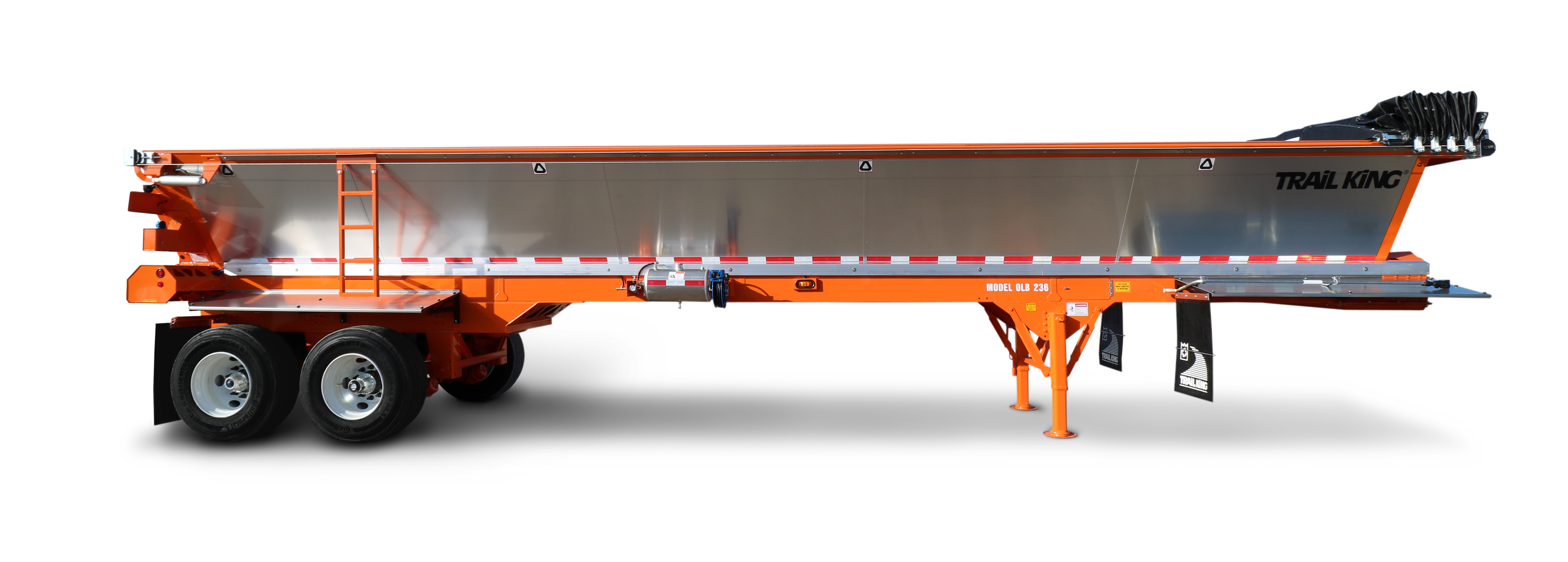

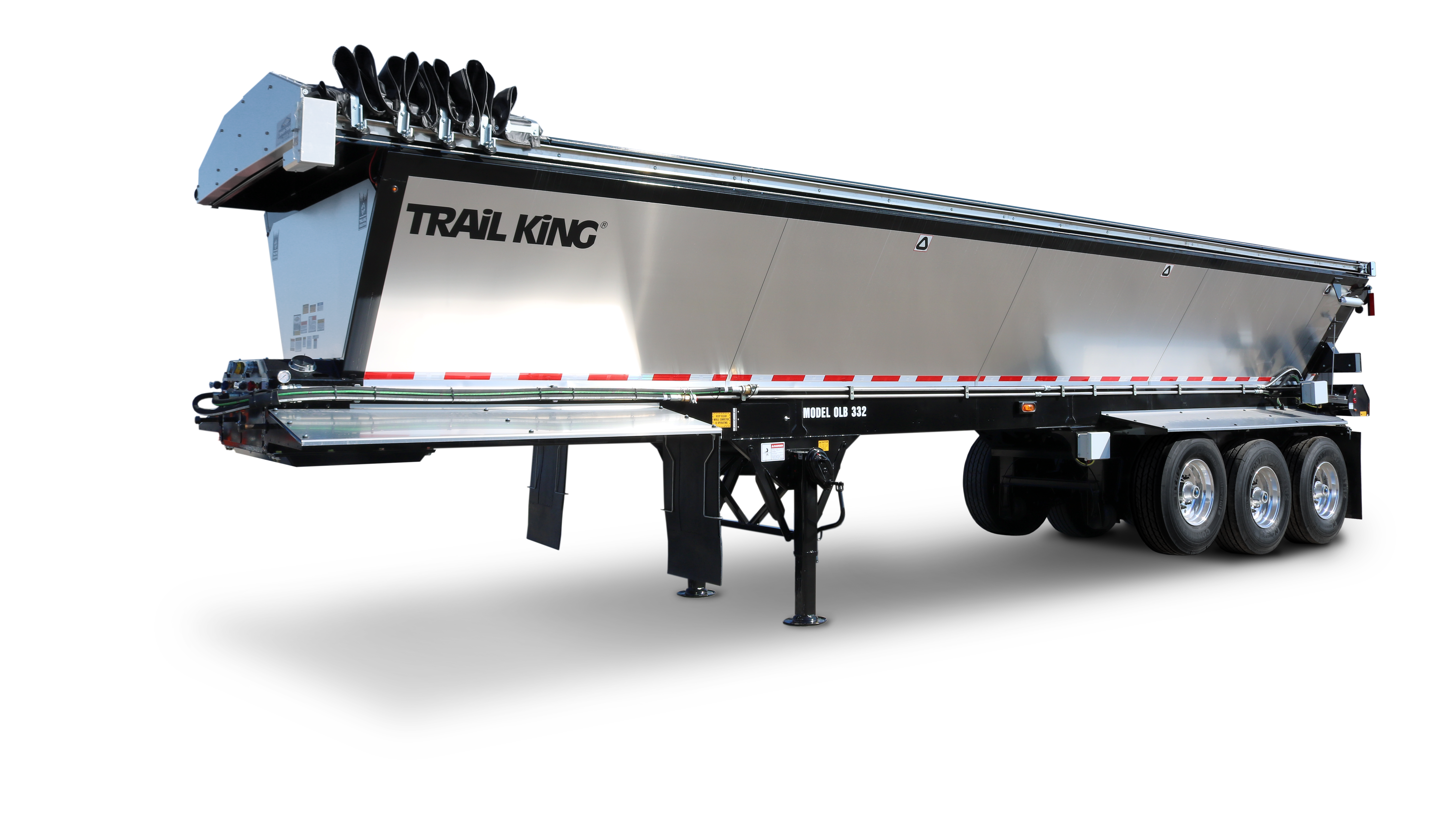

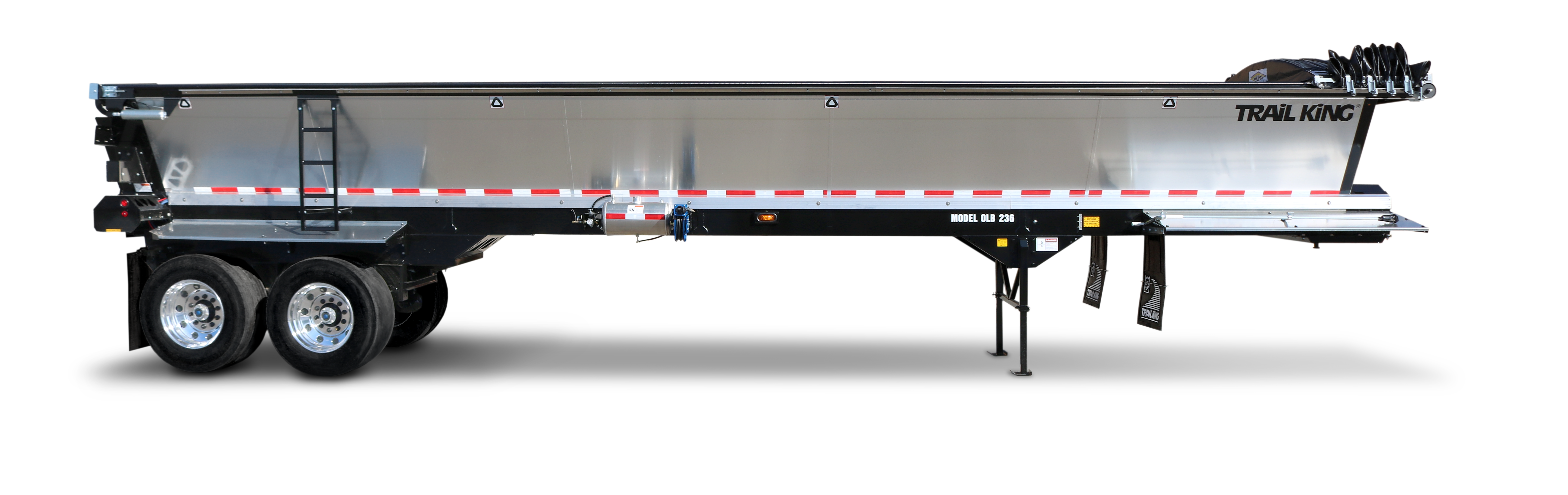

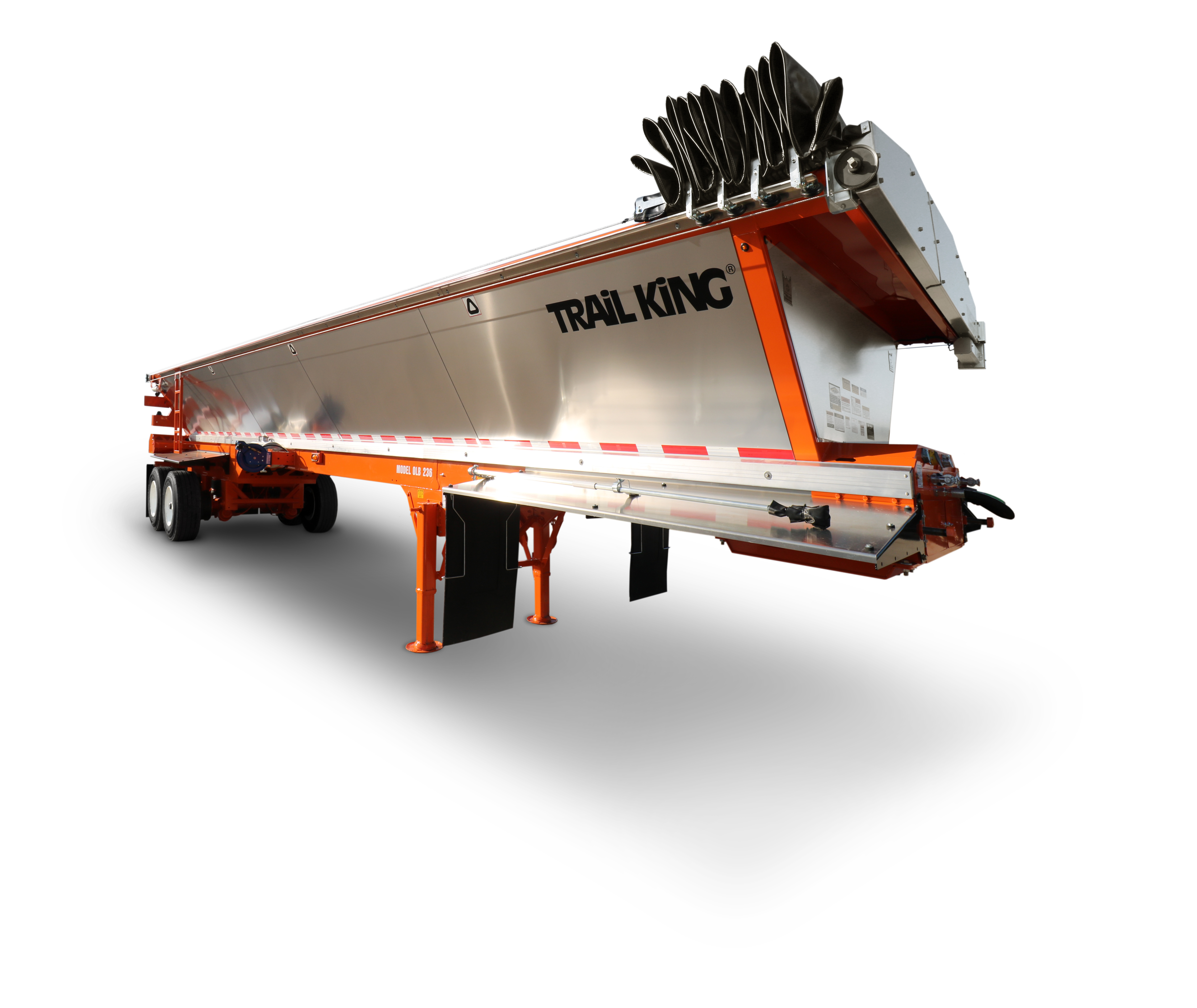

TKLB Live Bottom

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

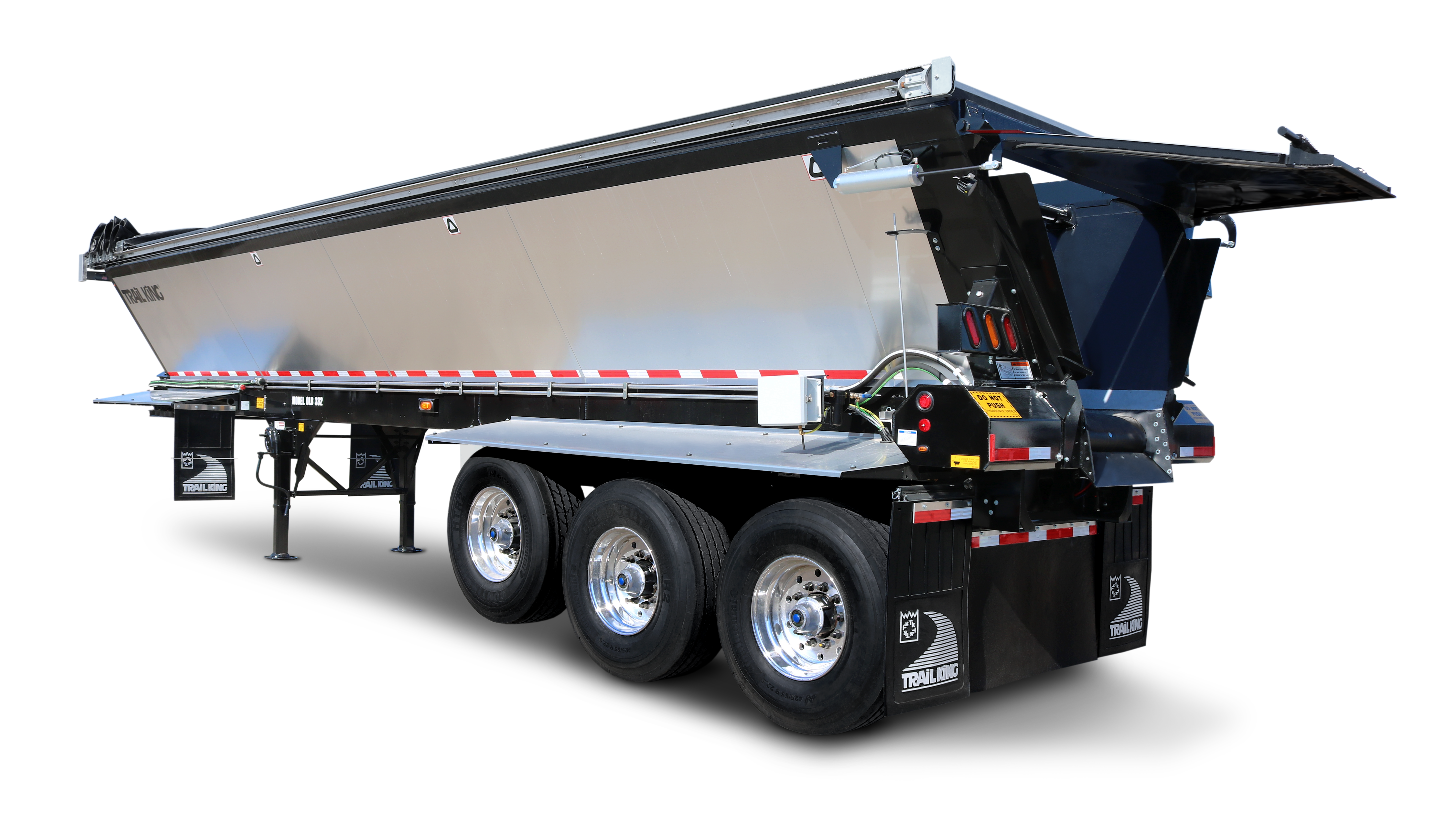

Designed for strength and speed – this live bottom delivers! Our innovative body distributes weight to maximize your payloads and maintain high levels of maneuverability with multiple axle configurations.

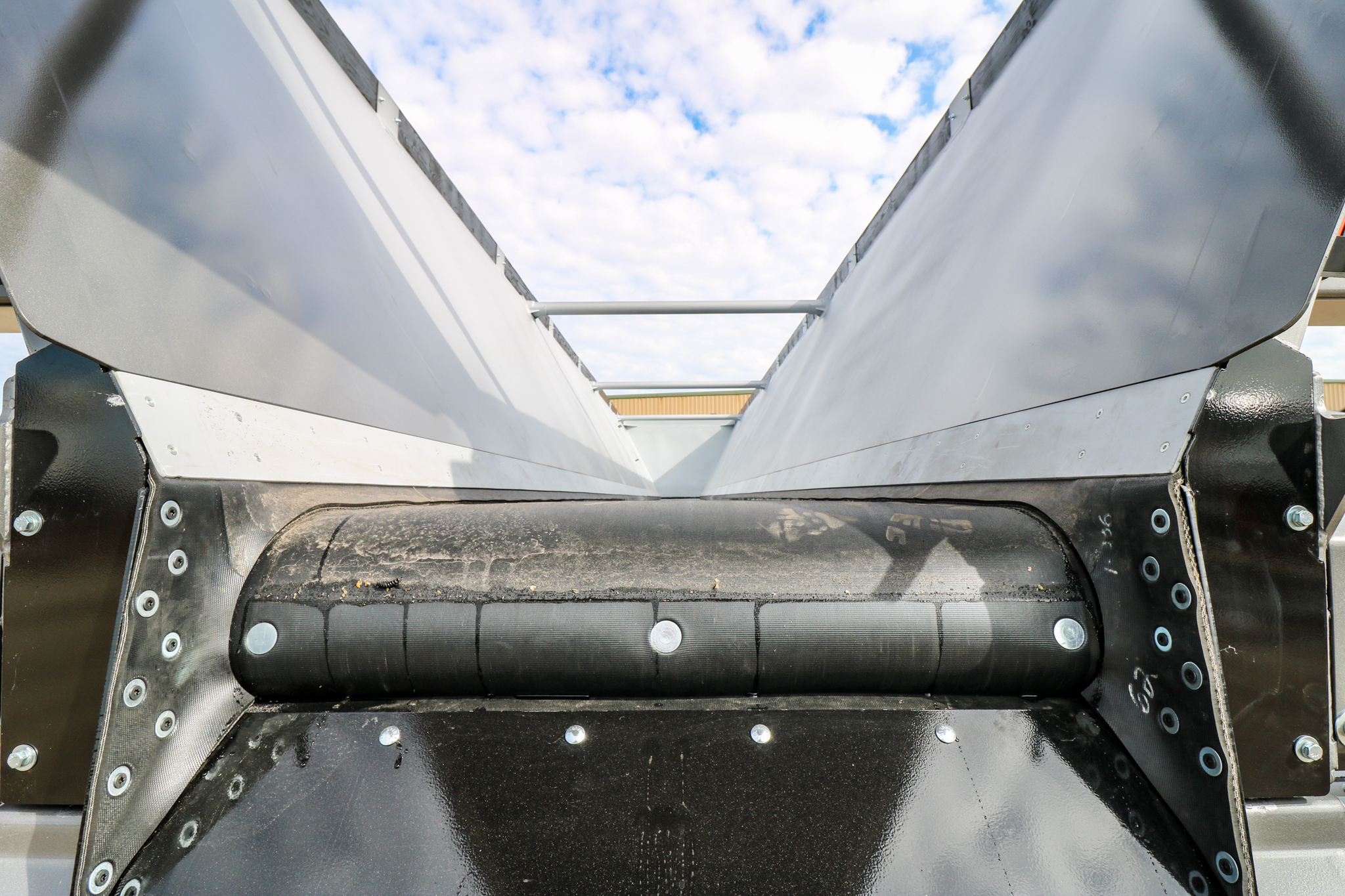

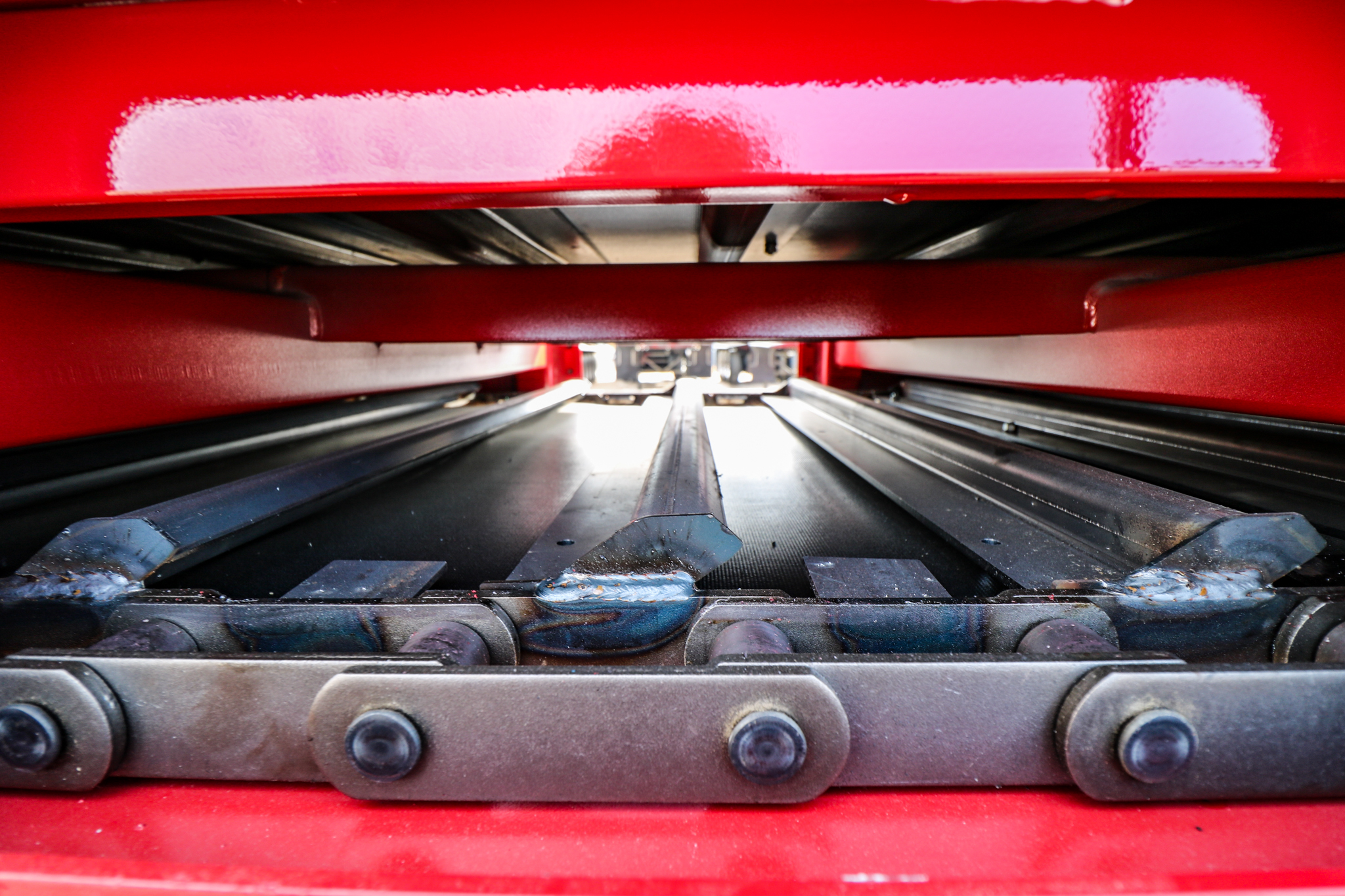

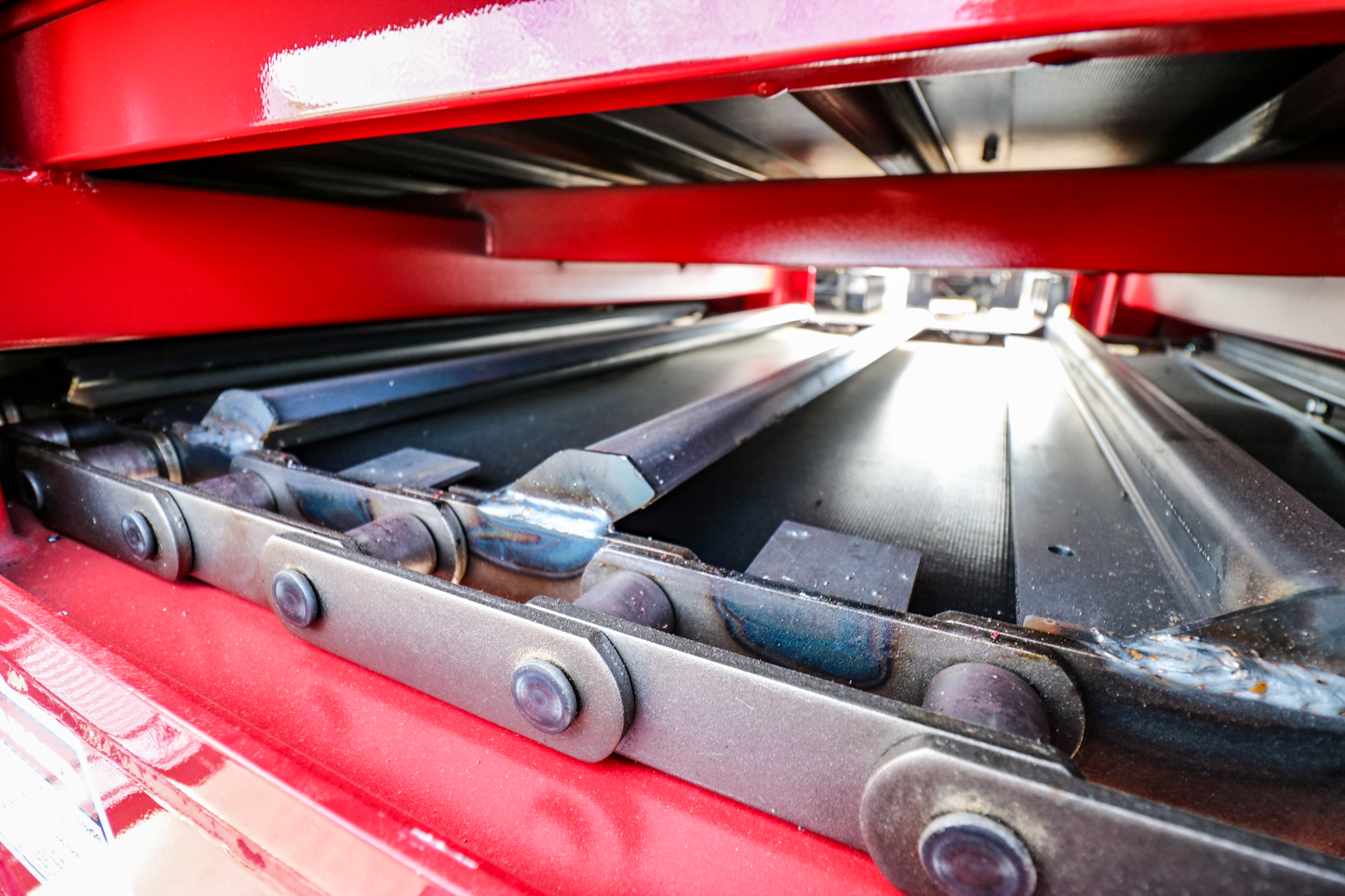

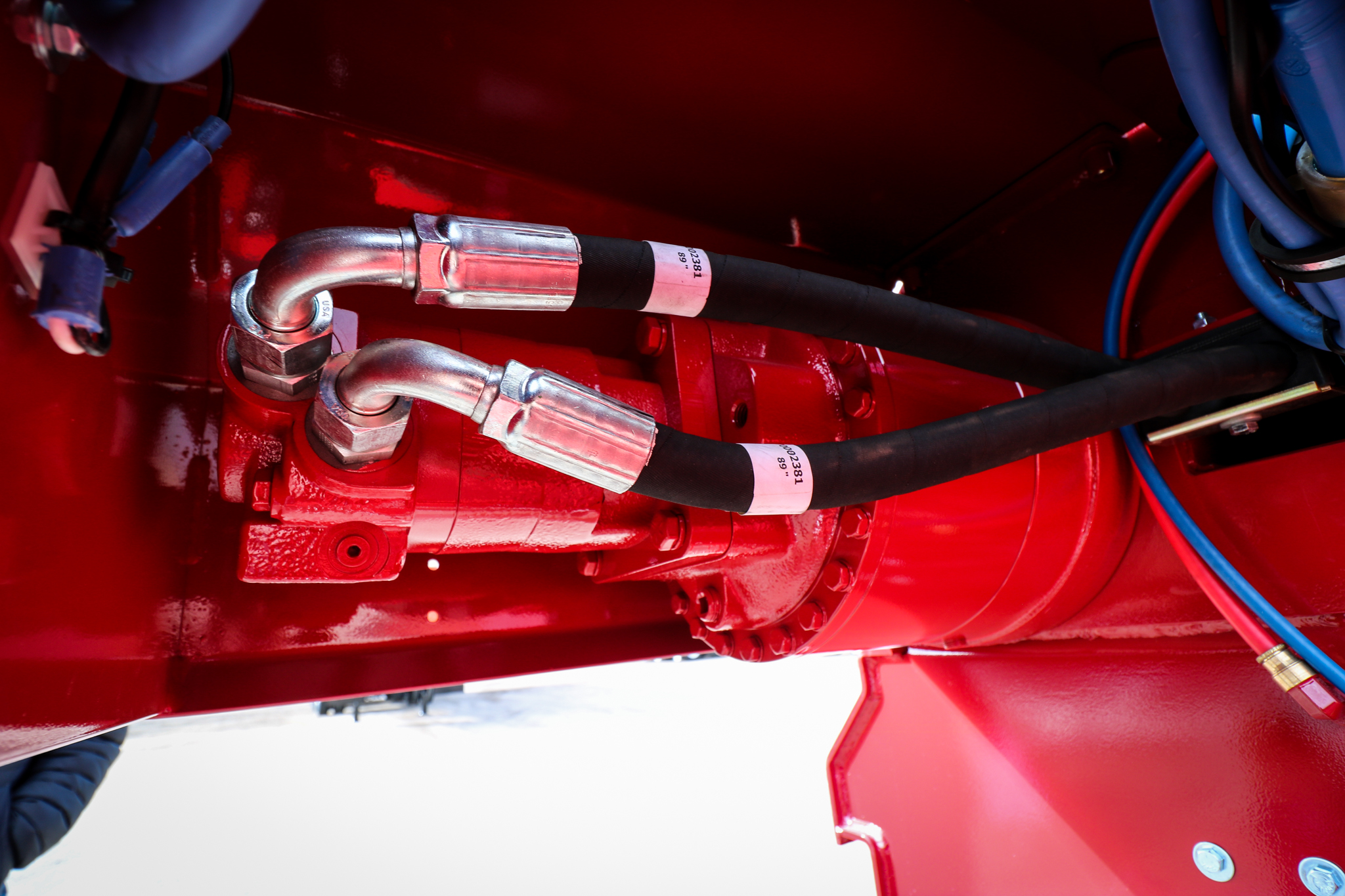

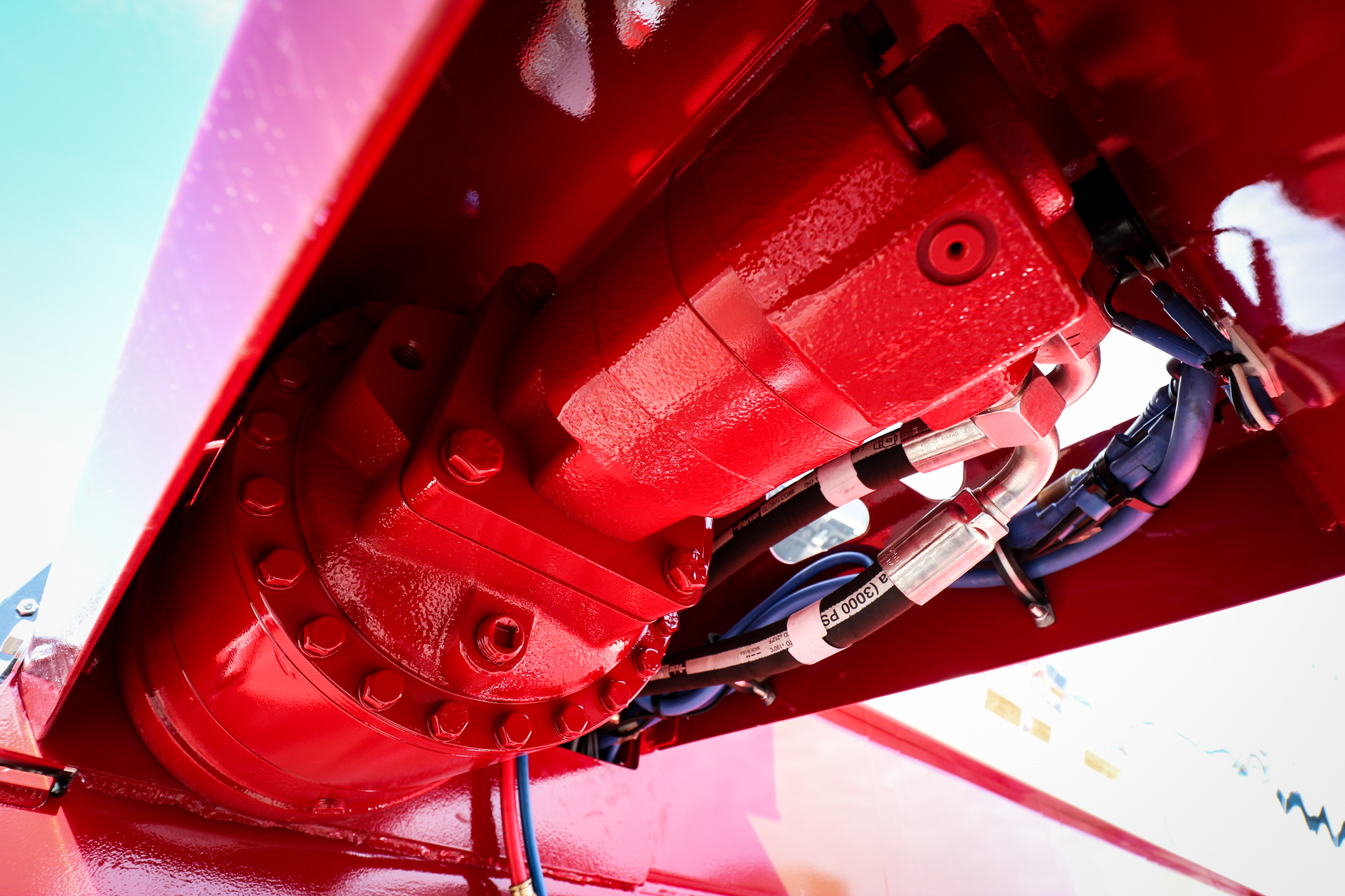

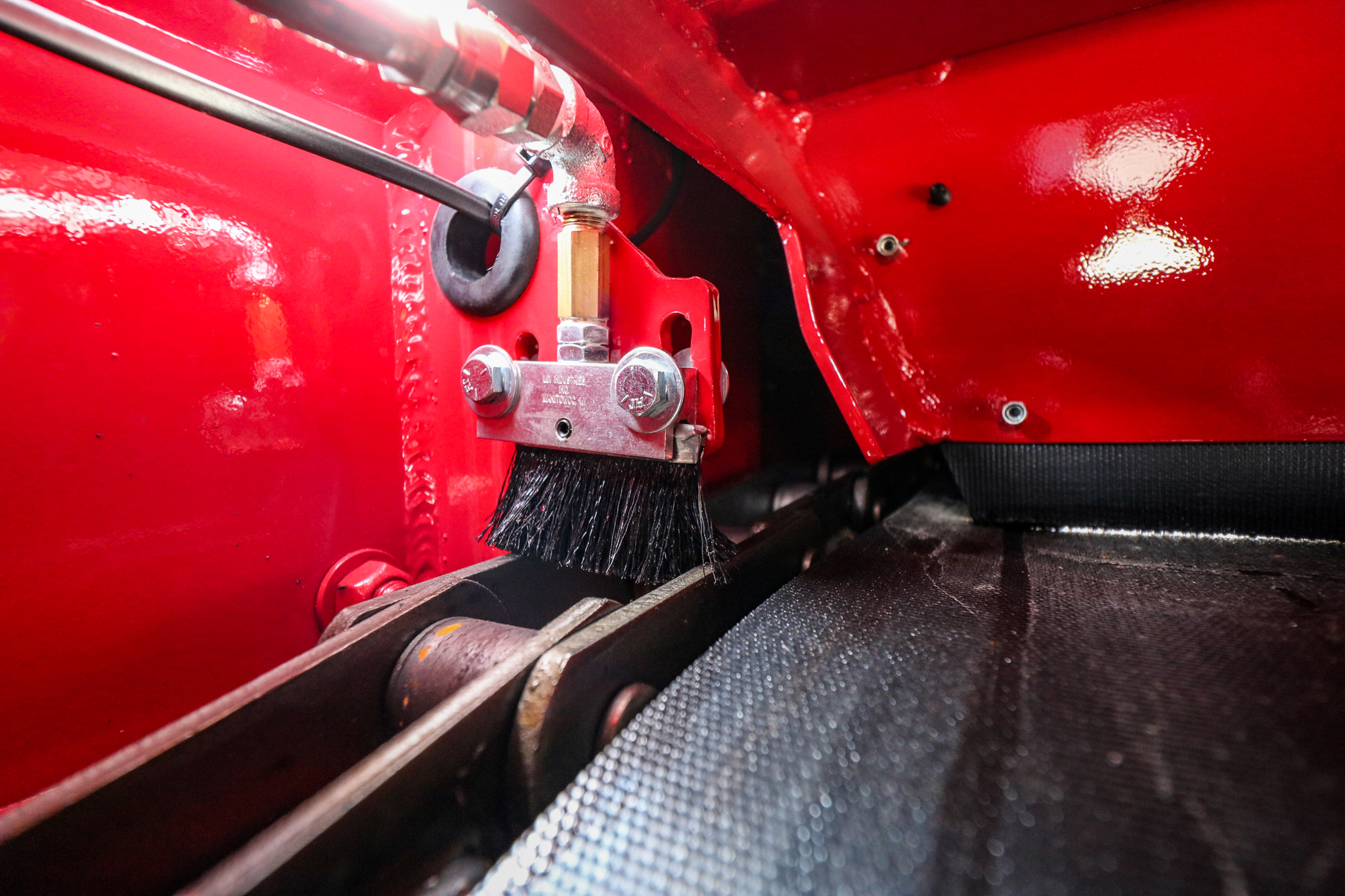

The frictionless drive system provides efficient horizontal discharge while unloading in one revolution or less! The aerodynamic design features smooth side panels, providing corrosion prevention and a clean shiny finish. This trailer will provide a high level of return on your investment with consistent performance.

Features
Documents

+ Expand All
- Close All

Specifications

Standard Equipment	226-102	426-102	332-102	236-96	336-102	440-102
Capacity	24 cu. yds.	24 cu. yds.	29 cu. yds.	28 cu. yds.	32 cu. yds.	35 cu. yds.
Overall length	31’ 2”	31’ 2”	37’ 2”	41’ 2”	41’ 2”	45’ 2”
Overall height	9’ 4”	9’ 4”	9’ 4”	8’ 11” (96"Body)	9’ 4”	8’ 4”
King pin height	49”	49”	49”	49”	49”	49”
King pin to center of last axle	25’ 11"	25’ 11"	31’ 11"	35’ 11"	35’ 11"	39’ 11"
Number of Axles	2	4	3	2	3	4
Empty weight ±3%	12,000lbs.	15,130 lbs.	15,170 lbs.	13,300 lbs.	15,570 lbs.	17,230 lbs.

Documents

Download Literature
