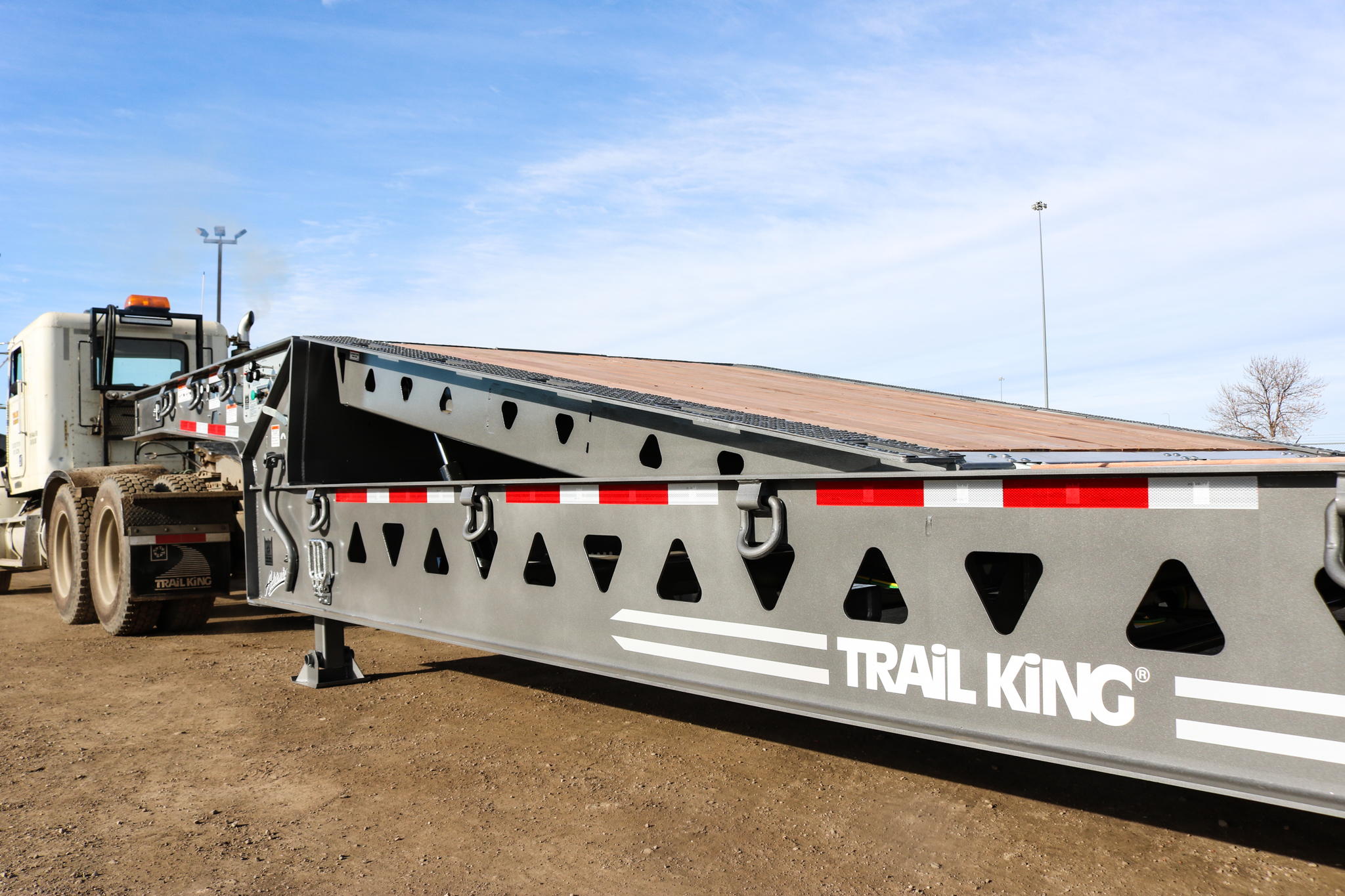

Reduced load angle of 12.5 degrees, improved weight distribution and a redesigned tail make the Trail King Hydraulic Tail your go-to choice. This trailer is easy to operate with new controls and a smaller remote and features wider track axles for increased stability. The HT offers the most scalability while maintaining dependable load-hauling strength and durability.

  • + Expand All
  • - Close All
  • Specifications
    STANDARD EQUIPMENT TK80HT 2-AXLE
    Capacity (in 10’) 50,000 lbs.
    Overall length 47’ 11”
    Width 102”
    14” kingpin setting with 88” swing X
    9’ straight drop upper deck X
    49” loaded 5th wheel height X
    10’ recessed upper deck ramp w/ ramp locks  X
    10-ga. Floor plate decking on upper deck X

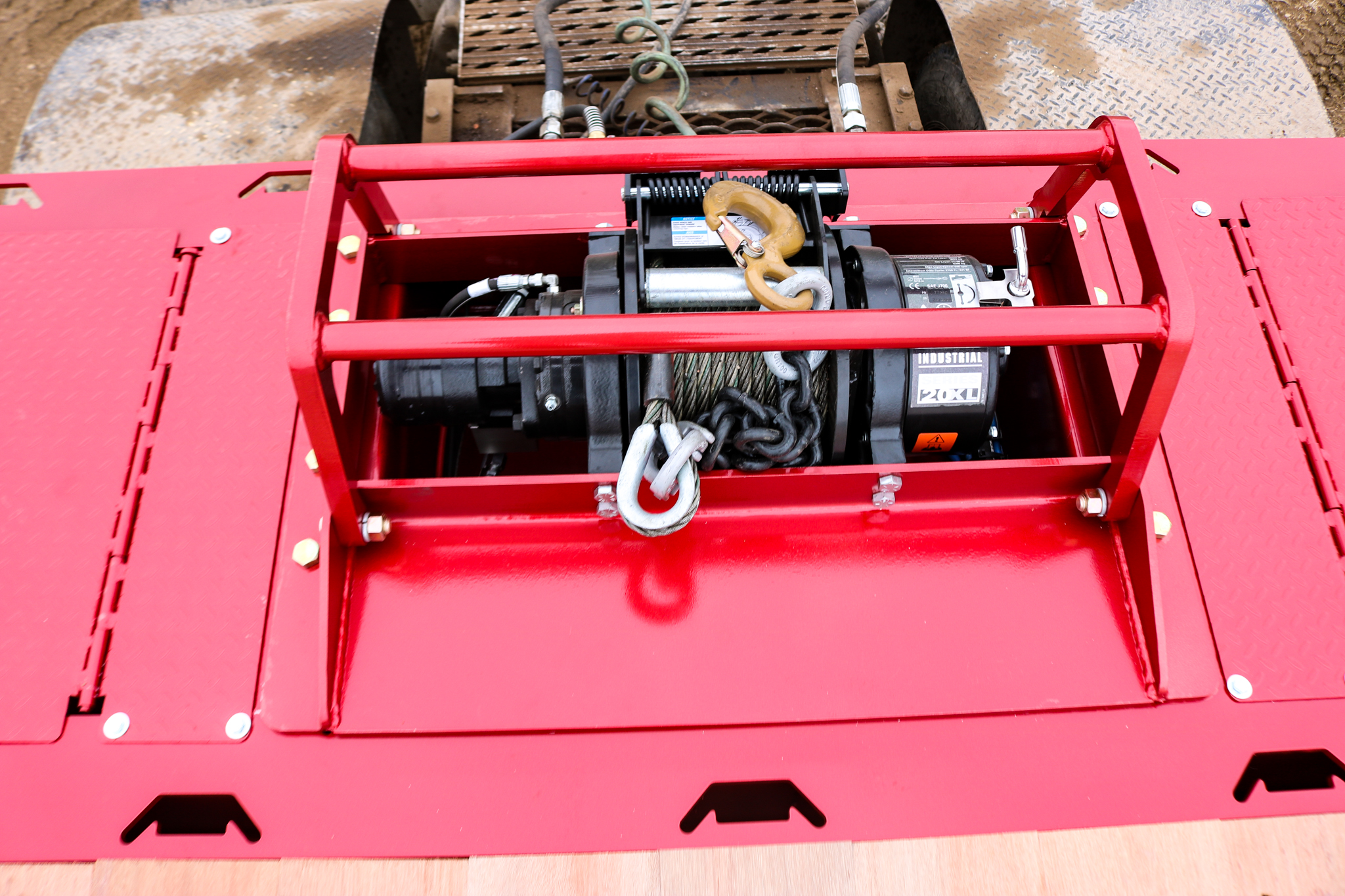

    Hydraulic winch with level wind  20,000 lbs
    Winch Guard X
    80’ winch cable with locking safety hook X

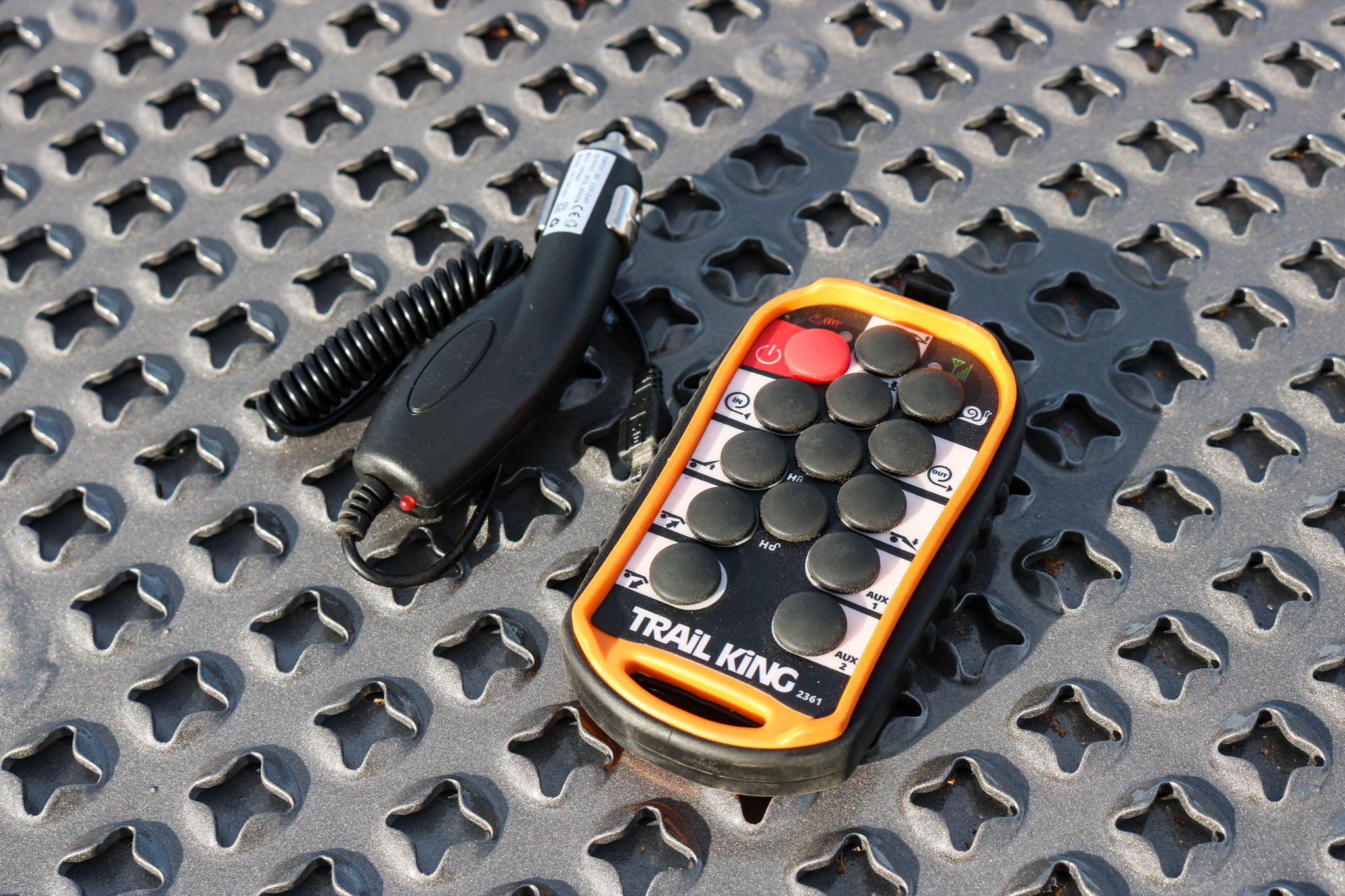

    Wireless remote for winch (1 function, 2 buttons)  X

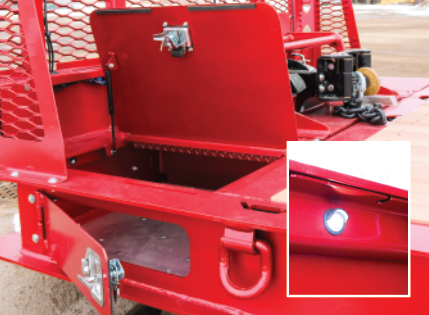

    2 tool boxes at front of upper deck X

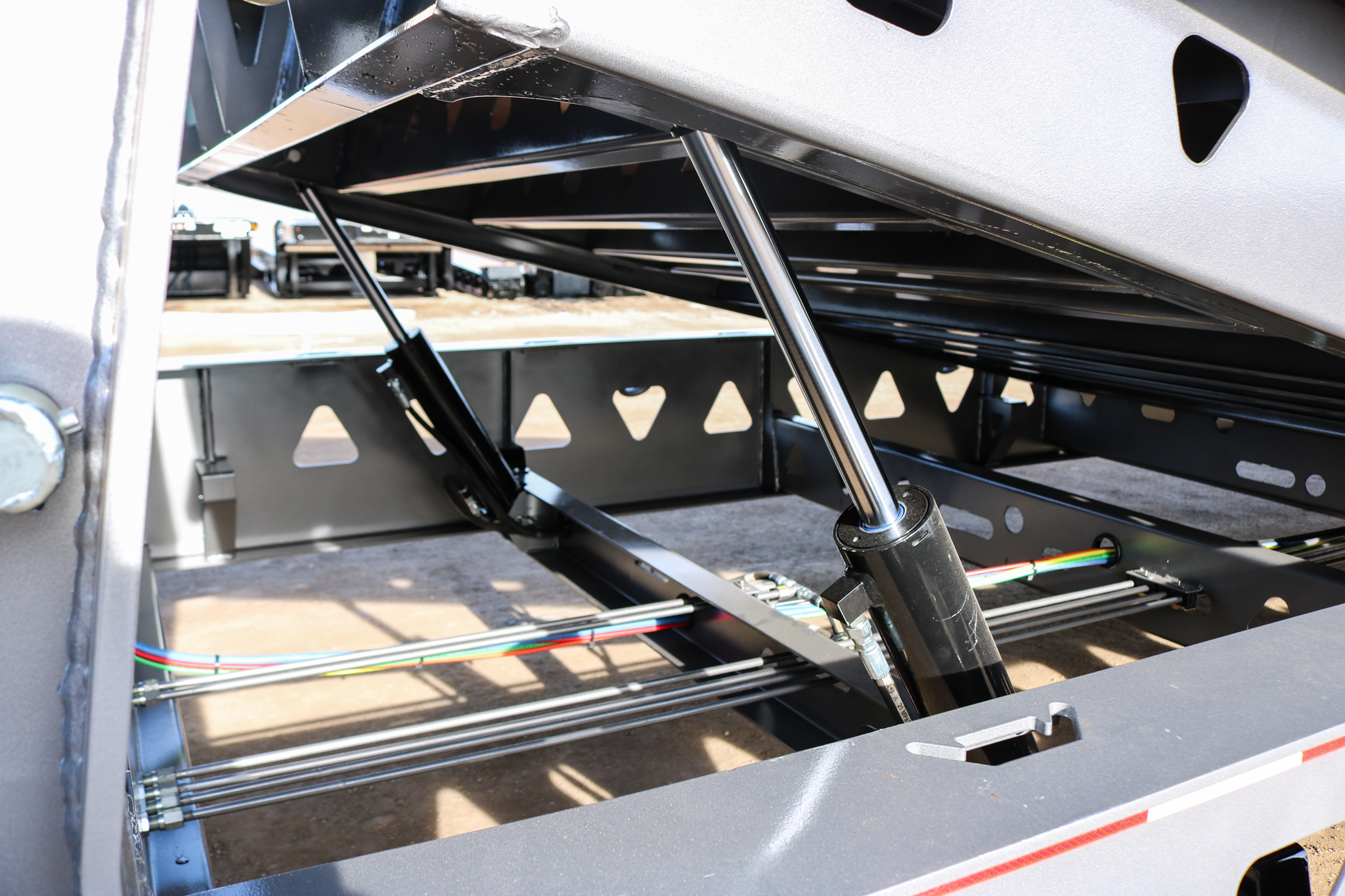

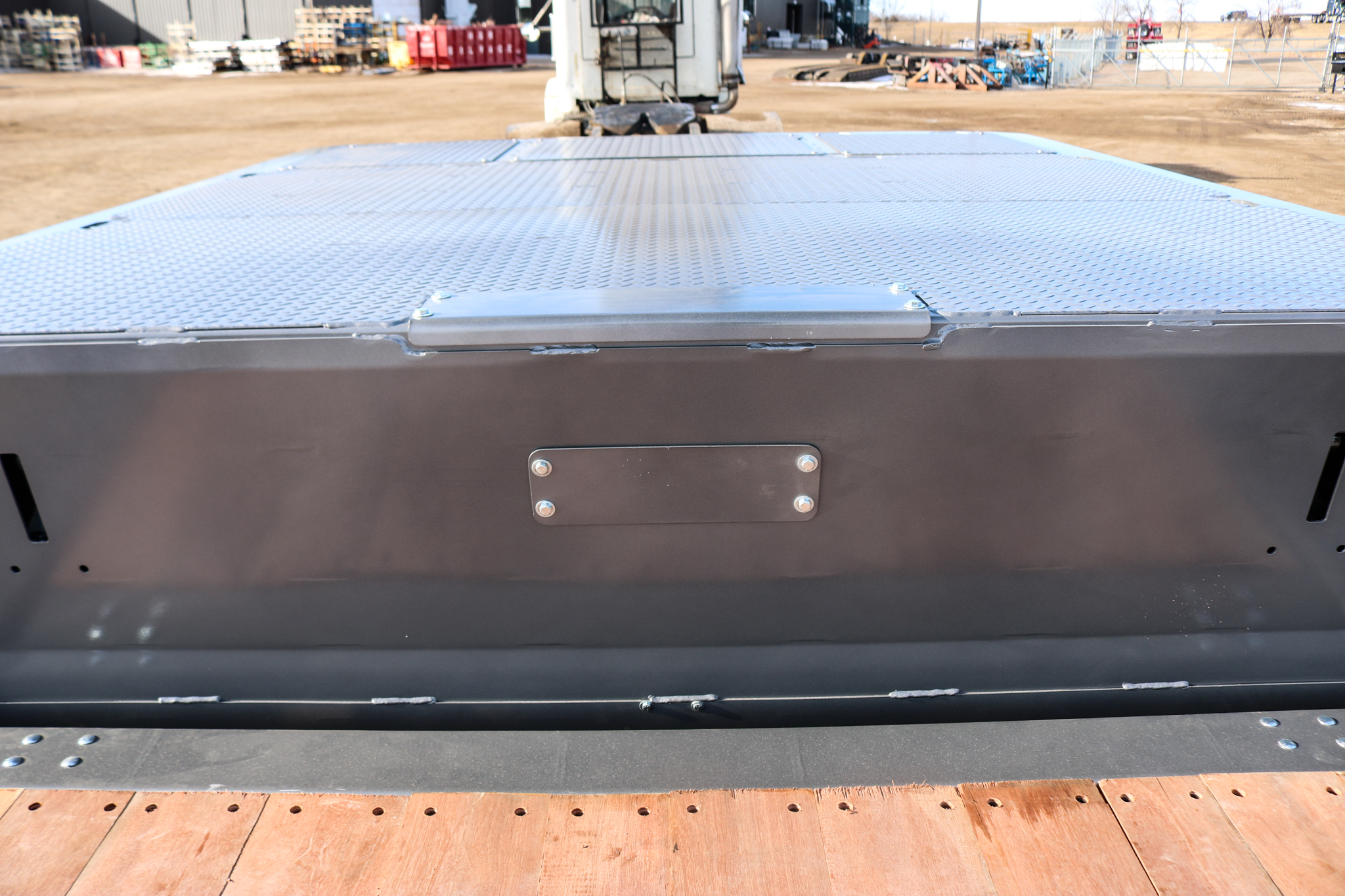

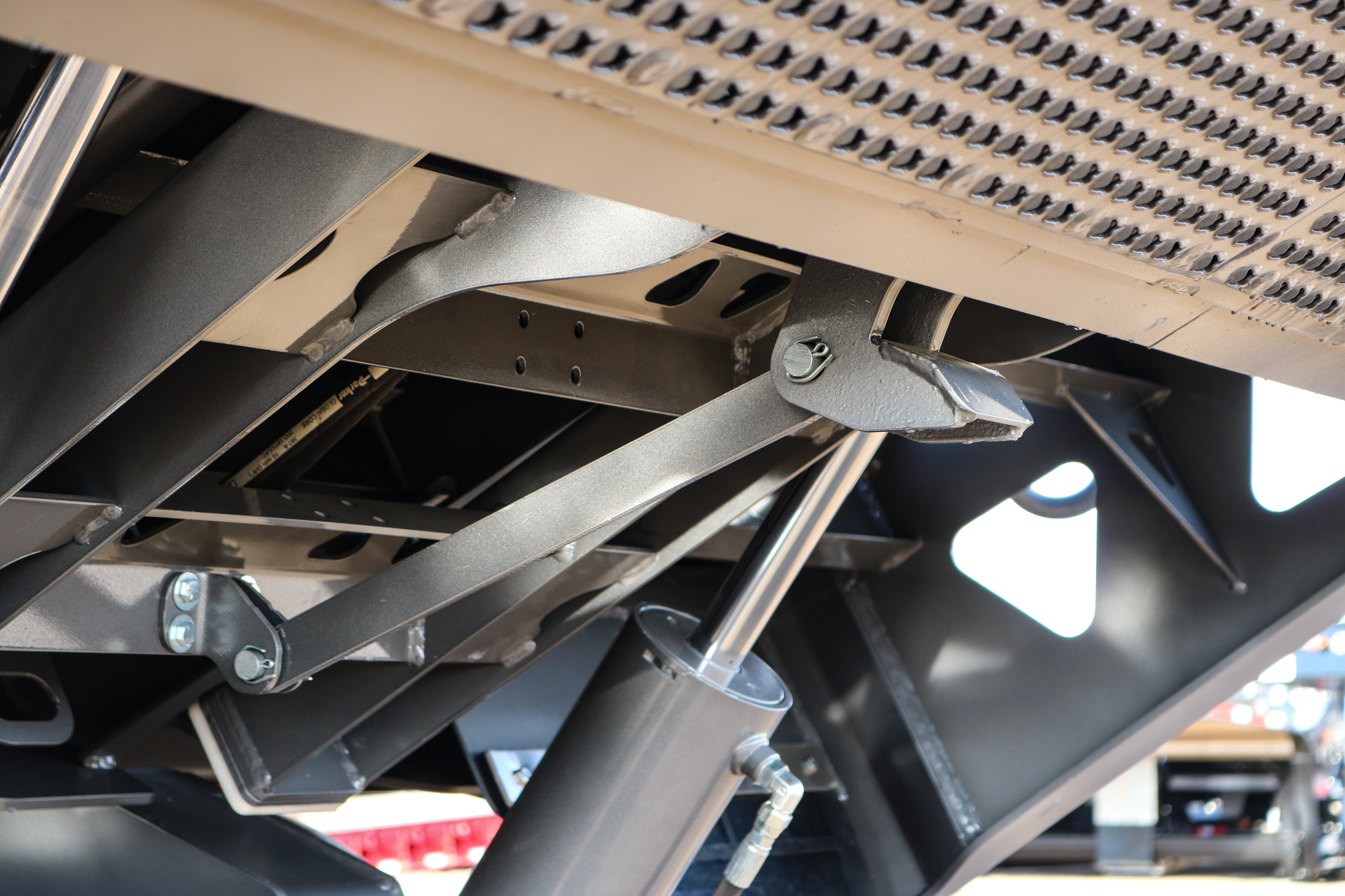

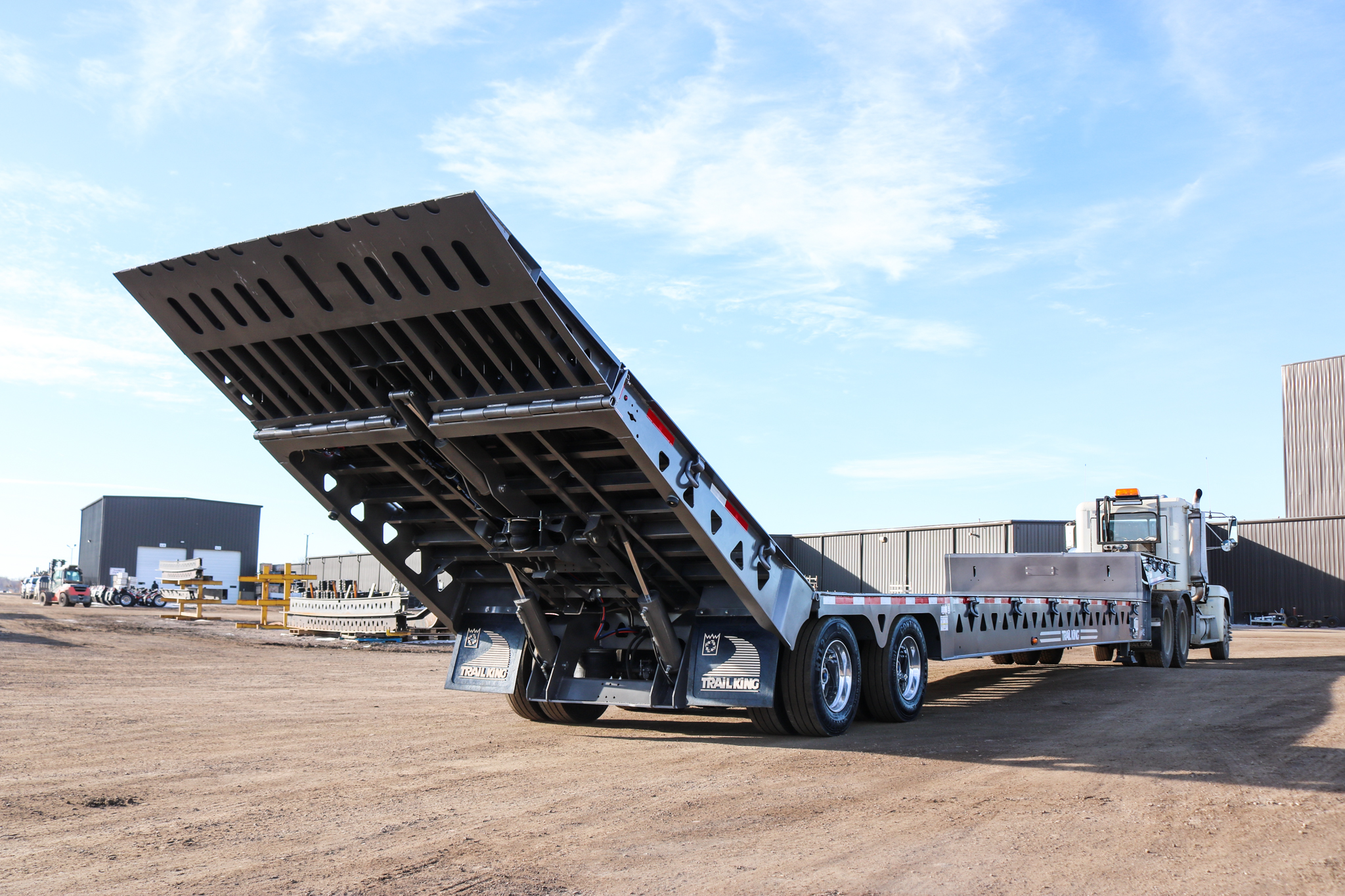

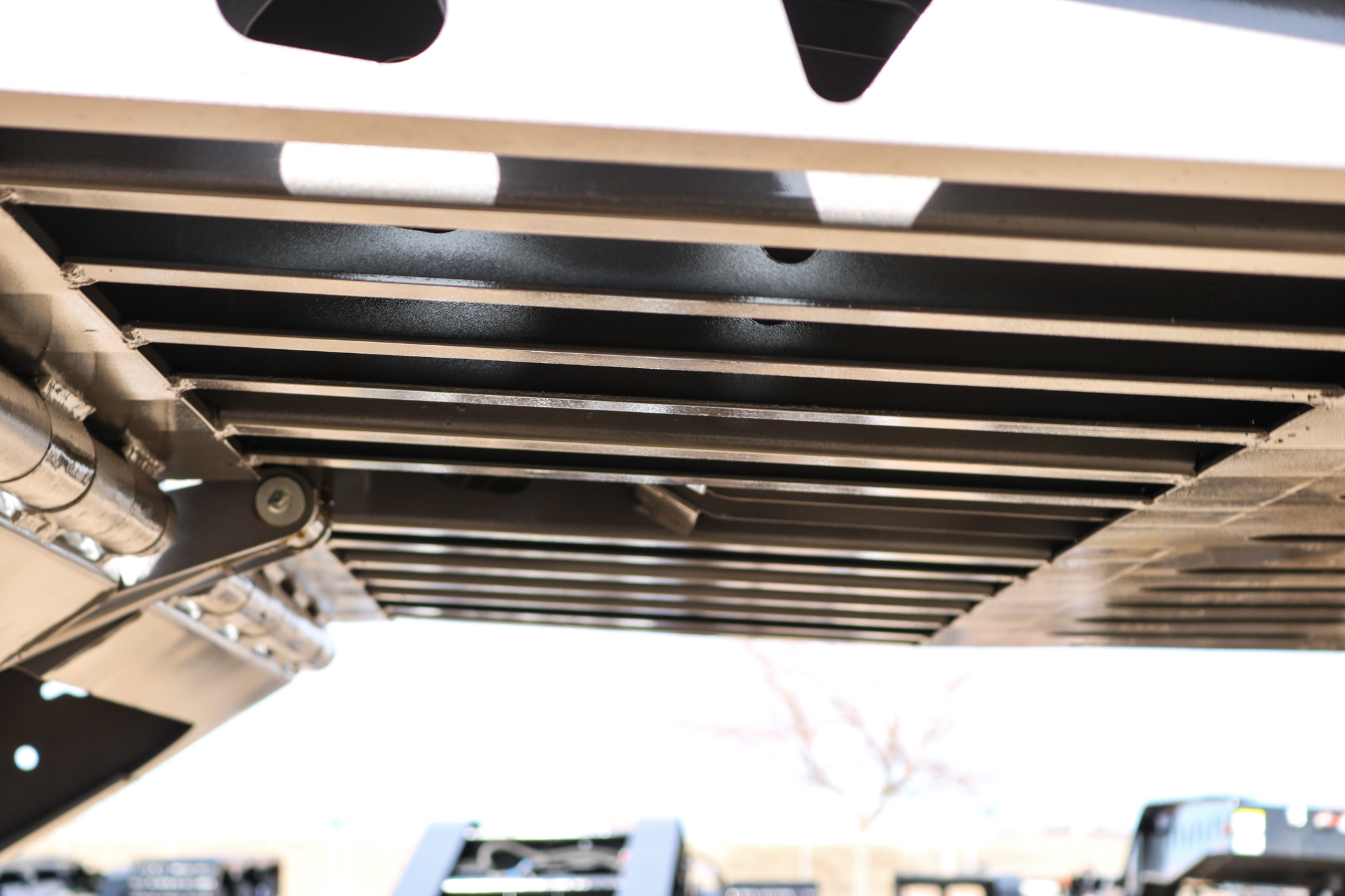

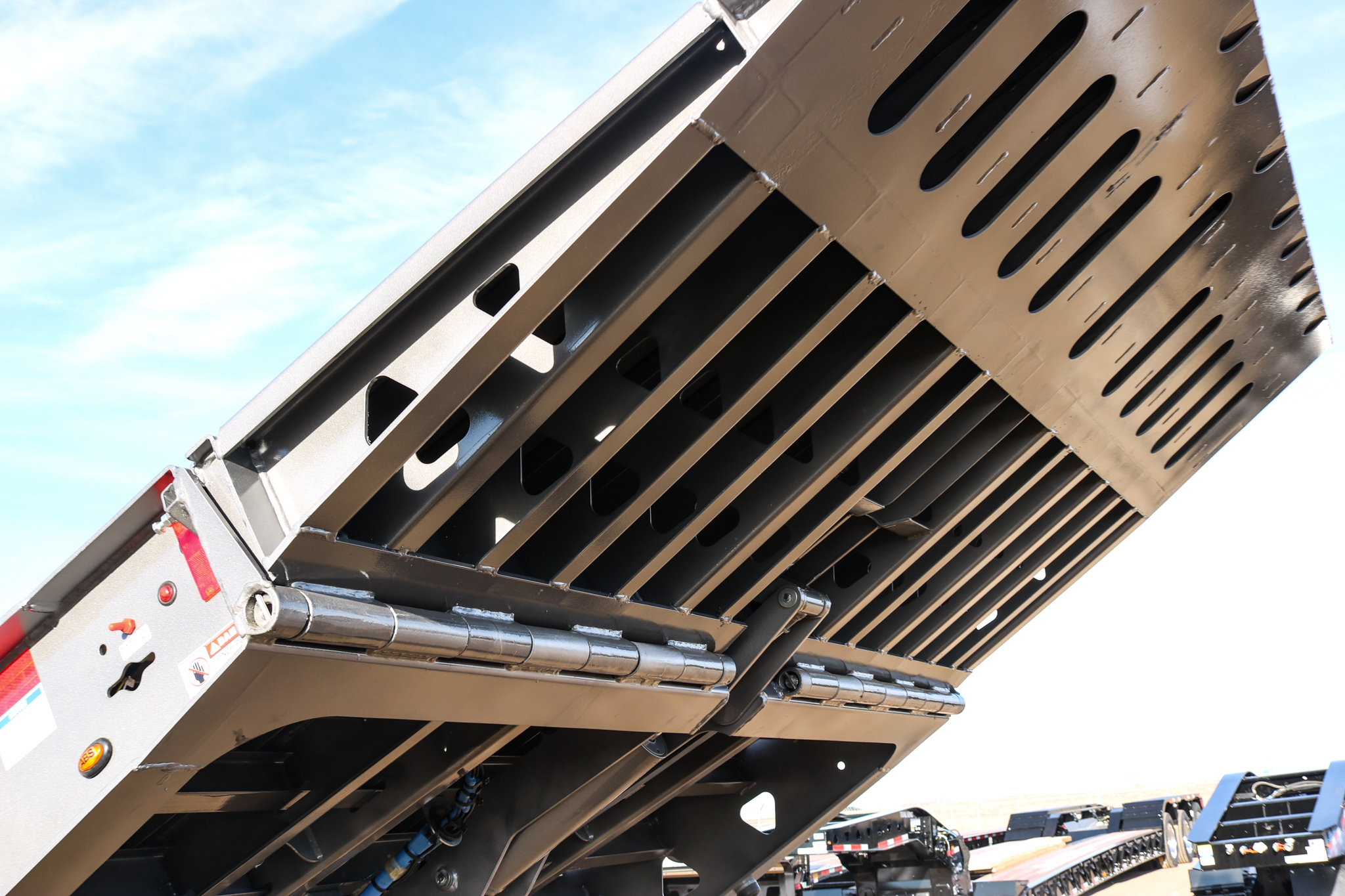

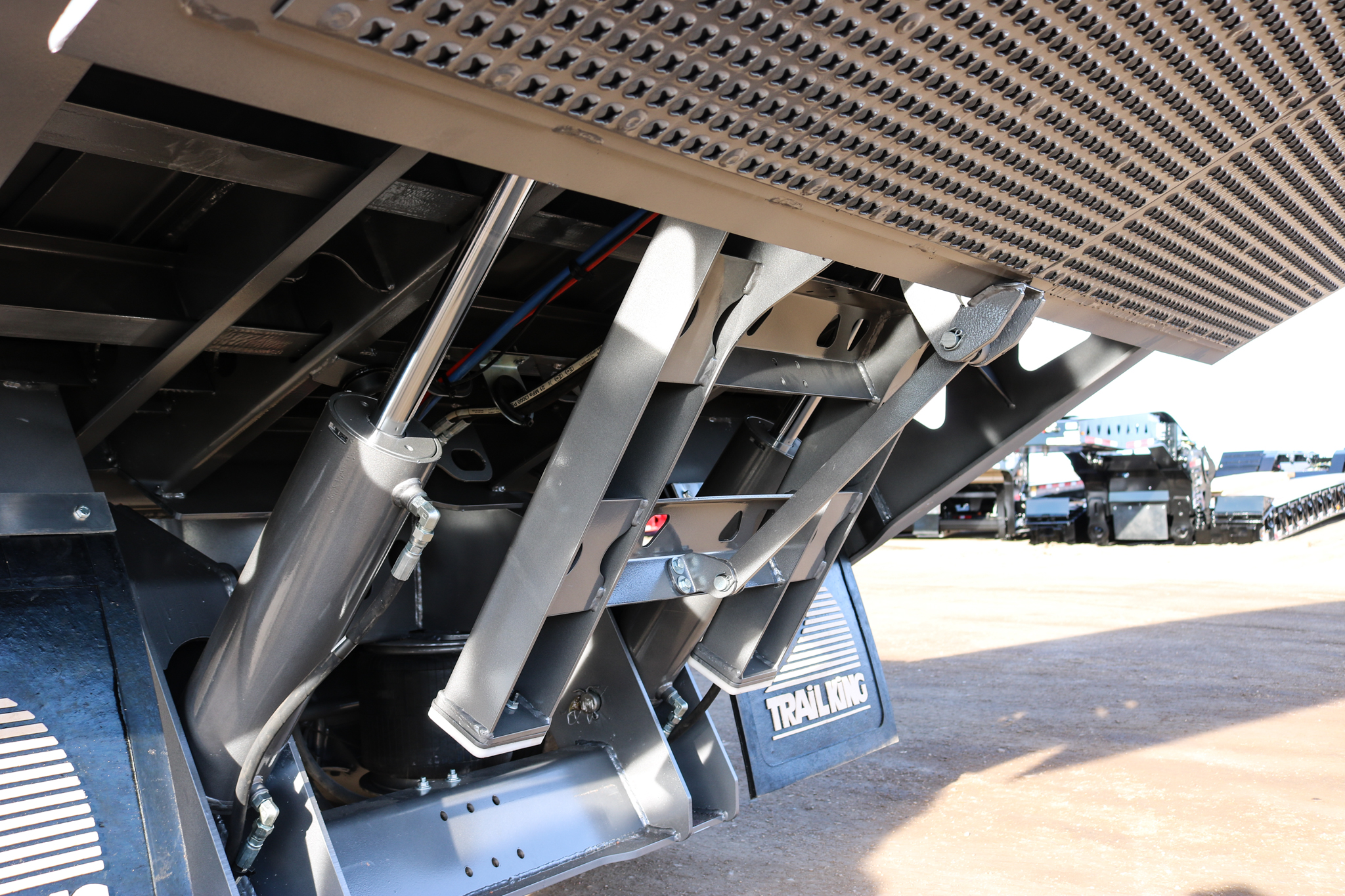

    8' hydraulic tail with 52” fold-under X
    Tail raises to 58” dock height and lowers to ground X

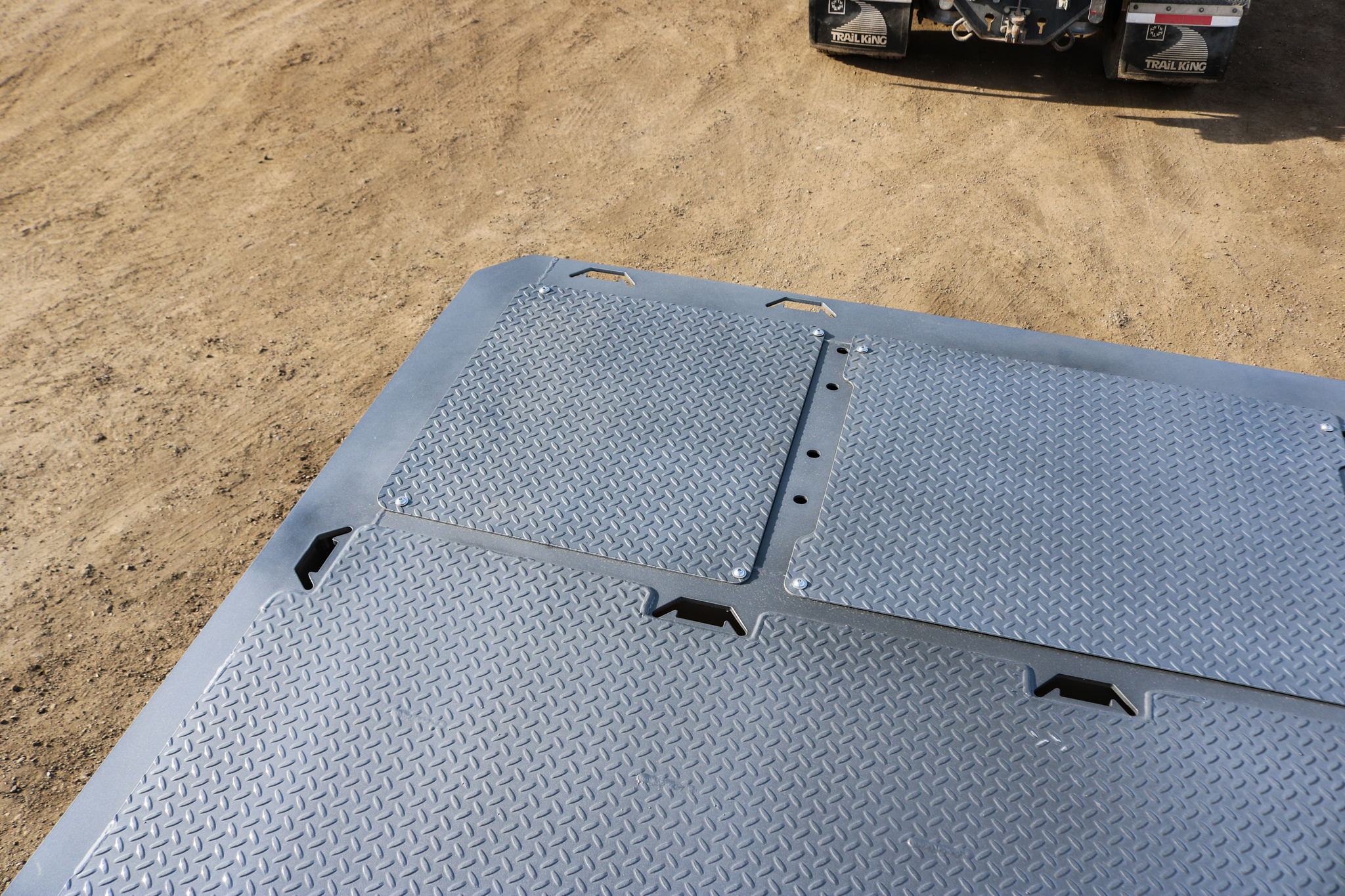

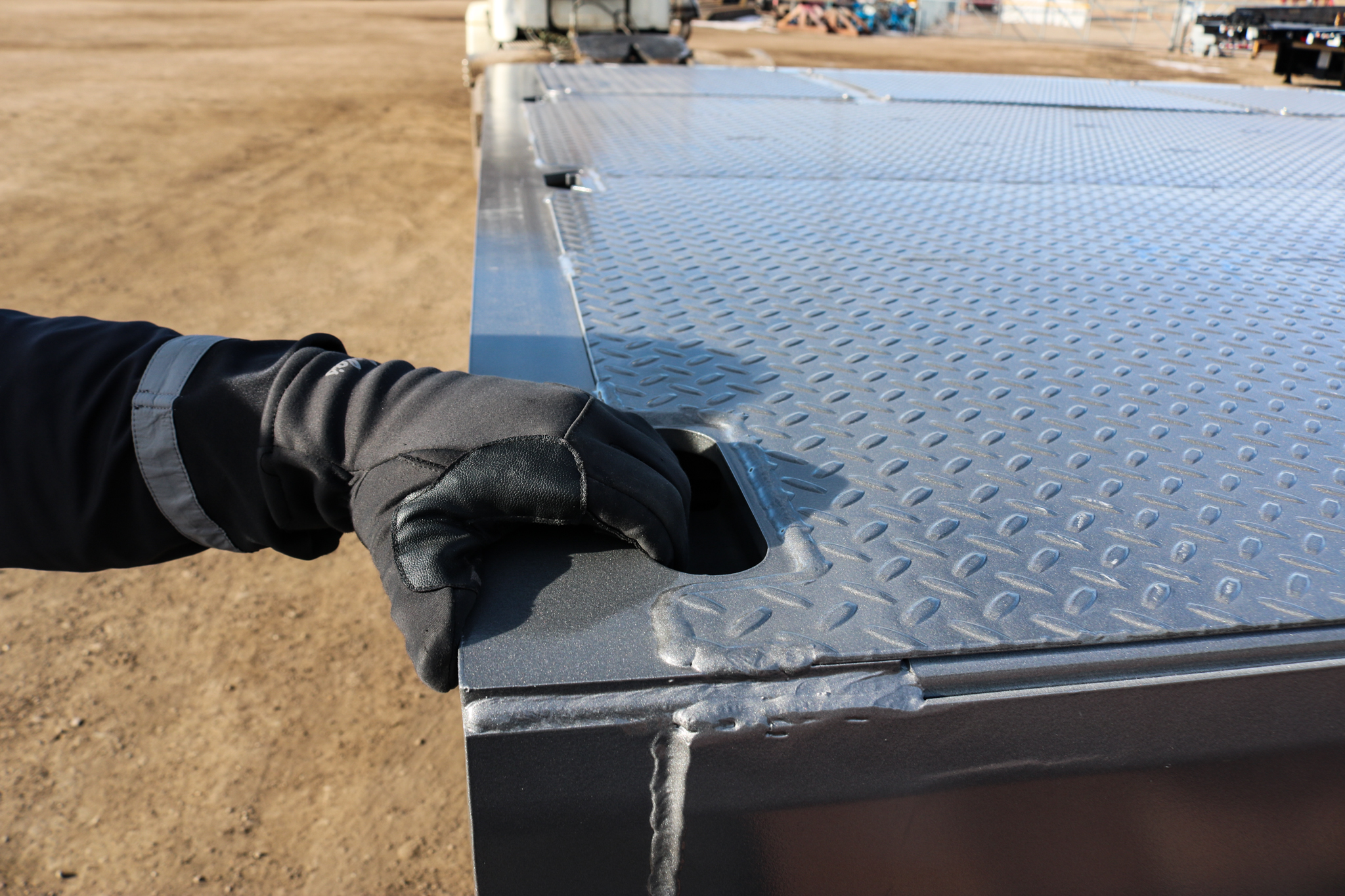

    1/4" floor plate over wheels w/ last 2' Star Traction over 1/4" smooth steel X

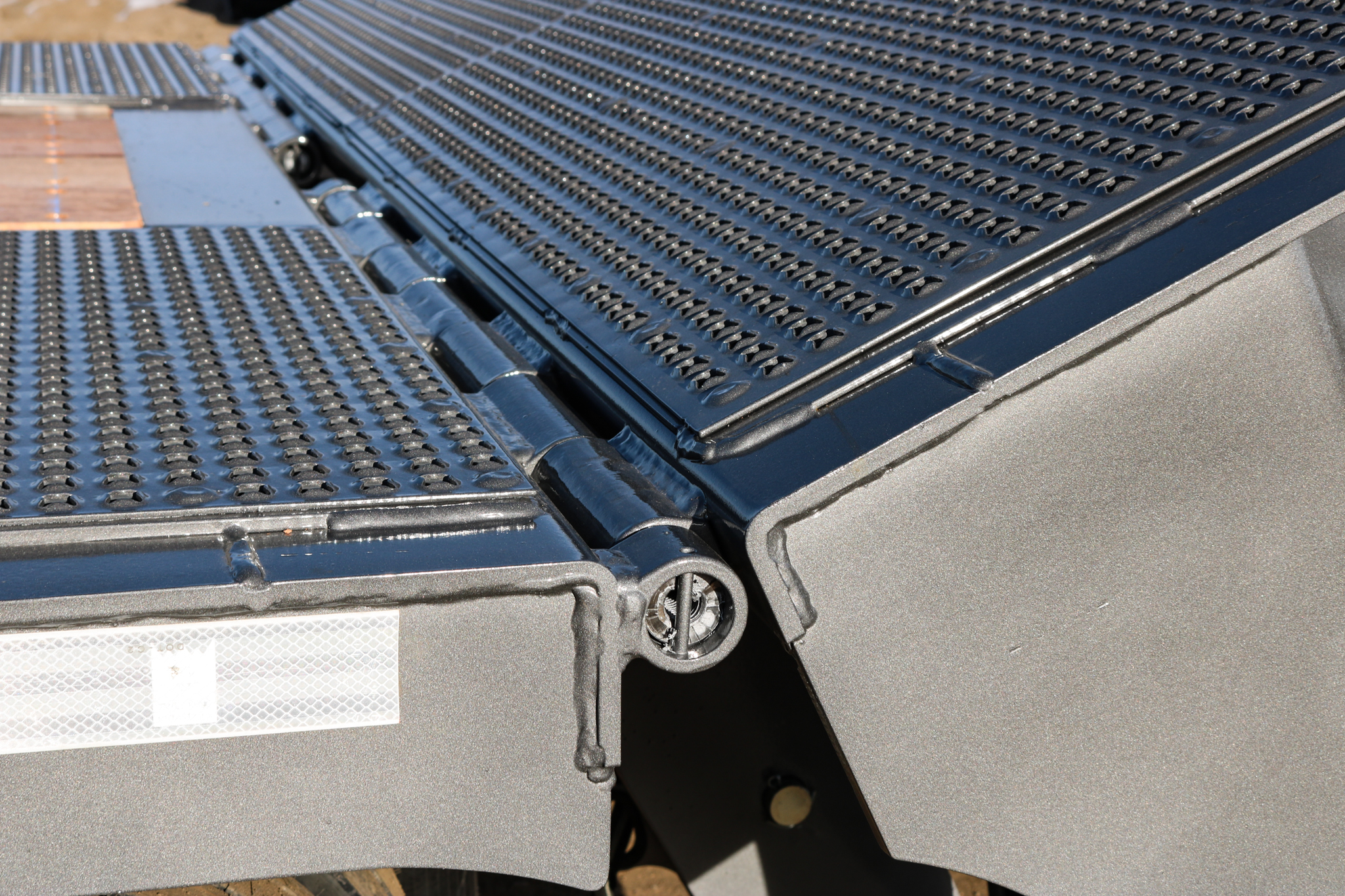

    Star traction over 10 ga. smooth steel on deck and fold-uder X

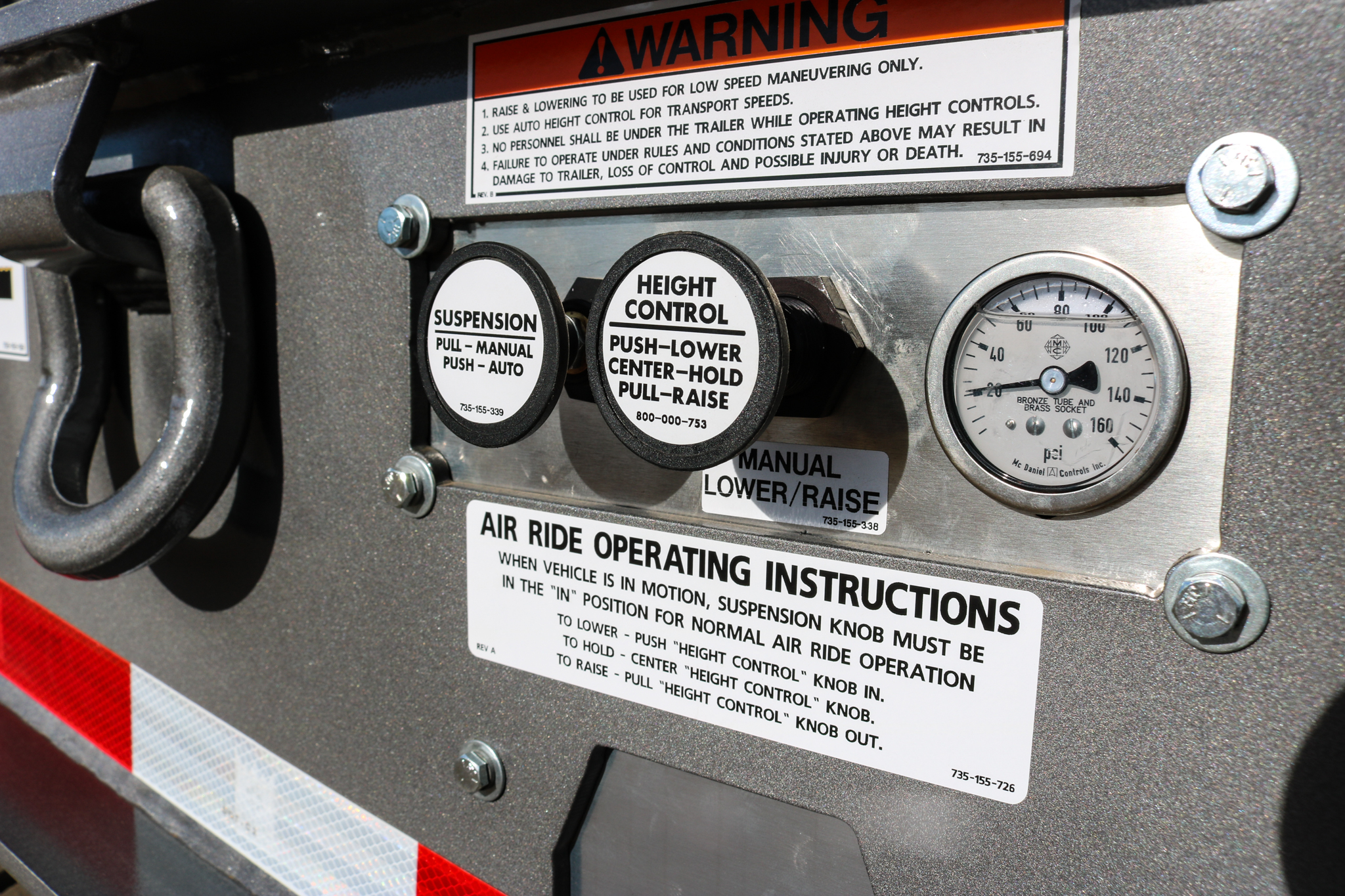

    Air ride raising/lowering with switch on upper deck X

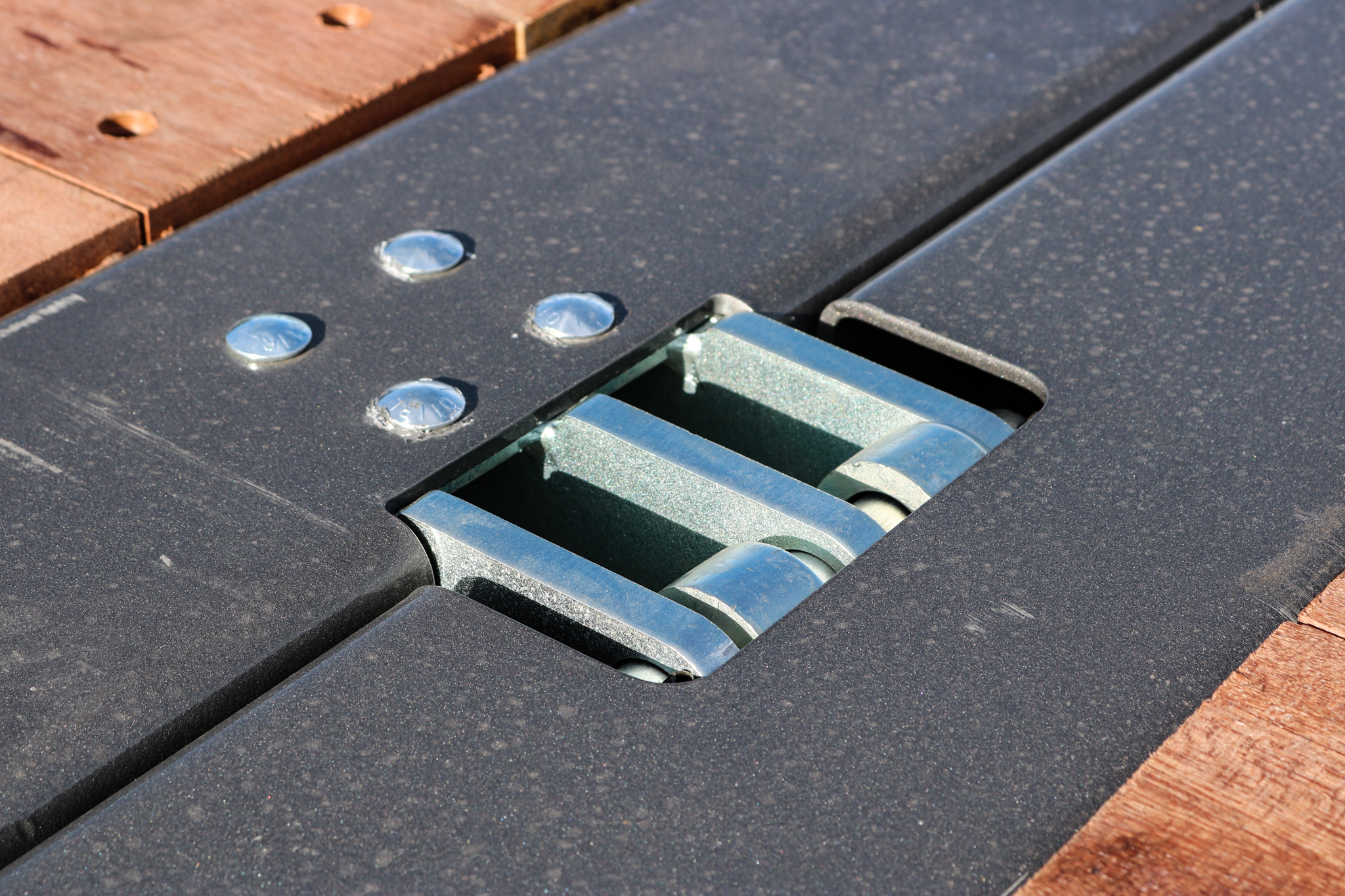

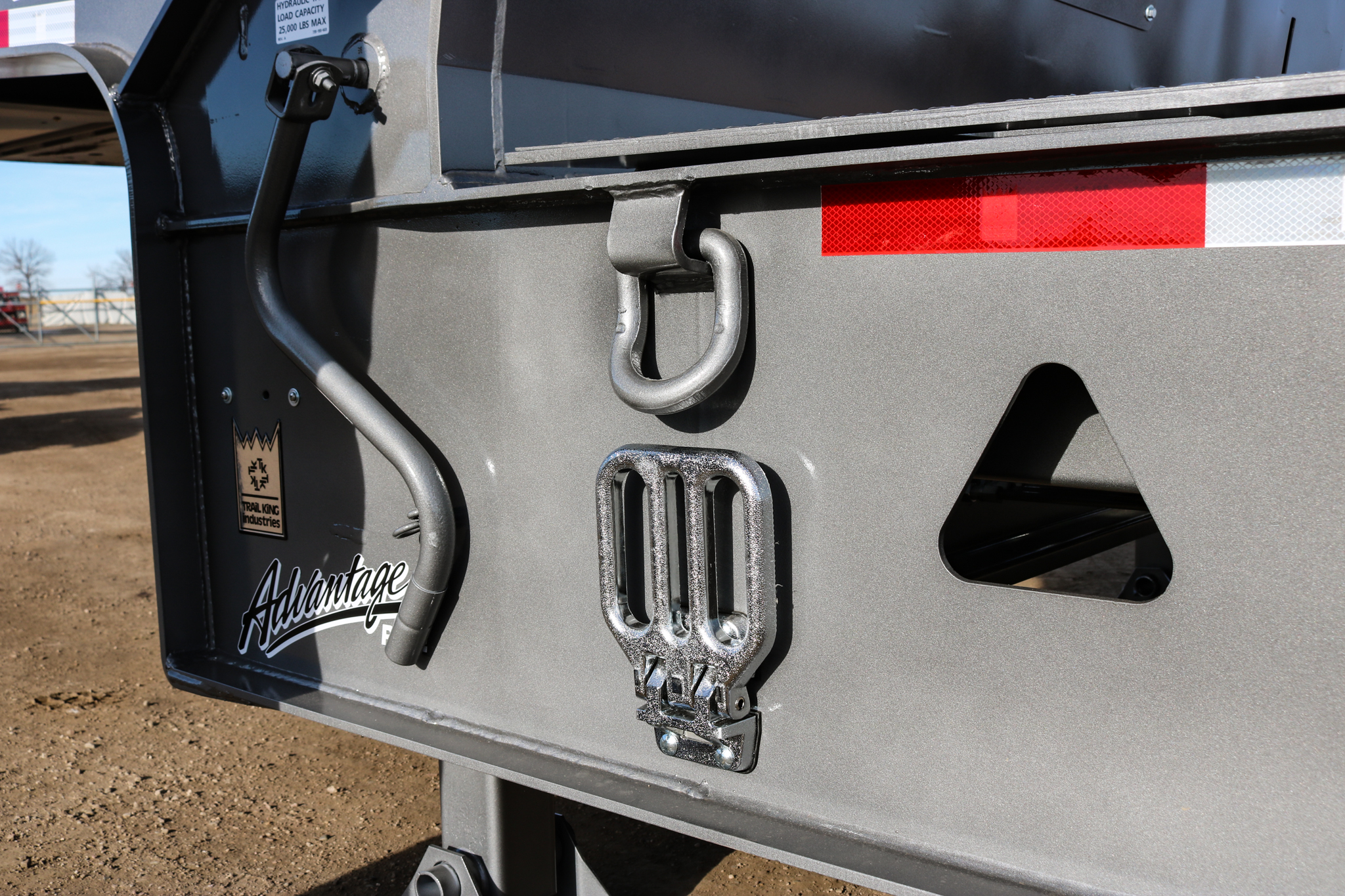

    Internal 2-way key slots alternating with external stake pockets for tie downs approximately 24" OC X

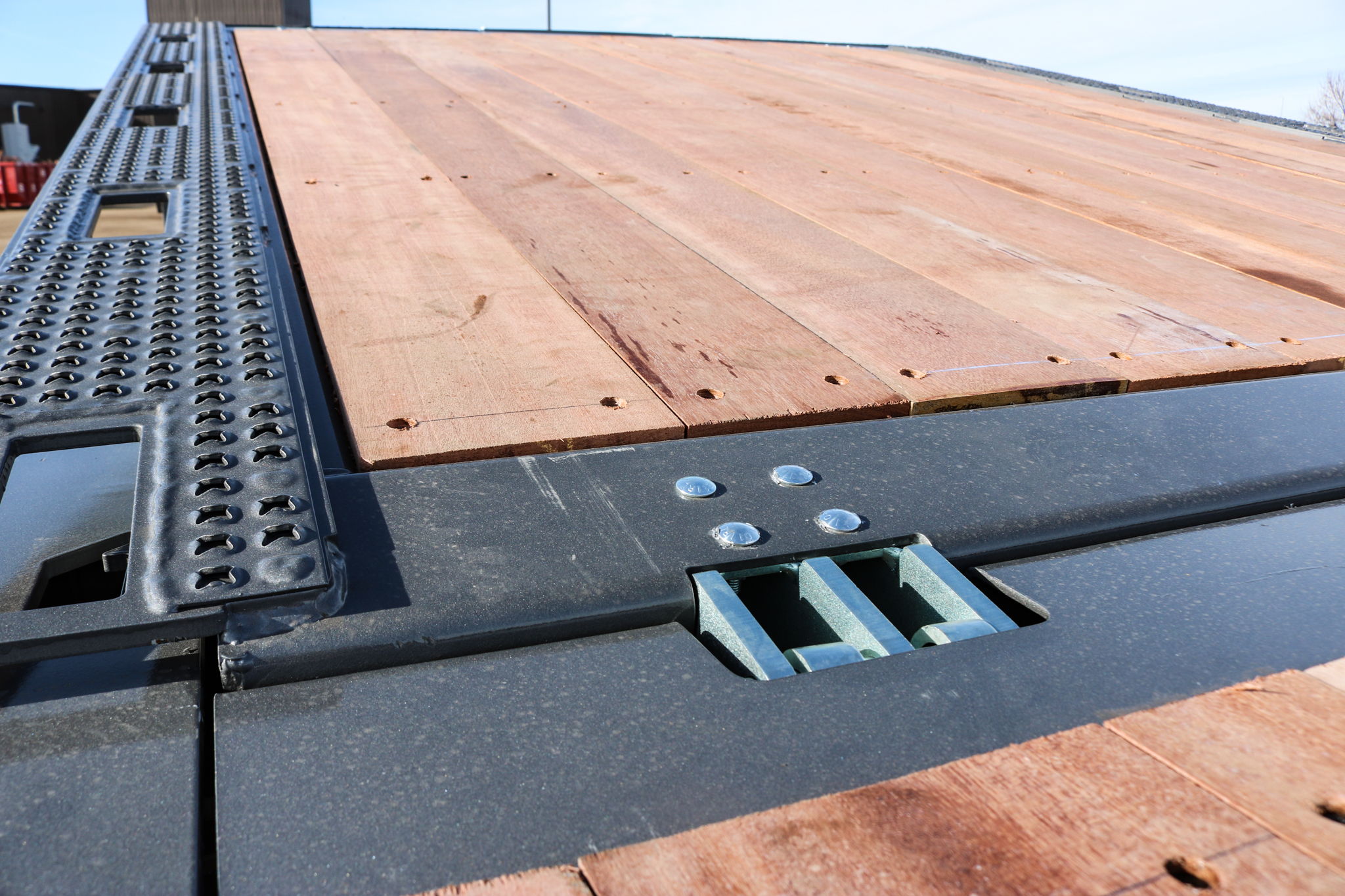

    1 3/8” (NET) apitong decking (deck/upper deck ramp) X
    49” axle spacing X
    25,000 lb axles (5/8” wall) X

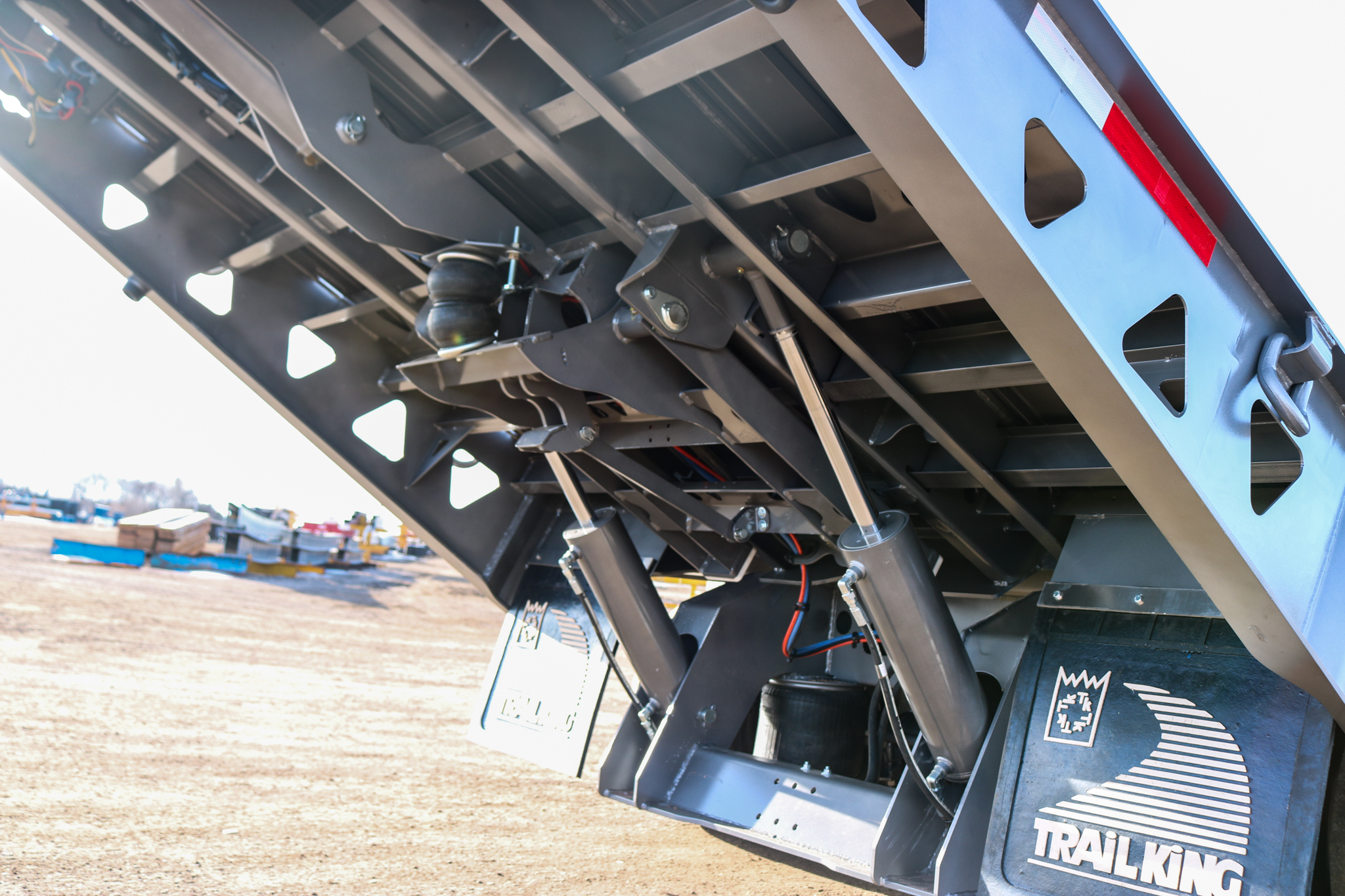

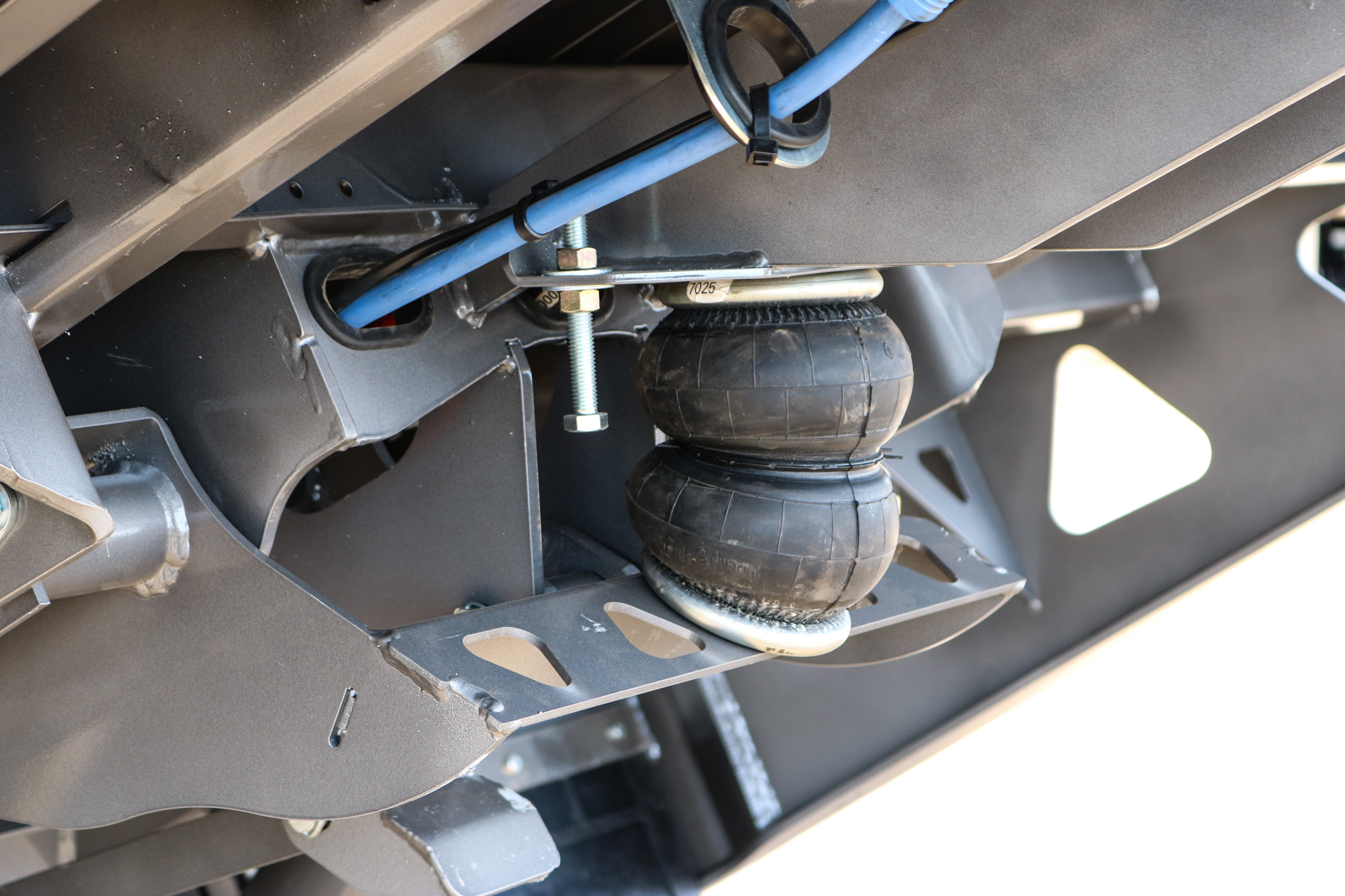

    Air ride suspension X
    4S2M ABS brakes X
    Automatic slack adjusters X
    6.75 x 17.5 8-hole steel disc wheels X
    One-piece oil seals X
    Zip Tork axle nuts X
    245/70R 17.5 radial tires X

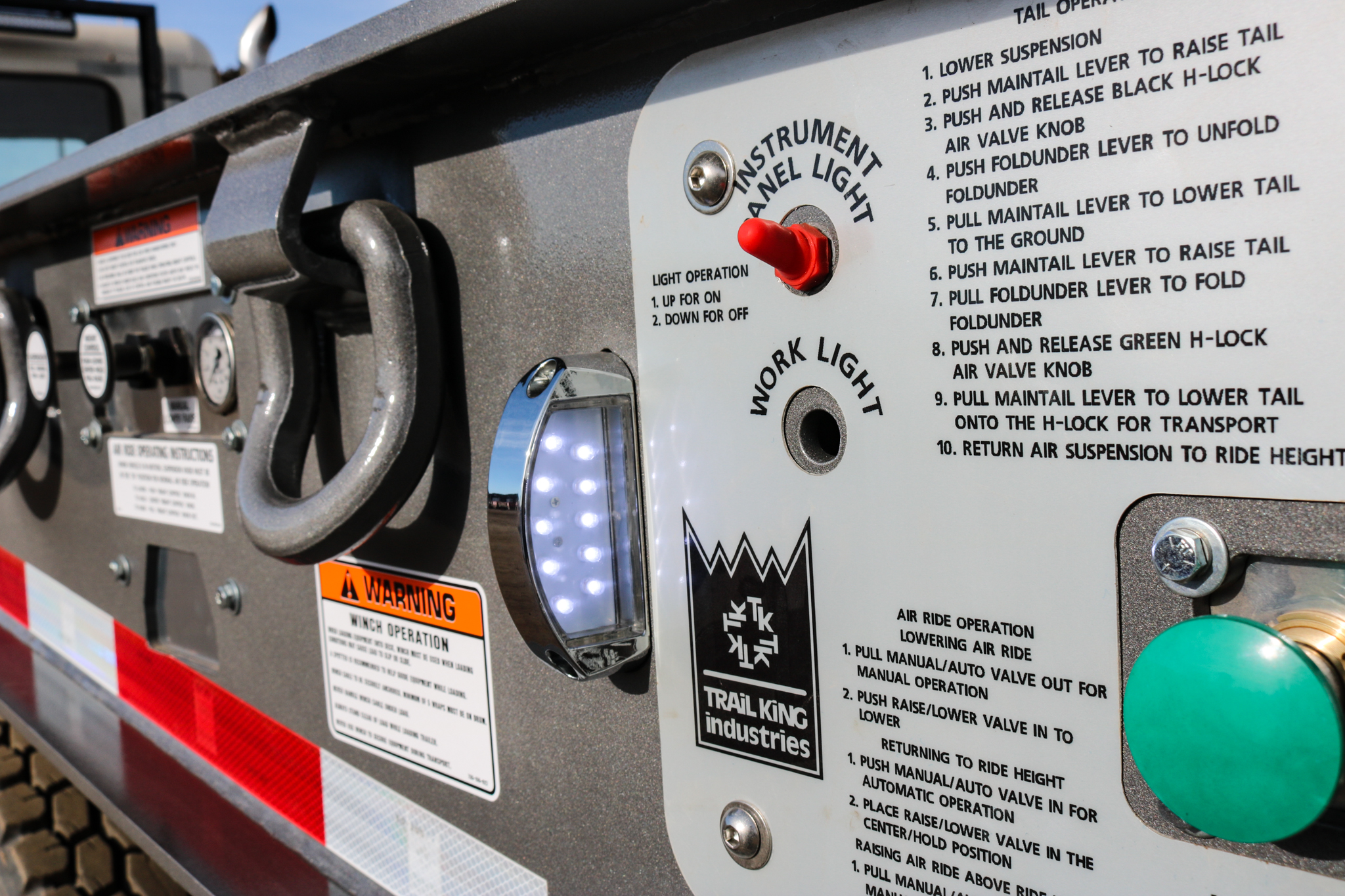

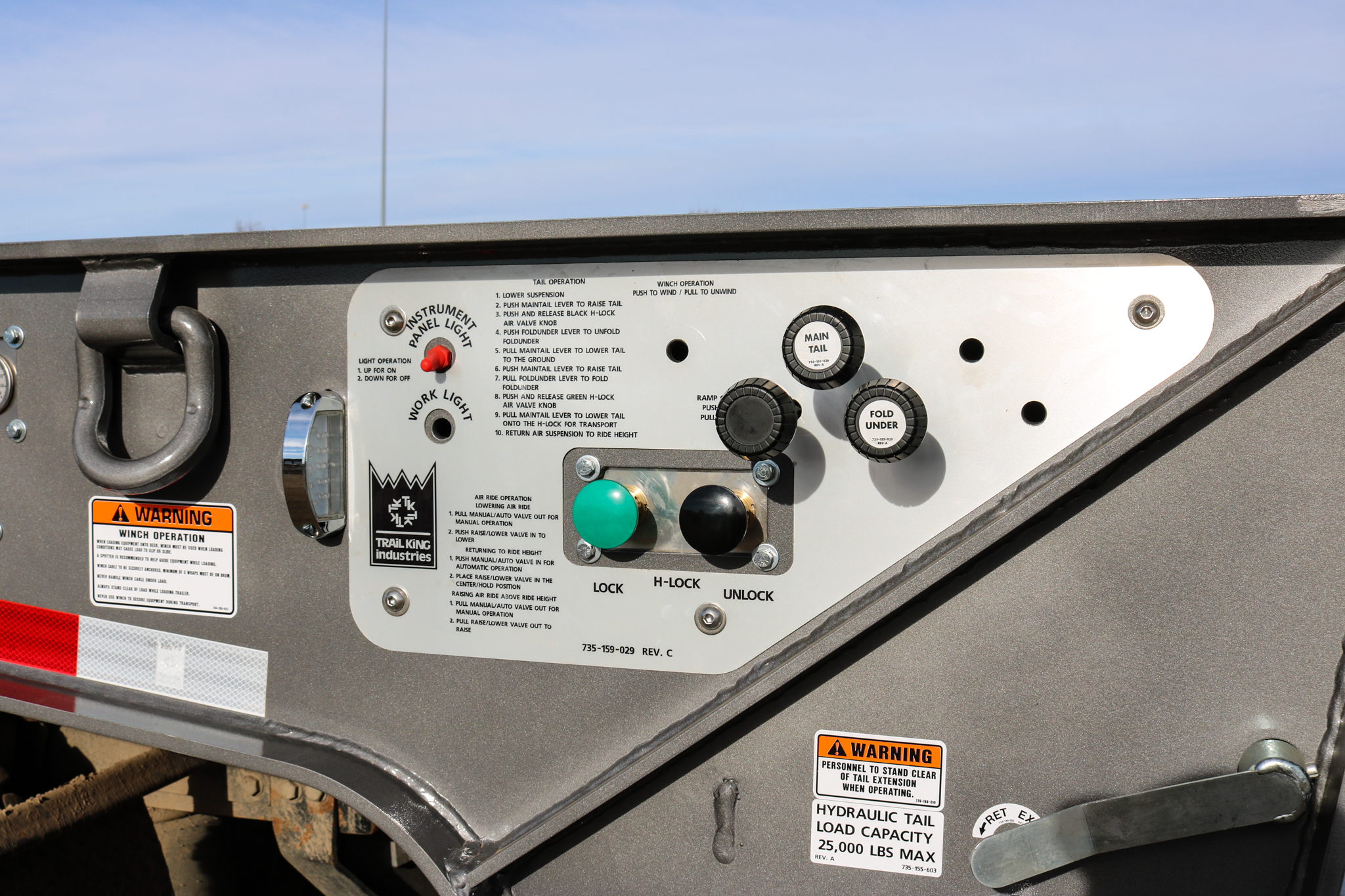

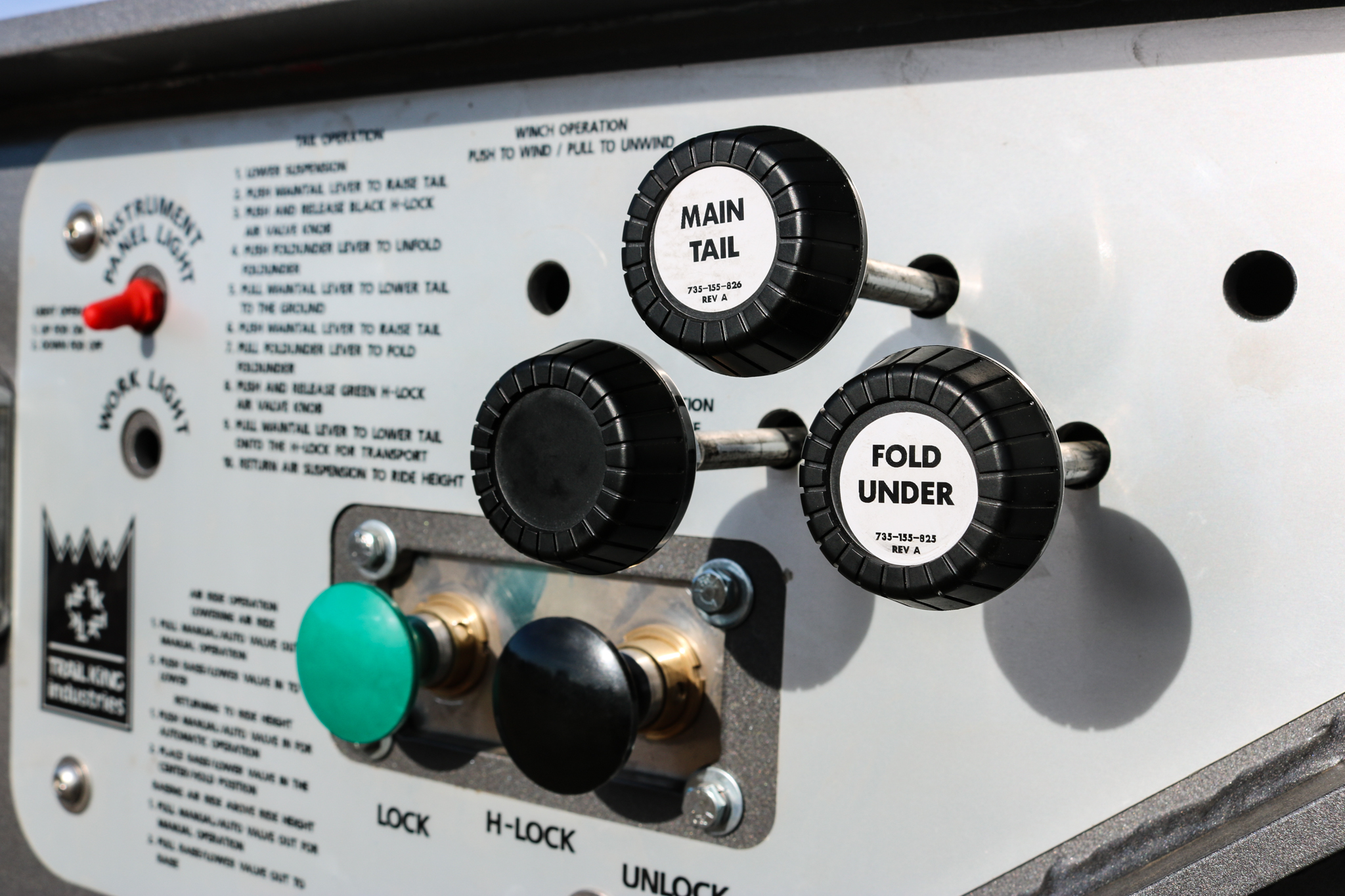

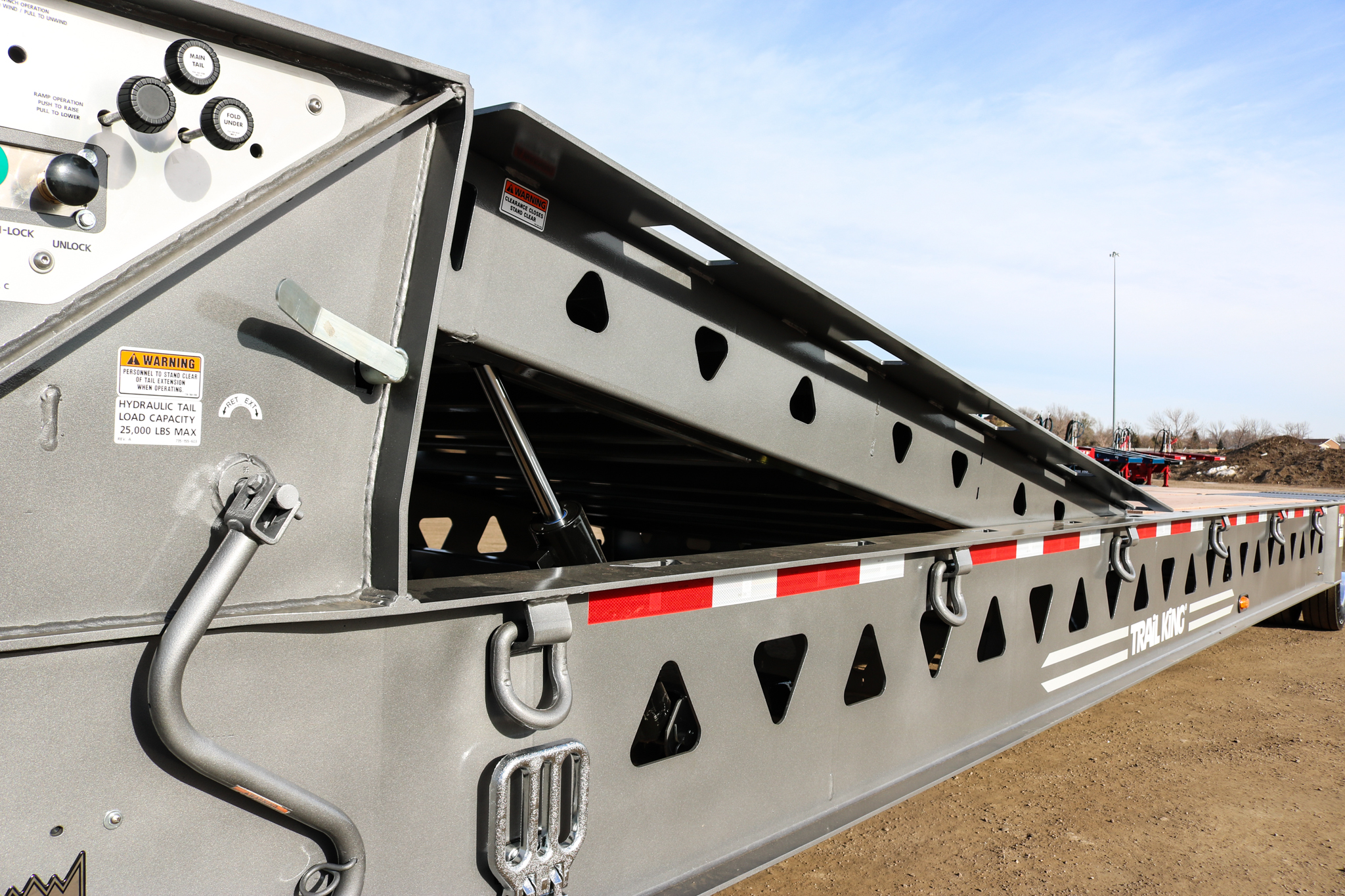

    Lighted Dual Hydraulic controls (each side) X

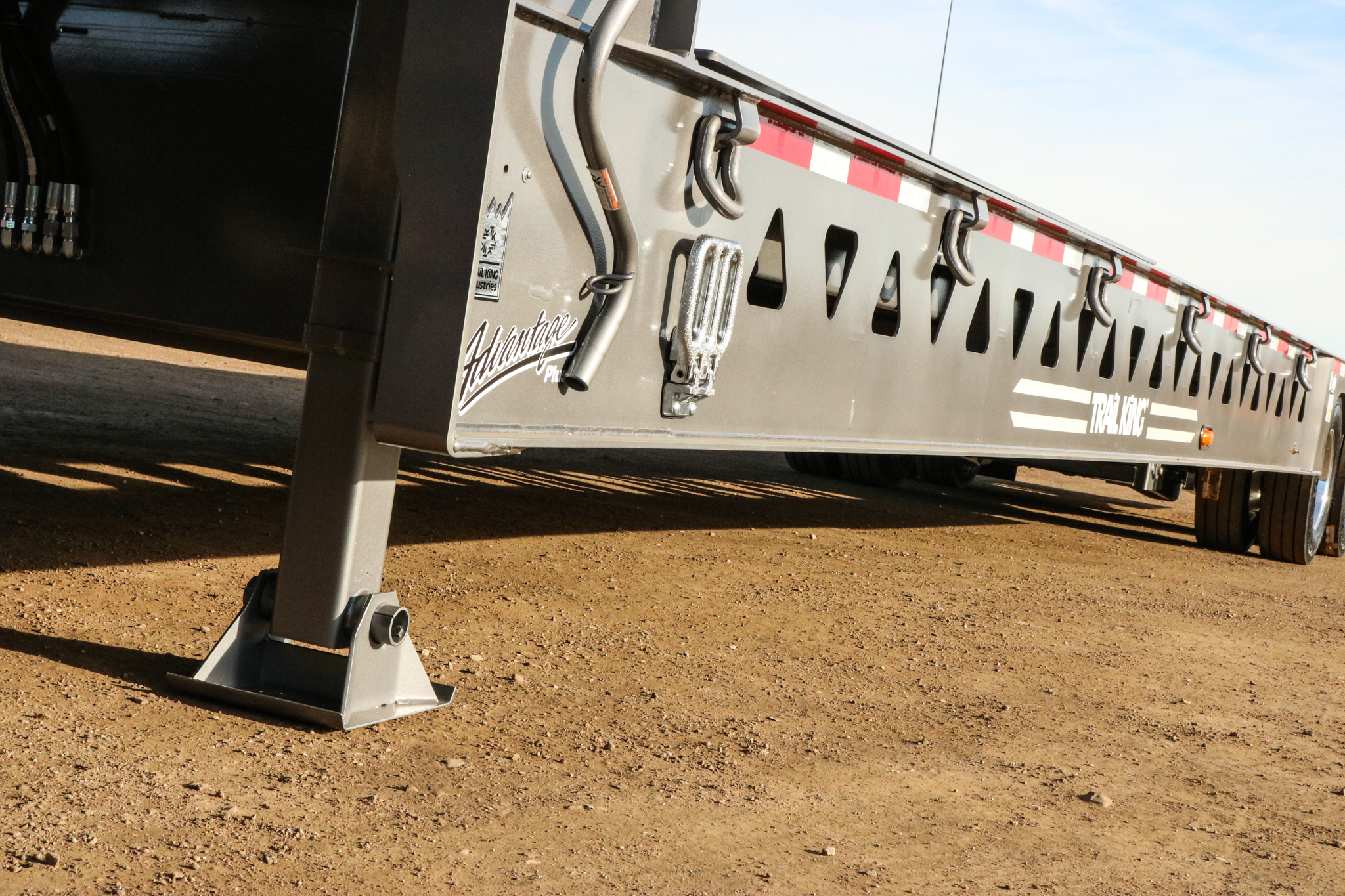

    2 speed park stands X

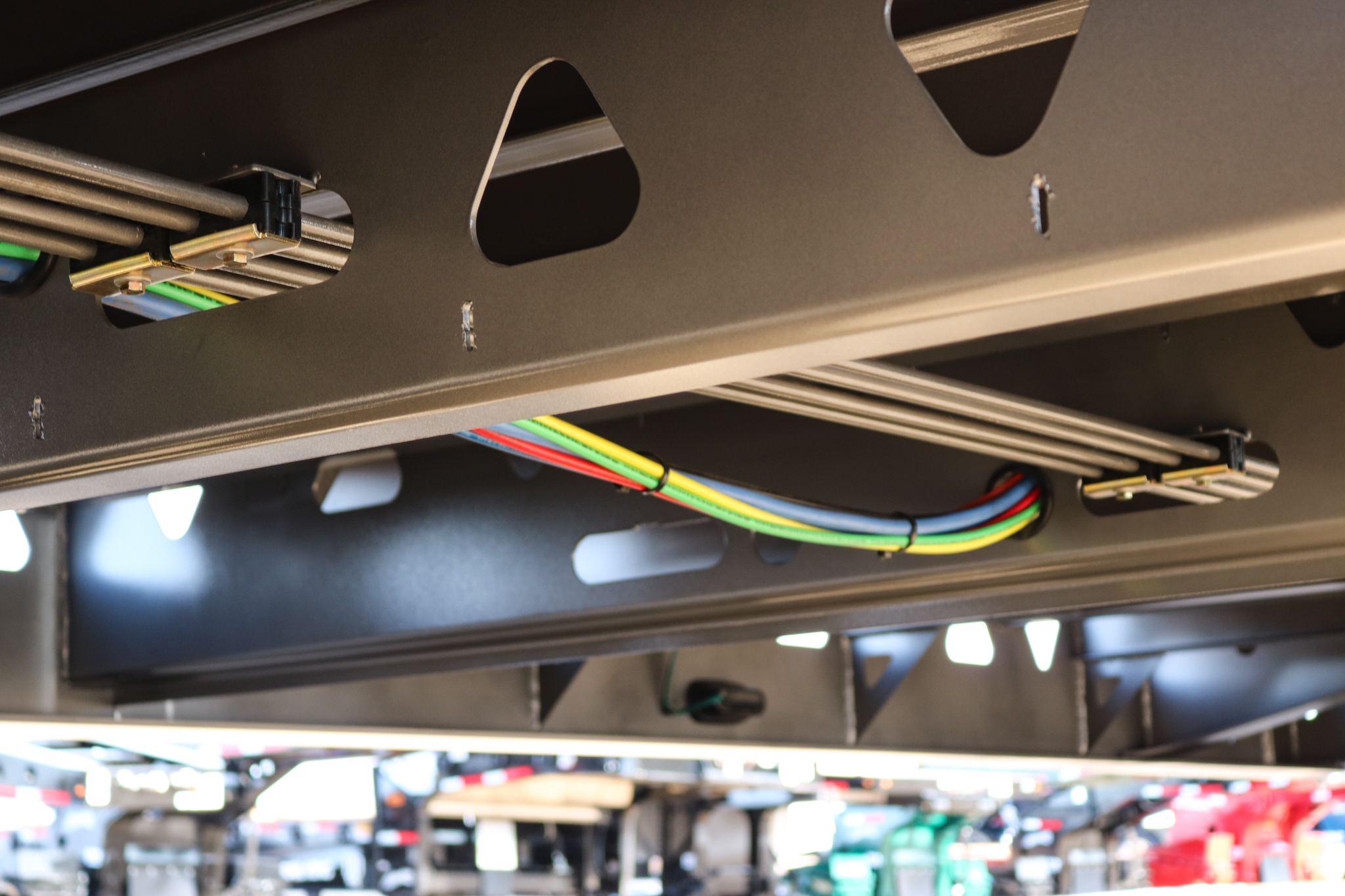

    Rubber mounted sealed lights with sealed harness system X
    LED lights, 50 state legal X
    Three tail lights per side (amber in center) X
    Electrical system per DOT regulations X
    Mid-turn signal clearance lights X

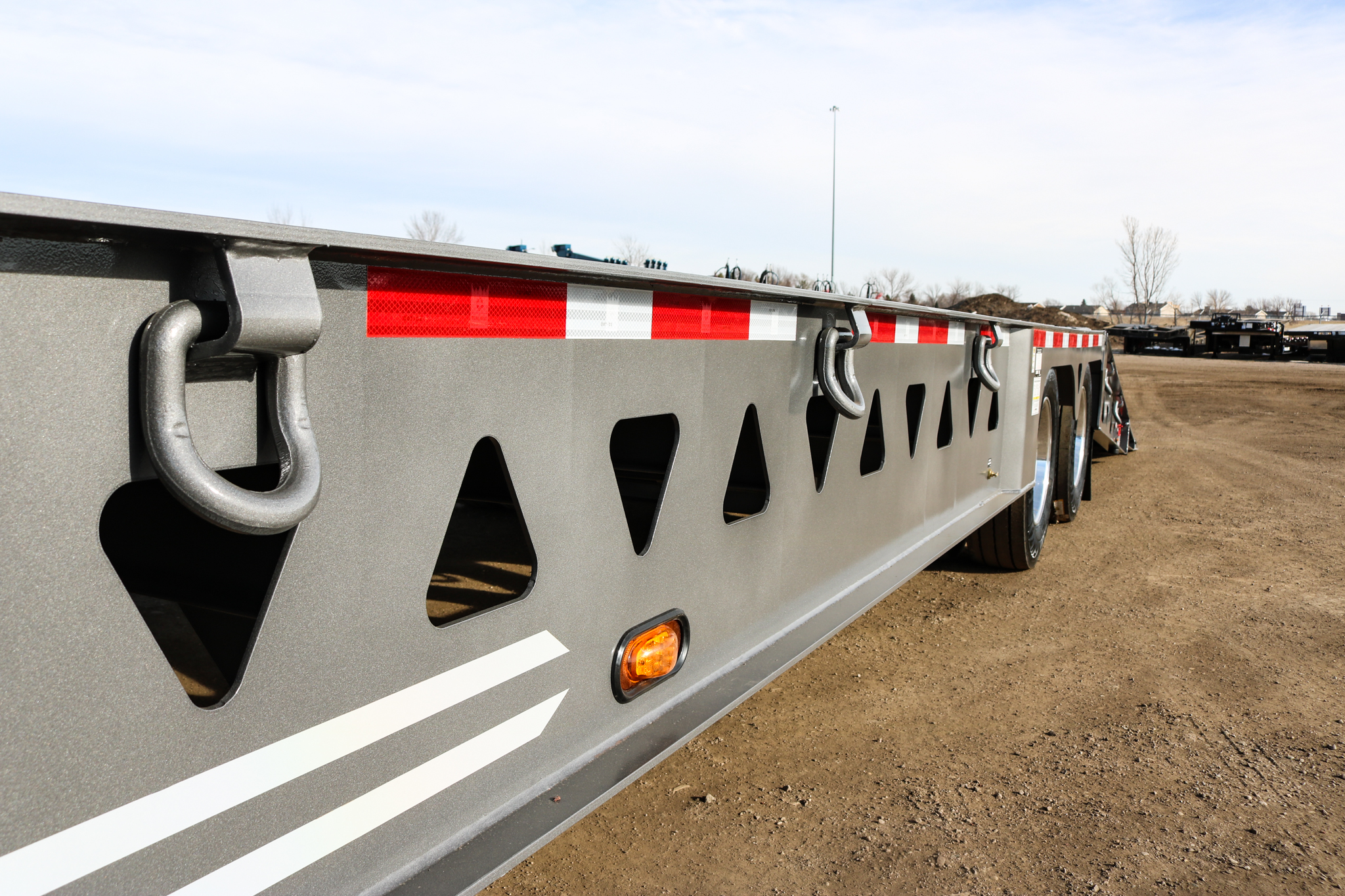

    Red & white conspicuity markings X
    Mud flaps X
