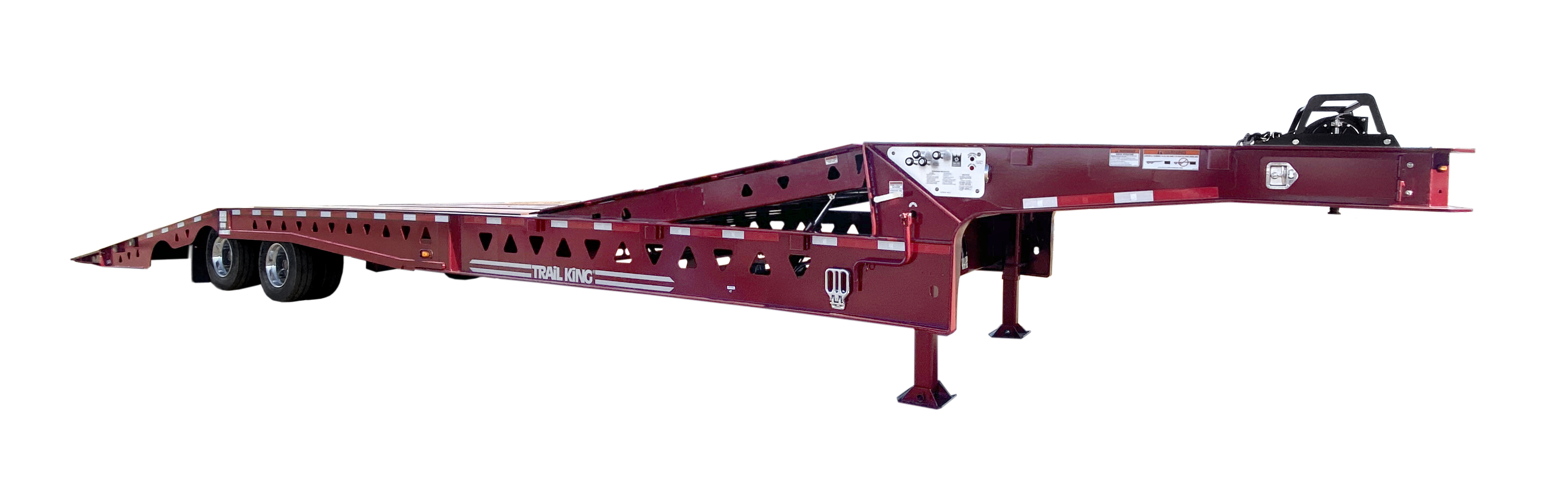

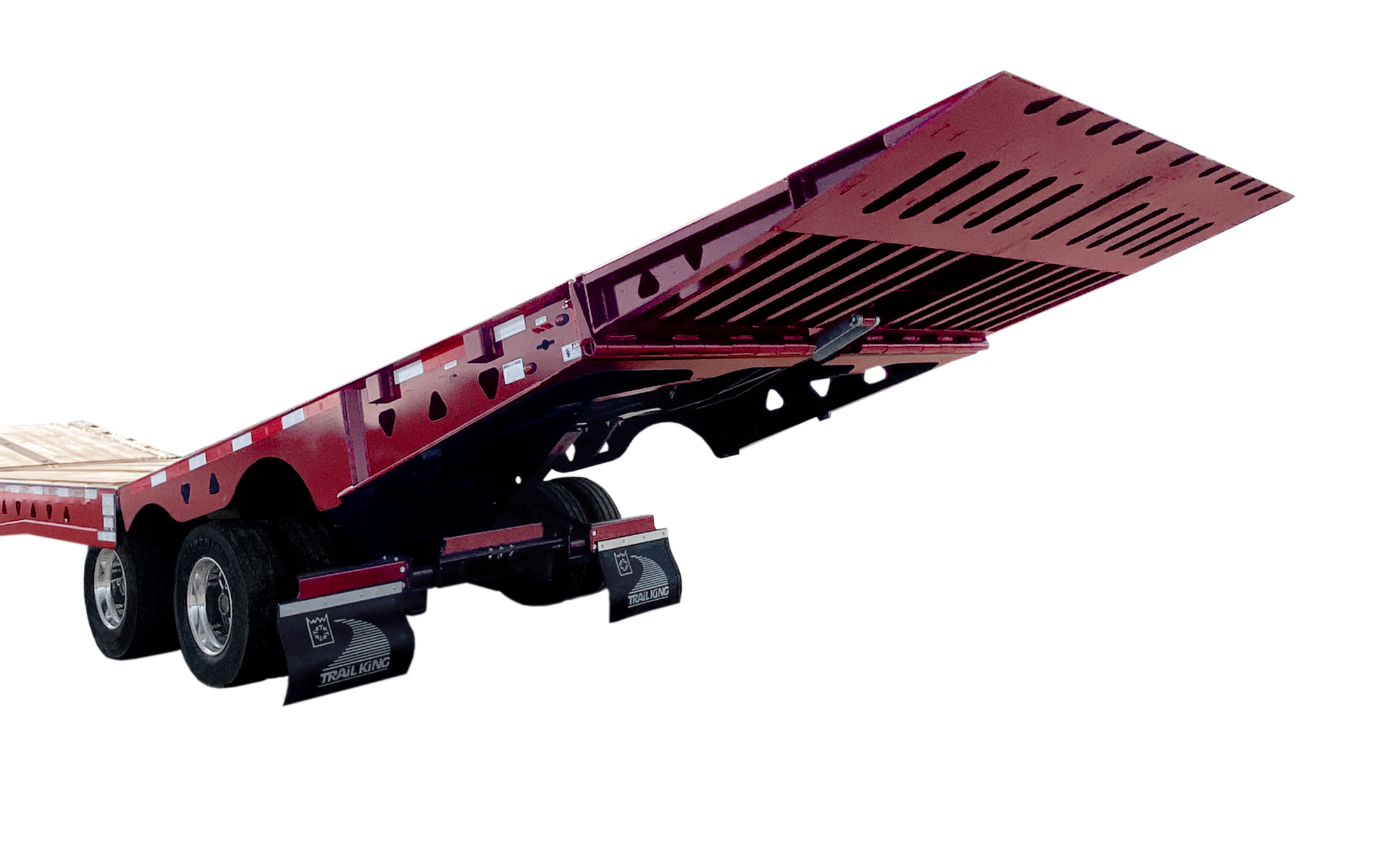

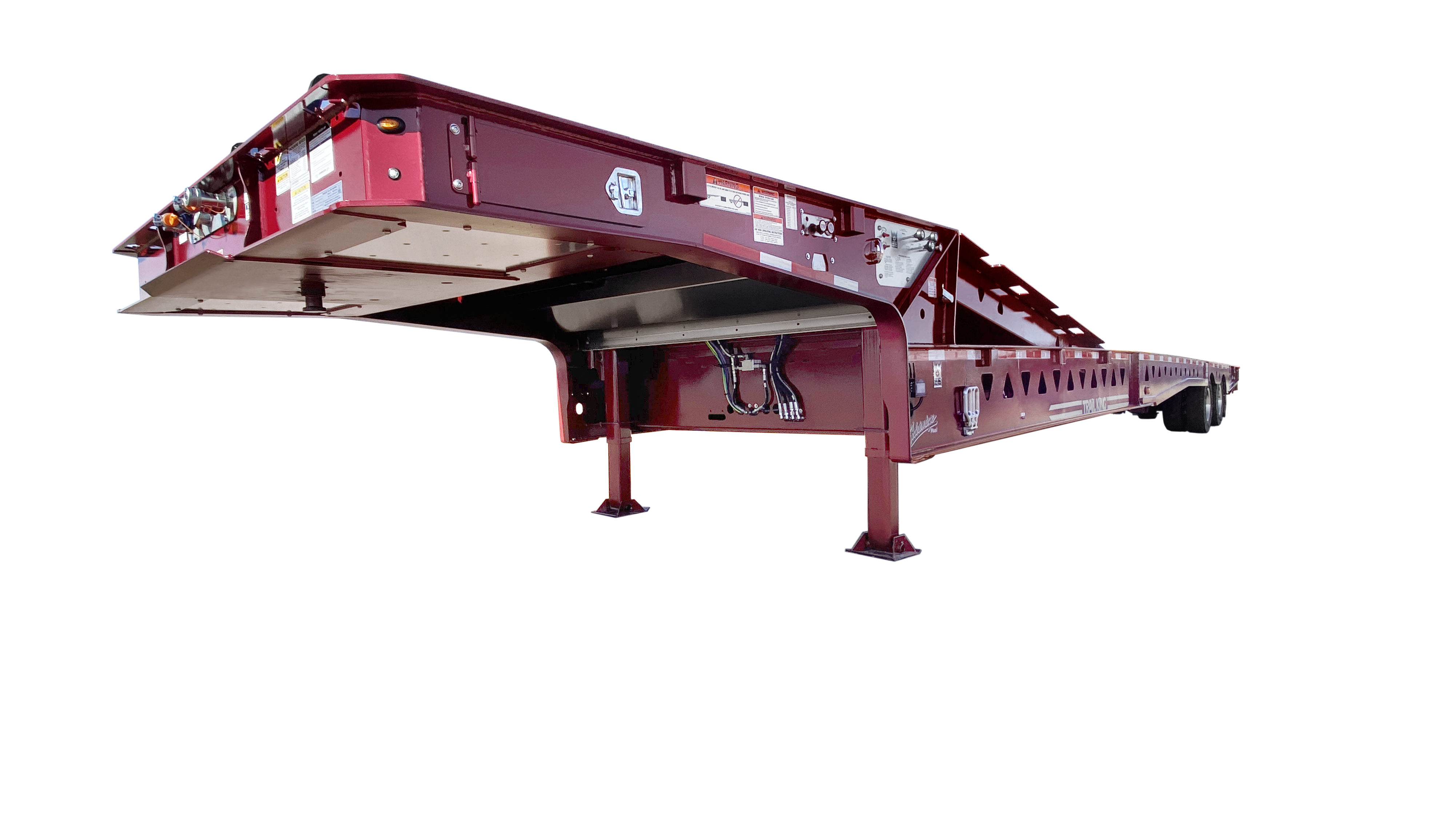

The Trail King Hydraulic Sliding Tail offers a 10 degree load angle and low ground clearance to allow equipment, such as scissor lifts and man lifts, to be loaded easily. Featuring wider track axles as standard, customers are legal hauling throughout North America. The HST has been engineered for easy maintenance, improved scalability and Trail King’s quality strength you’ve come to rely on.

  • + Expand All
  • - Close All
  • Specifications
    HST – Standard Equipment 80HST 80HST 3-axle
    Capacity in 10’ 50,000 lbs. 50,000 lbs.
    Overall length 47’ 11” 47’ 11”
    14” kingpin setting with 86” swing clearance X X
    49” loaded 5th wheel height X X

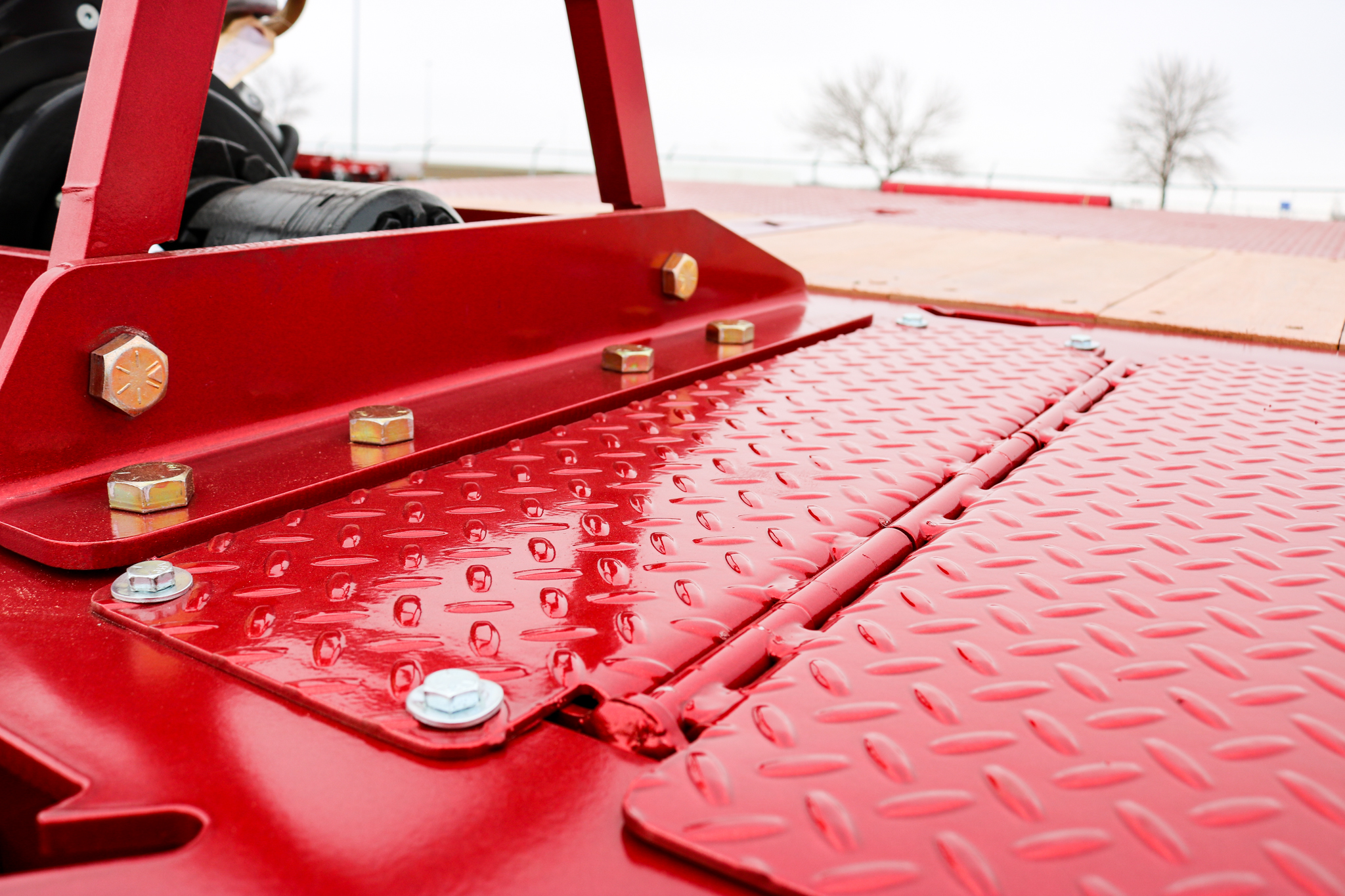

    10-ga. Floor plate decking on upper deck X X

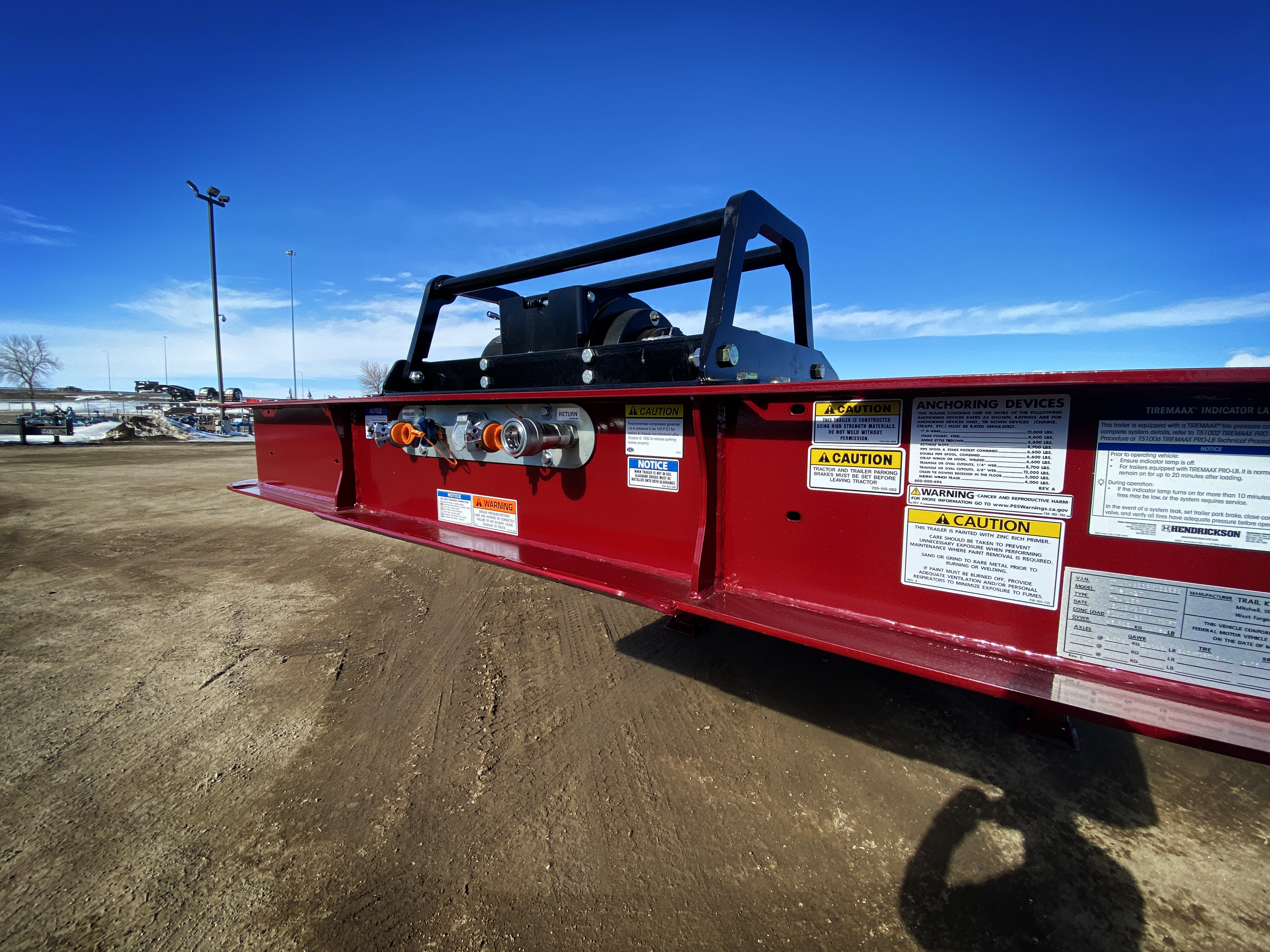

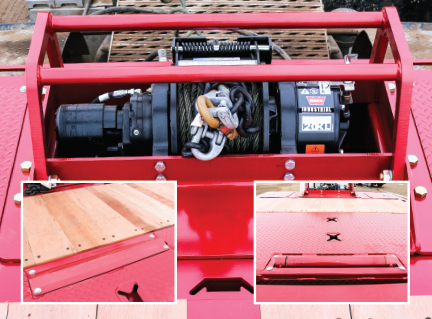

    Hydraulic winch with level wind 20,000 lbs 20,000 lbs
    Winch Guard X X
    80’ winch cable with locking safety hook X X

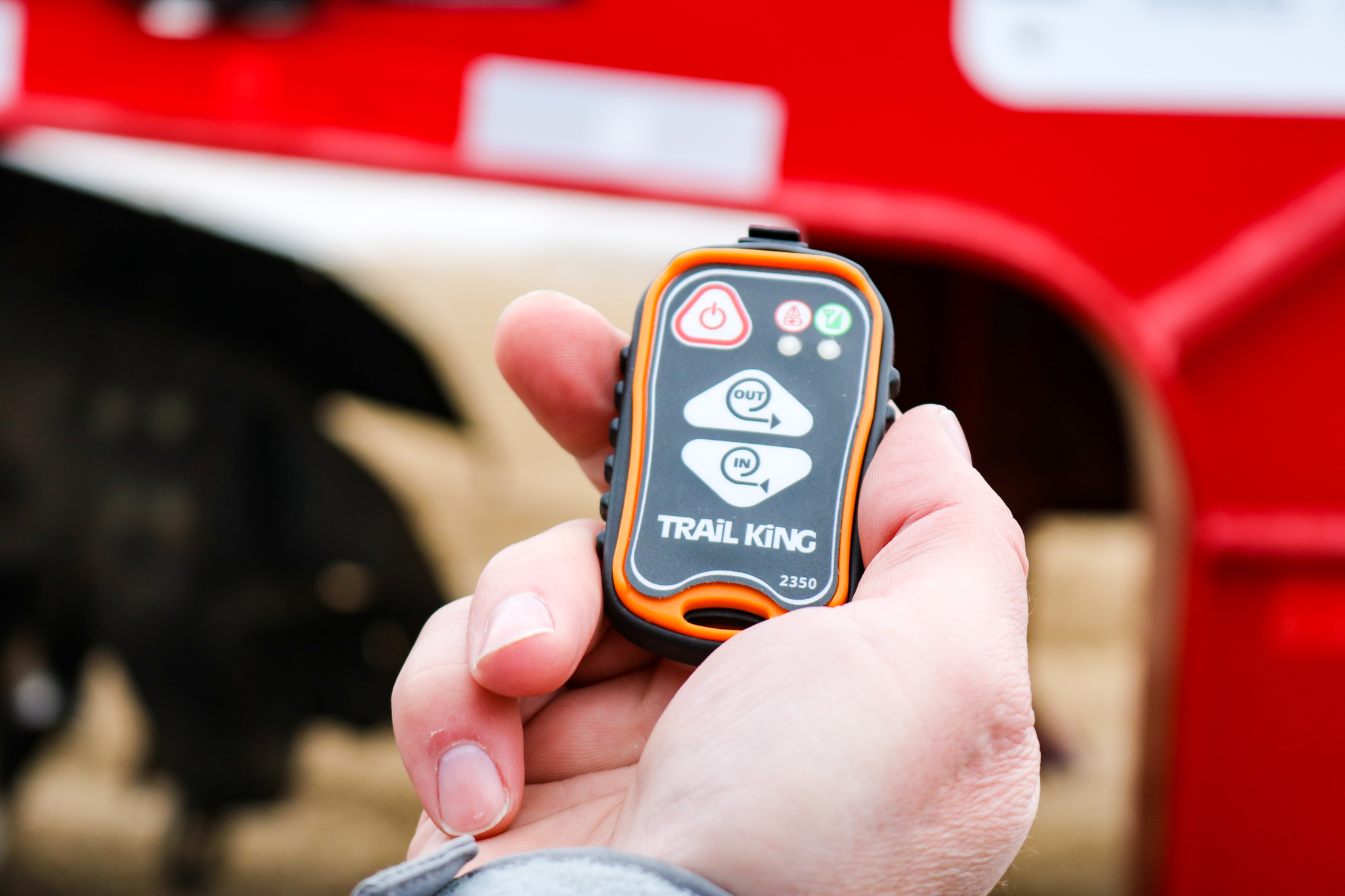

    Wireless remote for winch (1 function, 2 buttons) X X
    2 tool boxes at front of upper deck X X
    10’ recessed ramp to upper deck (10 degrees) X X
    16’7” hydraulic tail with 52” fold-under X X
    10 degree load angle (with 245/75R 17.5 tires) X X

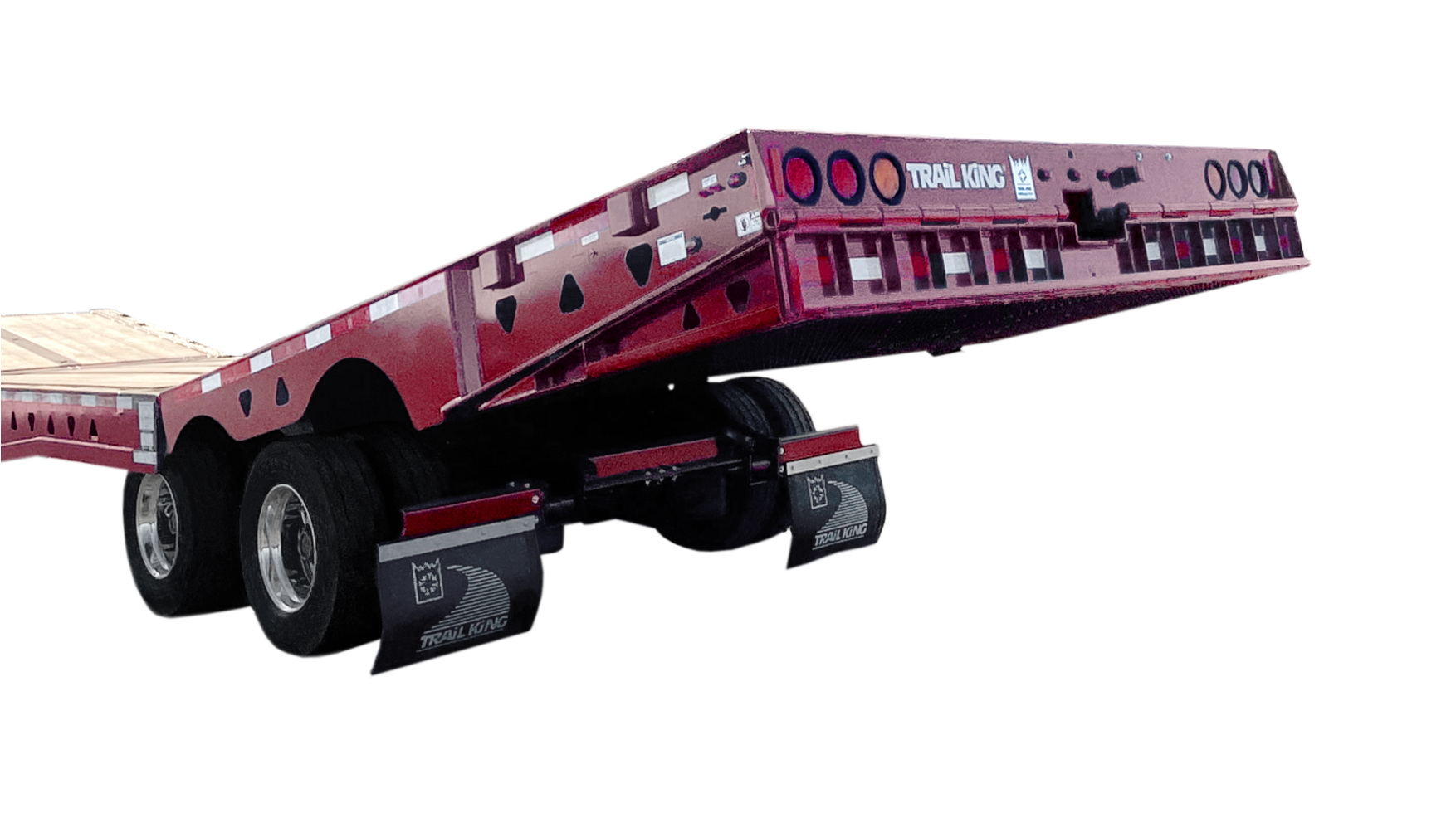

    Tail raises to 58” dock height and lowers to ground X X
    Heavy duty I-beam style tail hinge beam X X
    Five pair of vertical supports inside fold-under X X

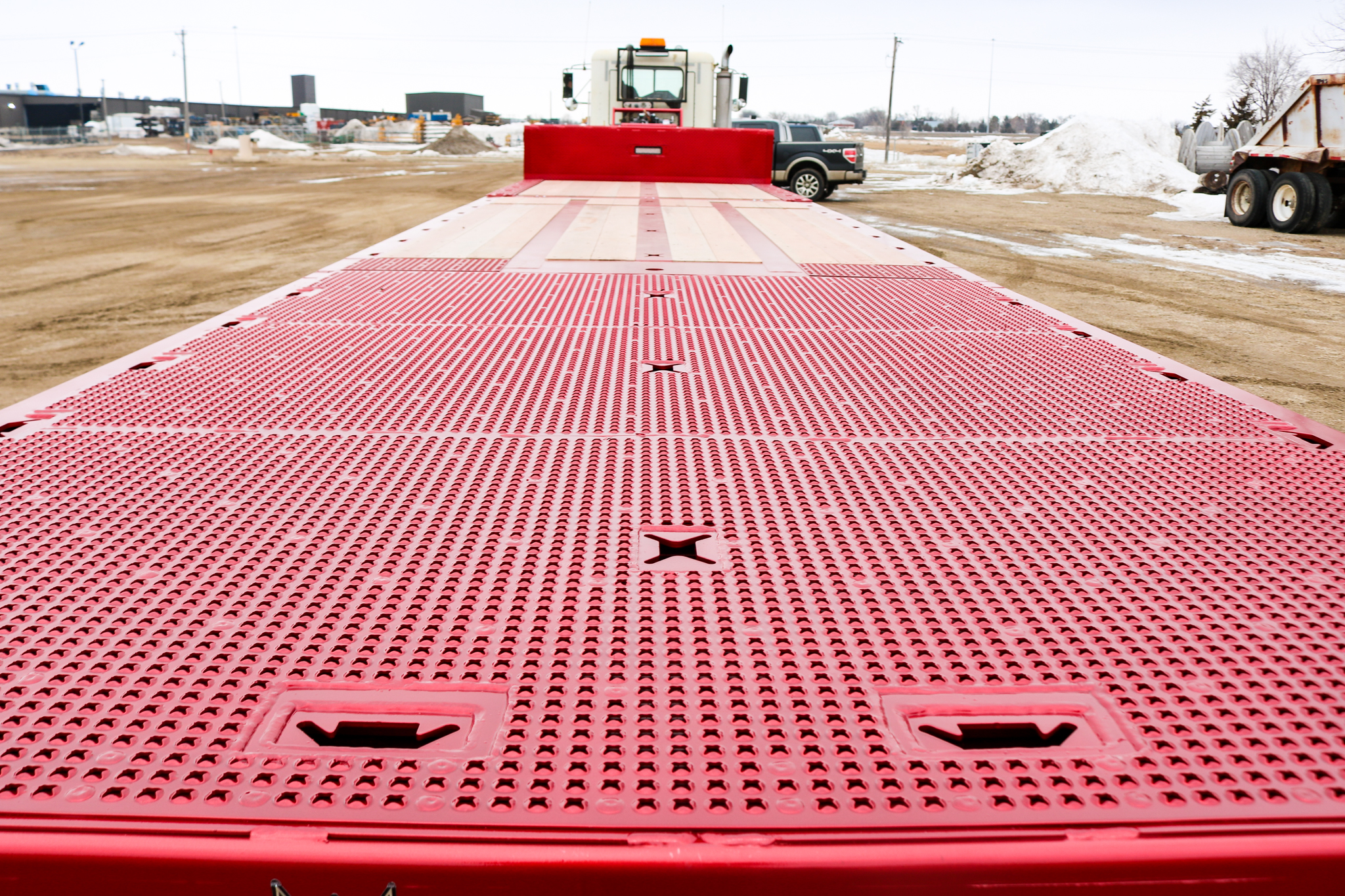

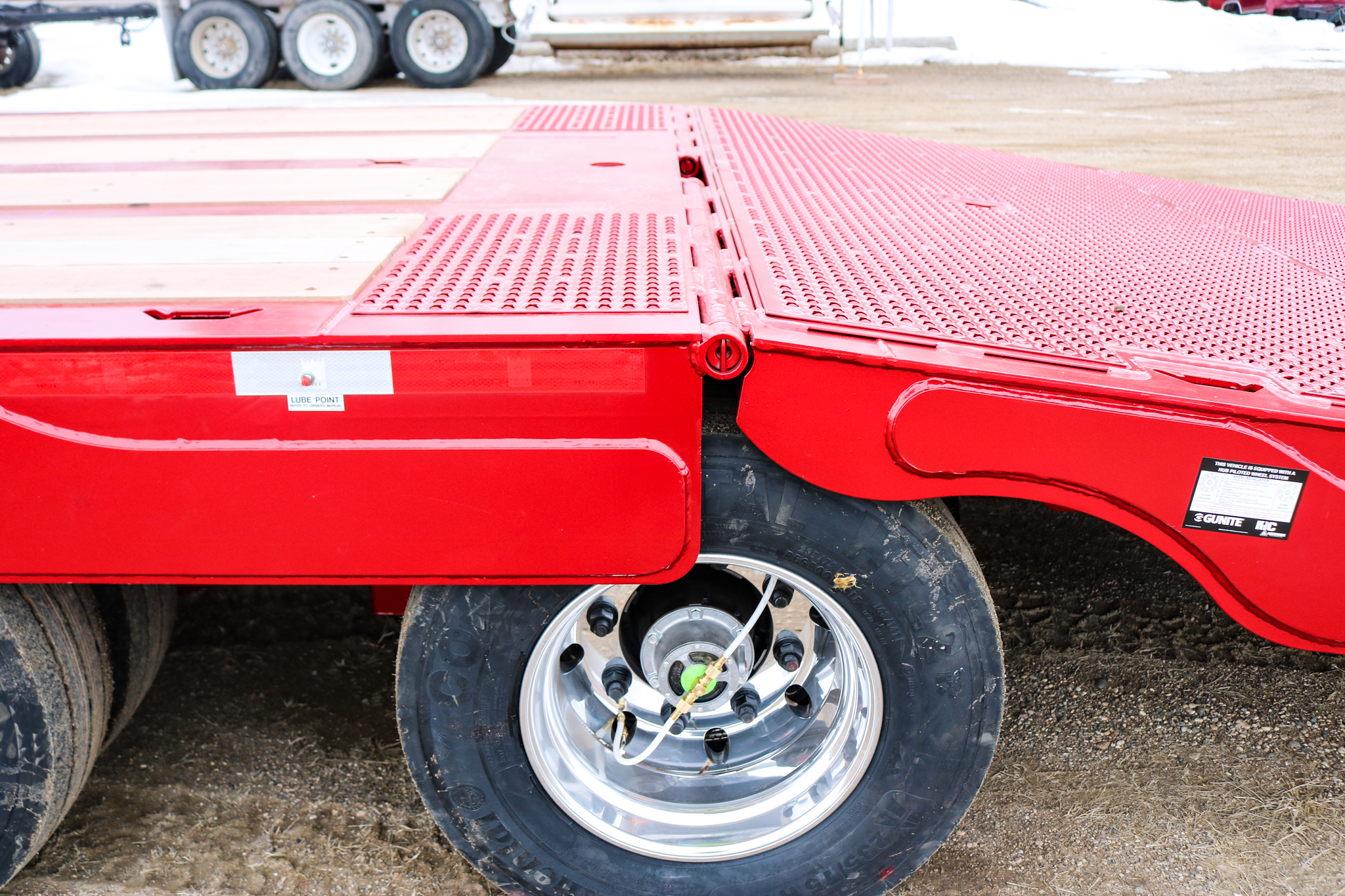

    Star Traction over steel in tail and fold-under approach X X
    Hydraulic sliding axles X X
    No traveling hydraulic lines contained in protective track X X

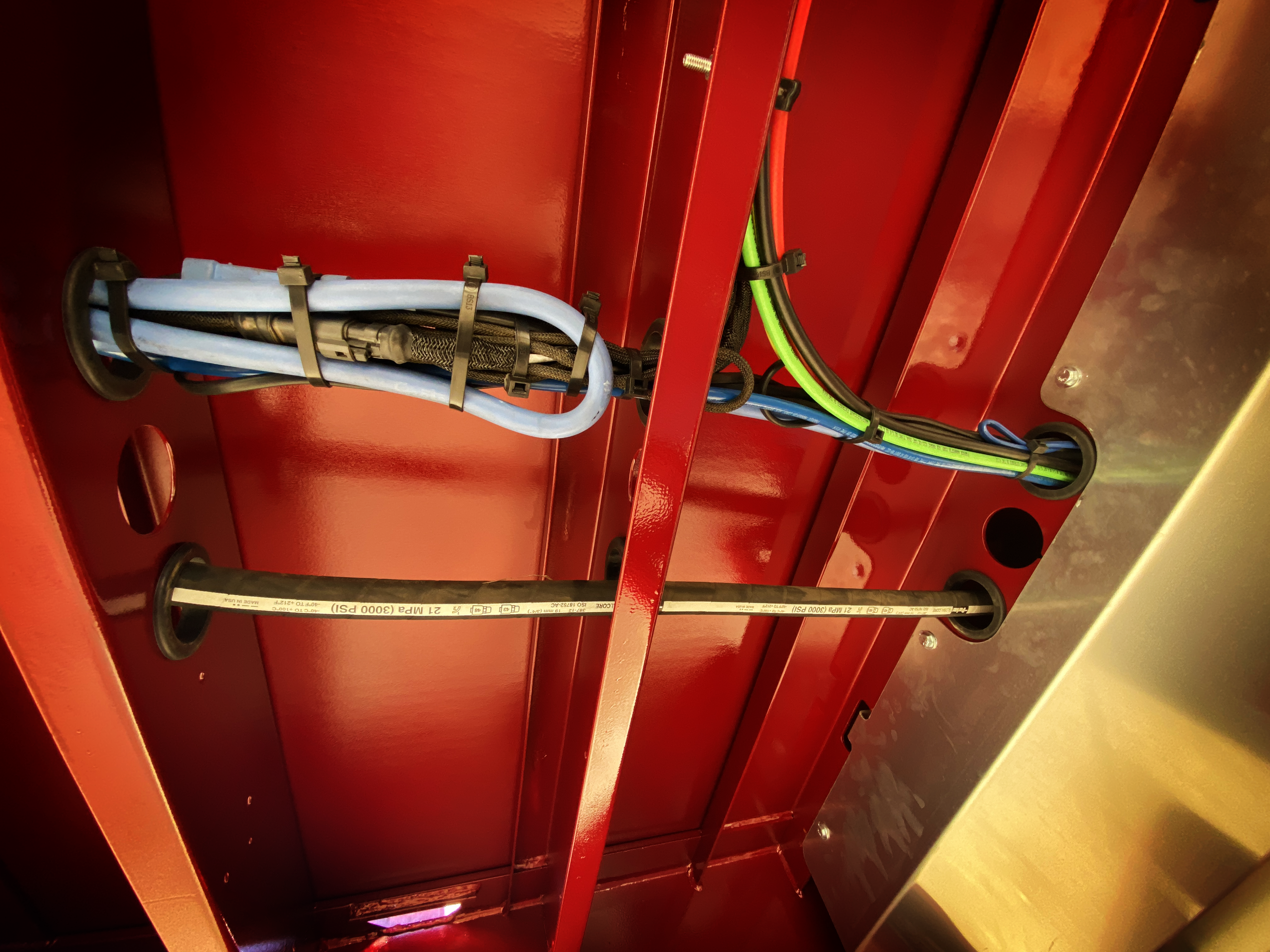

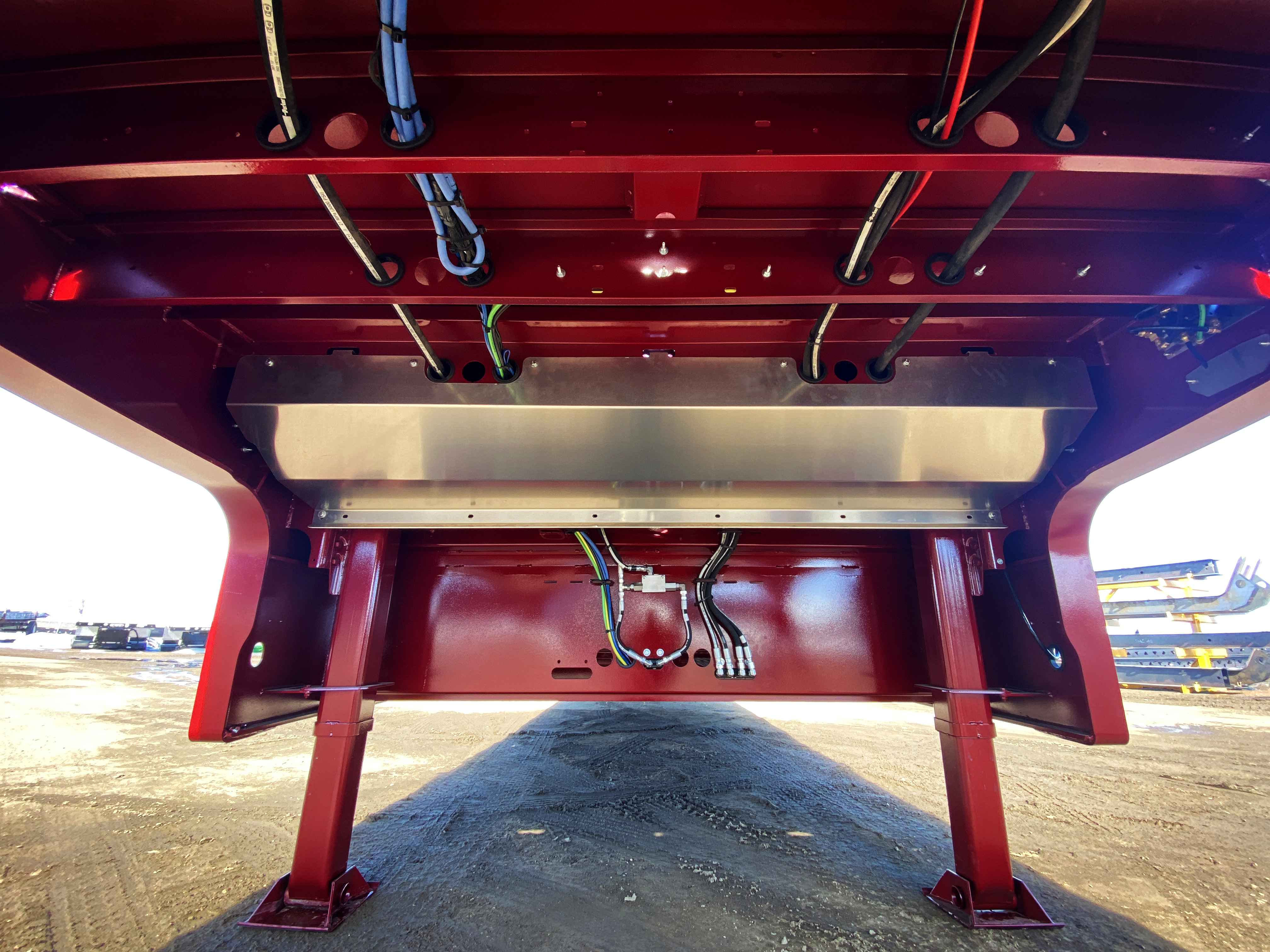

    Air and electrical lines contained in protective track X X
    Air ride raising/lowering with switch on upper deck X X
    External stake pockets on 48" centers, alternating with internal key slots for a tie down every 24" X X
    1 3/8” (NET) apitong decking X X
    49” axle spacing X X
    25,000 lb axles (58” wall) 2 3
    Air ride suspension X X
    4S2M ABS brakes X X
    Automatic slack adjusters X X
    6.75 x 17.5 8-hole hub piloted wheels X X
    245/75R 17.5 – 16 ply radial tires X X

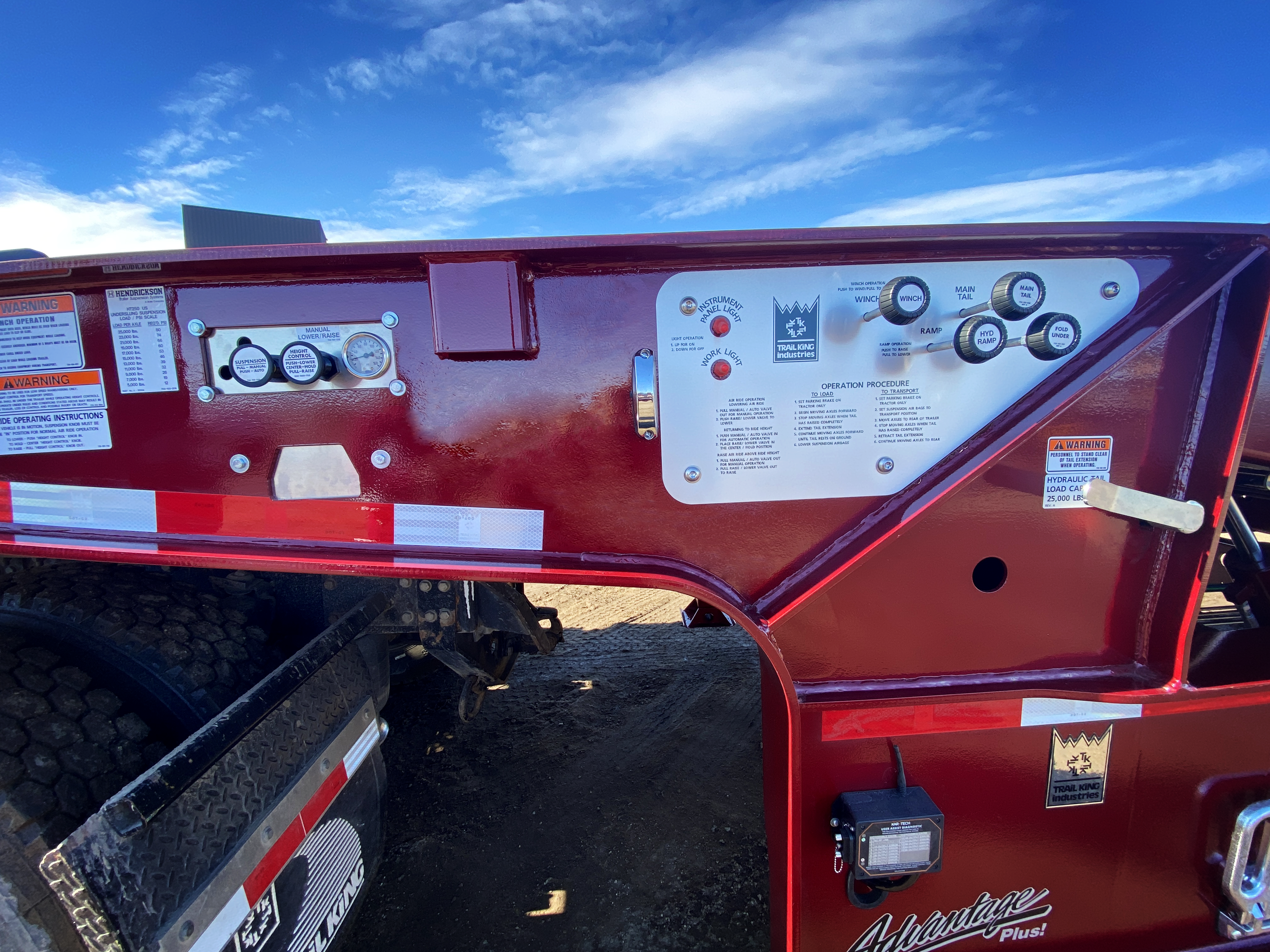

    Dual Hydraulic controls (each side) X X
    2 speed park stands X X

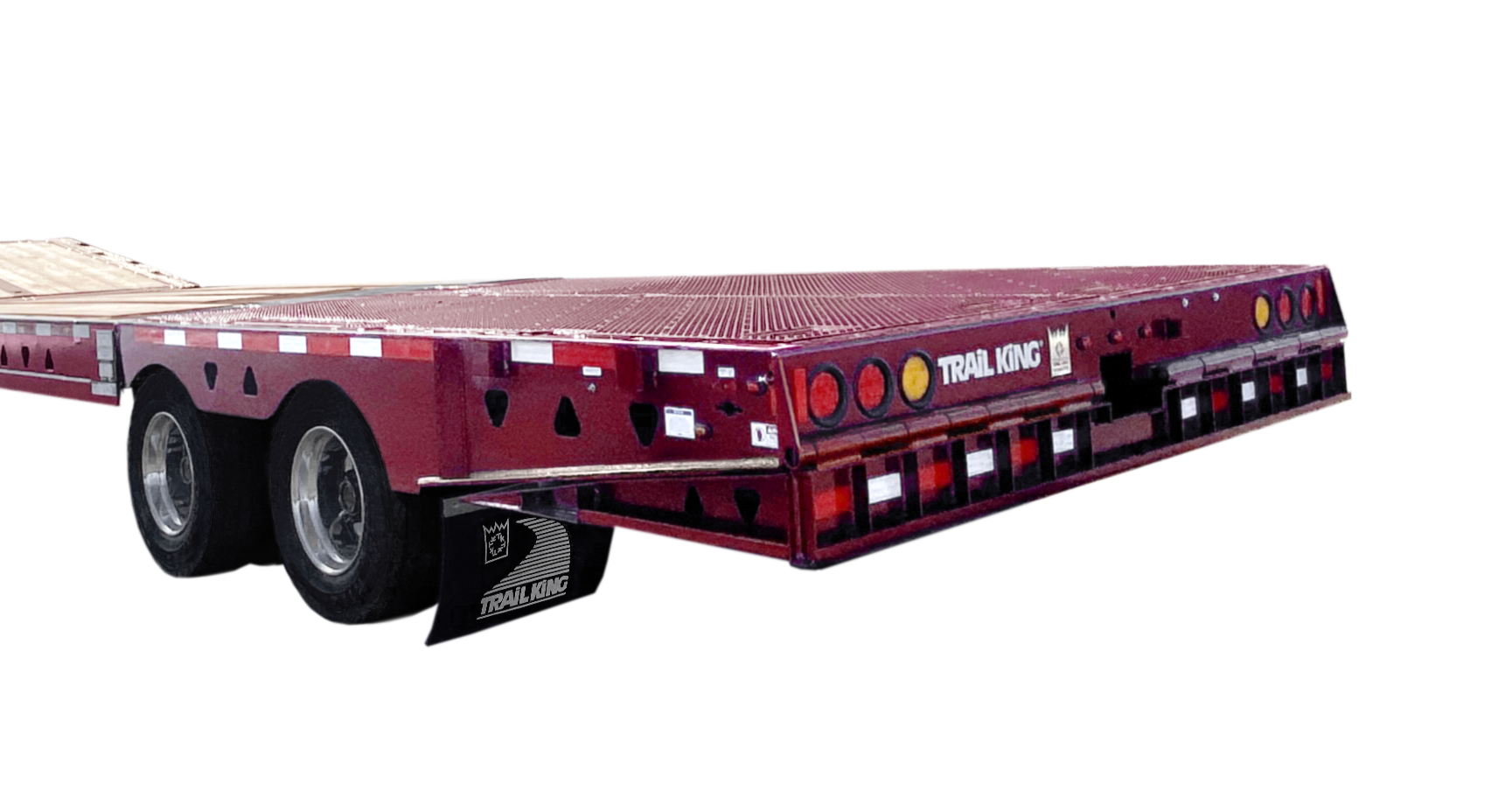

    Three tail lights per side (amber in center). Fourth strobe optional X X
