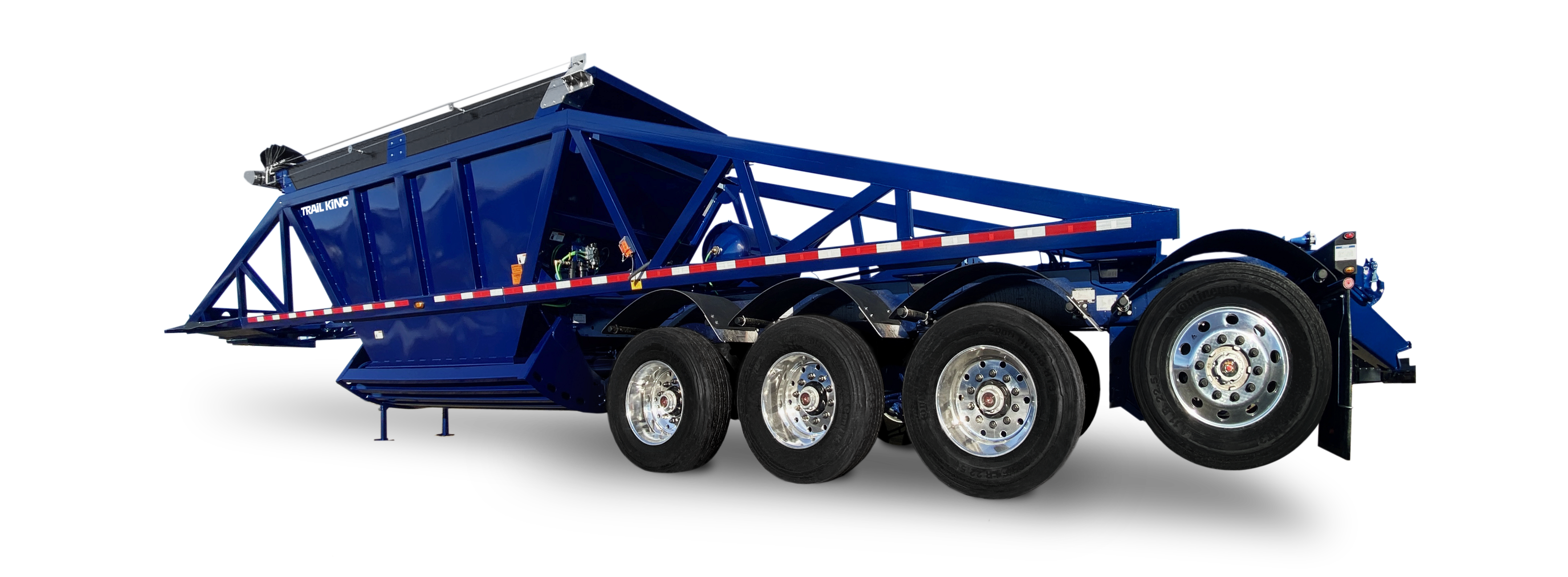

TKBD Bottom Dump

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

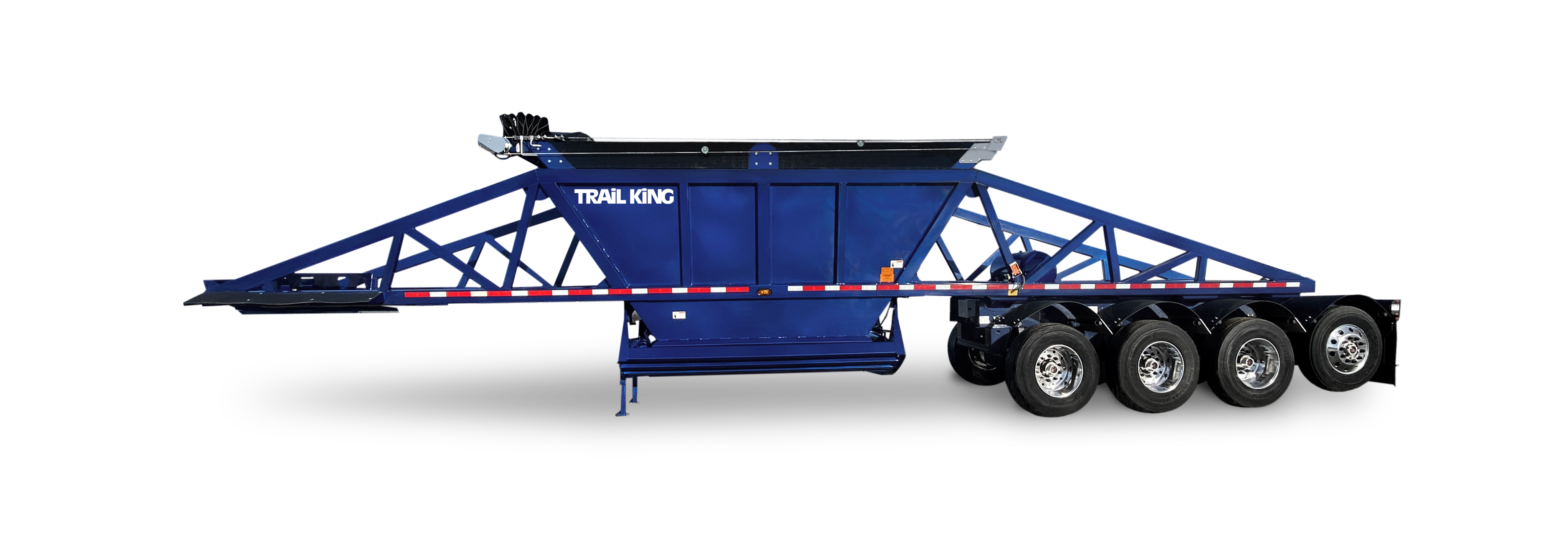

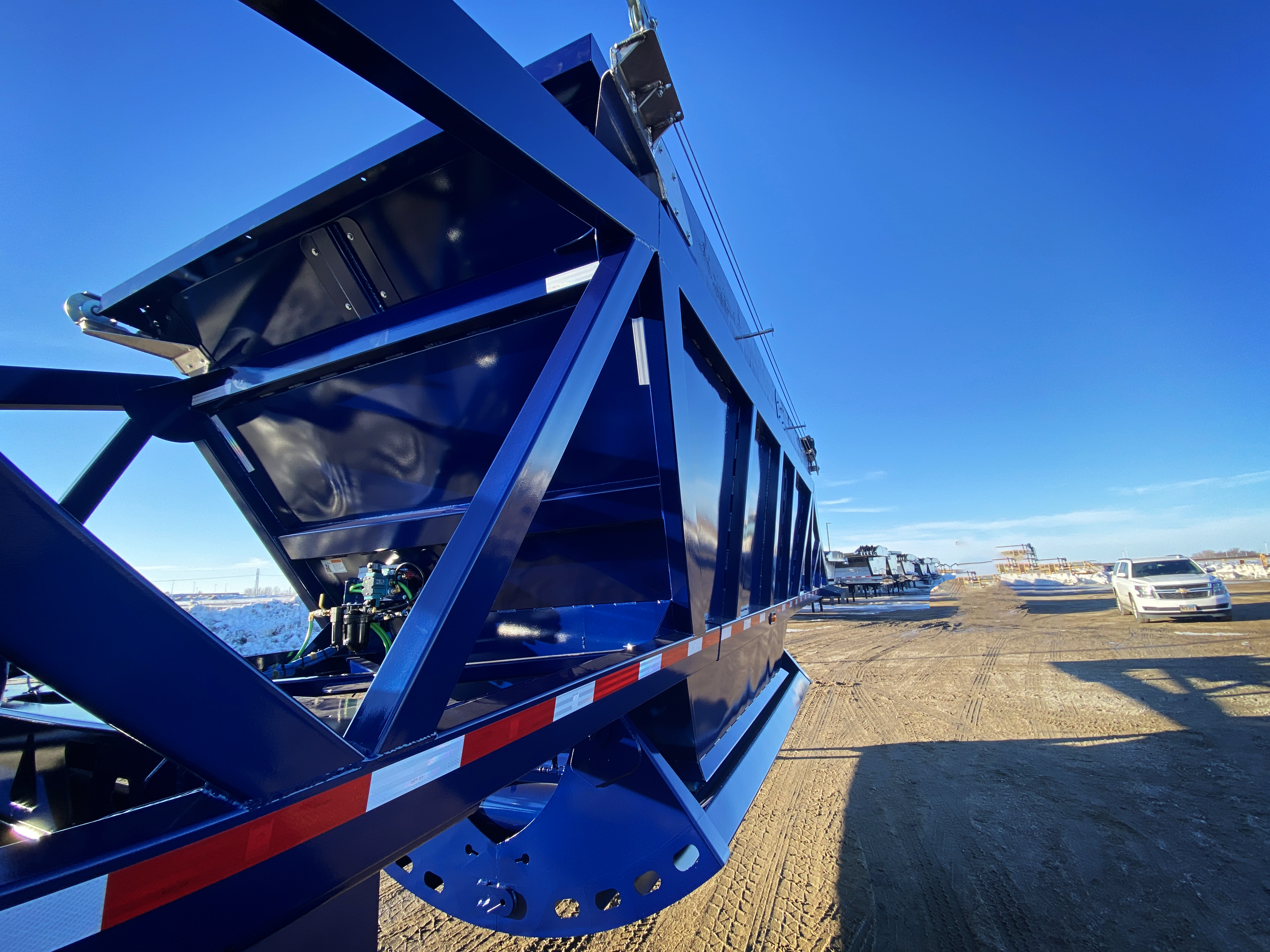

The bottom dump is engineering to be lightweight, yet rugged and strong. Its lightweight cross-bracing and gusset design minimizes the twisting and flexing in critical stress areas while delivering maximum weight savings. This trailer can haul more payloads than ever before.

Features
Documents

+ Expand All
- Close All

Specifications

STANDARD EQUIPMENT	BD11-202	BD15-254	BD15-252	BD22-362	BD22-402	BD22-433	BD22-484
Capacity	11 cu. yds.	15 cu. yds.	15 cu. yds.	22 cu. yds.	22 cu. yds	22 cu. yds	22 cu. yds
Overall length	19’ 11”	24’ 8”	24’ 8”	34’ 8”	39' 8"	42' 8"	47' 8"
Overall height	8' 4”	9’ 3”	9’ 3”	9’ 3”	9’ 3”	9’ 3”	9’ 3”
Overall width	102”	102”	102”	102”	102”	102”	102”
KP to center of last axle	15' 11"	19’	20’ 11"	31’ 11"	35' 11"	38' 11"	43' 11"
Empty weight	9,925 lbs.	15,050 lbs	10,150 lbs	11,533 lbs	11,800 lbs	13,890 lbs	16,325 lbs
