Key Features & Specs

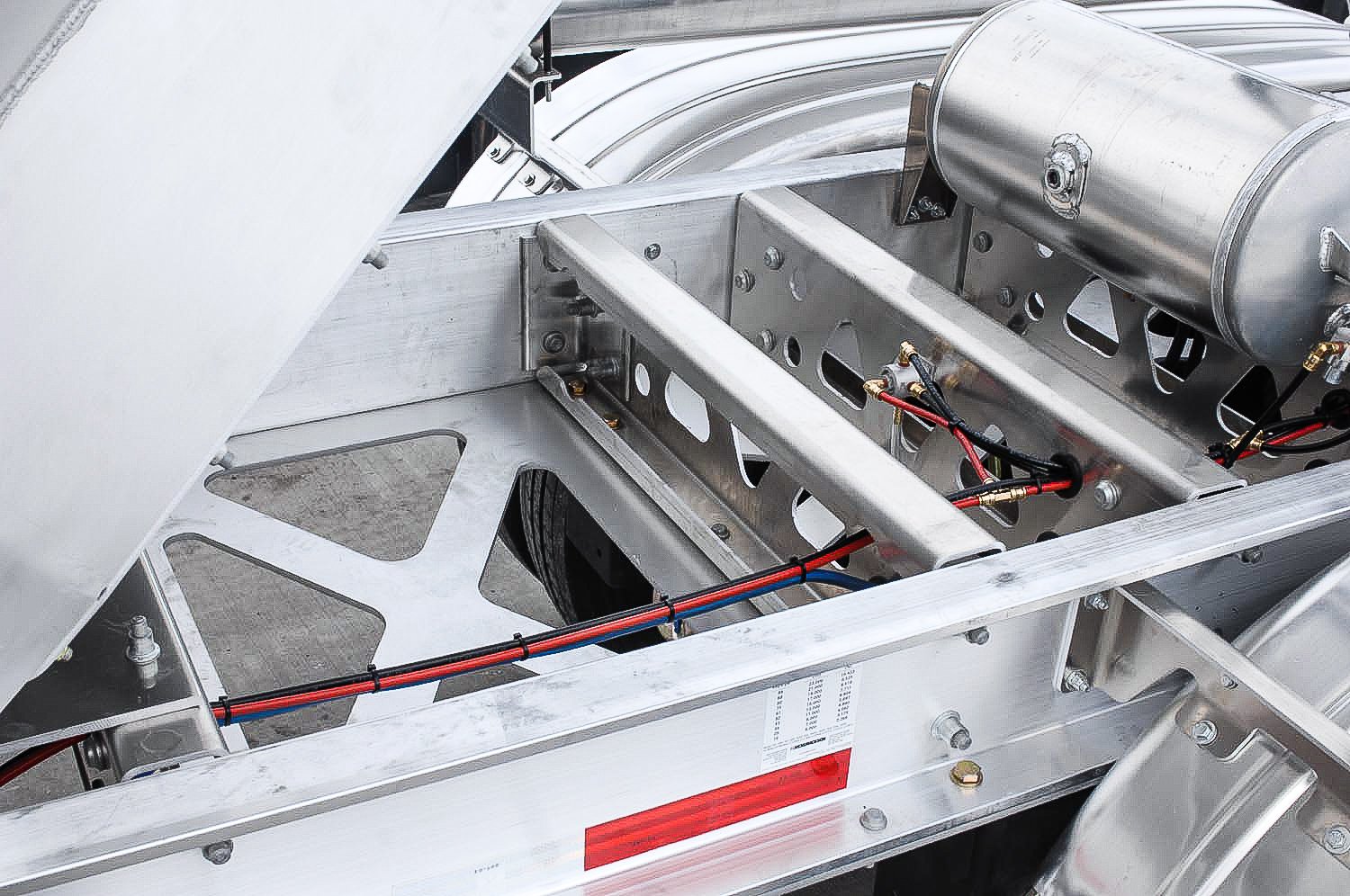

The Aluminum Bulk Pneumatic provides a thicker, stronger body shell than anything on the road. Our design requires fewer internal support structures, reducing areas for product build-up and less maintenance. Mandrel bent piping offers unobstructed flow, delivering faster to make unloading clean and easy. Its aluminum cross members span the full depth of the end frame, resulting in a weight savings while still providing maximum structural strength.

  • + Expand All
  • - Close All
  • Specifications
    Standard Equipment APB 1033 APB 1633E
    Capacity 1033 cubic feet 1633 cubic feet
    Kingpin to Center of Last Axle 38' 4” (21" KP setting) 38' 4” (21" KP setting)
    Overall Length 42' 0" 42’ 8”
    Overall Width 96" 102”
    Overall Height 11' 6” (w/ 48" fifth wheel) 13' 1” (w/ 48" fifth wheel)
    # of Hopper, 45° Vessel 3 4
    # of 20" Manholes w/ Nylon Wear Plate 2 4
    Other Standard Equipment
    Standard Fifth Wheel (Bolted & Adjustable) 8" x 21' Aluminum Hose Tube - Curbside
    Aluminum End Frames  Tandem Axle Suspensions: (2) 23k lntraax AANT Ride
    Aluminum Struts Soft Coated Suspensions
    Non Food Grade w/ Standard Finish P Spindle Axles
    Toe Rails on Vessel (Extending To Front-Most Manhole) 4S2M Anti-Lock Brake System
    3" Air Inlet on Road Side w/ Male Adaptor Stemco Platinum Plus Wheel ends 5-yr./500,000-mi.
    Blow Down Line - Road Side Front, Terminating Between Main Frame, Angled Toward Rear Duralite hub-piloted - Centrifuse Drum
    3 Solimar Fluidizers at Each Hopper w/ Hopper Savers (Controlled By One (1) 3” Butterfly Valve On Front Fender) 8.25 x 22.S Machined Aluminum Wheels
    5" Product Valves 11R22.5 General ST250 14-Ply Radial Tires
    5" Ultraflo #400 (Iron Disc w/ Black Nitrile Seat) Aluminum Fenders (Front & Rear)
    5" x 4" Aluminum Gravity Drop Tees Aluminum Air Tank
    4" Sch 40 Aluminum Product Line Piping w/ Grooved Pipe Connectors Ladder at Rear w/ Hand Rail
    4" Sch 40 Aluminum Discharge Piping w/ Grooved Pipe Connectors, Terminating Below Axles Gauges on Side of Frame w/ Light
    LED Lights w/ Sealed Wiring Harness Trail King Anti-Sail Mud Flaps
    High Mounted 3rd Stop Light Two Speed Landing Gear (crank road side) (Armor Coated Black)
