TKAHTC Grain Hopper Conveyer

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

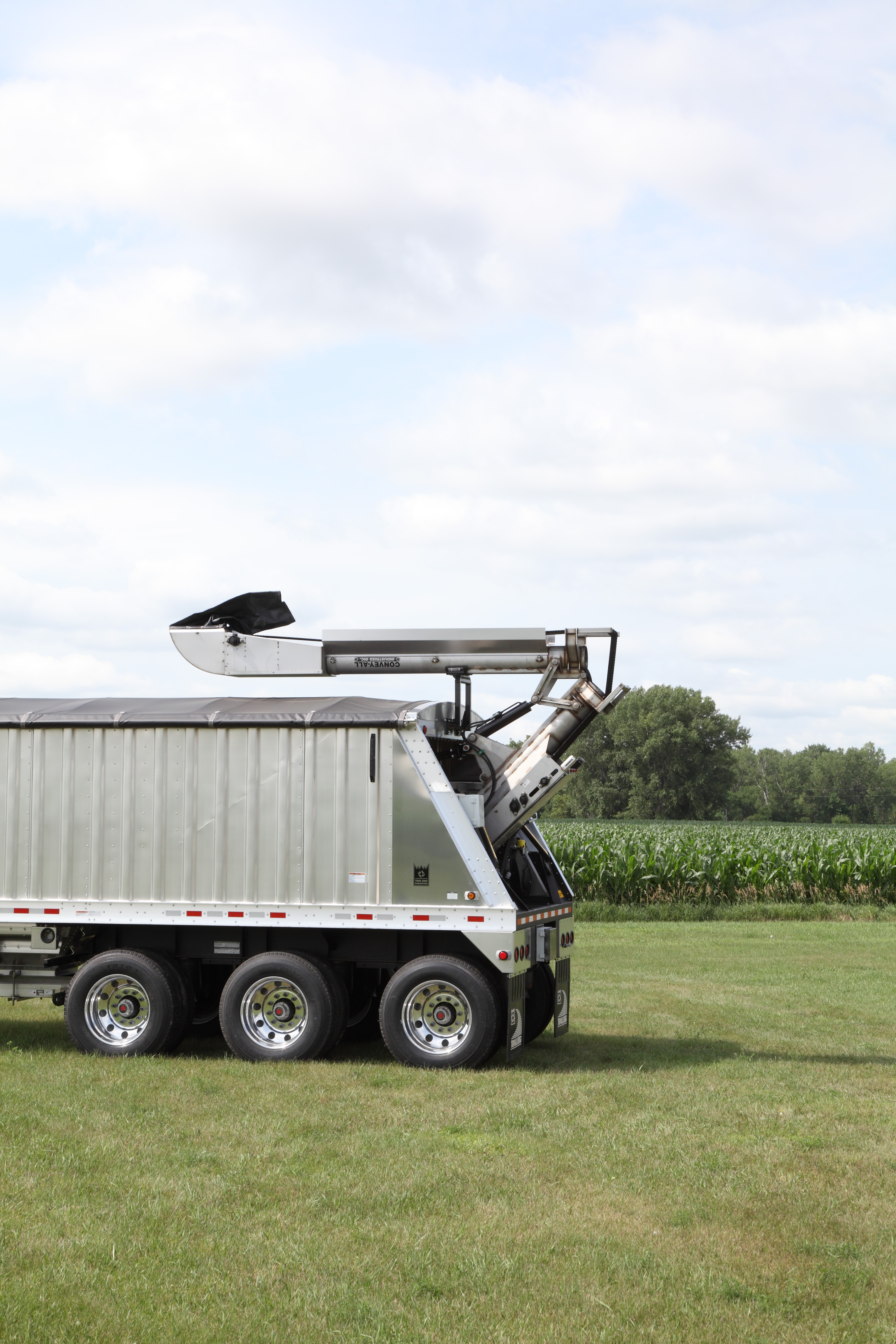

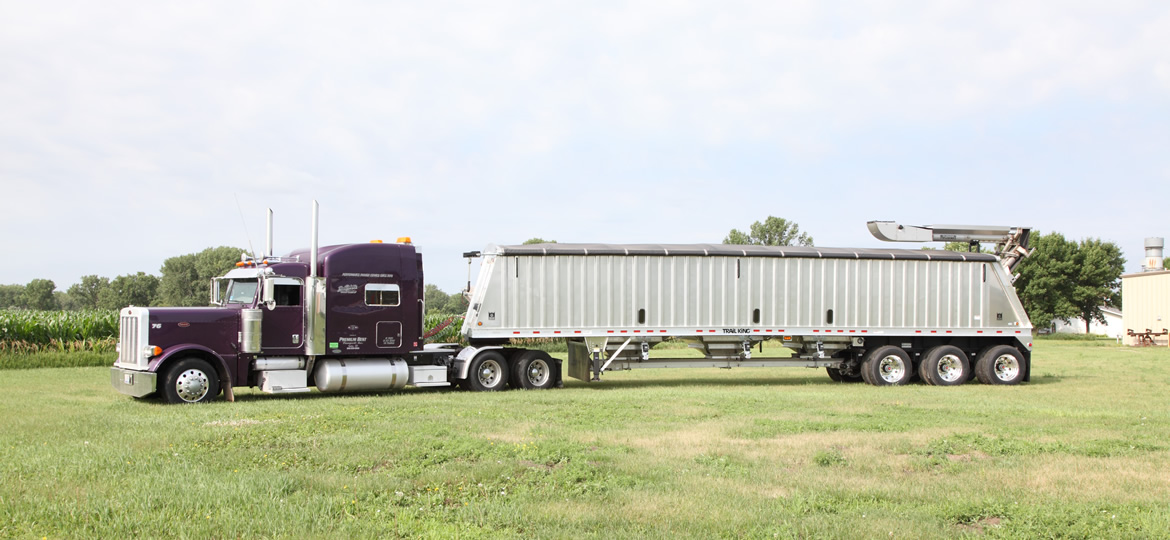

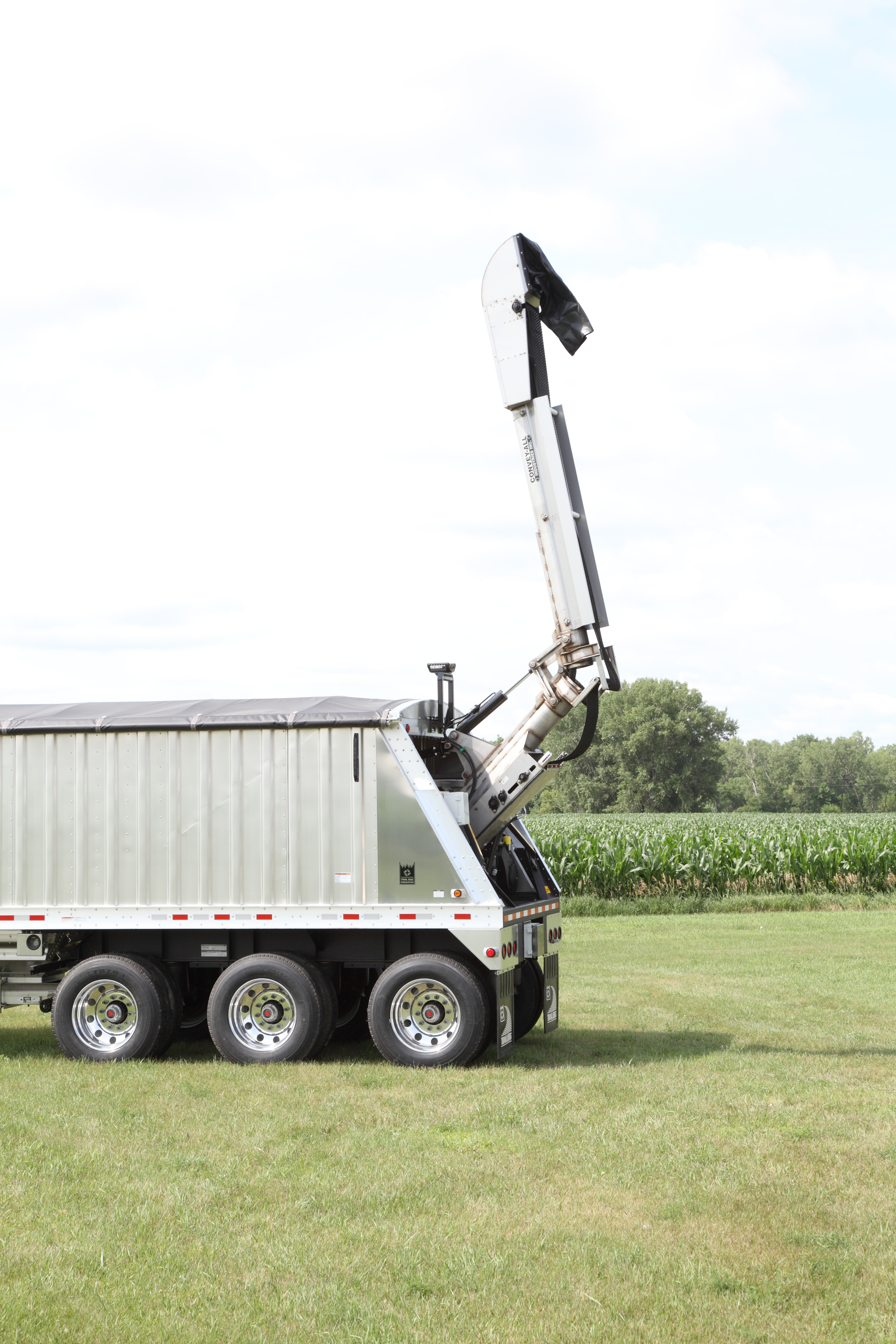

Trail King’s Aluminum Grain Hopper Conveyor trailer is the most advanced and reliable multi-purpose trailer unit in the industry. This strong, lightweight, stainless-steel conveyor attaches to our standard aluminum grain hopper trailer, and it can be removed at any time.

Designed as light as 13,516 lbs, you’ll have the freedom to haul more in every load. Faster seeding and fertilizing is made possible with hauling capacities of up to 1,402 bushels (heaped) and a full 12’ side-to-side range of motion.

Features
Documents

+ Expand All
- Close All

Specifications

STANDARD EQUIPMENT	AHTC 4102-0276 (U.S.)	AHTC 4102-0276 (Canadian)	AHTC 4503-0276 (U.S. & Canadian)
Trailer Length	41'	41'	41'
Overall Width	102"	102"	102"
Side Height	76"	76"	76"
Overall Height with Caps	13' 5"	13' 5"	13' 6"
Weight*	13,516 lb.	13,551 lb.	16,649 lb.
Cubic Foot Volume*	1566 cu. ft.	1566 cu. ft.	1566 cu. ft.
Bushel Capacity* (Level)	1259 bu.	1259 bu.	1327 bu.
Horizontal Conveyor Clearance ? Empty / 24.5 Tires	22"	22"	21"

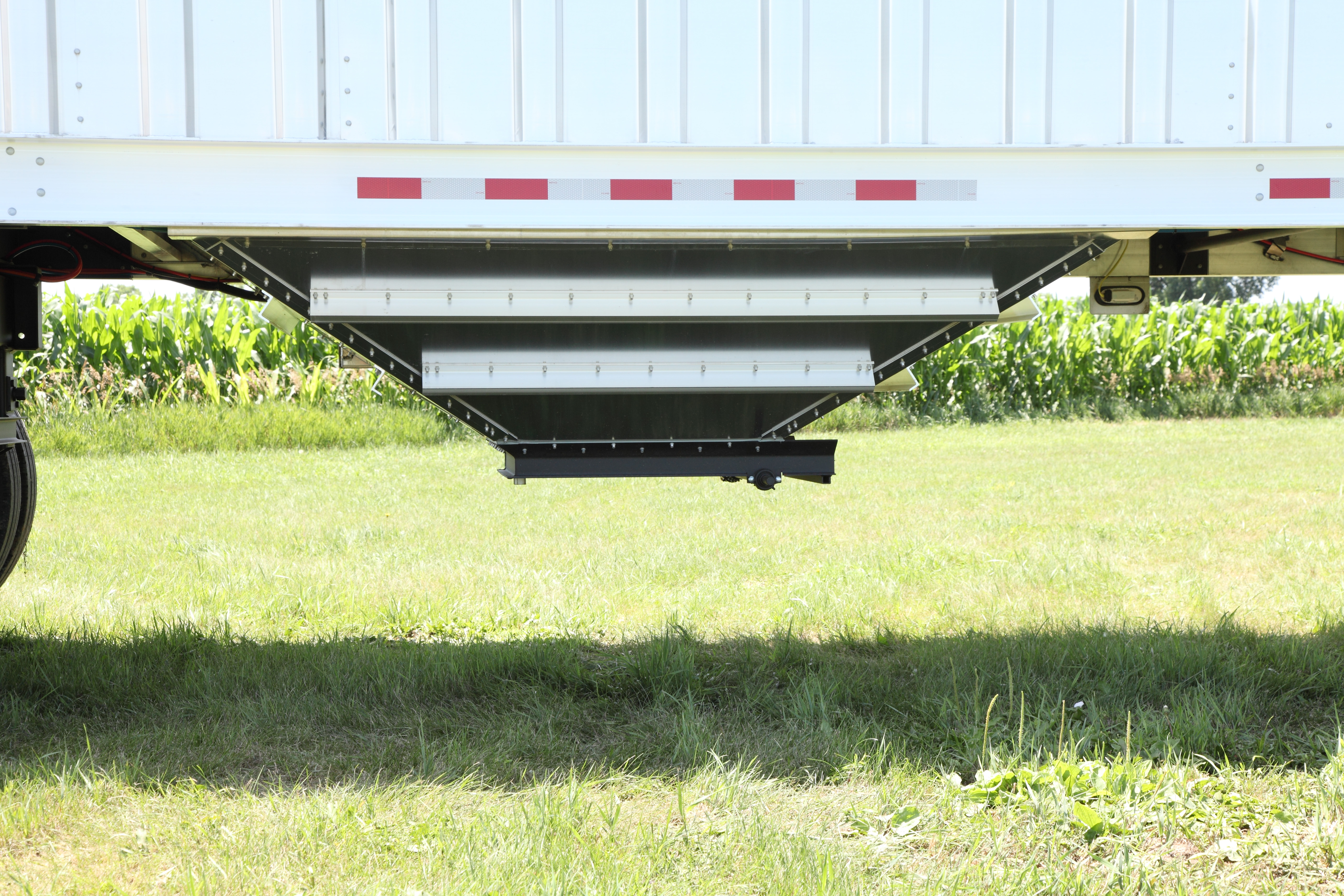

Number of Hopper Doors	2	2	2
Hopper Door Opening	20" x 26"	20" x 26"	20" x 24"
King Pin Setting	18"	18"	18"
Clearance King Pin to Front of Landing Leg Brace	88"	88"	85"
King Pin to Center of Rear Axle	37' 3"	37' 3"	41' 3"
