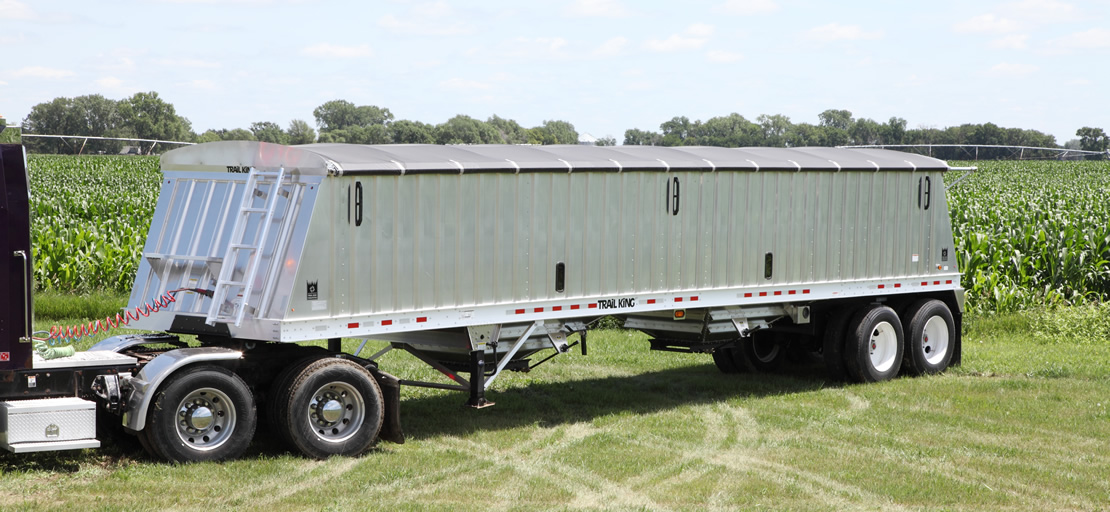

Trail King’s durable Aluminum Grain Hopper trailer will satisfy your farming operations for years to come with its efficient single wall construction and a subframe protected by a 6-stage prep, prime, and paint process. It features an aero-dynamic design for easy pulling and maximum load hauling capabilities—from our 22’ to 51’ models.

  • + Expand All
  • - Close All
  • Specifications
    STANDARD EQUIPMENT AHT 2401-9667 AHT 2601-9667 AHT 3002-9667 AHT 3603-0280 AHT 3862-9667 AHT 3862-9672 AHT 4102-9667 AHT 4102-9672 AHT 4102-0272 AHT 4302-0280 AHT 4802-9672 AHT 5103-9672
    Trailer Length 24' 26' 30' 36' 38'6" 38'6" 41' 41' 41' 43' 48' 51'
    Overall Width 96" 96" 96" 102" 96" 96" 96" 96" 102" 102" 96" 96"
    Side Height 67" 67" 67" 80" 67" 72" 67" 72" 72" 80" 72" 72"
    Overall Height with Caps 10'-3" 10'-3" 10'-3" 11'-4" 10'-3" 10'-8" 10'-3" 10'-8" 10'-8" 11'-4" 10'-8" 10'-8"
    Weight *† 5,367 lb. 5,413 lb. 8,037 lb. 12,163 lb. 8,900 lb. 9,275 lb. 9,280 lb. 9,725 lb. 9,882 lb. 10,235 lb. 12,676 lb. 13,200 lb.
    Cubic Foot Volume* 718 749 909 1,430 1,188 1,291 1,257 1,368 1,462 1,740 1,495 1,573
    Bushel Capacity* (Level) 577 602 730 1,149 955 1,037 1,010 1,099 1,175 1,398 1,201 1,264
    Bushel Capacity* (Heaped) 609 636 772 1,214 1,008 1,096 1,067 1,161 1,241 1,477 1,269 1,335
    Hopper Clearance †† 22½" 22½" 22" 22" 22" 22" 22½" 22½" 22½" 22½" 23" 23"
    Number of Hopper Doors 1 1 2 2 2 2 2 2 2 2 2 2
    Hopper Door Opening 24" x 30" 24" x 30" 24" x 26" 24" x 26" 24" x 26" 24" x 26" 24" x 26" 24" x 26" 24" x 26" 24" x 26" 24" x 30" 24" x 30"
    King Pin Setting 15" 18" 18" 15" 18" 18" 18" 18" 18" 24" 24" 24"
    Clearance*** 76 78.5 89" 96.5" 89" 89" 89" 89" 89" 83" 93" 93"
    King Pin to Center of Rear Axle (at Turntable) 20'-8" 22'-5" 26'-3" 32'-7" 34'-9" 34'-9" 37'-3" 37'-3" 37'-3" 38'-9" 43'-8" 46'-8"
