TrailKing Steerable Dolly

TrailKing Steerable Dolly

TrailKing Steerable Dolly

TrailKing Steerable Dolly

Steerable Dolly

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

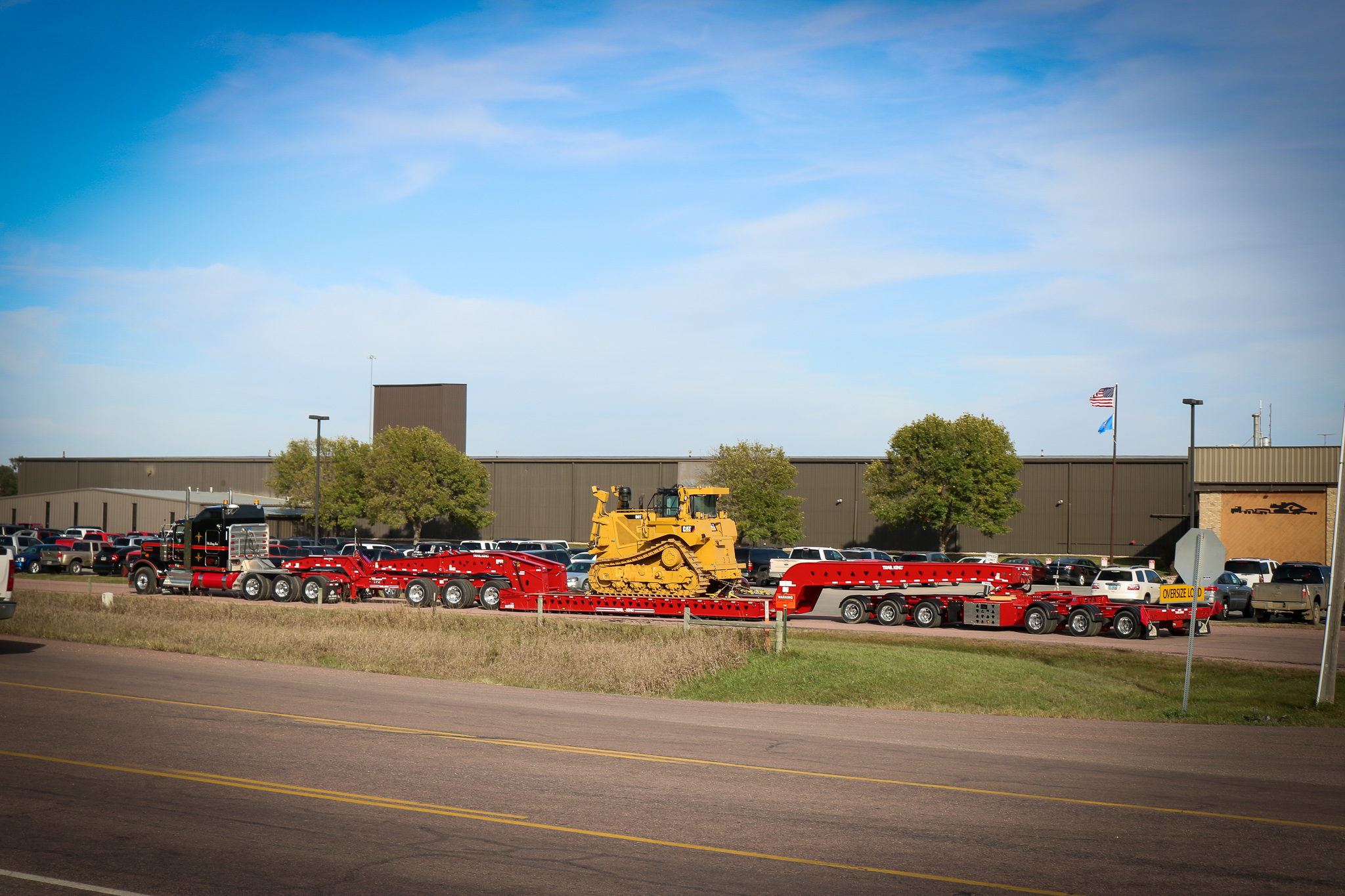

This versatile dolly can be used with a Schnabel setup, replace standard wheel area for a steerable 13 axle configuration, or can be used in combination with a Jeep/Dolly for Bunk work. This new design allows for better maneuverability for a greater steering angle, tighter corners and less manual steering. The dolly offers remote wireless manual steer and auto alignment after manual steer for an automatic self-centering function.

Features
Documents

+ Expand All
- Close All

Specifications

Standard Equipment	120 LPSD-HS
Capacity	120,000
Width	10’
Axle Spacing	60”, 14’1” group spacing
Front Steer Design	X
Hydraulic Steering	X
Hatbox rotation	60 degrees (each way)
Auto or manual steer	X
Adjustable steer ratio	X
Manual steer	Wireless or wire type remote
Auto-alignment after manual steer	X
Tires	235/75R 17.5
Brakes	12.25 x 7.5 (20,000 GAWR)
Poly fenders on all axles	X
Air ride	With raising and lowering
Hydraulic hat box	8” lift
Wide load sign	Brackets at rear
Support plate for gooseneck support arm	X
Spring brakes on rear axle group	X
Grote sealed wiring harness	X
Aux air outlet for power tools	X
