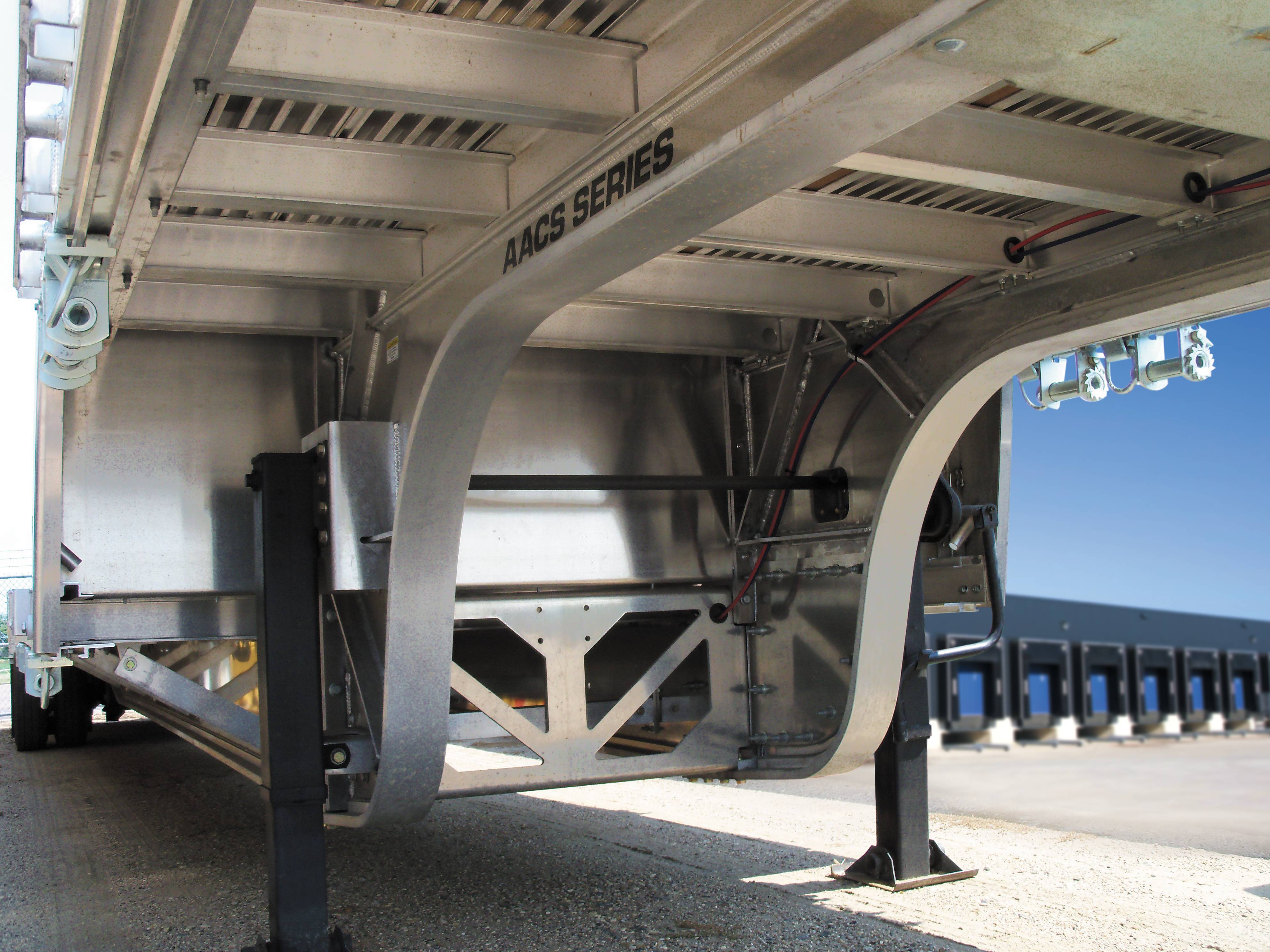

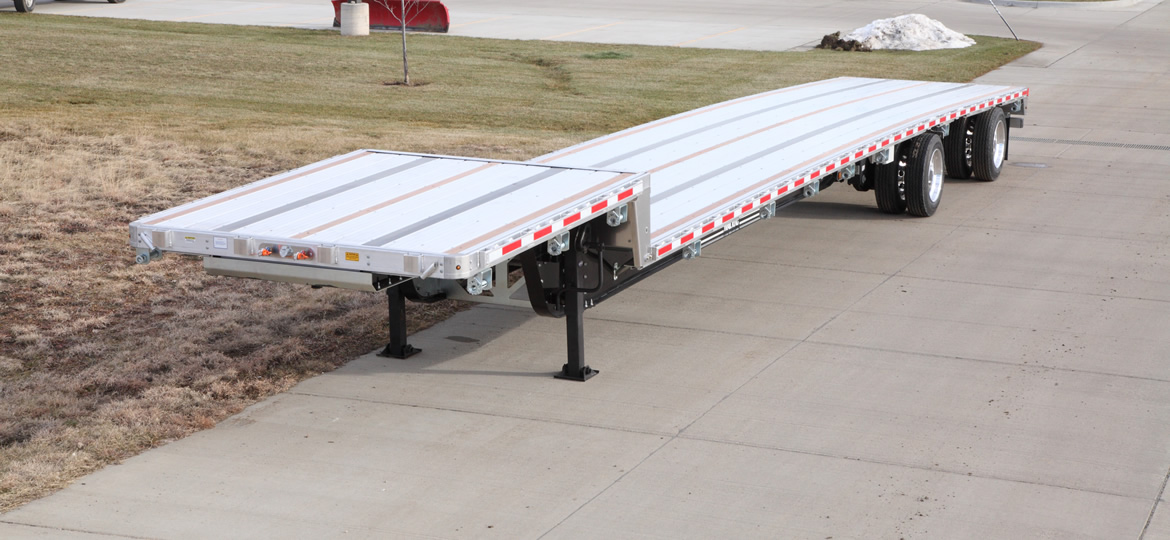

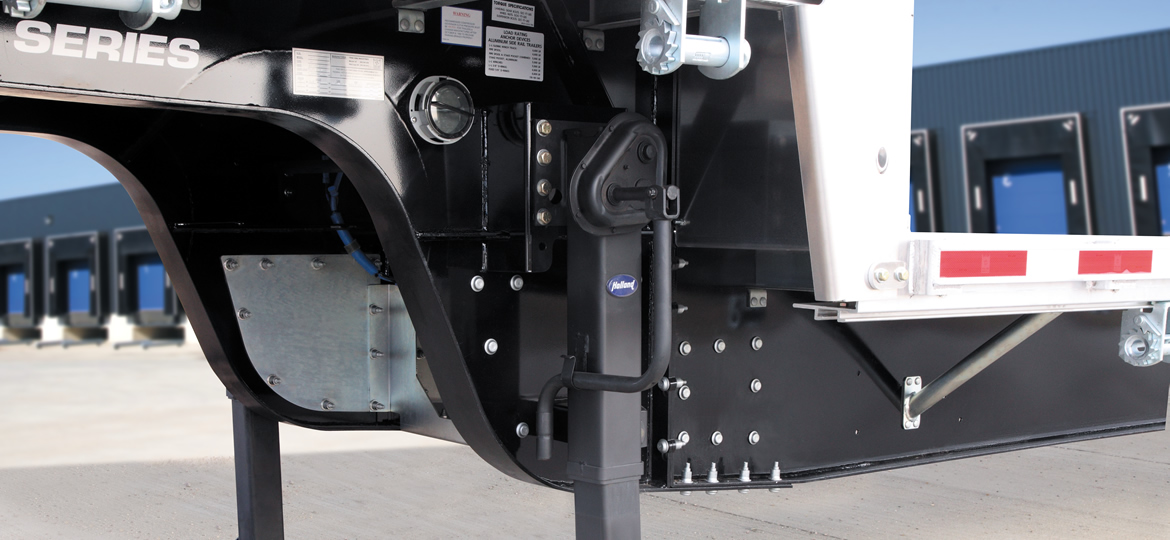

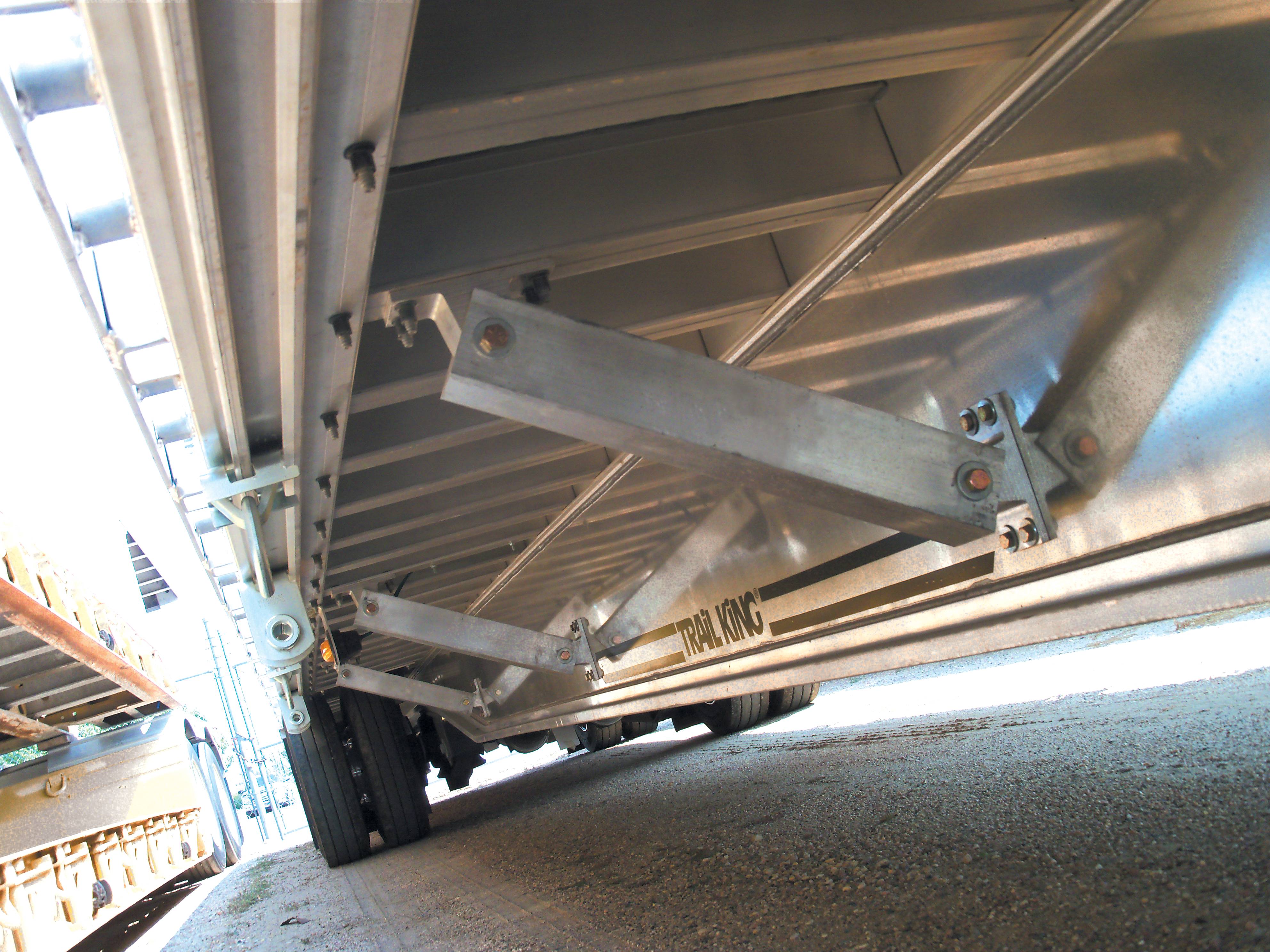

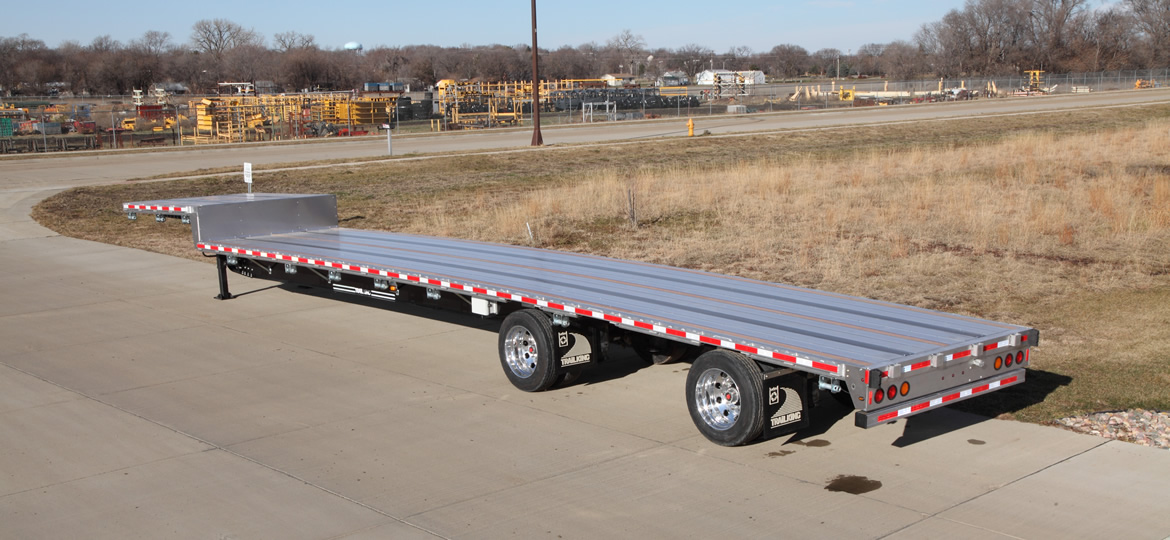

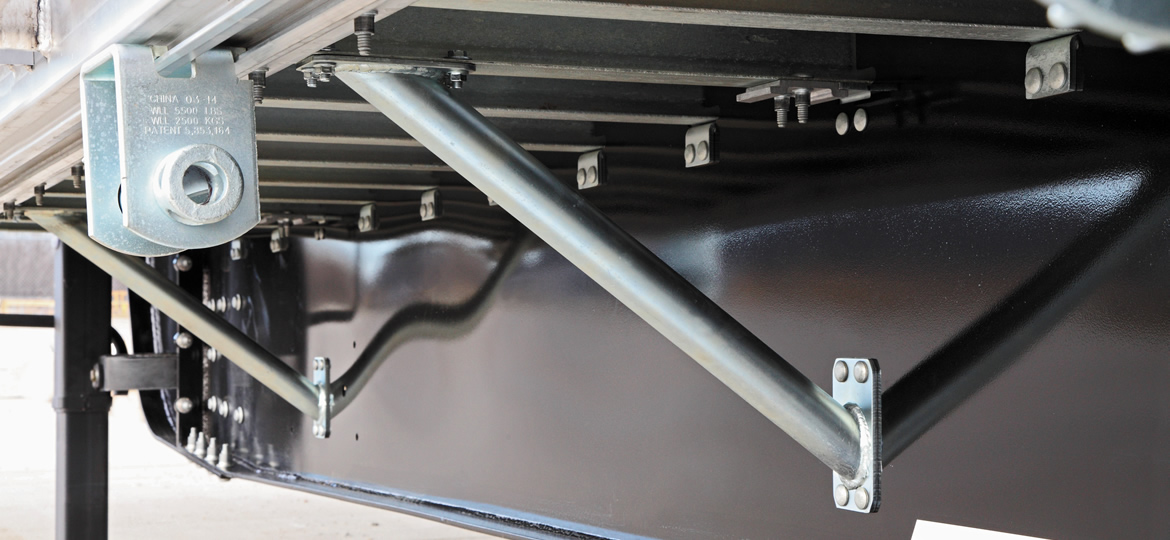

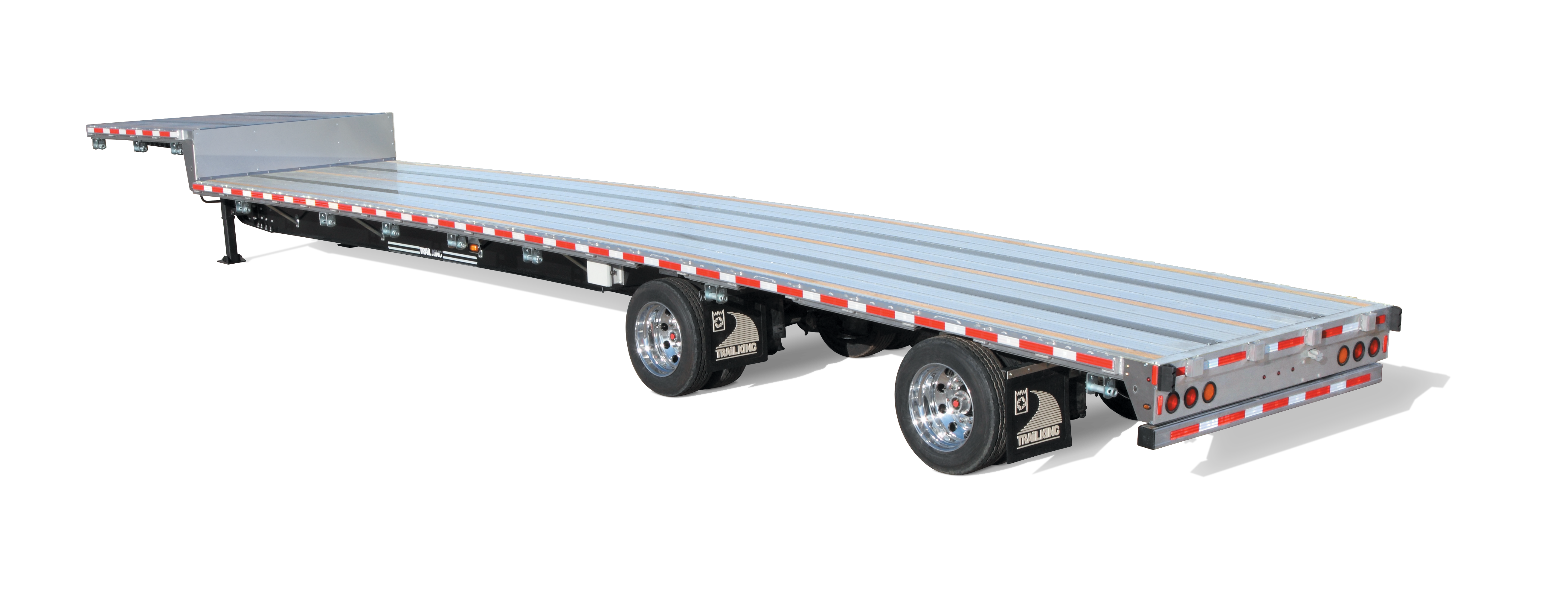

The Aluminum-Steel Combo Center Frame Step Deck trailer has the dual benefits of aluminum and steel; Steel provides strength while aluminum provides weight savings and corrosion resistance. This step deck trailer is engineered to accommodate your toughest payload, regardless of size or shape.

  • + Expand All
  • - Close All
  • Specifications
    Standard Equipment TK80ACS-34 TK80ACS-38 TK80ACS-40
    Base Weight 9,575 lbs. 9,885 lbs. 9,995 lbs.
    Capacity 80k Distributed 80k Distributed 80k Distributed
    Loaded Deck Height 34” 38” 40”
    Loaded Ground Clearance 9” 13” 15”
    Overall Width 102” 102” 102”
    Overall Length 47’ 10” 47’ 10” 47’ 10”
    Kingpin Setting 14” 14” 14”
    Fifth Wheel Height 48”-50” 48”-50” 48”-50”
    Upper Deck Length 10’ 10’ 10’
    Concentrated Load Rating 60k in 10’ 60k in 10’ 60k in 10’
    Aluminum Decking w/ (3) Flush Apitong Nailers X X X
    Cross Member Spacing (Main/Upper) 12’/18” 12’/18” 12’/18”
    Suspension Holland CB23U Holland CB23U Holland CBX23U
    Suspension Configuration Tandem Tandem Tandem
    Fifth Wheel Height 48”-50” 48”-50” 48”-50”
    Upper Deck Length 10’ 10’ 10’
    Concentrated Load Rating 60k in 10’ 60k in 10’ 60k in 10’
    Cross Member Spacing (Main/Upper) 12’/18” 12’/18” 12’/18”
    Suspension Holland CB23U Holland CB23U Holland CBX23U
    Suspension Configuration Tandem Tandem Tandem
    Suspension Spacing 50” 50” 50”
    Rear Axle Location Wheels Back Wheels Back Wheels Back
    Anti-Lock Braking System 2S1M 2S1M 2S1M
    Drum Brakes 12 ¼ x 7 ½ 12 ¼ x 7 ½ 16 ½ x 7
    Brake Rating 20k 20k 20k
    Manual Raise/Lower
    w/ Gauge in Enclosure X X X
    Wheels 6.75 x 17.5 Steel 7.50 x 19.5 Steel 8.25 x 22.5 Steel
    Tires 235/75R17.5 265/70R19.5 255/70R22.5
    2-Speed Landing Gear X X X
    Flag Holders 3/Side 3/side 3/side
    Sealed Electrical System X X X
    LED Lights X X X
    DOT Required Lights w/ Mid-Turn & 3rd Tail Light X X X
    Document Holder 4 ½“ Round 4 ½“ Round 4 ½“ Round
    Red and White Conspicuity Markings X X X
    Standard TK Decals X X X
    3/8” x 3” Aluminum Rub Rail w/ Double Chain Spools X X X
    Stake Pockets (24” O.C.) – Sides & Front X X X
    Full-Length Hook Track X X X
    Anti-Corrosion Barrier Between Aluminum and Steel X X X
    Zinc Coated Steel Components X X X
    Armor Coated Landing Gear & Suspensions X X X
    Dock Bumpers X X X
