Paver Special

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

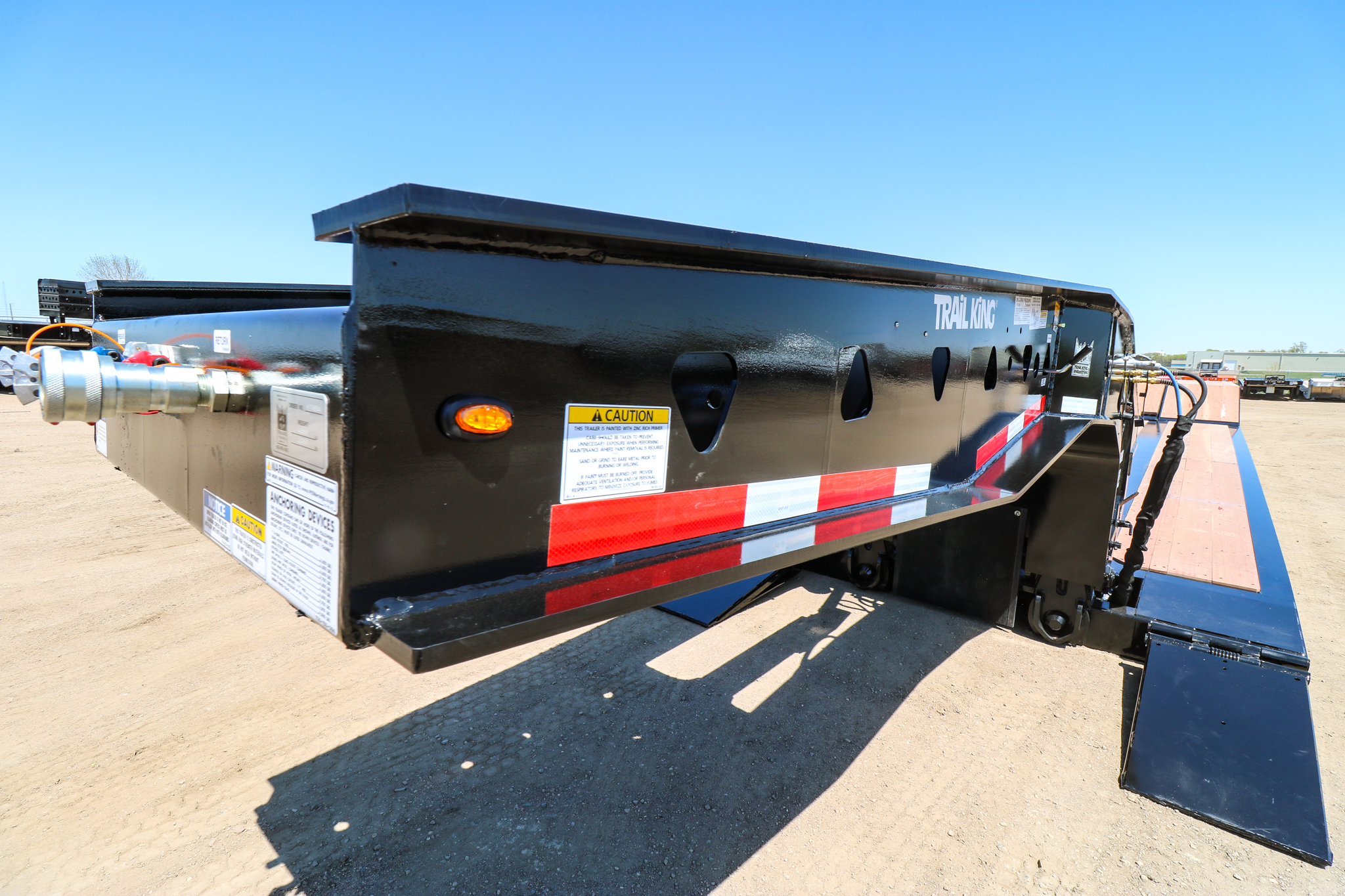

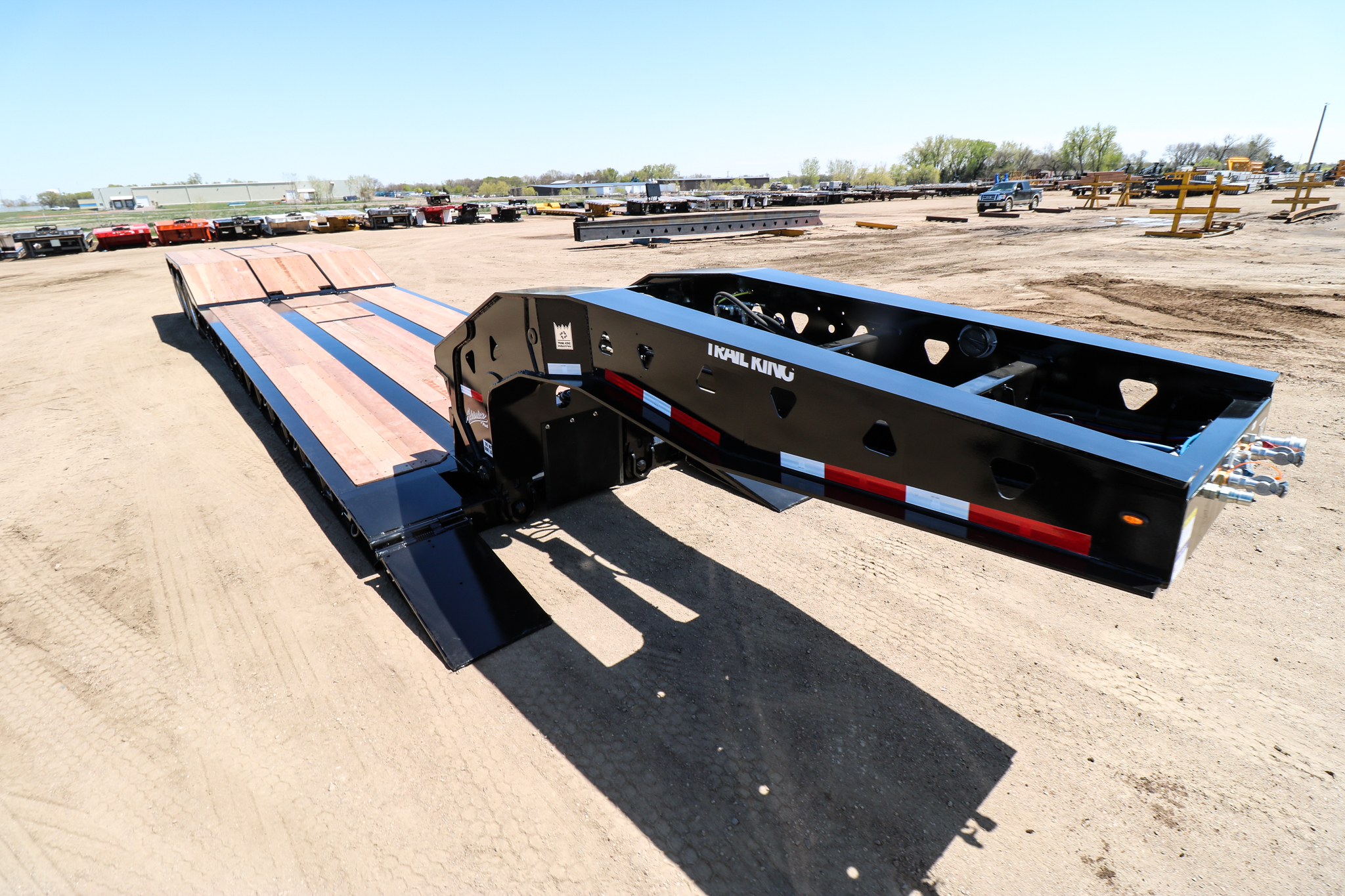

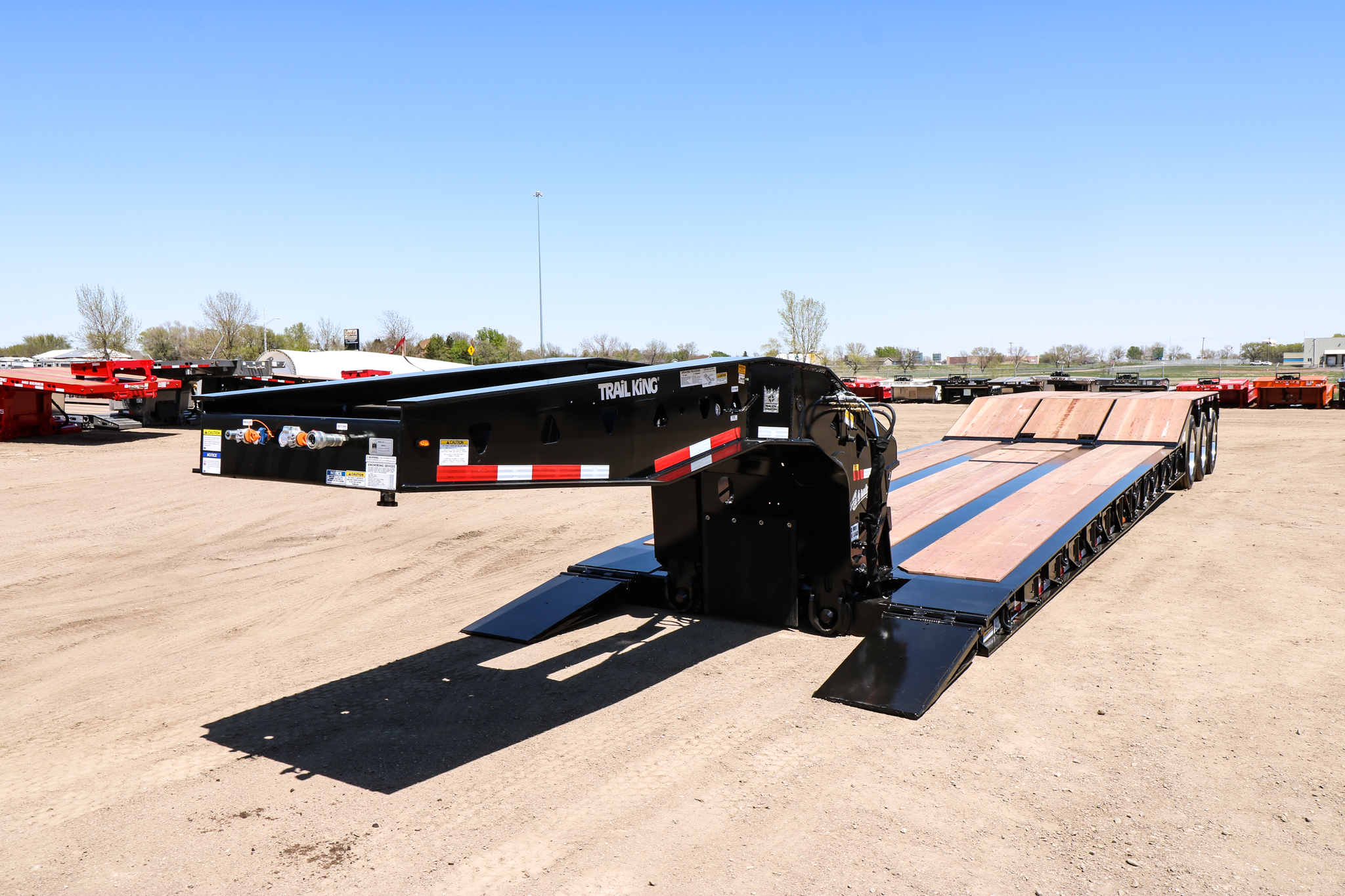

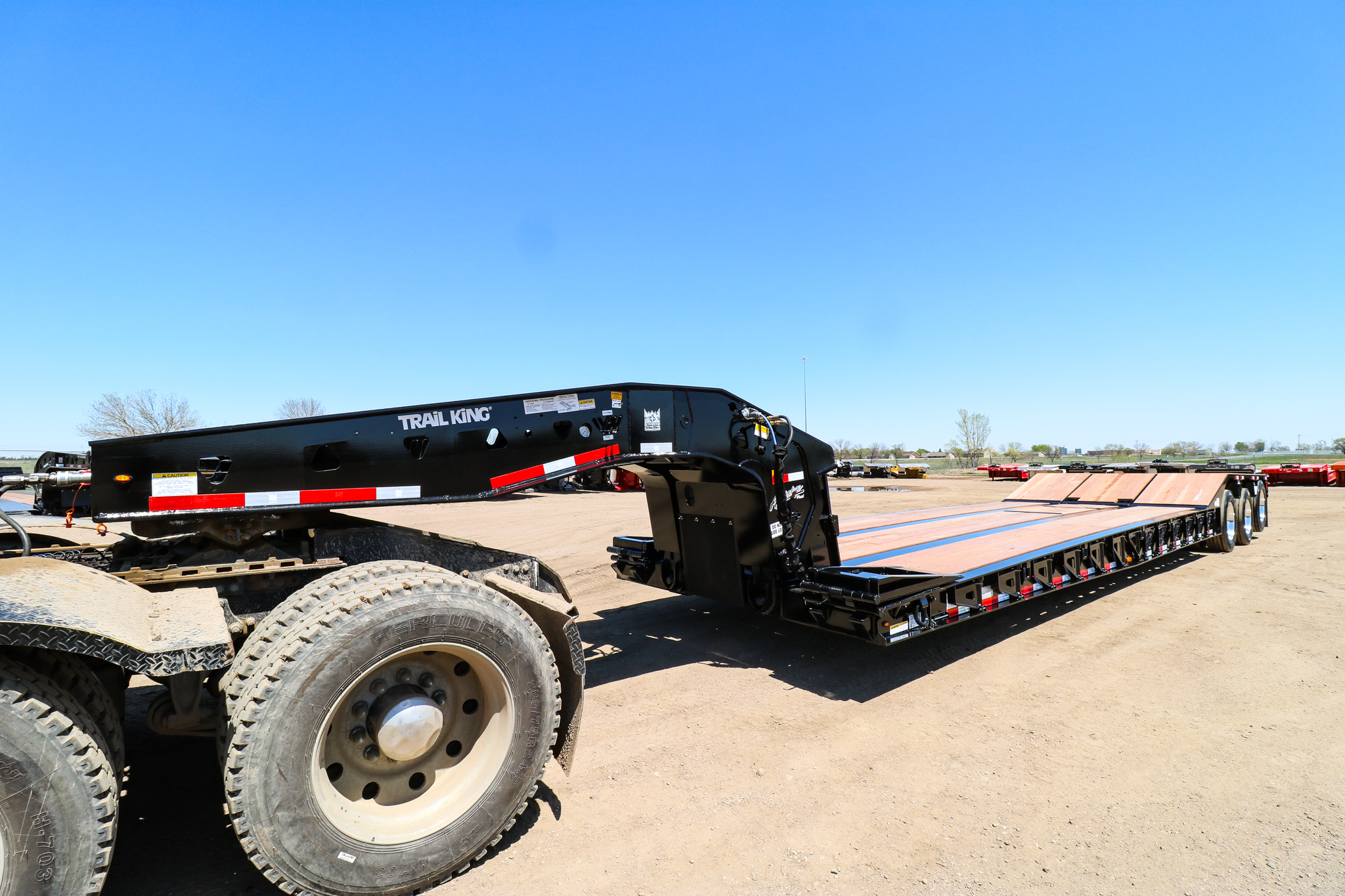

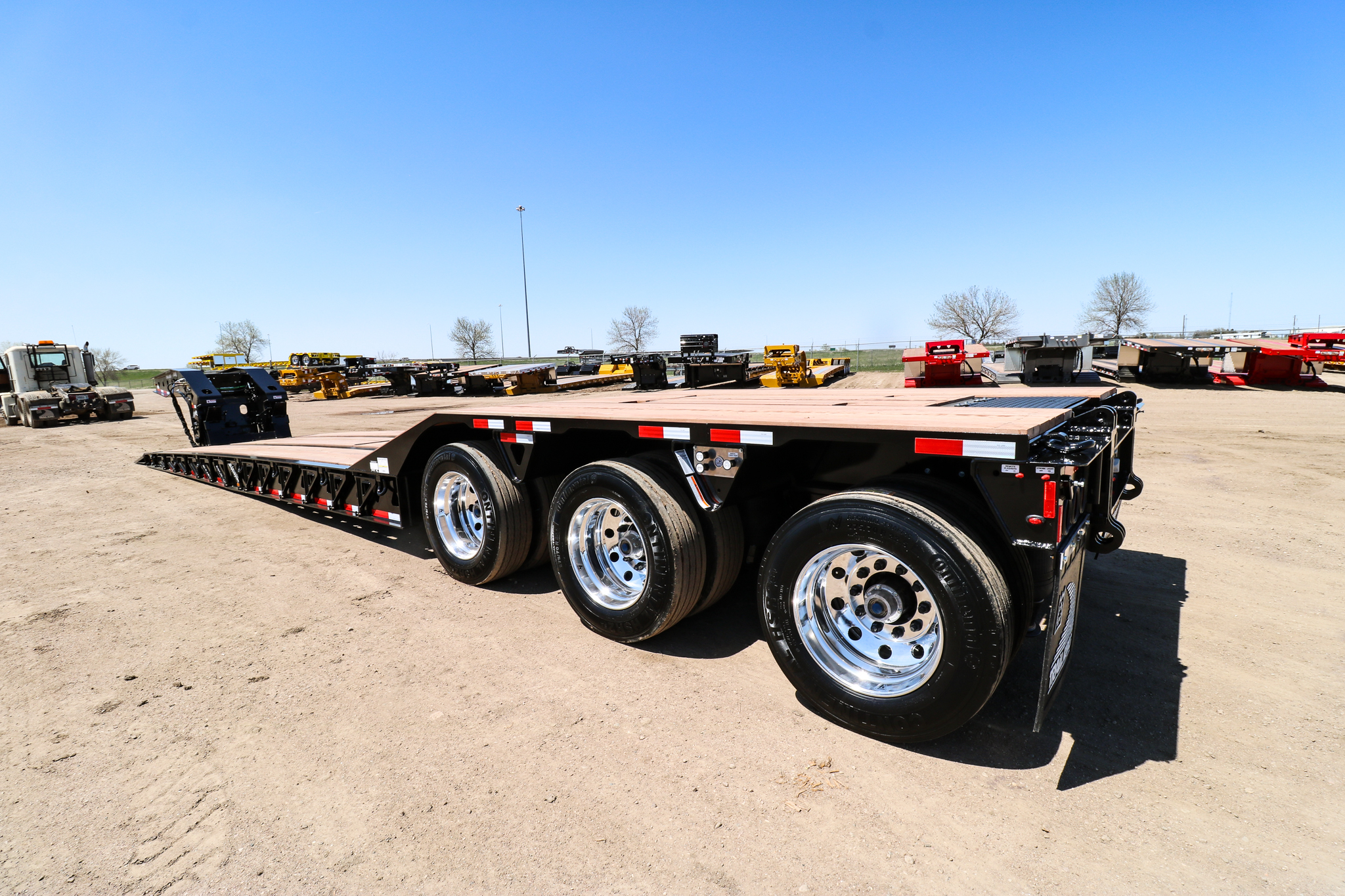

This Hydraulic Detachable Gooseneck Paver Special trailer is dependable, strong, durable, and versatile. We’ve taken our bestselling detachable lowboy and integrated its top features into this piece of equipment. Its easy load angles and low profile create a hassle-free loading experience for construction equipment, including asphalt pavers and rollers.

Features
Documents

+ Expand All
- Close All

Specifications

PAVER SPECIAL STANDARD EQUIPMENT	TK102HDG	TK110HDG
Concentrated capacity (in 16')	92,000 lbs	102,000 lbs.

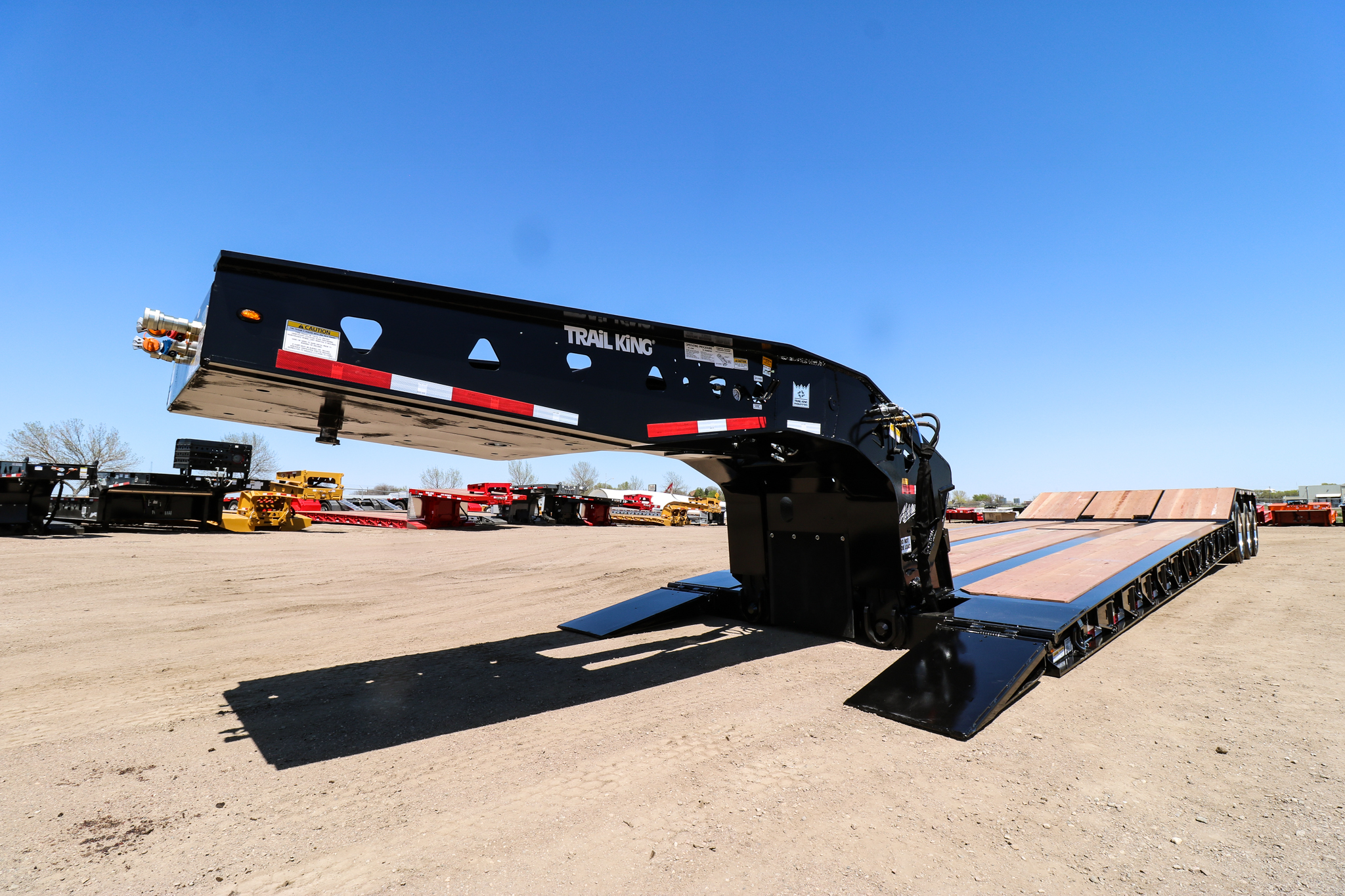

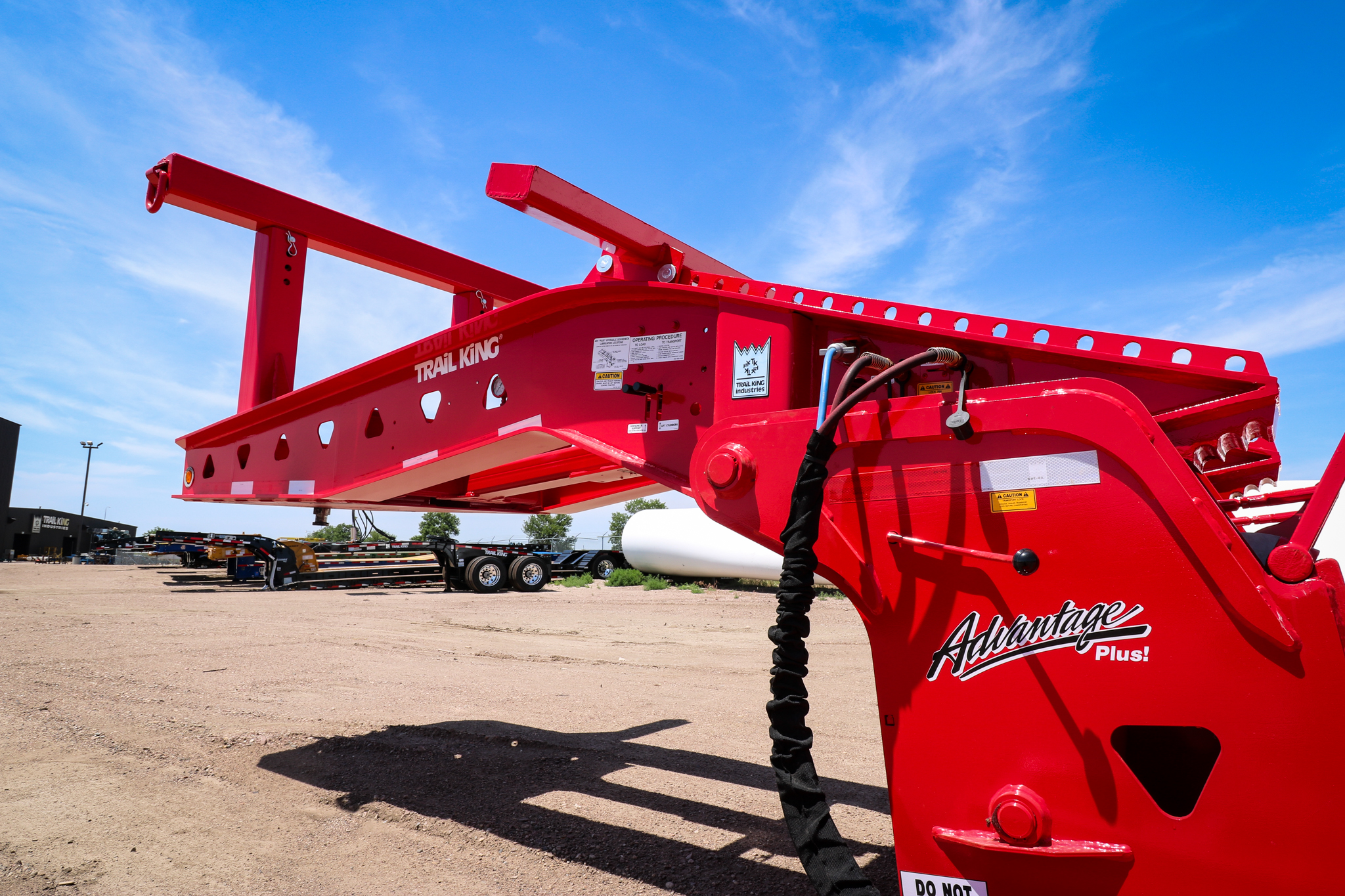

Gooseneck	11'11"	13"

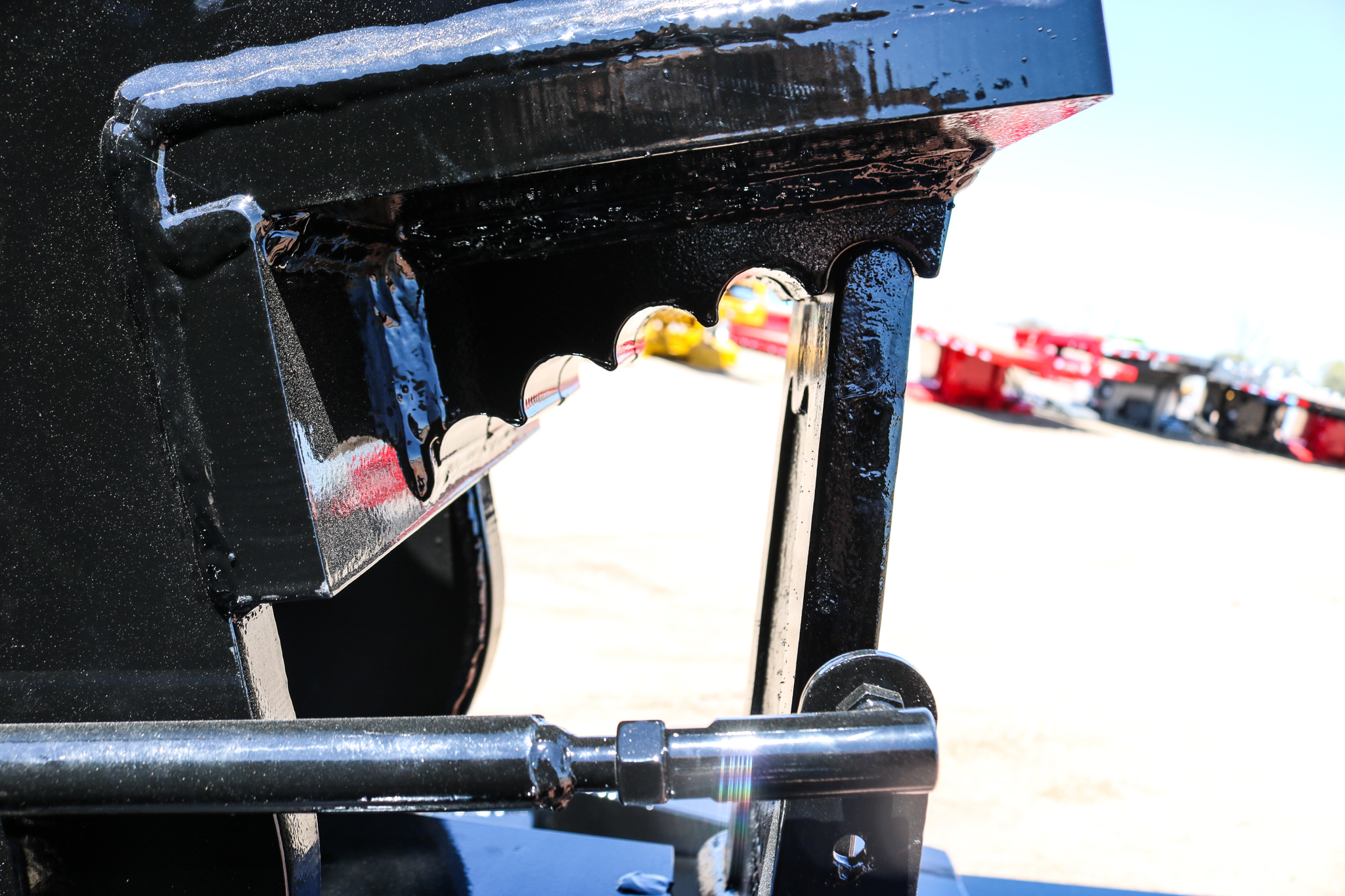

5-position gooseneck heigh adjustment +/- 3"	X	X
Swing Clearance	98" & 86"	110" & 86"

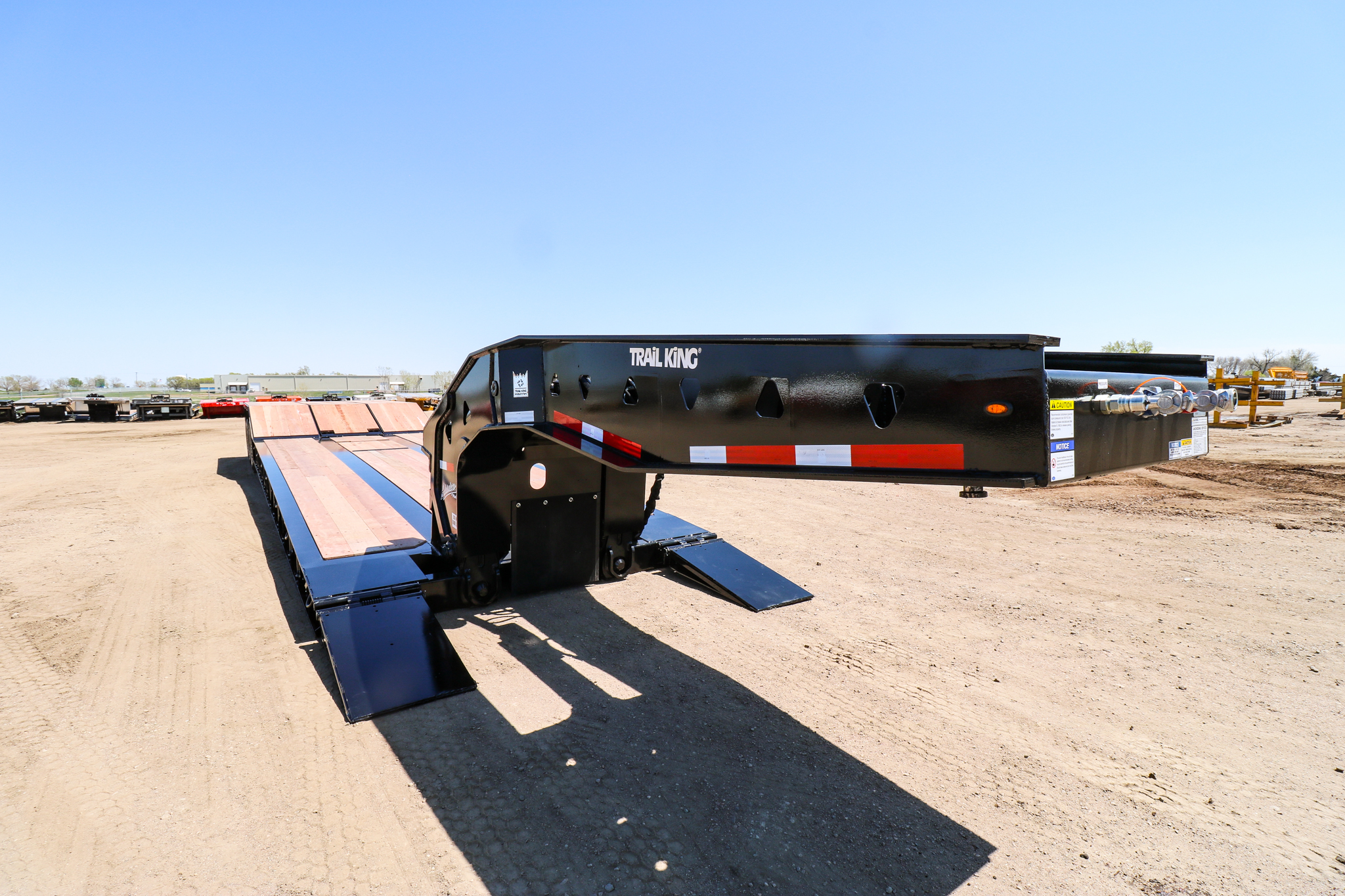

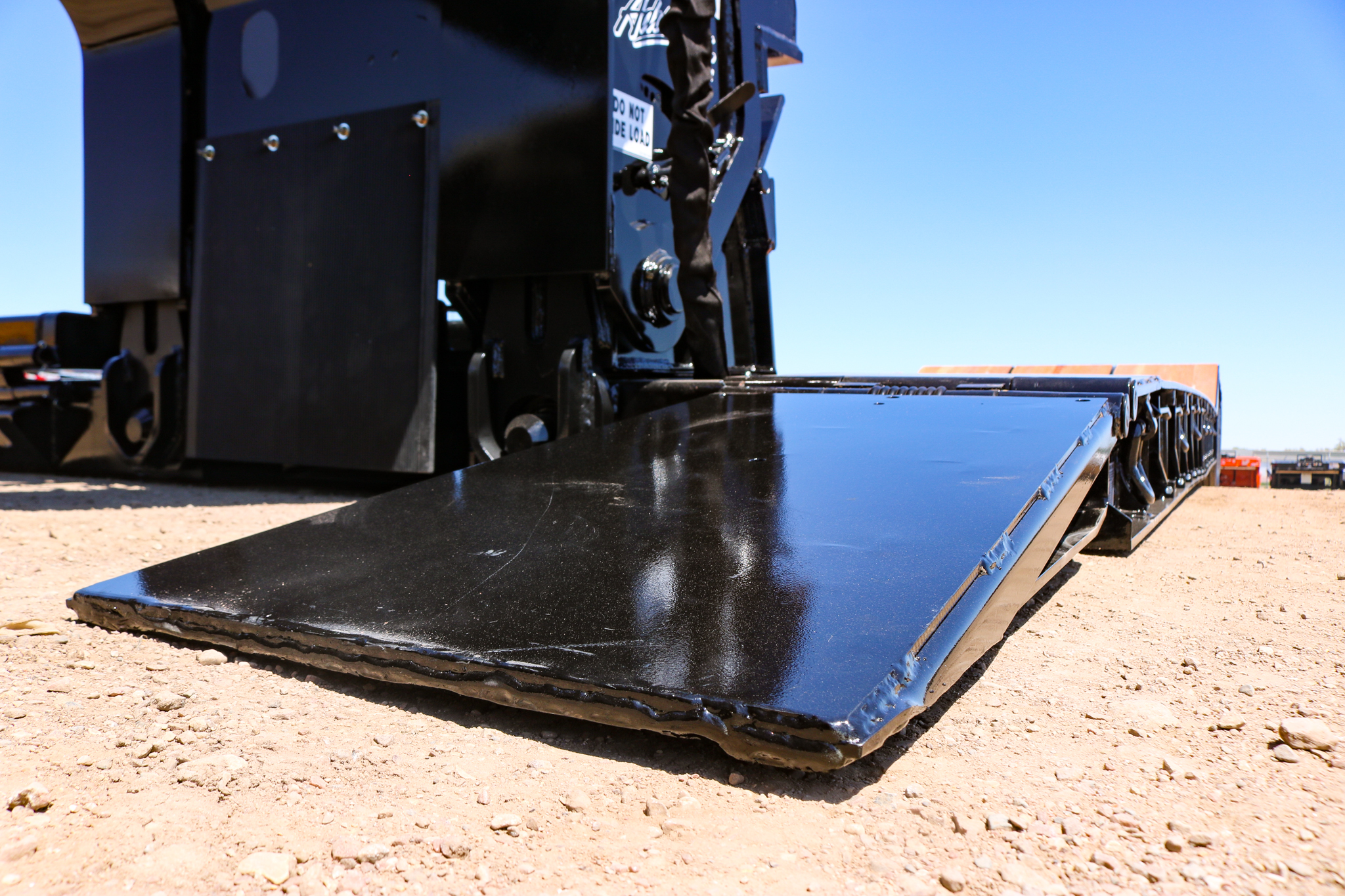

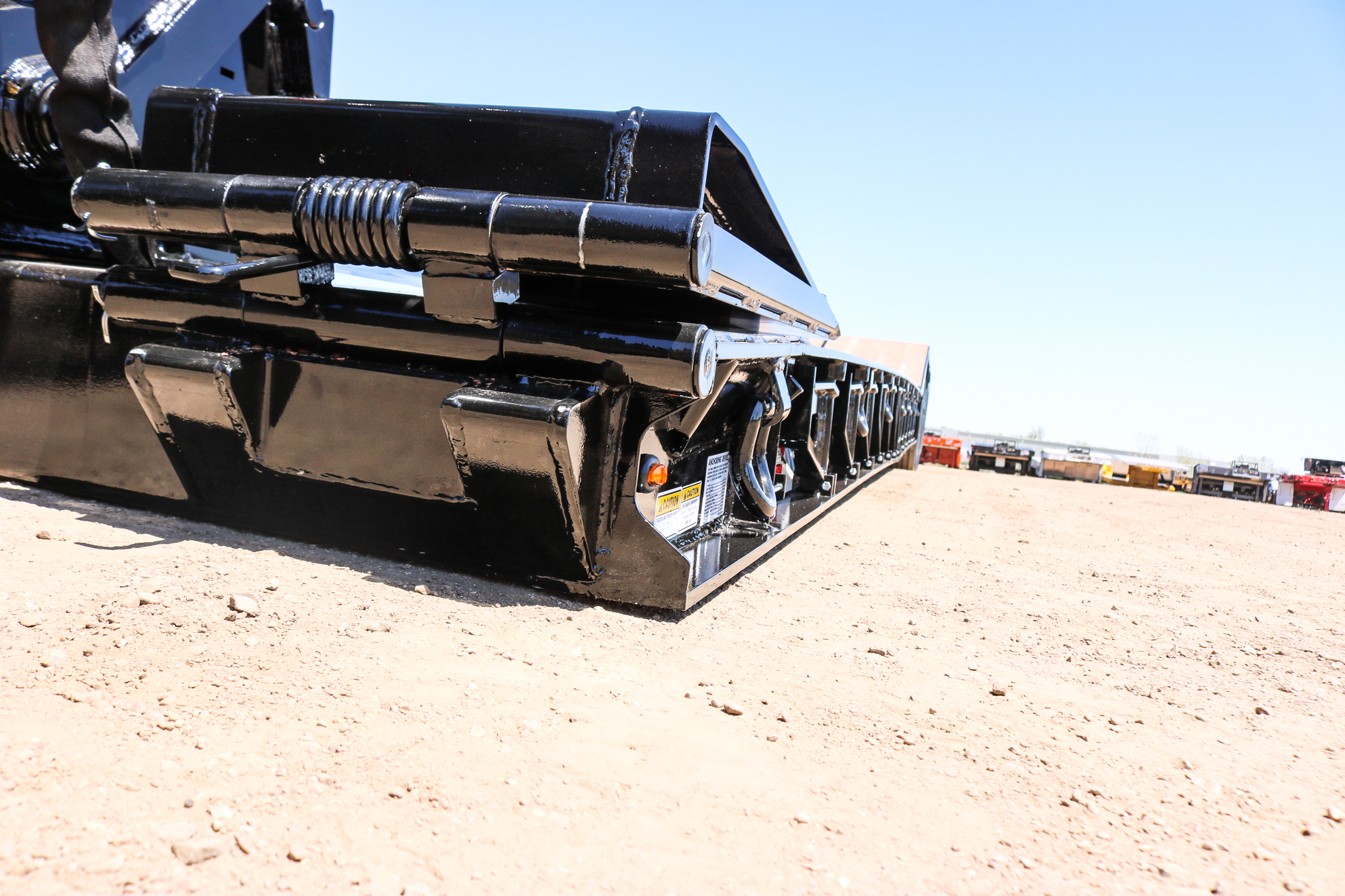

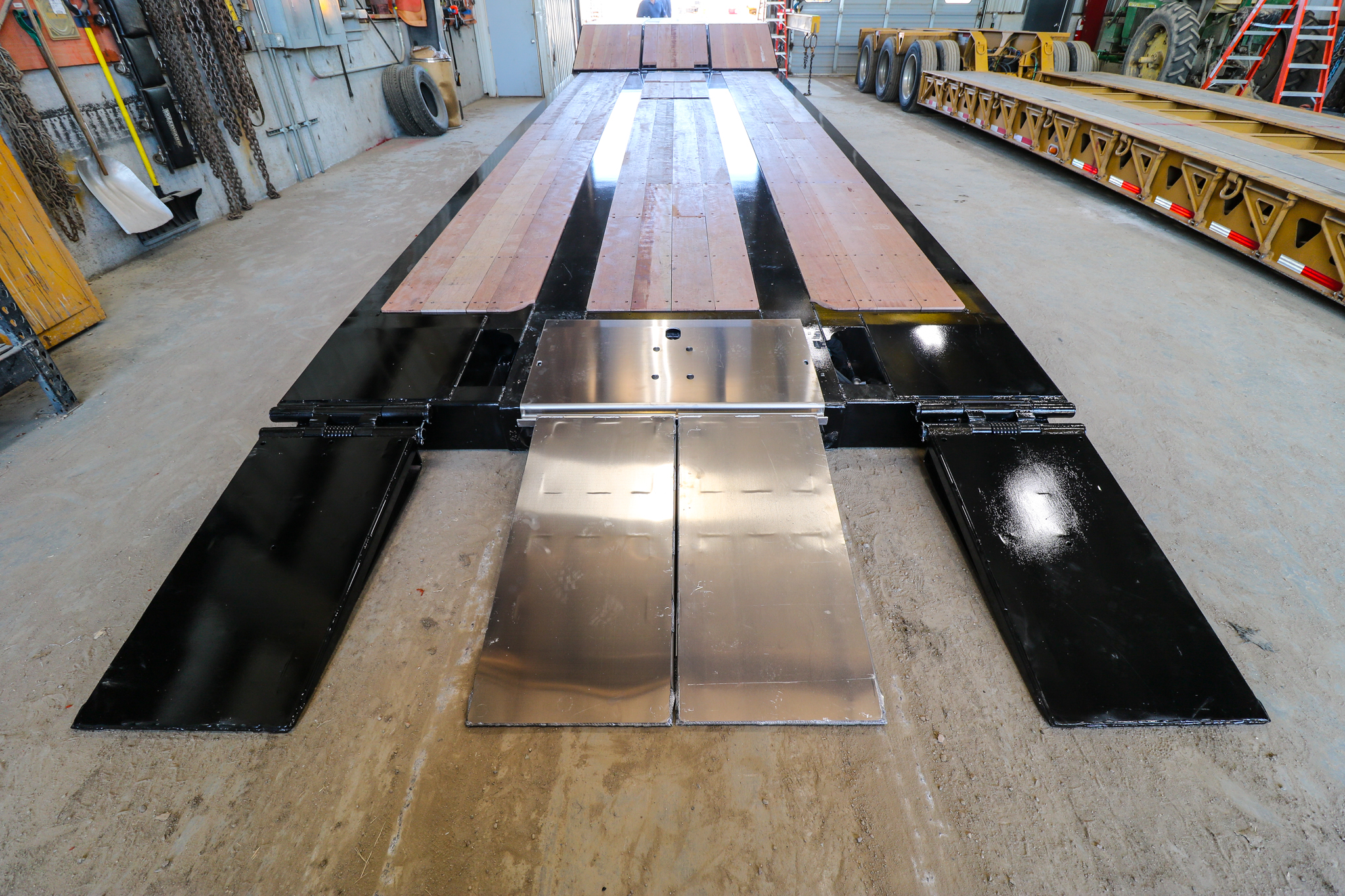

42" front ramps w/spring assist	X	X

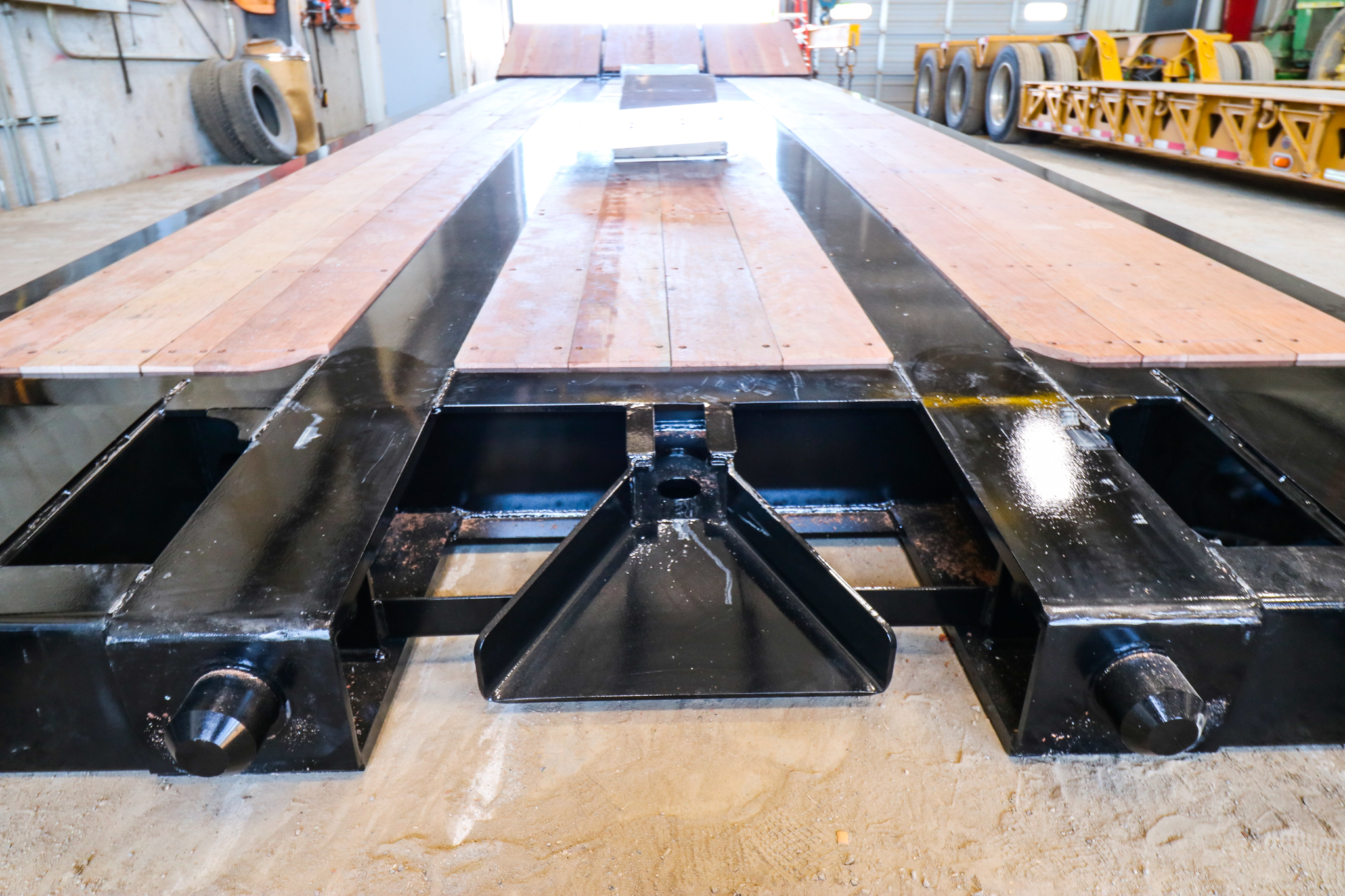

4-beam tapered deck main frame construction	X	X
Frame reinforced for single axle booster or flip axle		X

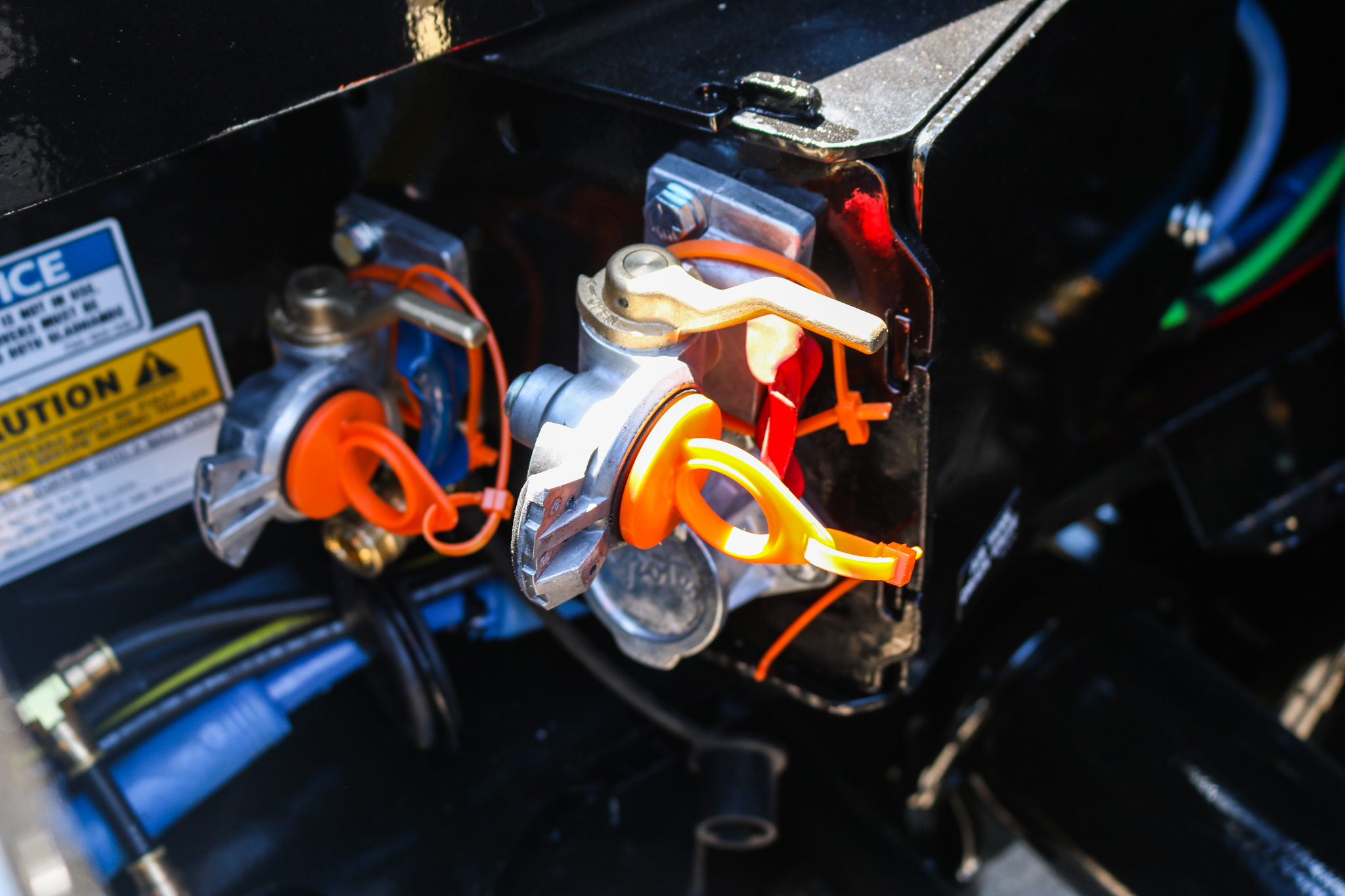

Brackets, air and electrical for single axle booster/flip		X
22" loaded deck height, 6" ground clearance	X	X
Deck Width	102”	102”
Deck Length	24’1”	23’1”

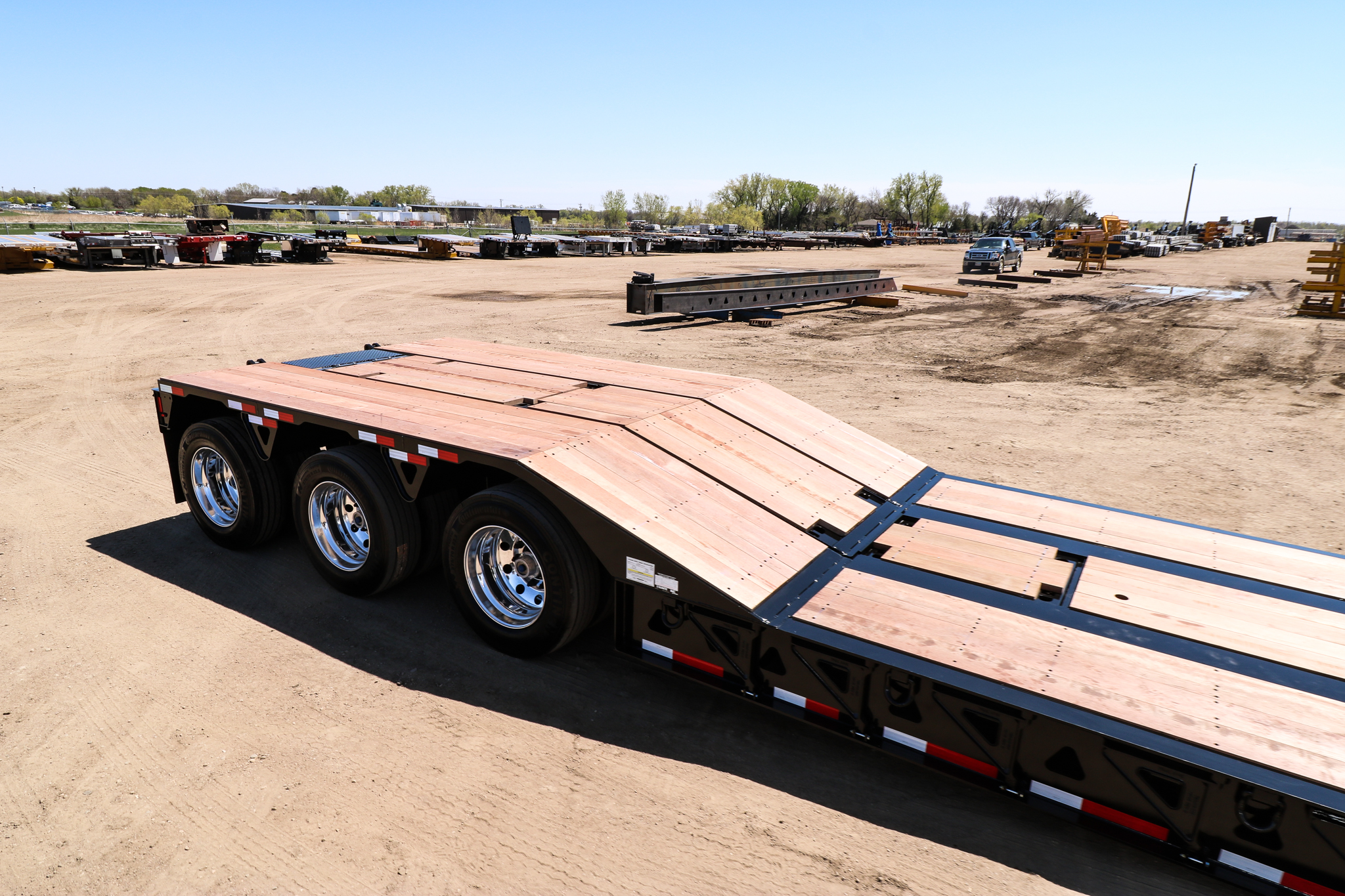

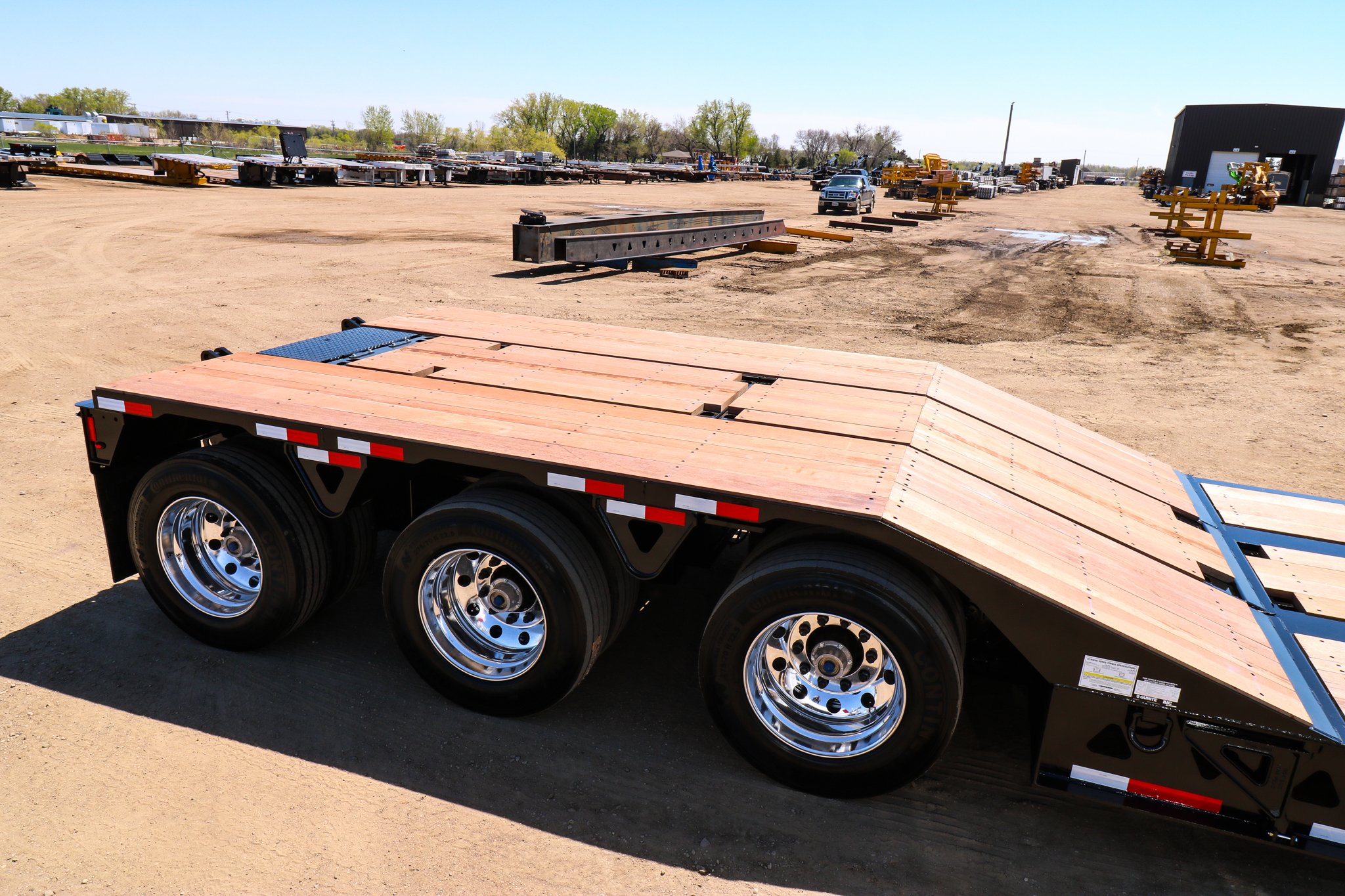

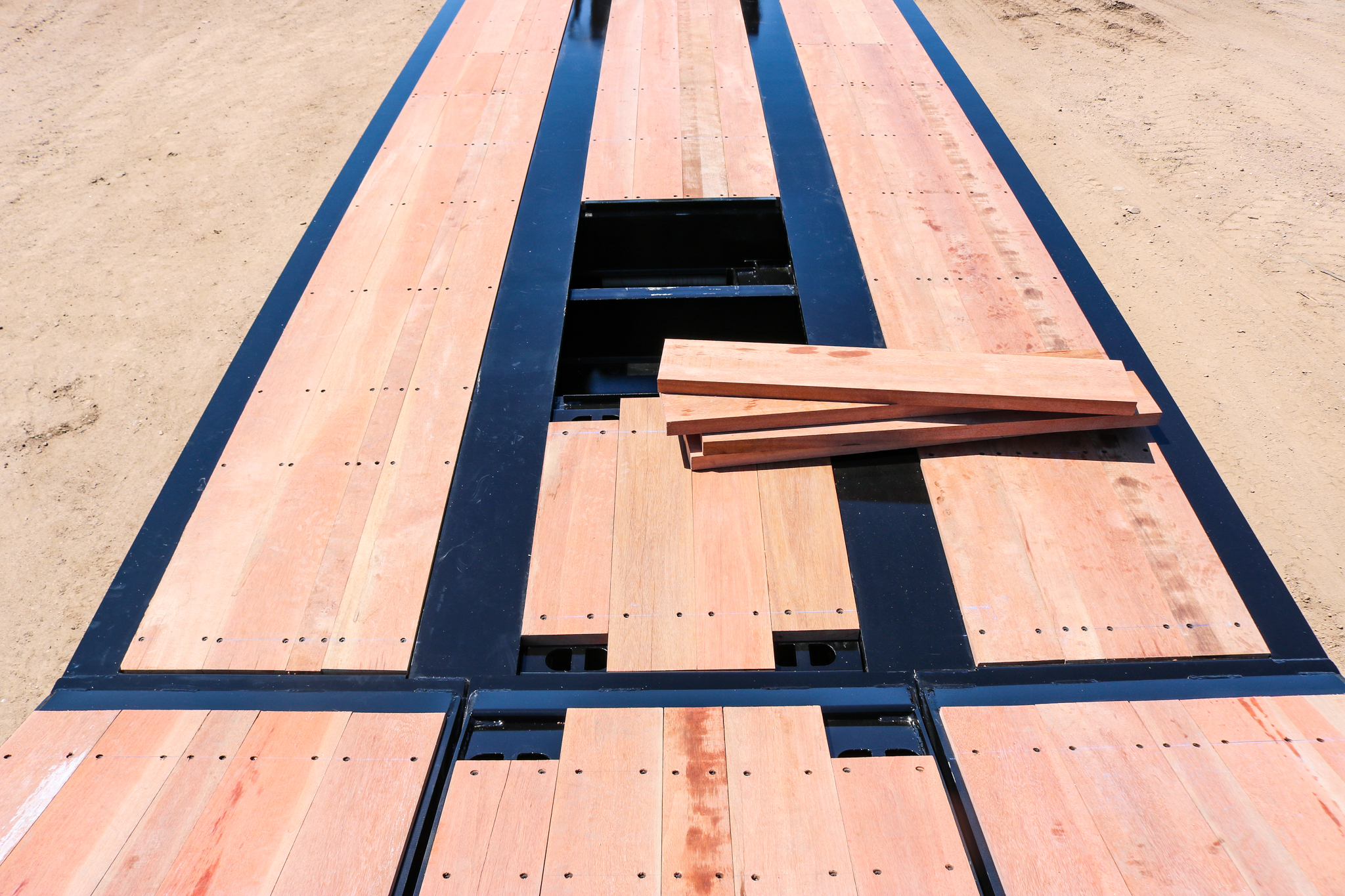

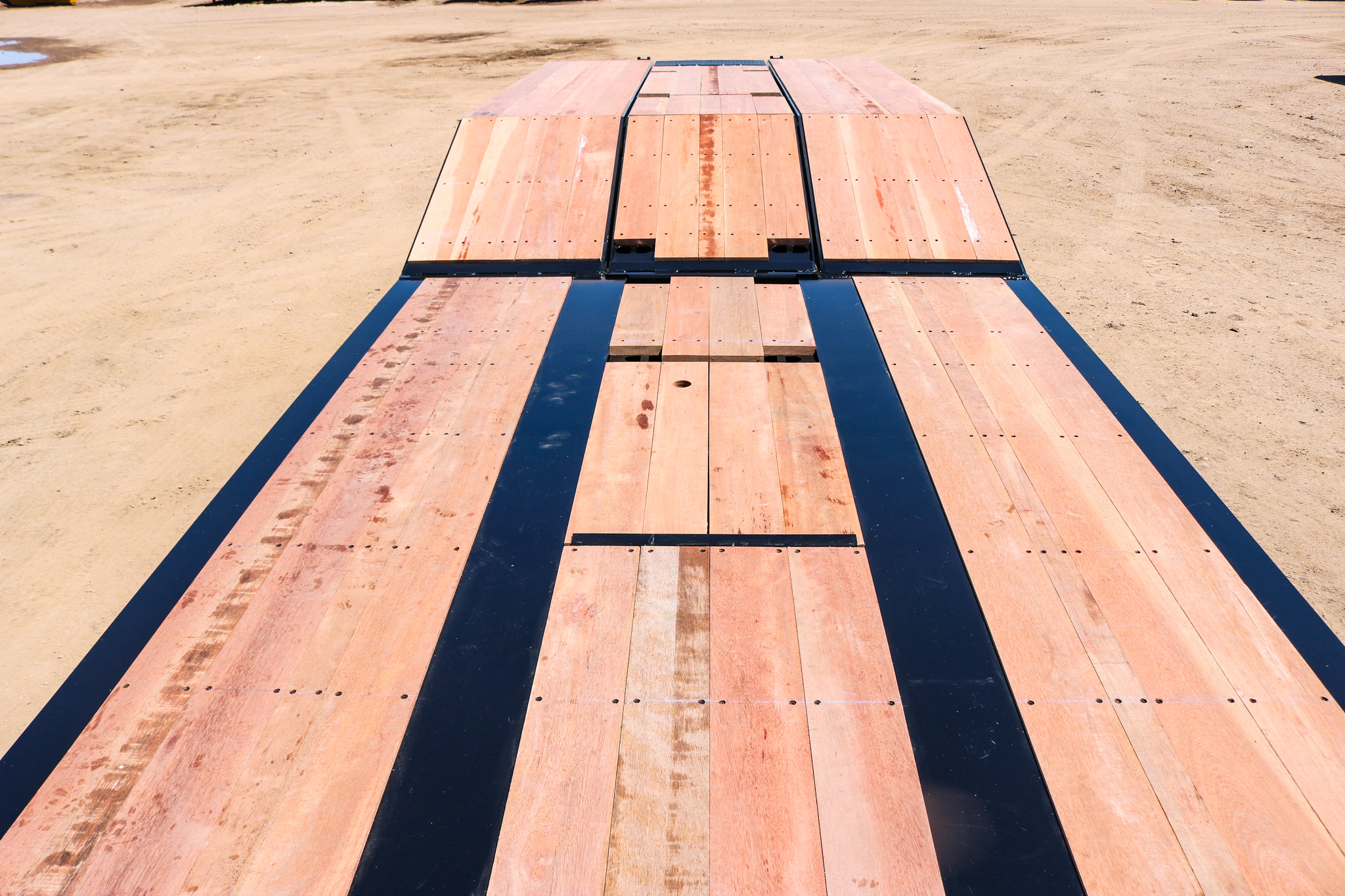

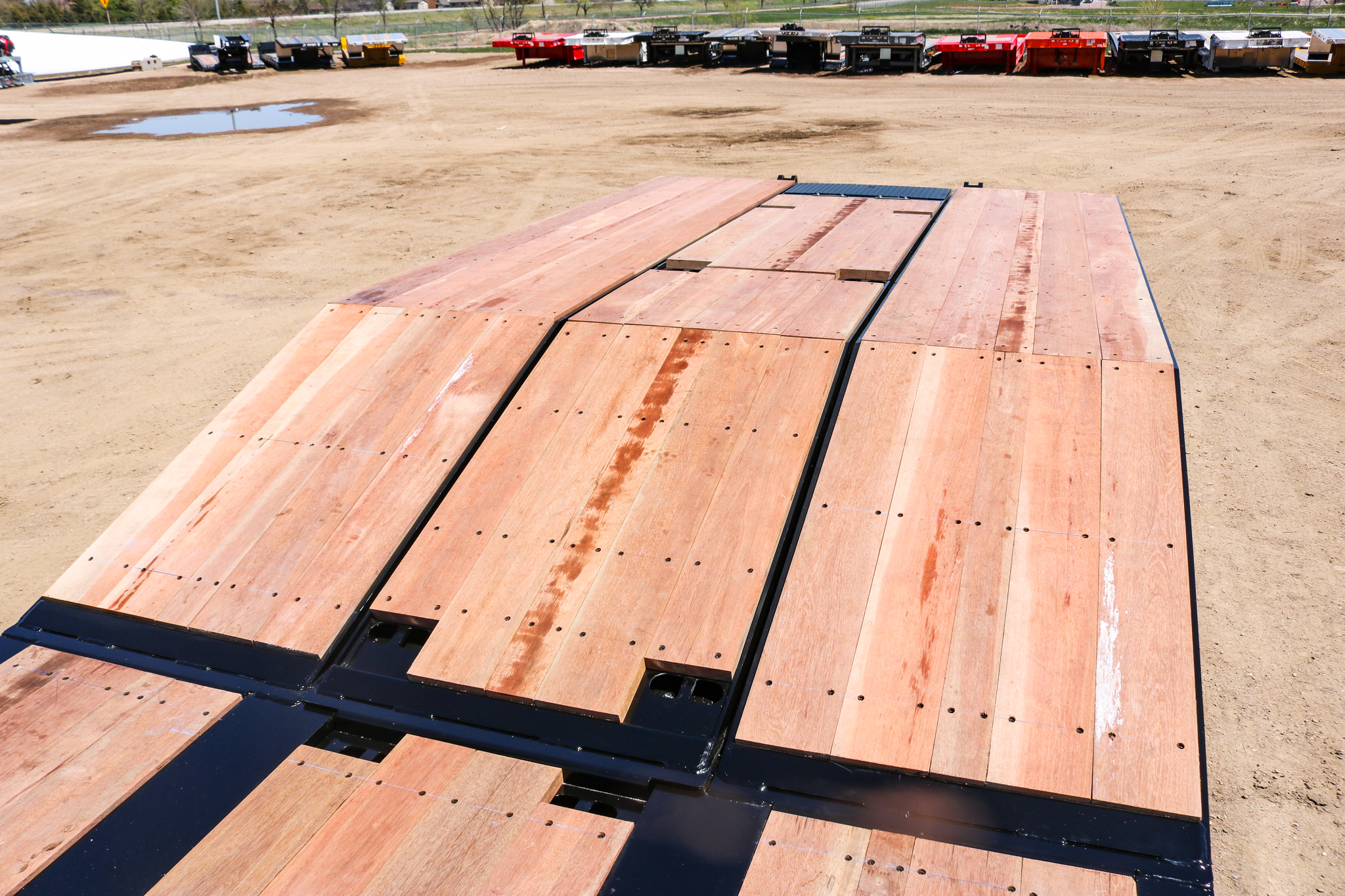

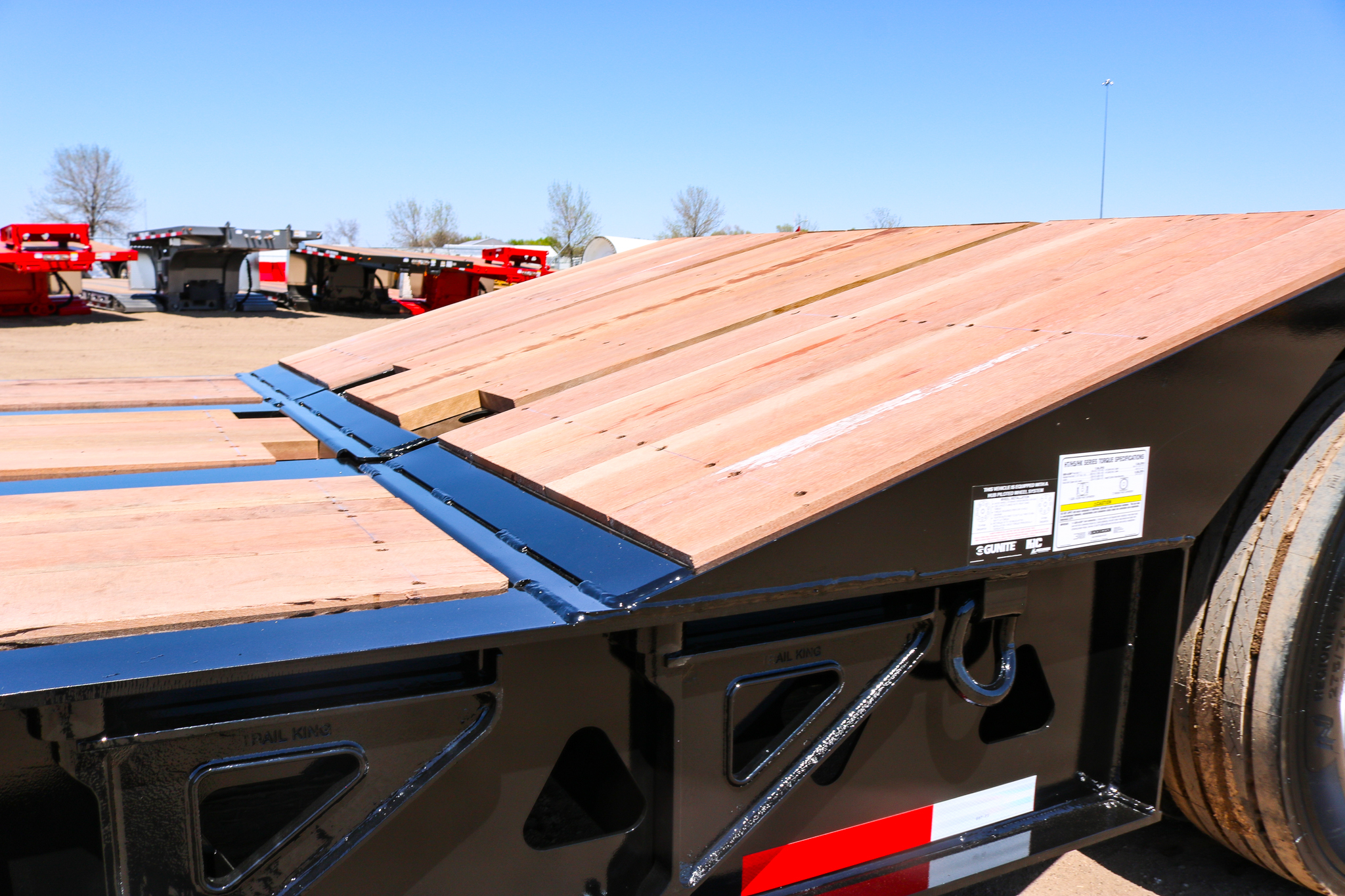

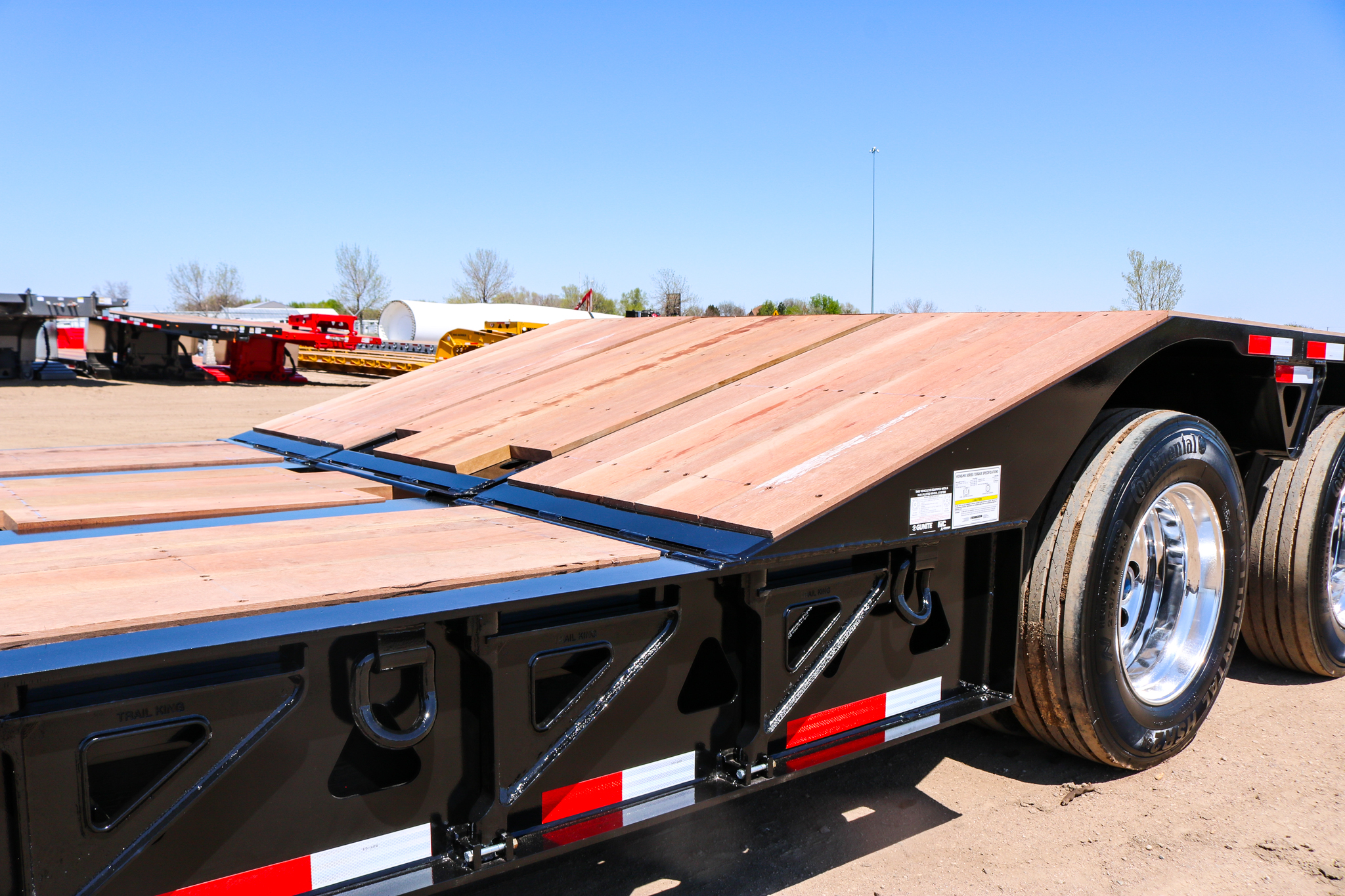

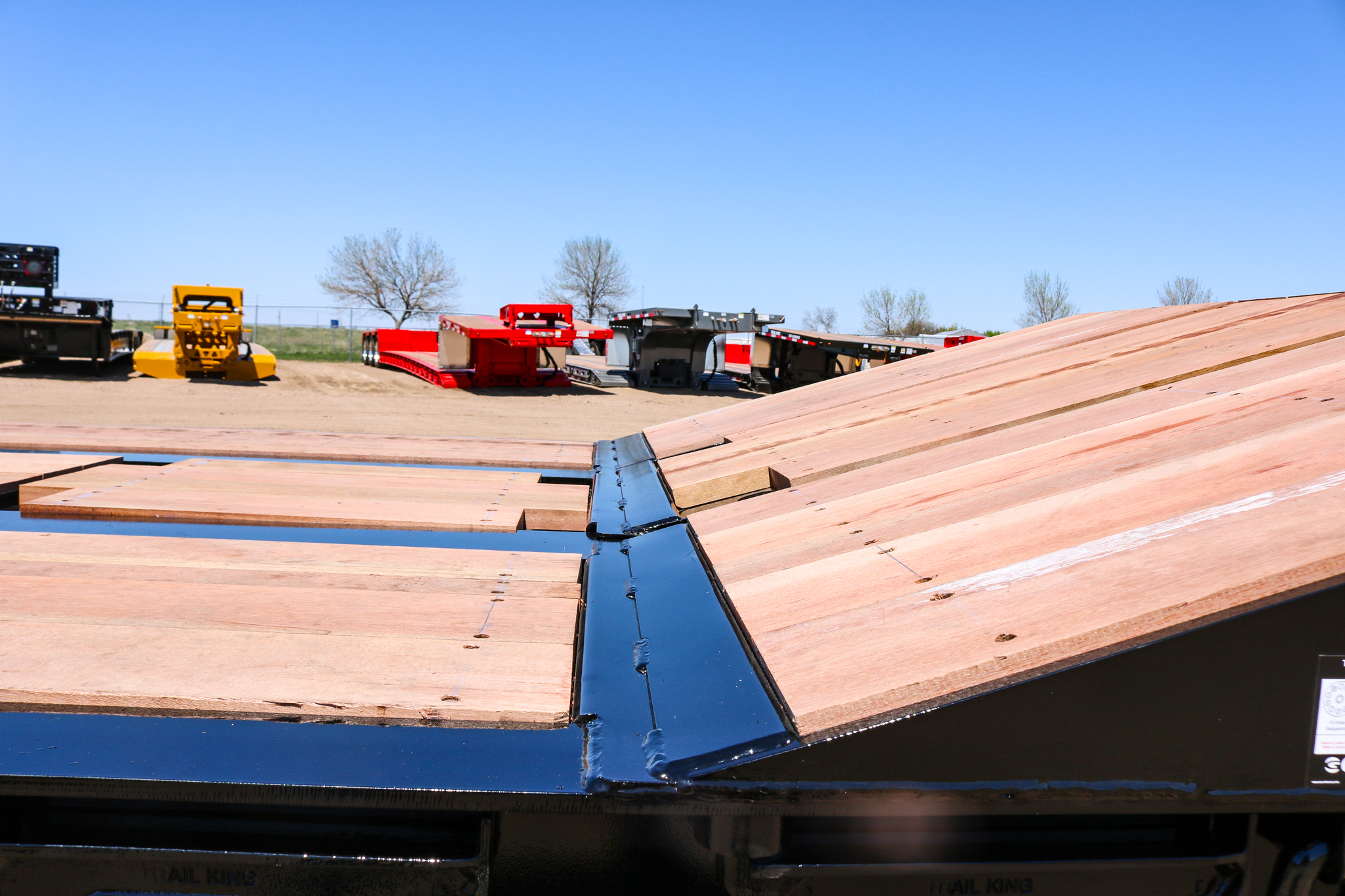

Wood-covered wheel area w/18* slope	X	X
Axle Spacing	55”	55”
