Detachable Double Drop Extendable

TrailKing
Trailers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

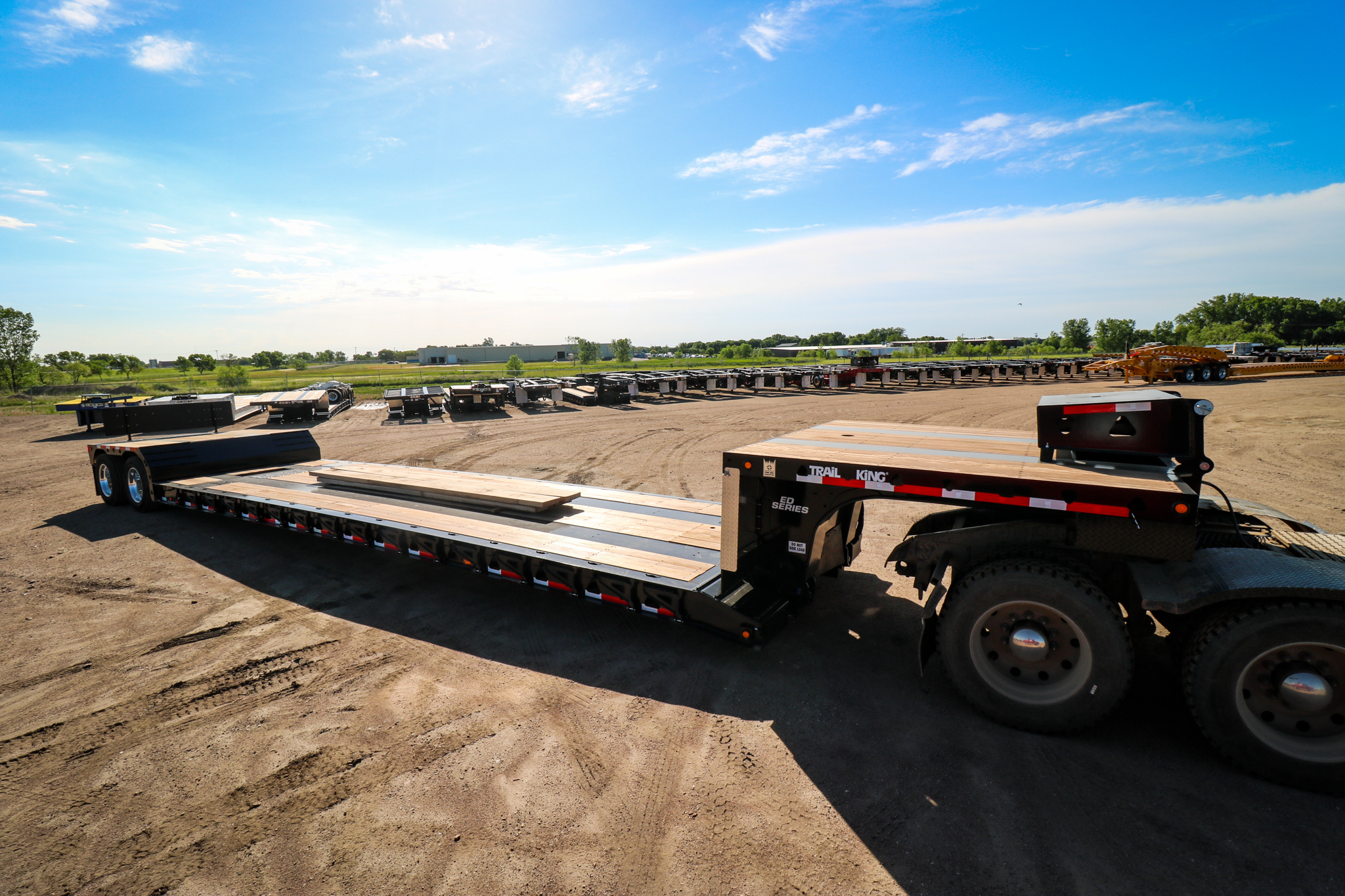

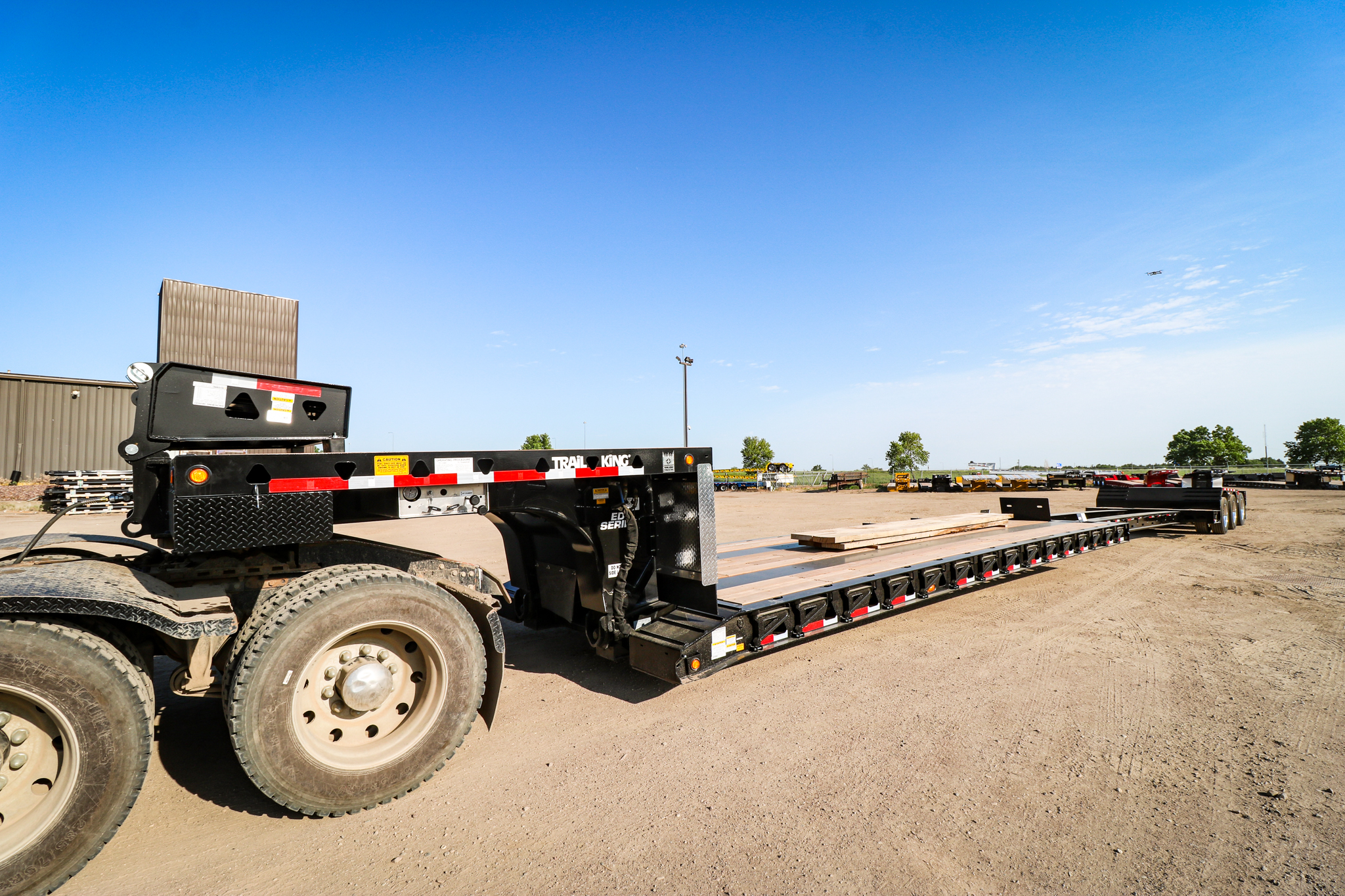

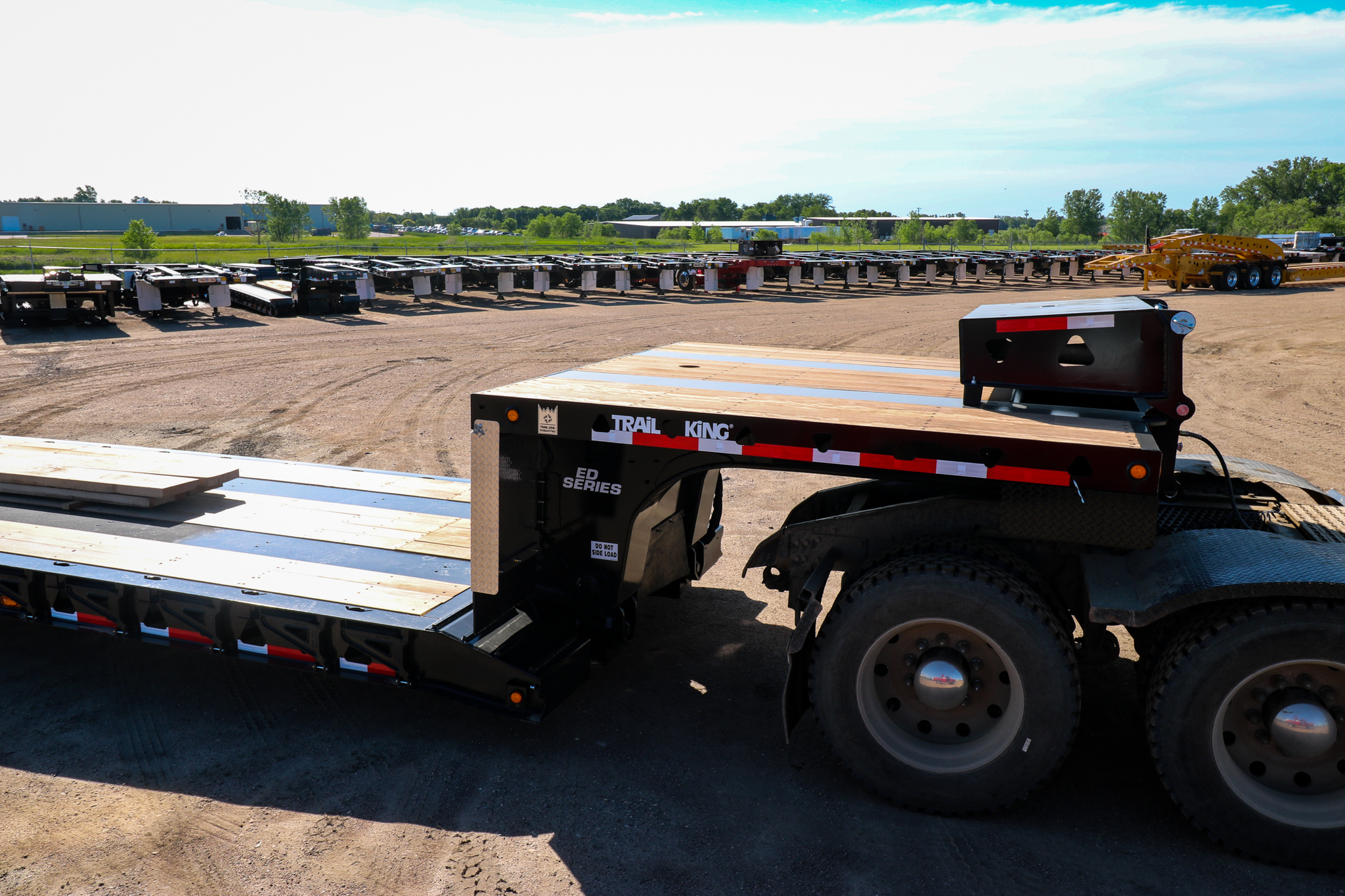

Trail King's Commercial Detachable Gooseneck Double Drop Extendable trailer comes with the most standard equipment of any trailer of its kind on the market. These trailers are engineered to accommodate four interchangeable gooseneck styles, making this the ultimate trailer for hauling versatility. Additionally, choose from a variety of optional features, including lightweight, corrosion-resistant, aluminum options.

Features
Documents

+ Expand All
- Close All

Specifications

HED - Standard Equipment	80HED	90HED 2-axle	90HED 2-axle	110HED
Capacity in 10’ (closed)	60,000 lbs.	70,000 lbs.	70,000 lbs.	90,000 lbs.

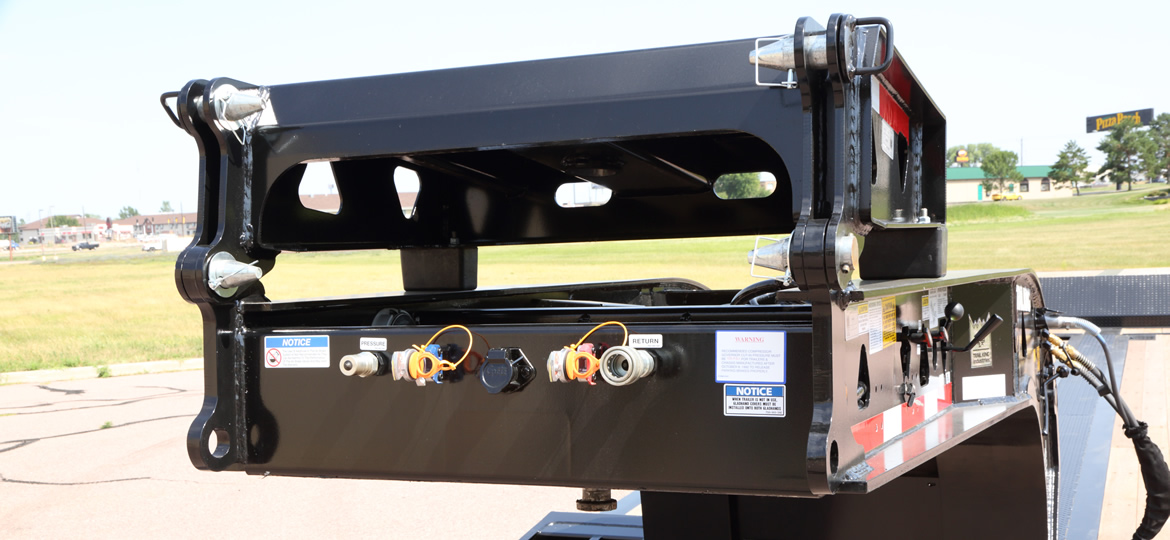

Narrow commercial style hydraulic gooseneck	10’ 2” (78” swing)	10’ 2” (78” swing)	10’ 2” (78” swing)	10’ 2” (78” swing)
Overall Length	52’ 11”	52’ 11”	52” 11”	52” 11”
Deck length (closed)	59’ 4”	58’ 7”	49’ 6”	49’ 6”
Deck length (extended)	59’ 4”	58’ 7”	49’ 6”	49’ 6”
Flip gooseneck extension (110” swing)		32” (110” swing)	32” (110” swing)	32” (110” swing)
I-beam side channel with triangle cutouts	X	X	X	X
Bent style d-rings	8 pair	9 pair	8 pair	8 pair
I-beam cross members	X	X	X	X
Frame reinforced for single booster (or 2 flip axles), wood over wheels, 22.5 wheels			X	X
25,000 lb. capacity (5/8” wall) axles	2	2	3	3
Axle spacing	54.5”	54.5”	54.5”	54.5”
Air lift 3^rd axle			X	X
