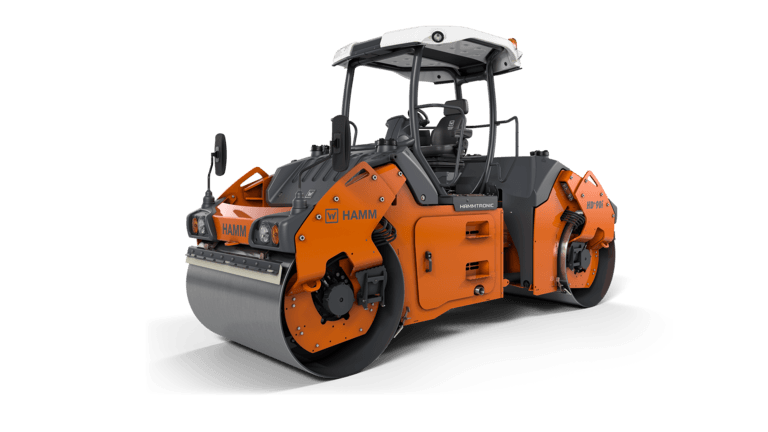

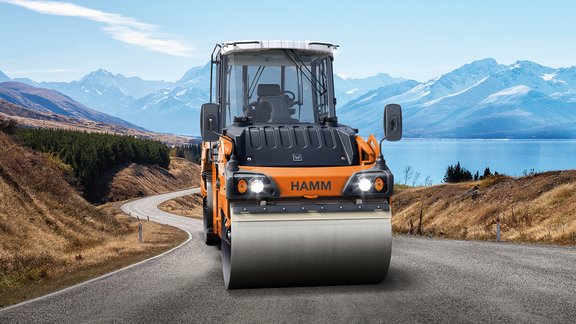

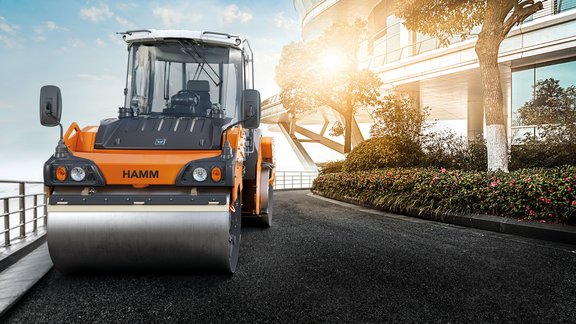

HD+ 90i VV
- Hamm
- Tandem Rollers Series HD+
Find Your Nearest Location
Highlights
-
3-point articulation for even weight distribution and excellent directional stability
-
Operating concept Easy Drive
-

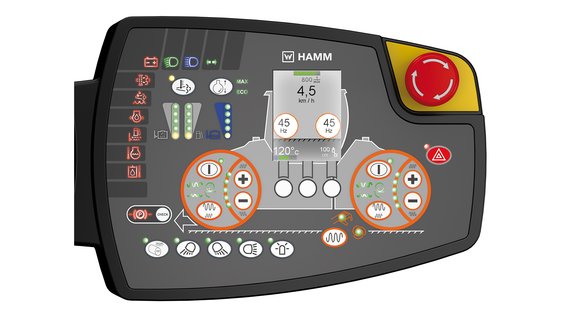

Electronic machine management Hammtronic
-
Excellent view of machine and construction site
-
Track offset for comfortable starting and driving away and compacting at curbsides
![](https://pape-foursite-stage.s3.amazonaws.com/construction.papemachinery.com/8adde211-385e-4159-b4ec-4ab208082af1.png)
- + Expand All
- - Close All
-

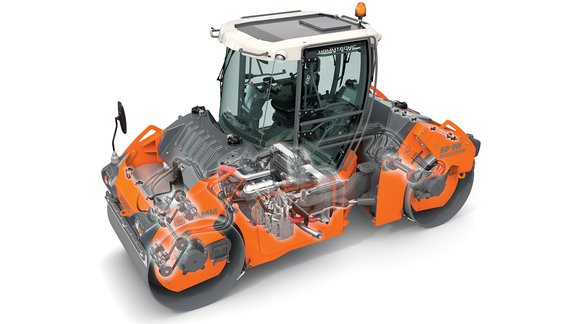

HAMMTRONIC

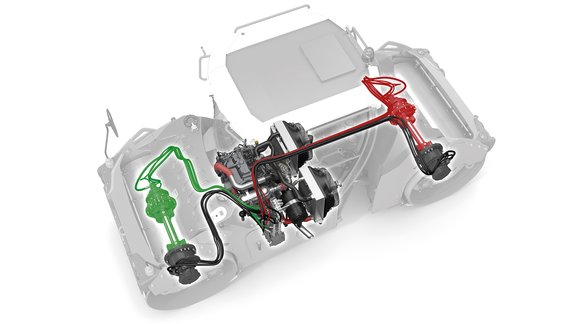

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
-
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
-

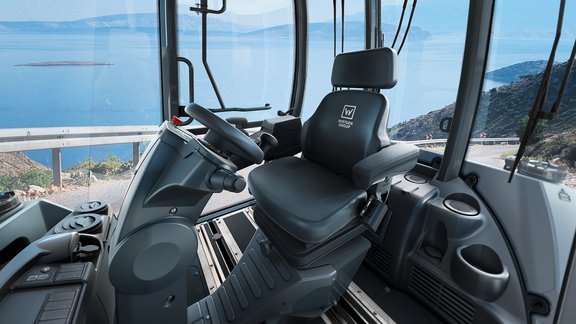

Easy Drive
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
-
HAMM Compaction Quality (HCQ)
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver's platform then visualizes the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
BASIC DATA
Series | H242 |
Name | HD+ 90i VV |
Series | HD+ |
Description | Tandem roller with two vibrating roller drums |

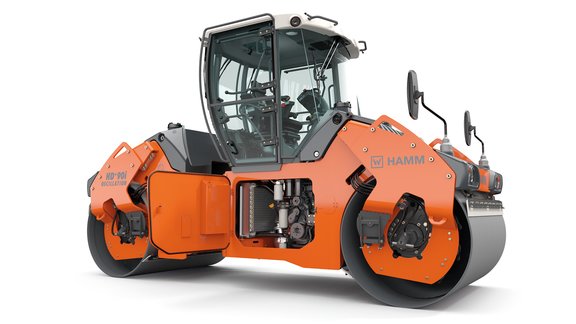

DIESEL ENGINE
Type | TCD 3.6 L4 |
Exhaust gas after-treatment | DOC-SCR |
Emission standard | EU Stage IV/EPA Tier 4 |
Power SAE J1349, HP | 113.9 hp |
Power ISO 14396, rpm | 2,300 RPM |
Number of cylinders | 4 |
Power ISO 14396, HP | 115.6 HP |
Power SAE J1349, kW | 85 kW |
DRIVE
Speed, working gear, I | 0,0-4,0 |
Climbing ability, with vibration | 35 |
Speed, transportation gear | 0,0-7,5 |
Regulation, infinitely variable | Hammtronic |
Climbing ability, without vibration | 40 % |
DRUM DIMENSIONS
Drum thickness, front | 0.7 in |
Drum diameter, front | 47.2 in |
Track offset, left | 6.7 in |
Drum type, front | Smooth/non-split |
Drum width, rear | 66.1 in |
MACHINE DIMENSIONS
Curb clearance, left | 31.5 in |
Max. working width | 72.8 in |
Total width with cab | 70.9 in |
Height, loading, min. | 84.6 in |
Wheelbase | 145.7 in |
Total length | 192.9 in |
Total height with cab | 117.3 in |
Turning radius, inside | 238.2 in |
SOUND LEVEL
Acoustic power LW(A), measured | 105 db(A) |
Acoustic power LW(A), sticker | 107 |
SPRINKLER SYSTEM
Fuel tank, capacity | 45.7 gpm |
Water sprinkler, type | Pressure |
STEERING
Steering, type | Articulated steering |
Oscillation angle +/- | 10 ° |
TANK CAPACITY/FILL CAPACITY
Water tank, capacity | 200.8 gpm |
AdBlue/DEF tank, content | 5.3 gpm |
VIBRATION
Amplitude, front, II | 0.013 in |
Vibration frequency, front, I | 2,520 VPM |
Centrifugal force, front, I | 16,875 lbs |
Centrifugal force, rear, II | 13,500 lbs |
Amplitude, rear, I | 0.024 in |
Vibration frequency, rear, II | 3,000 VPM |
WEIGHTS
Operating weight, max. | 26,151 lbs |
Operating weight with ROPS | 20,176 lbs |
French classific., data/class | 22,1/VT1 |
Operating weight with cab | 20,551 lbs |
Static linear load, front | 157.4 lbs/in |
