HD+ 90i PH VO
- Hamm
- Tandem Rollers Series HD+
Find Your Nearest Location
Find Location
Highlights
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-

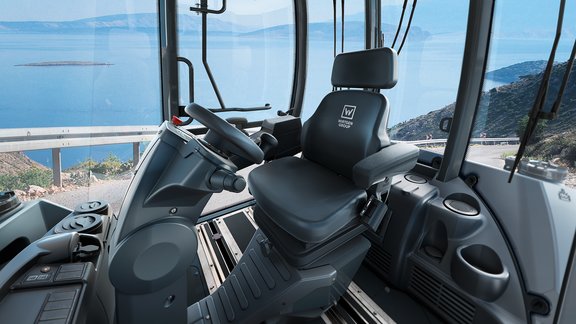

Excellent view of machine and construction site
-
Hydraulic hybrid drive
-
Compaction with oscillation
![](https://pape-stage-image.adpearance.com/construction.papemachinery.com/ed4ba4d2-df3b-42af-98cc-84cee918444b.png)
- + Expand All
- - Close All
-

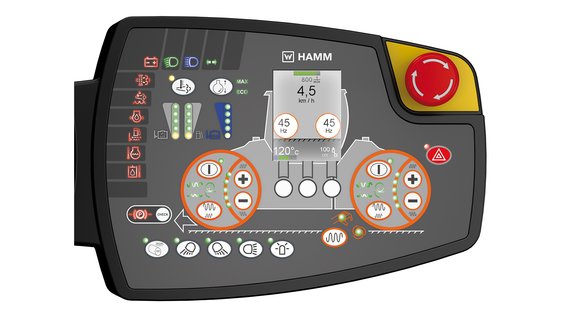

Easy Drive
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
-

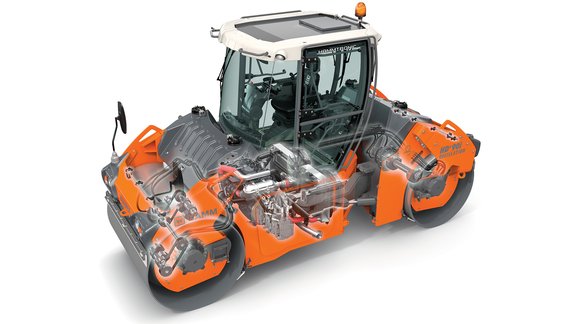

Power Hybrid

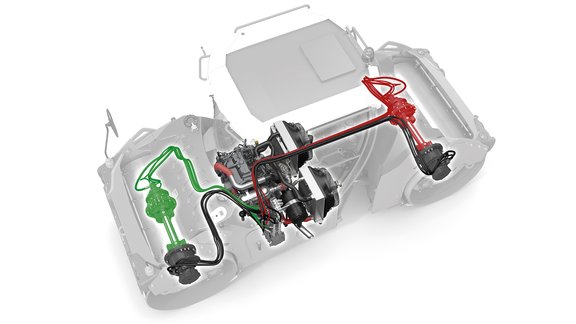

With the 9 t HD+ 90i PH tandem roller (EPA Tier 4/EU Stage V), HAMM combines a traditional combustion engine with a hydraulic accumulator. While the diesel unit provides the basic load, the hydraulic accumulator is able to cover peak loads, such as start-up or activating vibration/oscillation, by providing an additional 20 kW of power at short notice. After this maximal load has been generated, the hydraulic accumulator is recharged via a pump. In this way, the machine provides full compaction power while simultaneously saving fuel.
-
HAMMTRONIC
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
-

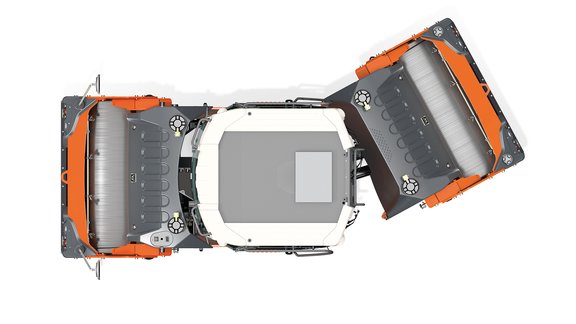

Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
-
HAMM Compaction Quality (HCQ)
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver's platform then visualizes the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
BASIC DATA
Series | H276 |
Exhaust emissions category | EU Stage V / EPA Tier 4 |
Name | HD+ 90i PH VO |
Description | Tandem roller with vibrating roller drum and oscillation drum |
Series | HD+ |

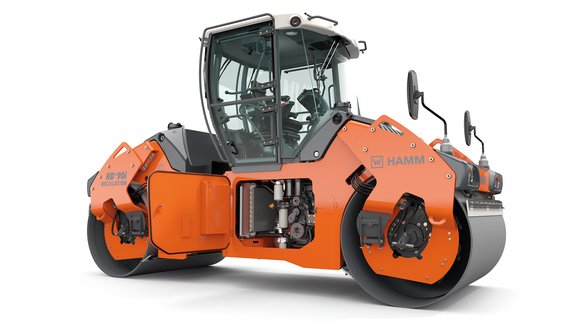

DIESEL ENGINE
Power ISO 14396, kW | 55.4 kW |
Exhaust gas after-treatment | DOC-DPF |
Power SAE J1349, HP | 74.2 hp |
Power ISO 14396, rpm | 2,300 RPM |
Power ISO 14396, HP | 75.3 HP |
Type | TCD 2.9 L4 |
DRIVE
Speed, transportation gear | 0,0-7,5 |
Climbing ability, with vibration | - |
Speed, working gear, I | 0,0-3,7 |
Regulation, infinitely variable | Hammtronic |
DRUM DIMENSIONS
Drum thickness, front | 0.7 in |
Track offset, left | 6.7 in |
Drum thickness, rear | 0.8 in |
Drum width, rear | 66.1 in |
Drum type, rear | Smooth/non-split |
Drum diameter, rear | 47.2 in |
MACHINE DIMENSIONS
Total length | 189 in |
Wheelbase | 141.7 in |
Total height with cab | 117.3 in |
Height, loading, min. | 84.6 in |
Curb clearance, rear | 31.5 in |
Total width with cab | 70.9 in |
Max. working width | 72.8 in |
Turning radius, inside | 232.3 in |
OSCILLATION
Oscillation frequency, rear | 2,340 VPM |
Tangential amplitude, rear | 0.049 in |
Oscillation force, rear | 28,800 lbs |
SOUND LEVEL
Acoustic power LW(A), sticker | 106 |
Acoustic power LW(A), measured | 103 db(A) |
SPRINKLER SYSTEM
Water sprinkler, type | Pressure |
Fuel tank, capacity | 45.7 gpm |
STEERING
Steering, type | Articulated steering |
Oscillation angle +/- | 10 ° |
TANK CAPACITY/FILL CAPACITY
Water tank, capacity | 200.8 gpm |
VIBRATION
Vibration frequency, front, I | 2,520 VPM |
Amplitude, front, I | 0.024 in |
Amplitude, front, II | 0.013 in |
Centrifugal force, front, I | 16,875 lbs |
Centrifugal force, front, II | 13,500 lbs |
Vibration frequency, front, II | 3,000 VPM |
WEIGHTS
Operating weight with cab | 20,330 lbs |
Static linear load, front | 155.7 lbs/in |
French classific., data/class | 21,9/VT1 |
Operating weight, max. | 25,931 lbs |
Operating weight with ROPS | 19,955 lbs |
