Key Features & Specs

Highlights

  • 3-point articulation for even weight distribution and excellent directional stability

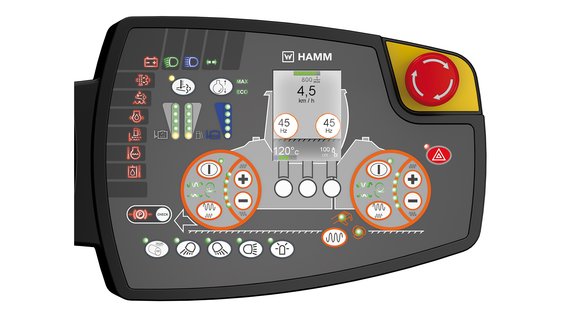

  • Simple, intuitive and language-neutral control
  • Excellent view of machine and construction site

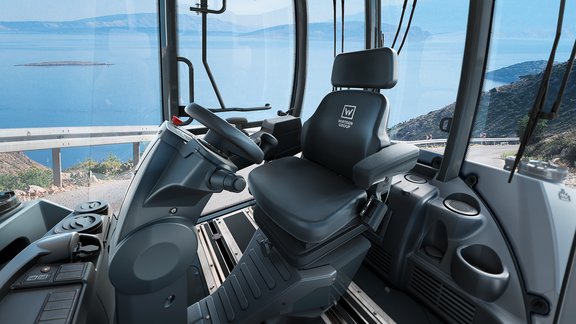

  • Seat-operating unit can be moved and rotated
  • Track offset for comfortable starting and driving away and compacting at curbsides
  • + Expand All
  • - Close All
  • HAMMTRONIC

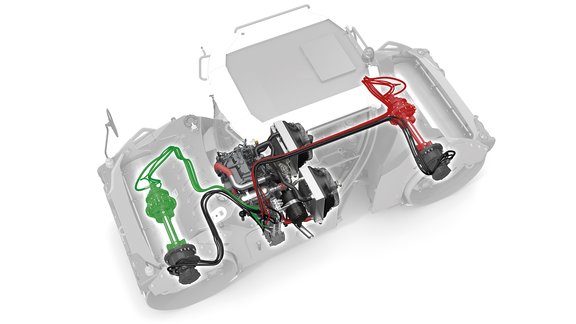

    HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.

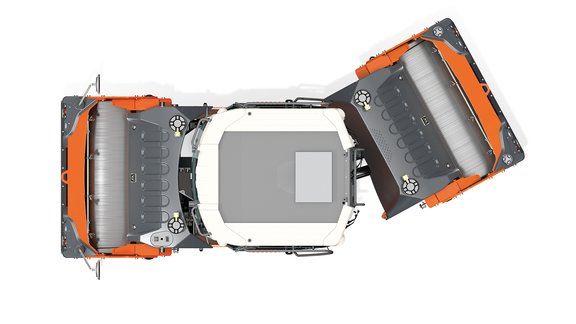

  • Three-point articulation

    Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

  • HAMM Compaction Quality (HCQ)

    HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver's platform then visualizes the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.

BASIC DATA

Name HD+ 80i VV-HF
Series H186
Exhaust emissions category EU Stage IIIB/EPA Tier 4
Description Tandem roller with two vibrating roller drums
Series HD+
