HD+ 80i OT

Hamm
Tandem Rollers Series HD+

Contact Your Preferred Store:

Hamm HD+ 80i OT

Key Features & Specs

Highlights

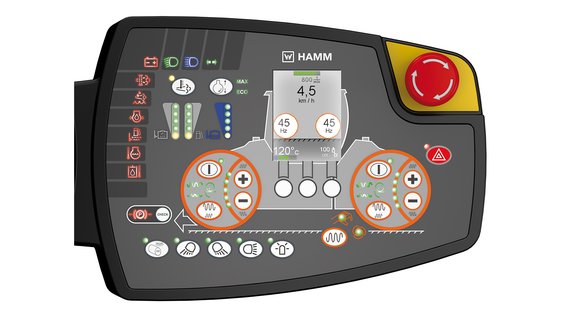

Simple, intuitive and language-neutral control
Excellent view of machine and construction site

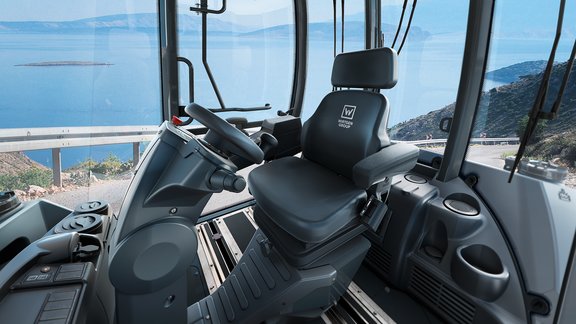

Seat-operating unit can be moved and rotated

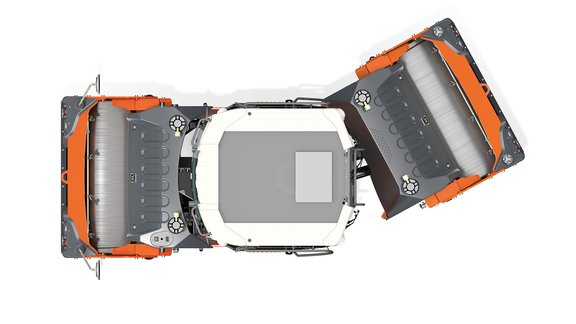

Track offset for comfortable starting and driving away and compacting at curbsides
Compaction with oscillation

Specifications

BASIC DATA

Name	HD+ 80i OT
Series	H186
Description	Tandem roller with oscillation drum and set of tires
Series	HD+

DIESEL ENGINE

Type	TCD 2.9 L4
Power SAE J1349, HP	74.2 hp
Power ISO 14396, rpm	2,500 RPM
Power ISO 14396, HP	75.3 HP
Exhaust gas after-treatment	DOC
Emission standard	EU Stage IIIB/EPA Tier 4
Power SAE J1349, kW	55.4 kW

DRIVE

Speed, transportation gear	0,0-7,5
Climbing ability, with vibration	30
Regulation, infinitely variable	Hammtronic
Climbing ability, without vibration	40 %
Speed, working gear, I	0,0-3,7

DRUM DIMENSIONS

Drum type, front	Smooth/non-split
Drum thickness, front	0.8 in
Drum diameter, front	44.9 in
Drum width, front	66.1 in
Size of tires, rear	11.00-20
Track offset, left	5.3 in

MACHINE DIMENSIONS

Total length	176.4 in
Max. working width	70.1 in
Total width with cab	70.9 in
Height, loading, min.	81.9 in
Wheelbase	131.5 in
Total height with cab	113.8 in
Turning radius, inside	163 in
Curb clearance, rear	29.5 in

OSCILLATION

Oscillation force, front	28,800 lbs
Tangential amplitude, front	0.049 in
Oscillation frequency, front	2,400 VPM

SOUND LEVEL

Acoustic power LW(A), measured	105 db(A)
Acoustic power LW(A), sticker	106

SPRINKLER SYSTEM

Fuel tank, capacity	31.7 gpm
Water sprinkler, type	Pressure

STEERING

Steering, type	Articulated steering
Oscillation angle +/-	10 °

TANK CAPACITY/FILL CAPACITY

Water tank, capacity	184.9 gpm
Additive tank, capacity	4.8 gpm

WEIGHTS

French classific., data/class	-8,6/-.PLO
Operating weight with cab	16,449 lbs
Operating weight, max.	21,874 lbs
Static linear load, front	133.8 lbs/in
Operating weight with ROPS	16,074 lbs

WHEEL DIMENSIONS

Number of tires, rear	4
Width over tires, rear	63.5 in
