Specifications

BASIC DATA

Name HD+ 140i VO
Series HD+
Description Tandem roller with vibrating roller drum and oscillation drum
Exhaust emissions category EU Stage V / EPA Tier 4
Series H274

DIESEL ENGINE

Number of cylinders 4
Exhaust gas after-treatment DOC-DPF-SCR
Power SAE J1349, HP 154.1 hp
Power SAE J1349, kW 115 kW
Type TCD 4.1 L4
Power ISO 14396, rpm 2,300 RPM
Power ISO 14396, HP 156.4 HP

DRIVE

Climbing ability, with vibration 39
Regulation, infinitely variable Hammtronic
Climbing ability, without vibration 39 %
Speed, infinitely variable 0,0-6,2

DRUM DIMENSIONS

Drum type, front Smooth/non-split
Track offset, left 6.7 in
Drum thickness, rear 0.8 in
Drum thickness, front 0.7 in
Drum diameter, front 55.1 in

MACHINE DIMENSIONS

Height, loading, min. 84.3 in
Total height with cab 117.3 in
Wheelbase 153.5 in
Total length 208.7 in
Turning radius, inside 244.1 in
Total width with cab 89 in
Curb clearance, rear 35.4 in
Max. working width 90.9 in

OSCILLATION

Oscillation force, rear 39,375 lbs
Oscillation frequency, rear 2,160 VPM
Tangential amplitude, rear 0.049 in

SOUND LEVEL

Acoustic power LW(A), measured 107 db(A)
Acoustic power LW(A), sticker 109

SPRINKLER SYSTEM

Fuel tank, capacity 68.7 gpm
Water sprinkler, type Pressure

STEERING

Steering, type Articulated steering
Oscillation angle +/- 10 °

TANK CAPACITY/FILL CAPACITY

Water tank, capacity 302.5 gpm
AdBlue/DEF tank, content 5.3 gpm

VIBRATION

Vibration frequency, front, I 2,400 VPM
Amplitude, front, II 0.013 in
Amplitude, front, I 0.034 in
Vibration frequency, front, II 3,000 VPM
Centrifugal force, front, II 21,375 lbs
Centrifugal force, front, I 40,500 lbs

WEIGHTS

Operating weight, max. 30,870 lbs
French classific., data/class 27,9/VT2
Static linear load, front 170.2 lbs/in
Operating weight with ROPS 28,544 lbs
Operating weight with cab 29,073 lbs

Documents

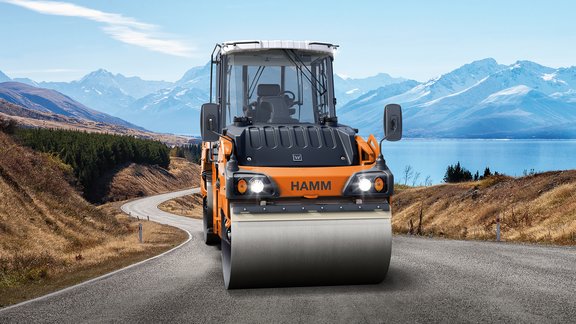

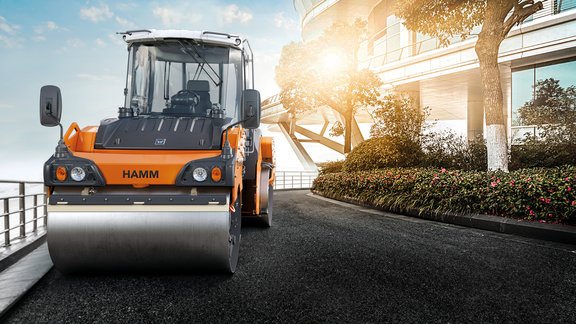

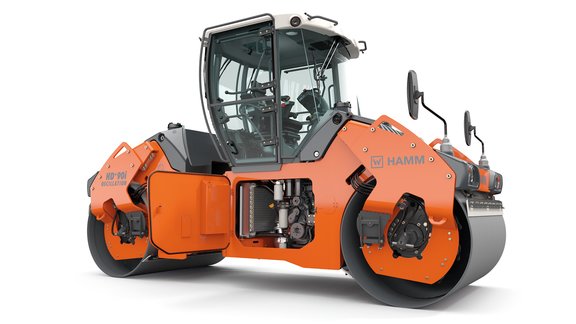

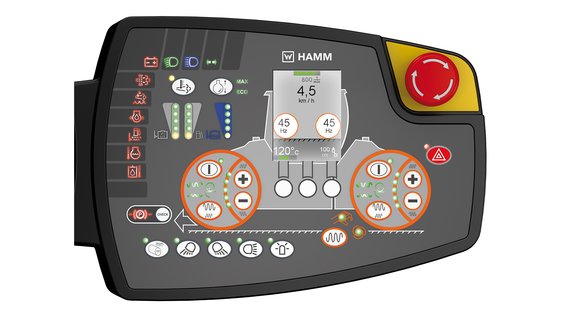

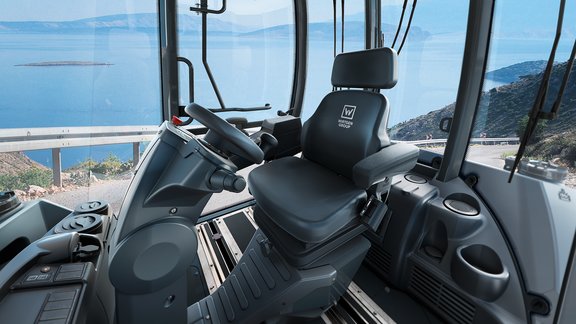

Hamm HD+ 140i VO Image Gallery
