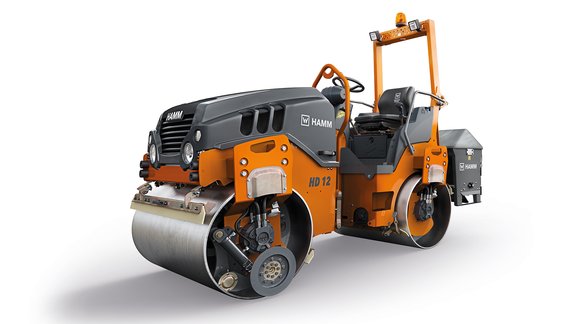

HD 14i VV

Hamm
Tandem Rollers Series HD CompactLine

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Simple, intuitive and language-neutral control
Simple transport, simple loading
Ergonomic driver platform
Excellent view of drum edge, machine and construction site environment
Compact dimensions

Specifications
Documents

Select a category to view specifications (or view all).

BASIC DATA

Series	HD CompactLine
Exhaust emissions category	EU Stage V / EPA Tier 4
Name	HD 14i VV
Series	H285
Description	Tandem roller with two vibrating roller drums

DIESEL ENGINE

Power ISO 14396, HP	50.9 HP
Power ISO 14396, kW	37.4 kW
Power SAE J1995, rpm	2,700 RPM
Exhaust gas after-treatment	DOC-DPF
Power SAE J1995, HP	50.1 hp
Number of cylinders	4
Type	V2403-CR

DRIVE

Speed, infinitely variable	0,0 - 6,8
Climbing ability, without vibration	40 %
Climbing ability, with vibration	30

DRUM DIMENSIONS

Track offset, right	2 in
Drum thickness, front	0.6 in
Drum diameter, rear	35.4 in
Track offset, left	0 in
Drum type, rear	Smooth/non-split
Drum width, rear	54.3 in

MACHINE DIMENSIONS

Total width	59.3 in
Max. working width	56.3 in
Wheelbase	76.8 in
Total height with ROPS	102 in
Total length	116.7 in
Total height with cab	107.1 in
Turning radius, inside	104.3 in
Ground clearance, center	12 in
Height, loading, min.	71.7 in

SOUND LEVEL

Acoustic power LW(A), measured	102 db(A)
Acoustic power LW(A), sticker	104

SPRINKLER SYSTEM

Fuel tank, capacity	19.3 gpm
Water sprinkler, type	Pressure
Water tank, capacity	75.3 gpm

STEERING

Steering, type	Articulated steering
Oscillation angle +/-	8 °

VIBRATION

Vibration frequency, rear, I	3,600 VPM
Centrifugal force, rear, II	8,775 lbs
Centrifugal force, rear, I	14,400 lbs
Vibration frequency, front, II	3,060 VPM
Amplitude, rear, I	0.02 in
Amplitude, front, II	0.012 in

WEIGHTS

Axle load, front	4,972 lbs
French classific., data/class	10,6/VT0
Operating weight, max.	12,414 lbs
Operating weight with ROPS	9,779 lbs
Basic weight no cab, without ROPS	9,074 lbs
Operating weight with cab	10,330 lbs
Axle load, rear	4,807 lbs
Static linear load, front	91.3 lbs/in
