HD 14i TT

Hamm
Tandem Rollers Series HD CompactLine

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

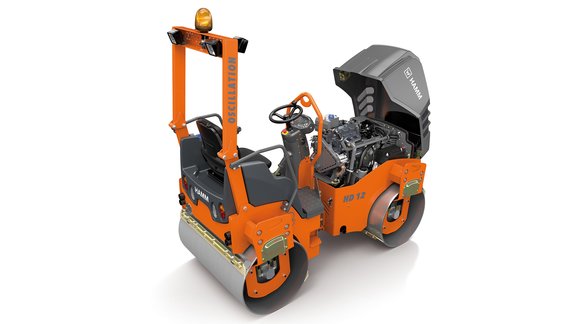

Simple, intuitive and language-neutral control

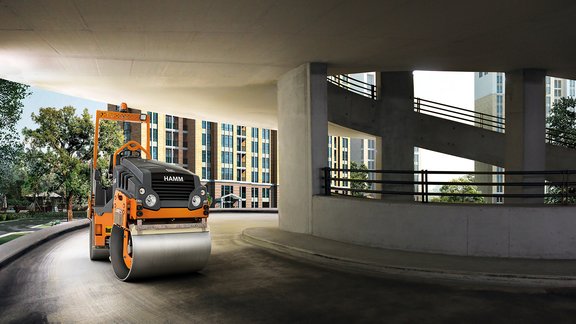

Simple transport, simple loading

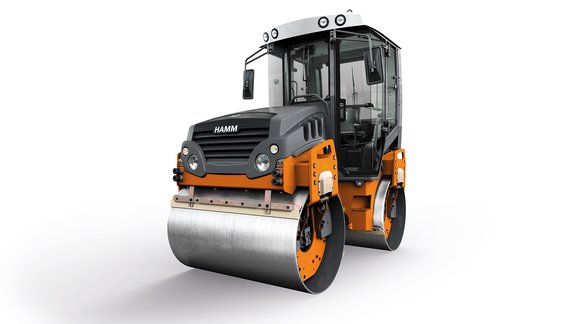

Ergonomic driver platform

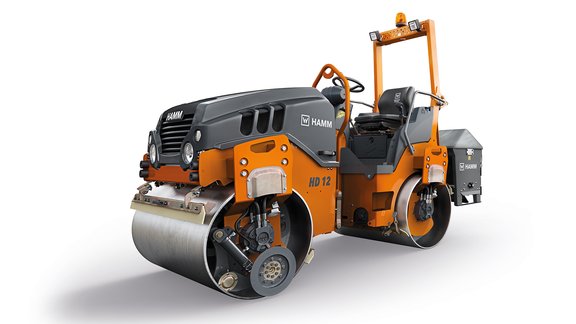

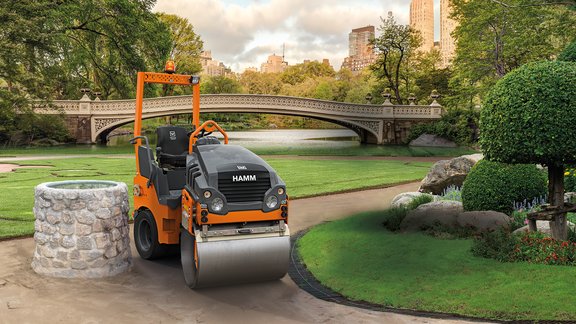

Excellent view of tires, machine and construction site

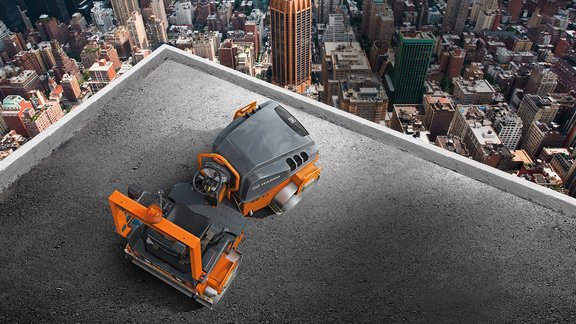

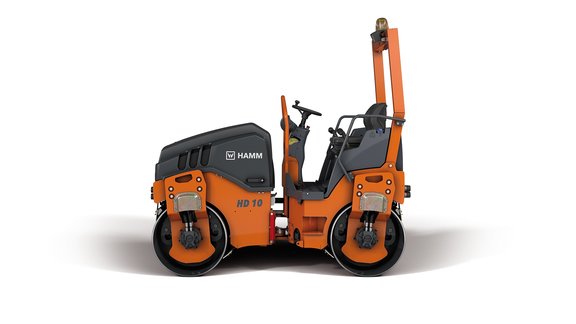

Compact dimensions

Specifications
Documents

Select a category to view specifications (or view all).

BASIC DATA

Series	HD CompactLine
Description	Tandem roller with two sets of tires
Name	HD 14i TT
Series	H264
Exhaust emissions category	EU Stage V / EPA Tier 4

DIESEL ENGINE

Power SAE J1995, kW	37.4 kW
Power SAE J1995, HP	50.1 hp
Type	V2403-CR
Power SAE J1995, rpm	2,700 RPM
Exhaust gas after-treatment	DOC-DPF
Number of cylinders	4
Power ISO 14396, HP	50.9 HP

DRIVE

Speed, infinitely variable	0,0-6,2
Climbing ability	40 %

MACHINE DIMENSIONS

Total length	116.7 in
Total height with cab	107.1 in
Ground clearance, center	12 in
Height, loading, min.	71.7 in
Wheelbase	76.8 in
Turning radius, inside	102.4 in
Total height with ROPS	102 in
Total width	51 in

SOUND LEVEL

Acoustic power LW(A), measured	100 db(A)
Acoustic power LW(A), sticker	101

SPRINKLER SYSTEM

Water sprinkler, type	Pressure
Water tank, capacity	68.7 gpm

STEERING

Steering, type	Articulated steering
Oscillation angle +/-	8 °

TANK CAPACITY/FILL CAPACITY

Fuel tank, capacity	19.3 gpm
Additive tank, capacity	4.8 gpm

WEIGHTS

Basic weight no cab, without ROPS	7,067 lbs
Axle load, rear	4,112 lbs
French classific., data/class	5,6/PLO
Operating weight, max.	9,702 lbs
Operating weight with ROPS	7,817 lbs
Axle load, front	3,704 lbs
Wheel load per tire, rear	1,028 lbs
Wheel load per tire, front	1,235 lbs
Operating weight with cab	8,478 lbs

WHEEL DIMENSIONS

Tire size, rear	80-16
Width over tires, rear	50.2 in
Number of tires, front	3
Tire size, front	10.5
Width over tires, front	44.4 in
