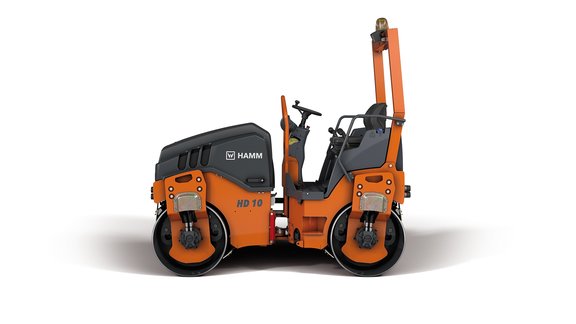

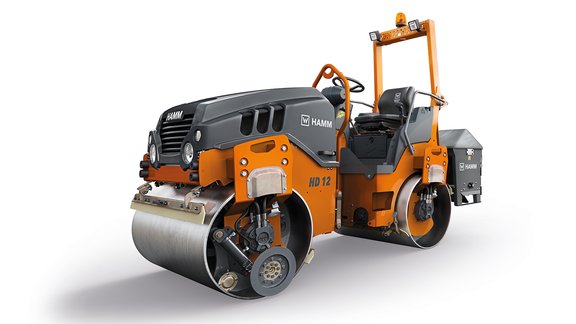

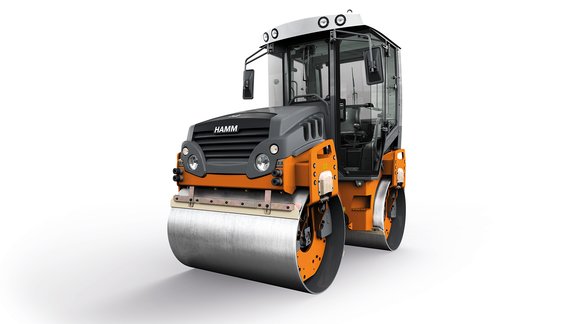

HD 13i VV

Hamm
Tandem Rollers Series HD CompactLine

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Request Quote

Simple, intuitive and language-neutral control
Simple transport, simple loading

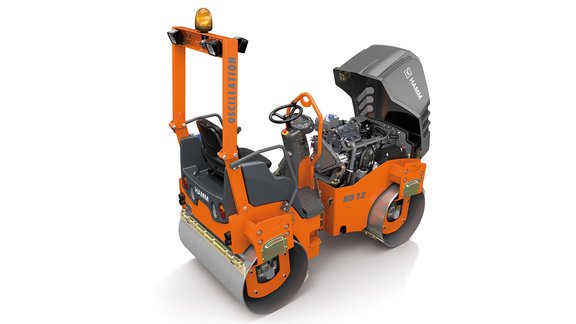

Ergonomic driver platform

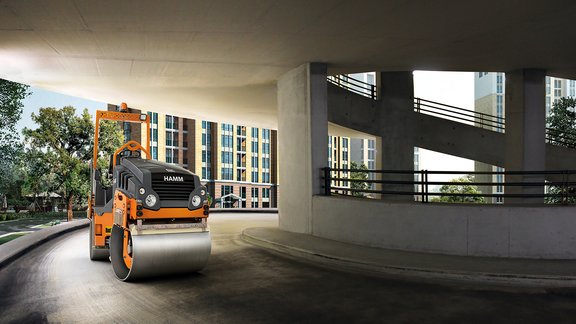

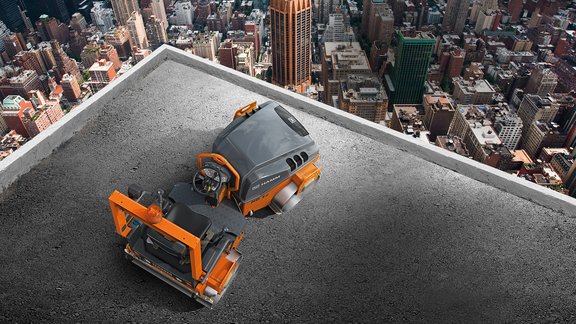

Excellent view of drum edge, machine and construction site environment

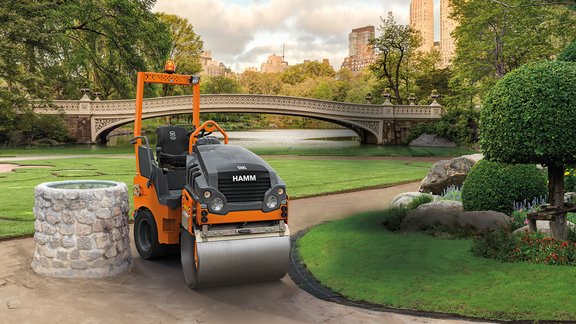

Compact dimensions

Specifications
Documents

Select a category to view specifications (or view all).

BASIC DATA

Name	HD 13i VV
Series	HD CompactLine
Exhaust emissions category	EU Stage V / EPA Tier 4
Description	Tandem roller with two vibrating roller drums
Series	H285

Documents

Downloads

Request a Quote

Fill out this form to request a quote. A representative will get in touch with you as soon as possible.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Location^*

Company

Machine

Additional Comments

Enable SMS messages

By entering my mobile number and checking this box I agree to receive important messages from regarding specials, renewals, events and general information about our products and services. Msg frq varies Text HELP to for help, Text STOP to to end. Msg&Data Rates May Apply. By opting in, I authorize The Papé Group, Inc. to deliver SMS messages using an automatic telephone dialing system and I understand that I am not required to opt in as a condition of purchasing any property, goods, or services. By leaving this box unchecked you will not be opted in for SMS messages at this time. Click to read Terms and Conditions, Privacy Policy

Clear all

Request Service

Fill out our request form to contact us about service.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Location^*

Company

Additional Comments

Clear all

Request Parts

Fill out our request form to contact us about parts.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Location^*

Company

Additional Comments

Clear all

Request Used Parts

Fill out our request form to contact us about used parts.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Location^*

Company

Additional Comments

Clear all

Request Rental

Fill out our request form to contact us about rentals.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Location^*

Company

Rental Type

Additional Comments

Clear all

Contact us about Precision Ag

Fill out our request form to contact us about precision ag technology.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Location^*

Company

Additional Comments

Clear all

Contact us

Fill out our contact form and a representative will be back in touch with you soon.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Company

Location^*

Additional Comments

Clear all

Learn More About Our Service Programs

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Company

Location^*

I want to learn more about...^*

Additional Comments

Clear all

Send us your feedback

We'd love to hear your feedback! Please fill out the form below to share.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Location^*

Company

Additional Comments^*

Clear all

Body Shop

Fill out this form to get in contact with our body shop. A representative will get in touch with you as soon as possible.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits. This field is required.

Location^*

Make

Model

VIN

Company

Are you currently working with an insurance company? If so, provide the company and claim number.

Description of damage^* This field is required.

How will the truck be brought to the Body Shop? i.e. towed, driven in, other

Do you need assistance with a tow? Yes
No

Clear all

Papé Technician Training Program Interest Application

First Name^* This field is required.

Last Name^* This field is required.

Phone Number^* This field requires 10 digits.

Company

Can this number receive text messages?

Your Email^* This field is required.

Alternative Phone Number This field requires 10 digits.

Address^*

High school/College

Graduation Year

Which Company Technician Program are you looking for?^*
Papé Machinery Construction & Forestry
Papé Machinery Agriculture & Turf
Papé Material Handling
Papé Kenworth

Thank you for your interest in becoming a mechanic for Papé! Please submit the form by clicking the button below. We will contact you shortly to discuss the next steps. Should you have any questions, please contact our Recruiting Manager Brandon Morse at bmorse@pape.com

Clear all

Join The Papé Team

Fill out our career form and a representative will be back in touch with you soon.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Location^*

Company

Desired Location^*

Category^*

Additional Comments

Clear all

Contact us

Fill out our contact form and a representative will be back in touch with you soon.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zipcode^* This field is required.

Company

Location^*

Additional Comments

Clear all

Thank you for coming in, you are important to us! Please fill in your information below and one of our members will help you as soon as we can.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zip Code^* This field is required.

Location^*

Company Name

Product(s) I'm interested in

Preferred Contact Method^*
Contact by Phone
Contact by Email

Clear all

Thank you for your interest in electrification, you are important to us! Please fill in your information below and one of our members will reach out to you as soon as we can.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zip Code^* This field is required.

Location^*

Company Name

Product(s) I'm interested in

Preferred Contact Method^*
Contact by Phone
Contact by Email

Clear all

Giveaway Submission

First Name^* This field is required.

Last Name^* This field is required.

Email Address^* This field is required.

Phone Number^* This field is required.

City^* This field is required.

Select State^*

Zip Code^* This field is required.

I am interested in receiving email newsletters about the following products:^* John Deere Lawn or Agriculture
John Deere Construction Equipment
Kenworth Trucks
Hyster®, Yale® or Material Handling
Ditch Witch® Equipment

Clear all

Contact us

Fill out our contact form and a representative will be back in touch with you soon.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Street^* This field is required.

City^* This field is required.

State/Province^*

Zipcode^* This field is required.

Company^* This field is required.

Location^*

Annual Revenue^* This field is required.

Vocation^* This field is required.

Gross Vehicle Weight Rating^* This field is required.

Fleet Class^*

Fleet Size^* This field is required.

Additional Comments

Clear all

Thank you for your interest in upgrading to a premium John Deere compact utility tractor. Please fill in your information below and a Papé Machinery member will contact you shortly.

First Name^* This field is required.

Last Name^* This field is required.

Your Email^* This field is required.

Phone Number^* This field requires 10 digits.

Zip Code^* This field is required.

Location^*

Product(s) I'm interested in

Clear all

Change Your Store

Ponderay, ID

Select Store

Spokane, WA

Select Store

Pasco, WA

Select Store

Wenatchee, WA

Select Store

Yakima, WA

Select Store

Sparks, NV

Select Store

Bend, OR

Select Store

Fowler, CA

Select Store

Kent, WA

Select Store

Mount Vernon, WA

Select Store

Klamath Falls, OR

Select Store

Tacoma, WA

Select Store

Portland, OR

Select Store

Kelso, WA

Select Store

Sacramento, CA

Select Store

French Camp, CA

Select Store

Tangent, OR

Select Store

Redding, CA

Select Store

Eugene, OR

Select Store

Medford, OR

Select Store

Montesano, WA

Select Store

Gilroy, CA

Select Store

Newark, CA

Select Store

Rohnert Park, CA

Select Store

Hilo, HI

Select Store

Wailuku, HI

Select Store

Kailua-Kona, HI

Select Store

Kapolei, HI

Select Store

Lihue, HI

Select Store

Personalize Your Experience

Highlight local Pape offers, dealers, and inventory by entering your ZIP code.

Power SAE J1995, kW	37.4 kW
Power ISO 14396, HP	50.9 HP
Exhaust gas after-treatment	DOC-DPF
Number of cylinders	4
Power SAE J1995, HP	50.1 hp
Type	V2403-CR
Power ISO 14396, rpm	2,700 RPM

Climbing ability, with vibration	30
Speed, infinitely variable	0,0 - 6,8
Climbing ability, without vibration	40 %

Drum thickness, rear	0.7 in
Track offset, right	2 in
Drum type, front	Smooth/non-split
Drum diameter, front	35.4 in
Track offset, left	0 in
Drum width, rear	51.2 in

Ground clearance, center	12 in
Total height with cab	107.1 in
Max. working width	53.1 in
Total length	116.7 in
Height, loading, min.	71.7 in
Wheelbase	76.8 in
Turning radius, inside	105.9 in
Total width	56.1 in
Total height with ROPS	102 in

Acoustic power LW(A), sticker	104
Acoustic power LW(A), measured	102 db(A)

Papé Machinery Construction & Forestry

Visit Papé.com

Construction Equipment

Compact Equipment

Forestry Equipment

Recycling & Scrap Handling

Paving

Industrial Utility

Papé Machinery Construction & Forestry

HD 13i VV

Find Location

Your Preferred Store

BASIC DATA

DIESEL ENGINE

DRIVE

DRUM DIMENSIONS

MACHINE DIMENSIONS

SOUND LEVEL

SPRINKLER SYSTEM

STEERING

TANK CAPACITY/FILL CAPACITY

VIBRATION

WEIGHTS

Documents

Equipment

Quick Links

Company

Papé Machinery Construction & Forestry

Change Your Store

Personalize Your Experience

Welcome

Water sprinkler, type	Pressure
Fuel tank, capacity	19.3 gpm

Steering, type	Articulated steering
Oscillation angle +/-	8 °

Amplitude, front, II	0.012 in
Vibration frequency, rear, I	3,600 VPM
Centrifugal force, front, I	14,400 lbs
Amplitude, rear, I	0.02 in
Vibration frequency, rear, II	3,060 VPM
Centrifugal force, front, II	8,775 lbs

French classific., data/class	11,1/VT0
Basic weight no cab, without ROPS	8,478 lbs
Axle load, front	4,675 lbs
Static linear load, front	91.3 lbs/in
Operating weight, max.	11,819 lbs
Axle load, rear	4,509 lbs
Operating weight with cab	9,735 lbs
Operating weight with ROPS	9,184 lbs

Papé Machinery Construction & Forestry

Visit Papé.com

Construction Equipment

Compact Equipment

Forestry Equipment

Recycling & Scrap Handling

Paving

Industrial Utility

Papé Machinery Construction & Forestry

HD 13i VV

Find Location

Your Preferred Store

BASIC DATA

DIESEL ENGINE

DRIVE

DRUM DIMENSIONS

MACHINE DIMENSIONS

SOUND LEVEL

SPRINKLER SYSTEM

STEERING

TANK CAPACITY/FILL CAPACITY

VIBRATION

WEIGHTS

Documents

Request a Quote

Request Service

Request Parts

Request Used Parts

Request Rental

Contact us about Precision Ag

Contact us

Learn More About Our Service Programs

Send us your feedback

Body Shop

Papé Technician Training Program Interest Application

Technician Application

Events, Donations and Sponsorships

Join The Papé Team

Contact us

Giveaway Submission

Vaccination Status Survey

General Newsletter

Hawaii Newsletter

Request Dealer Transfer

Contact us

Newsletter Sign Up

Change Your Store

Personalize Your Experience

Welcome
