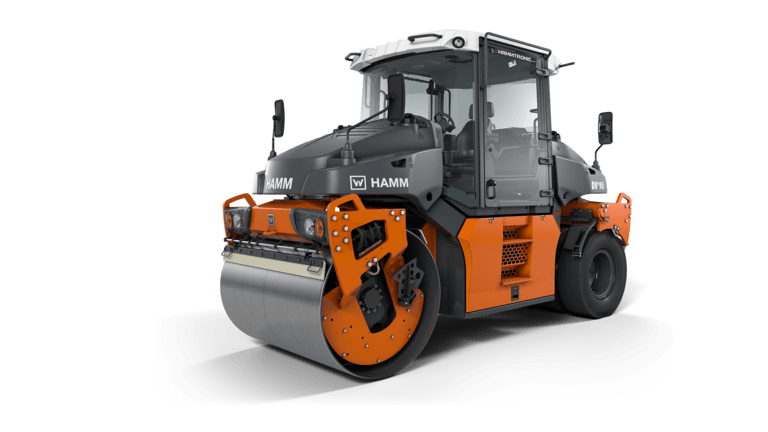

DV+ 90i VT-S
- Hamm
- Tandem Rollers Series DV+
Find Your Nearest Location
-
Operating concept Easy Drive
-
Electronic machine management Hammtronic
-

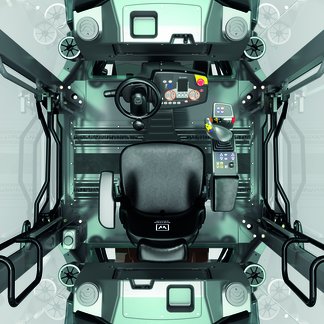

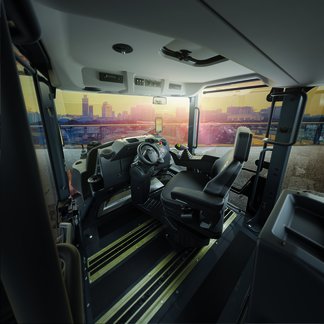

Large-space panorama cabin with free-view concept and free view of the drums and construction site
-
High compaction performance due to optimal setting of the compaction parameters
-
Intelligent water sprinkler system
![](https://pape-foursite-stage.s3.amazonaws.com/construction.papemachinery.com/f8066323-fc00-402d-a974-e9e7386a8f45.png)
- + Expand All
- - Close All
-
HAMMTRONIC
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
-
Split drum
When negotiating corners and roundabouts and when performing tight steering maneuvers, attempting to perform compaction without twin drums can lead to material being displaced and cracks forming on the surface. A split drum prevents this from occurring as the two halves rotate at different speeds. This minimizes shear stress on the asphalt and avoids surface cracks and material being displaced. With the split oscillation drum, HAMM also offers a technology that combines the advantages of a split drum with those of oscillation. The result: Maximum compaction quality.
-
Easy Drive
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
-
HAMM Compaction Quality (HCQ)
HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver's platform then visualizes the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.
BASIC DATA
Description | Tandem roller with vibrating roller drum and set of tires |
Series | H278 |
Name | DV+ 90i VT-S |
Series | DV+ |
DIESEL ENGINE
Exhaust gas after-treatment | DOC-DPF-SCR |
Number of cylinders | 4 |
Power ISO 14396, rpm | 2,200 RPM |
Power SAE J1349, kW | 74.4 kW |
Power SAE J1349, HP | 99.7 hp |
Type | TCD 3.6 L4 |
Emission standard | EU Stage V / EPA Tier 4 |
Power ISO 14396, HP | 101.2 HP |
DRIVE
Climbing ability, with vibration | 40 |
Climbing ability, without vibration | 45 % |
Speed, infinitely variable | 0,0-6,8 |
Regulation, infinitely variable | Hammtronic |
DRUM DIMENSIONS
Drum diameter, front | 47.2 in |
Drum thickness, front | 0.7 in |
Drum width, front | 66.1 in |
Drum type, front | Smooth/split |
Track offset, left | 53.9 in |
MACHINE DIMENSIONS
Total width with cab | 73.2 in |
Total height with cab | 116.7 in |
Total length | 174.8 in |
Wheelbase | 128 in |
Curb clearance, left | 26.2 in |
Height, loading, min. | 85.5 in |
Turning radius, inside | 118.1 in |
Max. working width | 120.1 in |
SOUND LEVEL
Acoustic power LW(A), sticker | 106 |
Acoustic power LW(A), measured | 104 db(A) |
SPRINKLER SYSTEM
Water sprinkler, type | Pressure |
Fuel tank, capacity | 42.3 gpm |
Water tank, capacity | 214 gpm |
STEERING
Steering, type | All-wheel, analog |
Oscillation angle +/- | 4 ° |
TANK CAPACITY/FILL CAPACITY
AdBlue/DEF tank, content | 5.3 gpm |
Additive tank, capacity | 7.9 gpm |
VIBRATION
Centrifugal force, front, II | 17,550 lbs |
Centrifugal force, front, I | 18,900 lbs |
Amplitude, front, I | 0.024 in |
Vibration frequency, front, II | 3,000 VPM |
Amplitude, front, II | 0.016 in |
Vibration frequency, front, I | 2,520 VPM |
WEIGHTS
French classific., data/class | 23,0/VX1 / 10,1/PLO |
Operating weight with cab | 19,867 lbs |
Static linear load, front | 165.2 lbs/in |
Operating weight, max. | 25,887 lbs |
WHEEL DIMENSIONS
Size of tires, rear | 11.00-20 |
