H 18i

Hamm
Soil Compactors Series H

Contact Your Preferred Store:

Hamm H 18i

Key Features & Specs

Highlights

3-point articulation for excellent traction and cross-country mobility

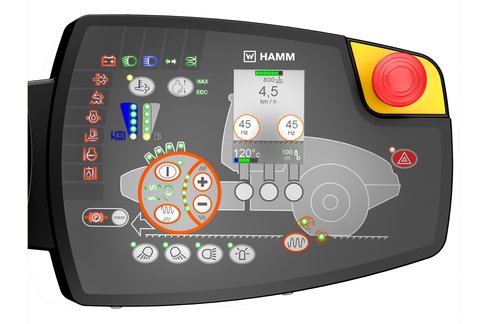

Operating concept Easy Drive
Electronic machine management Hammtronic

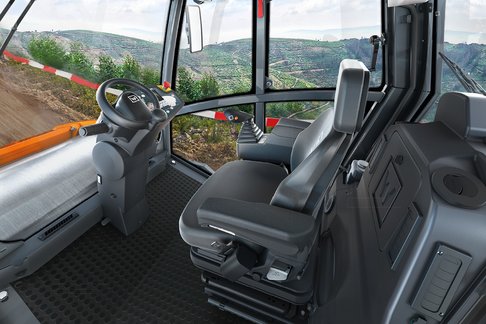

Excellent view of machine and construction site
High compaction performance due to linear load and big amplitudes

Specifications

BASIC DATA

Name	H 18i
Exhaust emissions category	EU Stage V / EPA Tier 4
Series	H
Description	Compactor with smooth drum
Series	H268

DIESEL ENGINE

Power ISO 14396, rpm	2,300 RPM
Power SAE J1349, HP	214.4 hp
Exhaust gas after-treatment	DOC-DPF-SCR
Power ISO 14396, HP	217.6 HP
Type	TCD 6.1 L6
Number of cylinders	6
Power SAE J1349, kW	160 kW

DRIVE

Regulation, infinitely variable	Hammtronic
Speed, infinitely variable	0,0 - 7,5
Climbing ability, with vibration	53
Climbing ability, without vibration	58 %

DRUM DIMENSIONS

Drum diameter, front	63 in
Drum width, front	84.3 in
Drum thickness, front	1.8 in
Size of tires, rear	AW 23.1-26 12 PR
Drum type, front	Smooth

MACHINE DIMENSIONS

Slope angle, front	43 °
Total width with cab	90.9 in
Ground clearance, center	15.4 in
Total height with cab	116.9 in
Wheelbase	128.5 in
Total length	259.8 in
Slope angle, rear	28 °
Height, loading, min.	91.3 in
Turning radius, inside	165.4 in

SOUND LEVEL

Acoustic power LW(A), sticker	106
Acoustic power LW(A), measured	104 db(A)

STEERING

Steering, type	Articulated steering
Oscillation angle +/-	10 °

TANK CAPACITY/FILL CAPACITY

Fuel tank, capacity	74 gpm
AdBlue/DEF tank, content	8.5 gpm

VIBRATION

Vibration frequency, front, II	1,800 VPM
Vibration frequency, front, I	1,620 VPM
Amplitude, front, I	0.081 in
Centrifugal force, front, II	54,450 lbs
Centrifugal force, front, I	74,475 lbs
Amplitude, front, II	0.048 in

WEIGHTS

Operating weight with ROPS	40,186 lbs
French classific., data/class	79,6/VM5
Operating weight with cab	40,605 lbs
Static linear load, front	311.3 lbs/in
Axle load, front	26,239 lbs
Operating weight, max.	45,291 lbs
Axle load, rear	14,366 lbs

WHEEL DIMENSIONS

Width over tires, rear	85 in
Number of tires, rear	2
