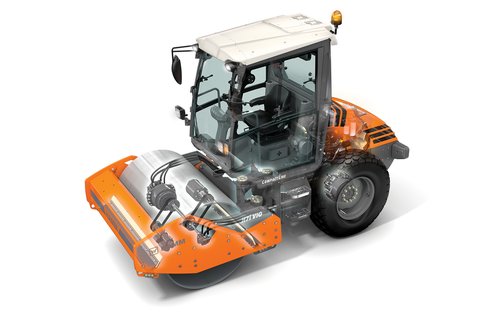

H 7i VIO

  • Hamm
  • Soil Compactors Series H CompactLine

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Highlights

  • 3-point articulation for excellent traction and cross-country mobility
  • Simple, intuitive and language-neutral control
  • High climbing ability
  • Compact dimensions
  • VIO compaction system—vibration or oscillation
  • + Expand All
  • - Close All
  • Oscillation

    In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement. This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases. The scope of application is enormous.

  • Three-point articulation

    Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

  • HAMM Compaction Quality (HCQ)

    HCQ comprises a number of HAMM products designed to measure, monitor, document and control compaction and compaction processes. This includes the HAMM Compaction Meter, the HAMM Temperature Meter and the HCQ Navigator. These components continue to determine the rigidity value, the asphalt temperature and the position of the roller throughout compaction. A panel PC (touchscreen) on the driver's platform then visualizes the entire data package in the form of a real-time "compaction map" and shows the roller operator where has already been sufficiently compacted and where further passes are still required. The WITOS HCQ Navigator process module also allows you to follow the construction site progress worldwide in real time.

BASIC DATA

Description Compactor with VIO-drum
Series H270
Name H 7i VIO
Series H CompactLine

Documents
