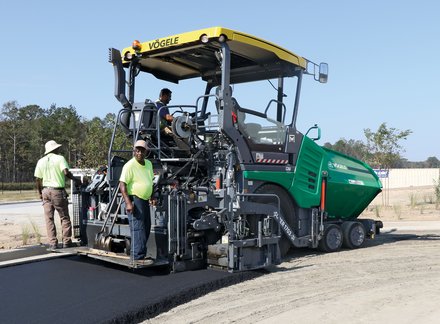

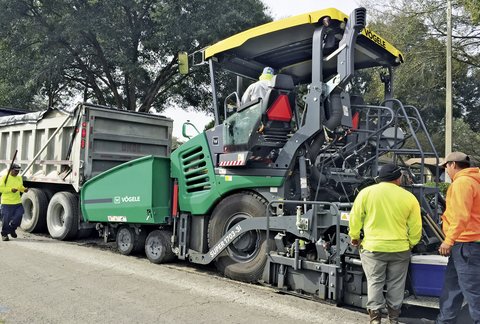

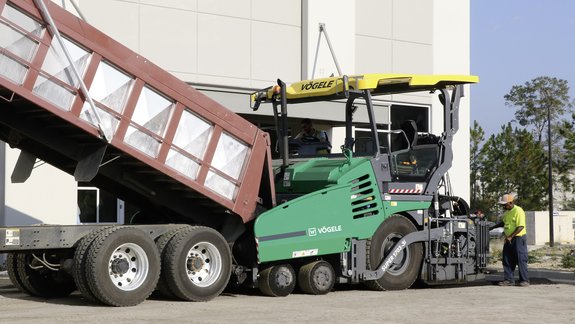

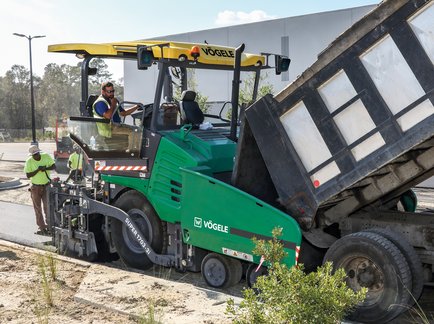

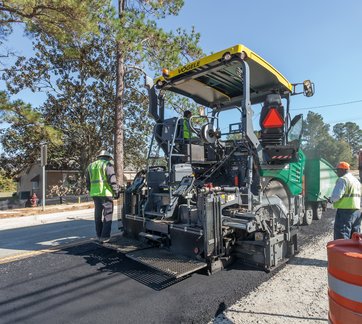

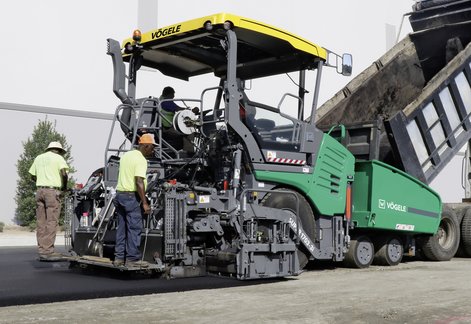

SUPER 1703-3i

  • Vogele
  • Universal Class

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

The compact-sized wheeled paver in the 8-foot-class

The wheeled SUPER 1703-3i paver has been specially designed for the requirements of the North American and Australian market. The 8-foot class wheeled paver is an all-rounder with great mobility. With its compact dimensions and Pivot Steer brake, the wheeled paver features excellent maneuverability, making it suitable for a wide variety of applications. The VÖGELE ErgoPlus 3 operating concept makes using the paver even safer and easier.

  • + Expand All
  • - Close All
  • Pivot Steer – the steering brake

    With their standard Pivot Steer function, the SUPER wheeled pavers are almost as agile as the crawler-track models. A minimal internal radius enables the machines to turn virtually on the spot. This is a huge advantage, particularly on cramped job sites, such as those found in urban environments.

  • ErgoPlus 3

    Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. That is why the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.

  • Niveltronic Plus

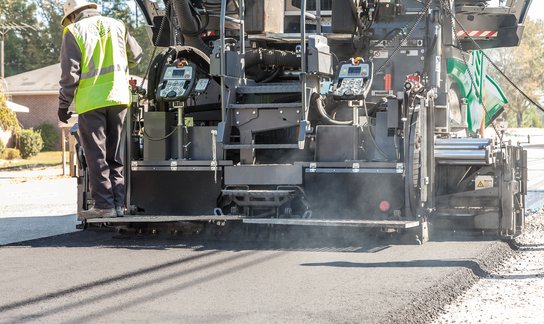

    VÖGELE Niveltronic Plus Automated Grade and Slope Control is a unique grade and slope control system providing the basis for efficient paving true to line and level on any kind of base. Niveltronic is an in-house development by VÖGELE and is based on many years’ experience in grade and slope control technology. In terms of ease of operation, quality and reliability, Niveltronic Plus represents the perfect solution for all grade and slope control tasks.

  • VÖGELE EcoPlus

    The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.

CONVEYORS AND AUGERS

Height infinitely variable
Version with replaceable feeder bars, direction of conveyor temporarily reversible
Augers 2
Version with replaceable auger blades, reversible direction of rotation
Standard height hydraulically adjustable by 6 in
Drive separate hydraulic drives, proportional control
Lubrication centralized lubrication system, electrically-driven grease pump
Speed 120 rpm
