SUPER 2000-3i

Vogele
Highway Class

Contact Your Preferred Store:

Key Features & Specs

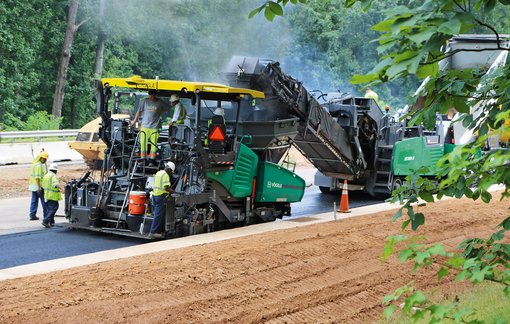

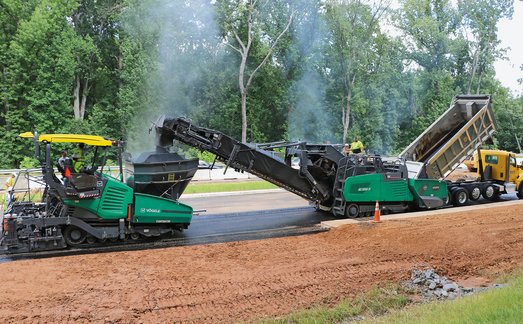

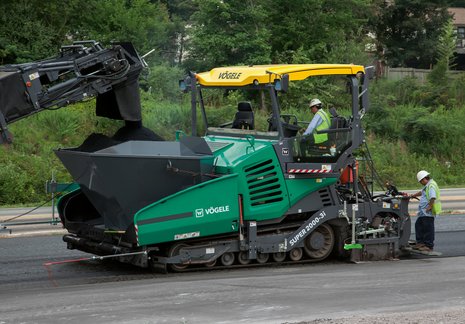

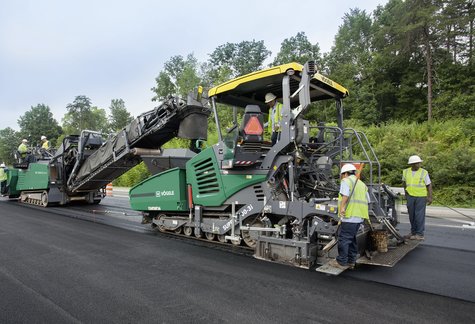

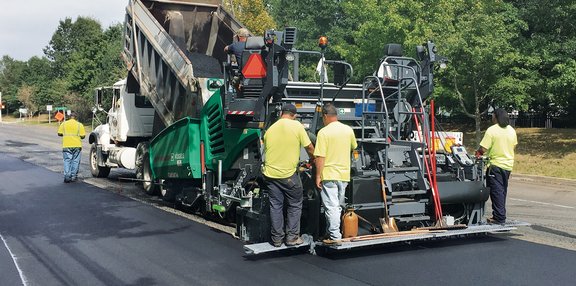

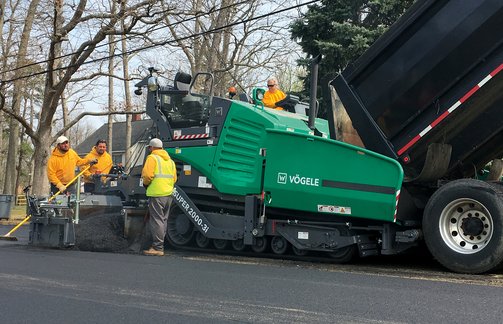

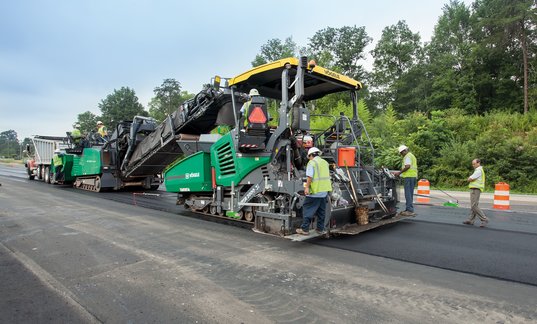

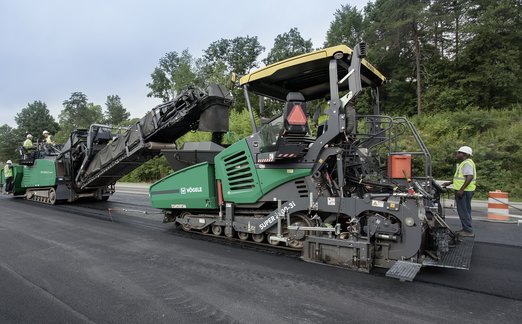

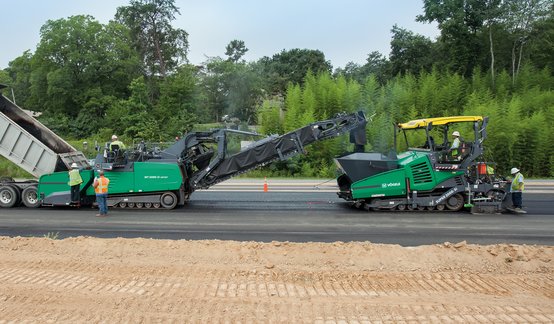

The versatile Highway Class tracked paver – A true SUPER paver

With the SUPER 2000-3i VÖGELE has now developed an entirely new paver for the North American market. The tracked paver is designed primarily for use in highway construction and large-scale commercial applications, which are all about power and productivity. With a powerful, 6-cylinder engine and high-output hydraulic drives, the paver is fully equipped for these jobs.

Specifications

CONVEYORS AND AUGERS

Height	infinitely variable
Lubrication	centralized lubrication system, electrically-driven grease pump
Speed	130 rpm
Version	with replaceable auger blades, reversible direction of rotation
Conveyors	2
Version	with replaceable feeder bars, direction of conveyor temporarily reversible
Drive	separate hydraulic drives, proportional control
Standard height	hydraulically adjustable by 6 in

DIMENSIONS AND WEIGHTS

Length	Screed Total length VR 600 22 ft 6 in VF 600 21 ft 6 in AB 600 TV 21 ft 9 in
Maximum laydown rate	1,540 US t/hr
Operating weight	Screed Total weight VR 600 49,160 lbs VF 600 48,280 lbs AB 600 TV 49,490 lbs

DRIVE

Exhaust emissions after-treatment	DOC, SCR
Nominal output	250 hp / 2,000 RPM
ECO mode output	224 hp / 1,700 rpm
Manufacturer	Cummins
Type	QSB 6.7 - C250
Exhaust emissions standard	European exhaust emissions standard 4, US standard EPA Tier 4f
Version	liquid-cooled 6-cylinder diesel engine

MATERIAL HOPPER

Standard	oscillating
Positions	can be adjusted in a forward direction by 3 or 6 in

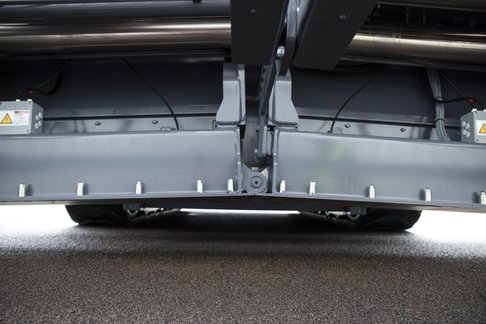

SCREED

Screed heating	electric, thermostat-controlled
Power supply	three-phase AC generator
Screed	Type Basic width Maximum width Compacting systems VF 600 10 ft 25 ft 5 in V VR 600 10 ft 28 ft 3 in V AB 600 9 ft 10 in 27 ft 11 in TV

UNDERCARRIAGE

Track tension adjuster	hydraulic
Lubrication of track rollers	lifetime
Version	provided with rubber pads
Travel speed (up to)	7.46 mph
Ground contact	2,994 mm x 457 mm
Paving speed (up to)	250 fpm
Traction drive crawler tracks	electronically controlled separate hydraulic drive provided for each crawler track
