  • Mixing procedures

    Cold recycling can either be carried out in-plant by transporting the material recovered from an existing road to a central warehouse and passing it through a mixing plant, or in-place/in-situ using a cold recycler.

    In the in-place/in-situ mixing process, a cold recycler granulates the existing pavement and homogeneously mixes in the binding agent and water.

    In the in-plant mixing process, RAP and crushed rock are transported to a mixing plant near the construction site.

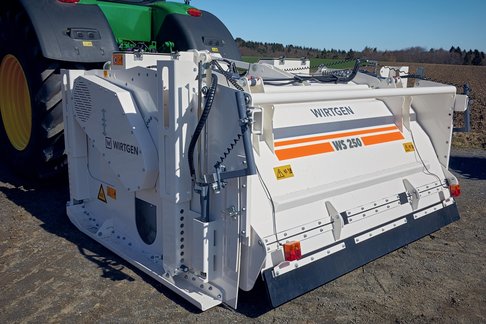

  • Soil stabilization with tractor-towed stabilizers

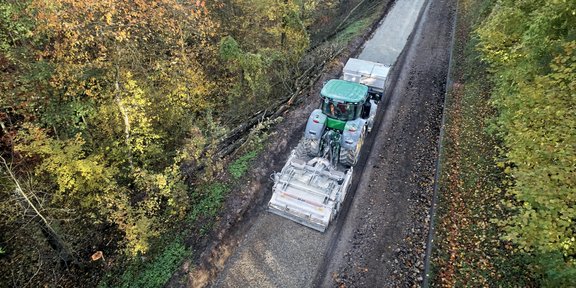

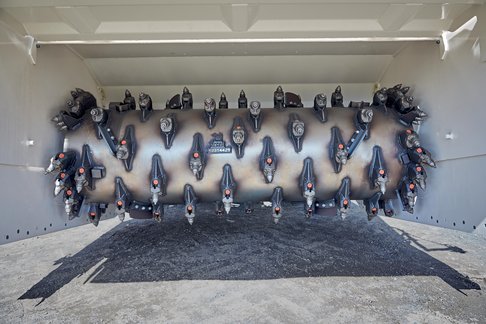

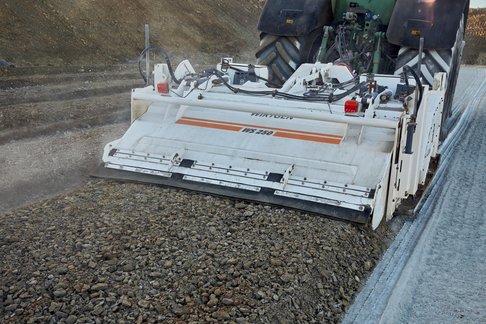

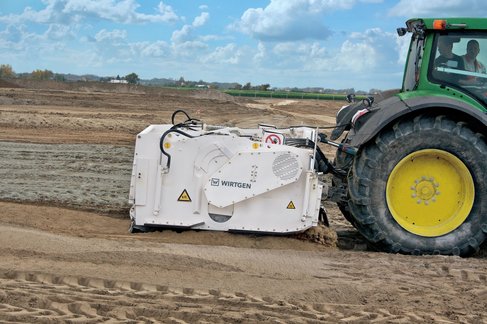

    Whether heavy, coarse-grained, or sandy, the tractor-towed stabilizer reliably transforms the sub-base into a surface with excellent paving and compacting properties. Mixed granulate that is too coarse is crushed in the mixing chamber by the milling and mixing rotor. Soft soil is covered with lime, e.g. by a spreader truck, before processing. During the subsequent, homogeneous mixing process using the milling and mixing rotor, the lime removes the moisture from the soil.

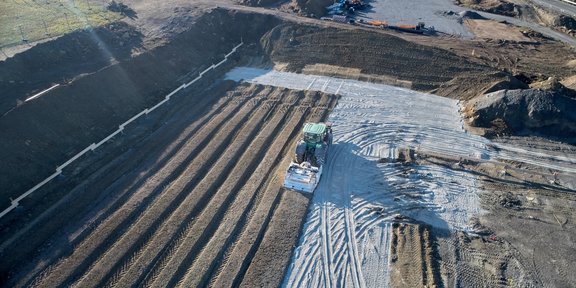

    The recipe for increasing long-term stability in the face of traffic and weather conditions is to strengthen the soil by adding binding agents such as cement. The result of soil stabilization is a rigid surface with a permanently high bearing capacity as well as excellent frost resistance.

SPECIFICATIONS

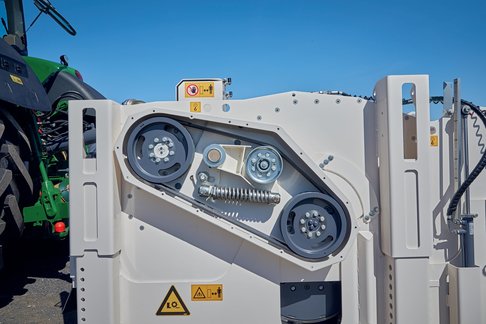

Driveshaft speed 1,000 RPM
Working depth 20 in
Rear power lift Three-point, category 3 and 4
Working width max. 8 ft 2 in
Max. output at the driveshaft 280 kW / 376 hp
Loading weight, front 5,511.6 - 6,613.9 lbs
Recommended engine power 220 kW / 296 hp
Operating weight, CE 10,483 - 11,034 lbs
Travel drive continuous 0 – X km/h

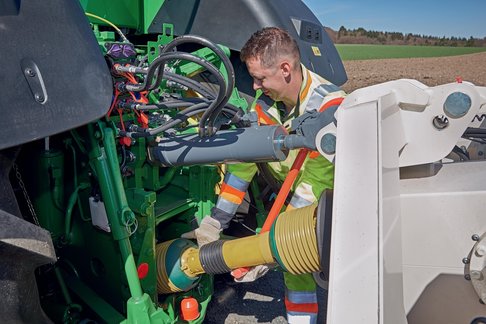

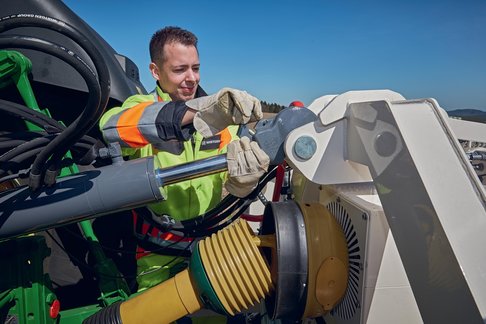

Driveshaft with 1 ¾” internal toothing, 20 or 6 teeth
