Properties

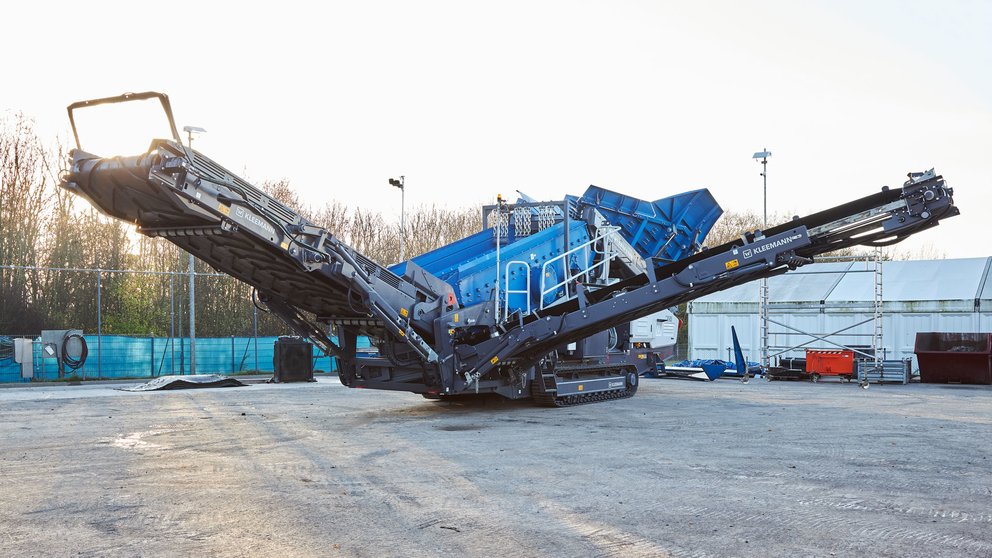

Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 802 EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 802 EVO easily to new application conditions.

  • Mobile double-deck screening unit

  • Diesel-hydraulic drive

  • Screen for coarse elements

  • Maximum feed size 500 mm

  • + Expand All
  • - Close All
  • External power supply

    (Dual Power Option)

    Electricity is often cheaper than diesel. Added to this are ecological, legal or social provisions that often restrict the use of diesel.

    The screening plants are equipped with a Dual Power System with two electric motors each with 37 kW (50 PS) for high work output combined with low fuel consumption. Connection is made via an electrical device. This permits a quick switch between two power sources (diesel engine or external power supply). Users thus remain flexible and the pollutant emission is reduced.

  • Screen surfaces

    The matching screen surfaces for optimum results

    During the daily routine, screen surfaces are really put to the test. To guarantee long-term, reliable screening to the desired final grain size, the screen surfaces from KLEEMANN are made of particularly wear-resistant spring wire steel or round wire.

    Thanks to the double-anchoring at the crossings, they have a high mesh stability for uniform screening. The screening result itself is determined by numerous factors. The most important influence factors include the grain shape, the humidity content and the feed volume.

  • Scalping screens

    Scalping screens are designed such that they can sort material even before the first crushing stage. For this purpose, different screening plant versions are available with different screen casing sizes as double-deck screening plants.

  • Everything at a glance with WITOS®

    The WITOS FleetView telematic system provides support for efficient fleet and service management. It provides information on the operating status of the machine independently of the location and time. Even users with only one machine benefit from WITOS.

    From support for maintenance and diagnostic processes to the targeted control of the machines: the range of services is diversified and it is an ideal supplement to the WIRTGEN GROUP Smart Service agreements.

BELT CONVEYOR DISCHARGE, FINE GRAIN

Width x Length 1,200 mm x 4,380 mm
