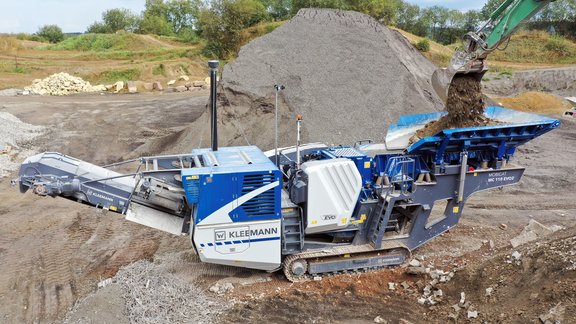

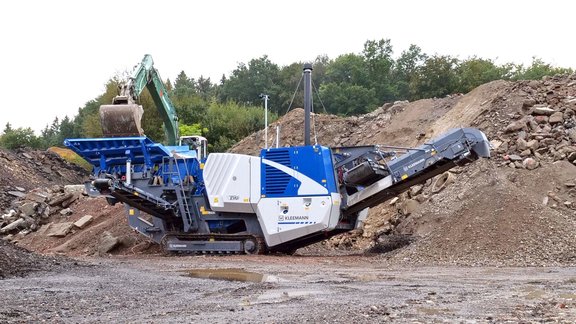

The jaw crusher MOBICAT MC 110 EVO2 is used for the precrushing of almost all natural rock and in recycling. Compact dimensions, efficient prescreening, simple operation via SPECTIVE as well as impressive production output characterize the efficient key player.

  • Continuous Feed System (CFS) for optimal crusher feeding
  • Innovative crusher unblocking system for extremely short downtimes
  • Innovative overload and control systems for protection of the crusher
  • Independently vibrating double-deck prescreen
  • Efficient and powerful diesel-direct drive
  • Simple and intuitive SPECTIVE control concept

CRUSHER

Gap width min. 1.2 in
Crusher capacity 215 hp
Single toggle jaw crusher type STR110-070
Gap width max. 7 in
Crusher gap adjustment Fully hydraulic
Crusher drive type direct
Crusher weight (approx.) 37,500 lbs
Crusher inlet (W x D) 1,100 mm x 700 mm
Crusher inlet width 44 in
