MCO 130 S PRO
- Kleemann
- Mobile Cone Crushers
Find Your Nearest Location
Key Features & Specs
Properties

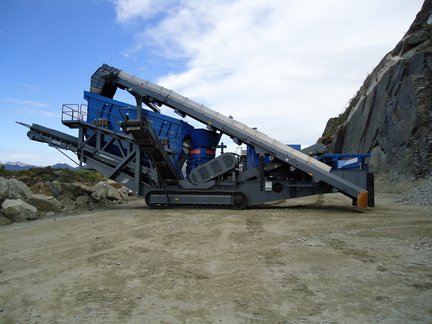

The mobile cone crusher MOBICONE MCO 130 S PRO has a similar design to the MOBICONE MCO 110 S PRO. However, its cone crusher achieves significantly higher outputs due to the larger feed opening of 1300 mm. The MCO 130 S PRO is designed for use as a secondary crusher in the second or third stage and allows the production of up to three defined final grain sizes. Linking with other crushing and screening plants is possible thanks to the electric drive. Thanks to its sturdy design, it is perfect for crushing hard, abrasive natural rock.
-
Cone crusher with triple-deck secondary screening unit as secondary or tertiary crusher
-
Closed material loop for the production of three defined final grain sizes
-
Diesel-electric drive concept
-
Can be linked with other KLEEMANN plants (option)
- + Expand All
- - Close All
-
Cone crusher
Cone crushers crush the feed material in a circulating opening and closing crushing gap between bowl liner and crusher cone. Opening and closing also takes place simultaneously on the opposites sides of the crushing chamber.
-
Screen surfaces
During the daily routine, screen surfaces are really put to the test. To guarantee long-term, reliable screening to the desired final grain size, the screen surfaces from KLEEMANN are made of particularly wear-resistant spring wire steel or round wire.
Thanks to the double-anchoring at the crossings, they have a high mesh stability for uniform screening. The screening result itself is determined by numerous factors. The most important influence factors include the grain shape, the humidity content and the feed volume.
-
Innovative diesel-electric drive concept - impressive performance with the best possible consumption values
The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.
Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)
External power supply (B) for even more economic application in quarries
CRUSHER
| Crusher weight (approx.) | 51,787 lbs |
| Crusher system size | 52 in |
| Crusher drive type | electric |
CRUSHER DISCHARGE CONVEYOR
| Crusher discharge conveyor length | 28 ft 10 in |
| Width | 47 in |
CRUSHING CAPACITY
| Crushing capacity at 0-56 mm approx. | 468 US t/hr |
| Crushing capacity at 0-45 mm approx. | 397 US t/hr |
| Crushing capacity at 0-32 mm approx. | 331 |
| Crushing capacity at 0-63 mm approx. | 523 US t/hr |
DISCHARGE CONVEYOR, SCREEN OVERFLOW
| LOWER DECK - Discharge height approx. | 14 ft |
| CENTER DECK - Width x length approx. | 31 in x 26 ft 3 in |
| LOWER DECK - Width x length approx. | 26 in x 26 ft 3 in |
| CENTER DECK - Discharge height approx. | 13 ft |
FEEDING CONVEYOR
| Length | 57 ft 1 in |
| Width x length | 47 in x 57 ft 1 in |
FEEDING UNIT
| Hopper width with extension | 16 ft 1 in |
| Hopper length with extension | 9 ft 6 in |
| Feed height | 10 ft 9 in |
| Hopper width | 11 ft 10 in |
| Feed height with extension | 14 ft 11 in |
| Hopper length | 6 ft 11 in |
| Max. feed size | 11 in |
| Hopper volume | 4.6 yd³ |
| Hopper volume with extension | 19 yd³ |
FINAL SCREENING UNIT
| Type | Triple-deck screen machine |
| Upper deck (W x L) | 93 in x 21 ft x 8 in |
FINE GRAIN DISCHARGE CONVEYOR
| Discharge height approx. | 17 ft 1 in |
| Width x length | 63 in x 32 ft 10 in |
| Length | 32 ft 10 in |
POWER SUPPLY UNIT
| Drive concept | Diesel-electric |
| Generator | 910 kVA |
| Power supply unit output | 719 hp |
TRANSPORT
| Transport weight of basic plant | 183,000 lbs |
| Transport height approx. (standard value) | 14 ft 5 in |
| Transport length approx. | 66 ft 1 in |
| Transport width approx. | 14 ft 1 in |
