MCO 110 S PRO
- Kleemann
- Mobile Cone Crushers
Find Your Nearest Location
Key Features & Specs
Properties

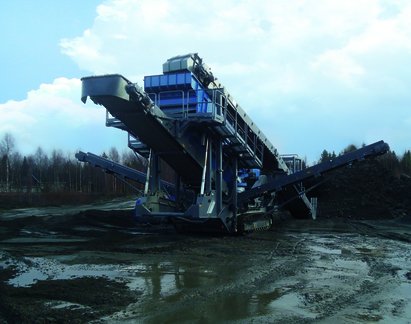

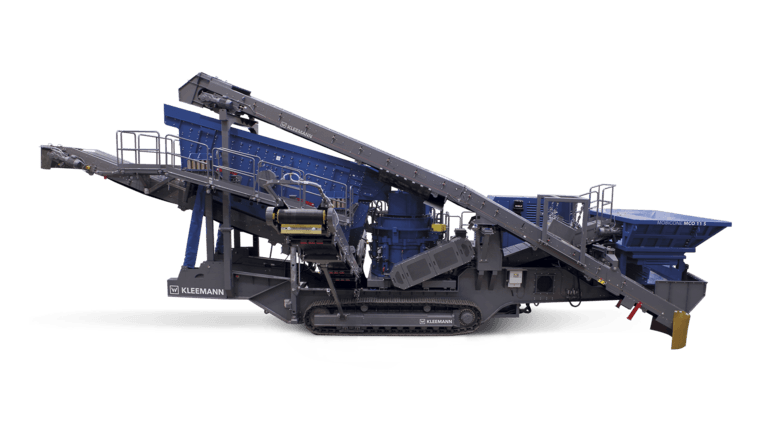

The MOBICONE MCO 110 S PRO is a mobile cone crusher with integrated triple-deck secondary screening unit. Up to three defined final grain sizes can be discharged thanks to the closed material loop. It is mainly used in the second or third crushing stage, whereby the electric drive of the plant facilitates the simple linking with other Kleemann crushing and screening plants. Thanks to its sturdy design, it is perfect for crushing hard, abrasive natural rock.
-
Closed material loop for the production of three defined final grain sizes with triple-deck classifying screen
-
As a secondary and tertiary crusher
-
Diesel-electric drive concept
-
Can be linked with other KLEEMANN plants (option)
- + Expand All
- - Close All
-
Cone crusher
Cone crushers crush the feed material in a circulating opening and closing crushing gap between bowl liner and crusher cone. Opening and closing also takes place simultaneously on the opposites sides of the crushing chamber.
-
Screen surfaces
During the daily routine, screen surfaces are really put to the test. To guarantee long-term, reliable screening to the desired final grain size, the screen surfaces from KLEEMANN are made of particularly wear-resistant spring wire steel or round wire.
Thanks to the double-anchoring at the crossings, they have a high mesh stability for uniform screening. The screening result itself is determined by numerous factors. The most important influence factors include the grain shape, the humidity content and the feed volume.
-
Innovative diesel-electric drive concept - impressive performance with the best possible consumption values
The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.
Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)
External power supply (B) for even more economic application in quarries
CRUSHER
| Crusher system size | 44 in |
| Crusher drive type | electric |
| Crusher weight (approx.) | 35,340 lbs |
CRUSHER DISCHARGE CONVEYOR
| Discharge height approx. | 16 ft 10 in |
| Width | 31 in |
| Crusher discharge conveyor length | 25 ft 7 in |
CRUSHING CAPACITY
| Crushing capacity at 0-45 mm approx. | 320 US t/hr |
| Crushing capacity at 0-63 mm approx. | 386 US t/hr |
| Crushing capacity at 0-32 mm approx. | 253 |
| Crushing capacity at 0-56 mm approx. | 347 US t/hr |
DISCHARGE CONVEYOR, SCREEN OVERFLOW
| CENTER DECK - Discharge height approx. | 13 ft |
| LOWER DECK - Discharge height approx. | 5 in |
| CENTER DECK - Width x length approx. | 26 in x 26 ft 3 in |
| LOWER DECK - Width x length approx. | 26 in x 26 ft 3 in |
FEEDING CONVEYOR
| Length | 49 ft 10 in |
| Width x length | 39 in x 49 ft 10 in |
FEEDING UNIT
| Max. feed size | 8 in |
| Feed height | 8 ft 10 in |
| Hopper width with extension | 13 ft 1 in |
| Hopper length with extension | 10 ft 2 in |
| Hopper width | 10 ft 2 in |
| Hopper length | 6 ft 7 in |
| Feed height with extension | 11 ft 10 in |
| Hopper volume with extension | 13.1 yd³ |
| Hopper volume | 3.9 yd³ |
FINAL SCREENING UNIT
| Type | Triple-deck screen machine |
| Upper deck (W x L) | 81 in x 17 ft x 11 in |
FINE GRAIN DISCHARGE CONVEYOR
| Width x length | 47 in x 28 ft 10 in |
| Length | 28 ft 10 in |
| Discharge height approx. | 17 ft 1 in |
POWER SUPPLY UNIT
| Generator | 550 kVA |
| Drive concept | Diesel-electric |
| Power supply unit output | 489 hp |
TRANSPORT
| Transport length approx. | 64 ft 5 in |
| Transport height approx. (standard value) | 13 ft 3 in |
| Transport width approx. | 11 ft 6 in |
| Transport weight of basic plant | 159,450 lbs |
