John Deere 244L

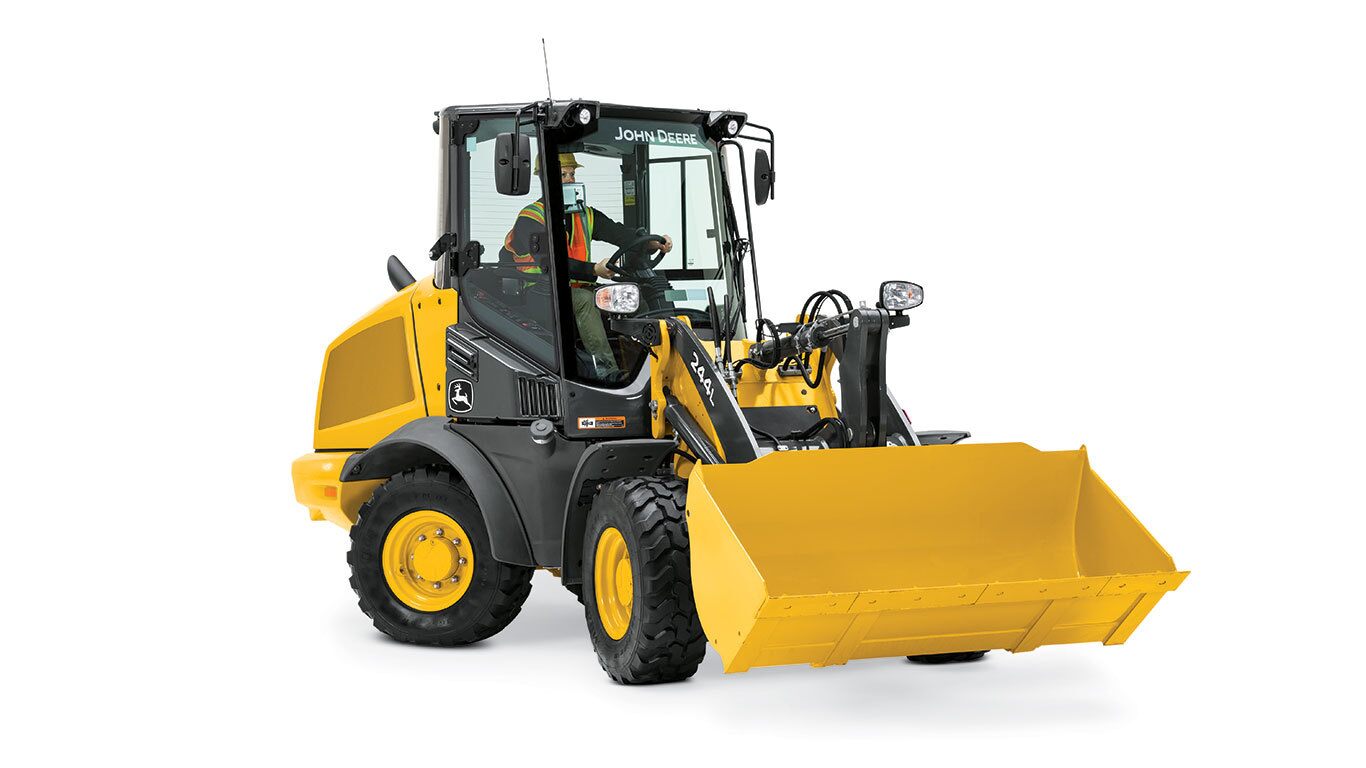

244L Wheel Loader

  • John Deere
  • Compact Wheel Loaders

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote Apply For Financing
Key Features & Specs

  • Net Power: 52kW (71 hp)
  • Operating Weight: 5560 kg (12,258 lb.)
  • Bucket Capacity: 0.8–1.1 m3 (1.0–1.4 cu. yd.)
    • ENGINE NET POWER 52kW (71 hp)
    • OPERATING WEIGHT 5 560 kg (12,258 lb.)
    • BUCKET CAPACITY 0.8–1.1 m3 (1.0–1.4 cu. yd.)
    • CAB HEIGHT 2.75 m (9 ft. 0 in.)
    • + Expand All
    • - Close All
    • Quick Standard Speed
      With a standard speed of up to 23 mph, the 244L Compact Wheel Loader can make some pretty quick moves on and between jobsites.
    • Industry-Exclusive Articulation Plus™ Steering
      Articulation Plus™ Steering System combines 30 degrees of articulation with an additional 10 degrees of rear-wheel steering.
    • Engine
      An EPA Final Tier 4 (FT4)/EU Stage V emission-certified four-cylinder diesel engine helps this compact loader deliver power without compromise.
    • New Loader Arm & Coupler Design
      New design improves the lifting path to near parallel – for better load-carrying capability than previous compact loader models.

    CAPACITIES

    Fuel Tank, ltr (gallons (US)) 90 (23.8)
    System Pressure, bar (PSI) 230 (3335)
    Largest bucket capacity, m³ (yd³) 1.1 (1.4)
    Pump Flow - 1, lt/min (gallons (US) / min) 70 (18)
    Bucket Capacity - Smallest, m³ (yd³) 0.8 (1)
    Heaped Capacity, m³ (yd³) 0.8 (1)
    Alternator Output, Amp 80
    Breakout - Bucket , kgf (lbf) 4895 (10792)
    Axle - Front, ltr (gallons (US)) 5.2 (1.375)
    Hydraulic Tank, ltr (gallons (US)) 66 (17.4)
    Pump Type Gear
    Ride Control System Optional
    System Voltage, V 12
    Axle - Rear, ltr (gallons (US)) 4.7 (1.25)
    Transmission, ltr (gallons (US)) 1.7 (0.45)
